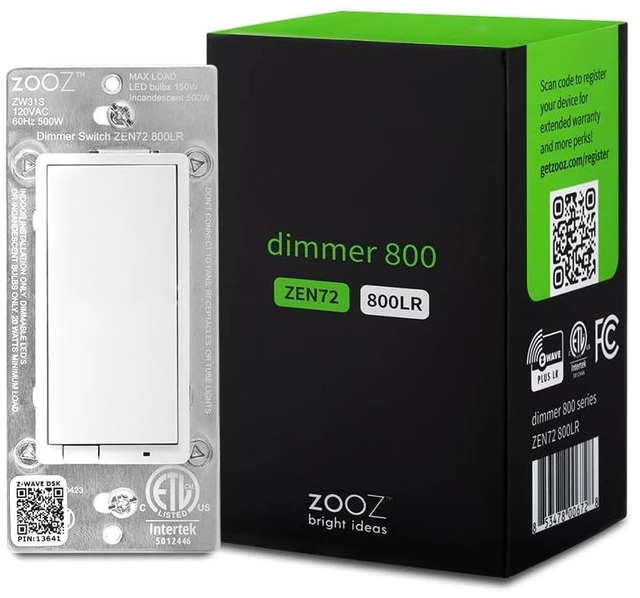

800 Series Z-Wave Long Range Dimmer Switch ZEN72 800LR, White | Direct 3-Way (No Add-On Switch Needed) | Z-Wave Hub Required
Limited time offer, ends 09/25 By Vast Sun Tech
- Z-WAVE DIMMER: Turn your lights on or off and dim them from the switch or in your hub's app. Please use quality dimmable bulbs for best results (avoid big-box store brands). Hub required (sold separately), scroll down for compatibility. Voice control with Z-Wave hub ONLY (will NOT work directly with your smart speaker). NEW 800 SERIES Z-WAVE LONG RANGE: Boost your network with the latest Z-Wave technology that offers more range and faster signal speed than ever before. Your hub or smart home software needs to support Long Range for ultra reliable hub-to-device communication. Each dimmer will act as a signal extender in the traditional mesh network. And if you need to troubleshoot connectivity issues, access the built-in range test tool straight from your switch! DIRECT 3-WAY: Wire it just like the ZEN22 model. Use it with existing on/off switches (NO dimmers) in a 3-way set-up, no need for add-on switches. Please follow the appropriate diagram in the manual and rewire both boxes exactly as shown. Works great as a single pole dimmer too! Neutral wire required (check your boxes before buying). BETTER FIT: The new model is just 1.16" deep so it's easier to install it in a shallow or crowded box! There are no heat sink tabs either, just place it next to the other switches in a multi-gang box. And if you need a different color paddle, just ask for light almond, brown, or black options (NOT included, sold separately) - the white paddles can be replaced. MORE FEATURES: Double tap
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Z-WAVE DIMMER: Turn your lights on or off and dim them from the switch or in your hub's app. Please use quality dimmable bulbs for best results (avoid big-box store brands). Hub required (sold separately), scroll down for compatibility. Voice control with Z-Wave hub ONLY (will NOT work directly with your smart speaker). NEW 800
SERIES Z-WAVE LONG RANGE: Boost your network with the latest Z-Wave technology that offers more range and faster signal speed than ever before. Your hub or smart home software needs to support Long Range for ultra reliable hub-to-device communication. Each dimmer will act as a signal extender in the traditional mesh network. And if you need to troubleshoot connectivity issues, access the built-in range test tool straight from your switch!

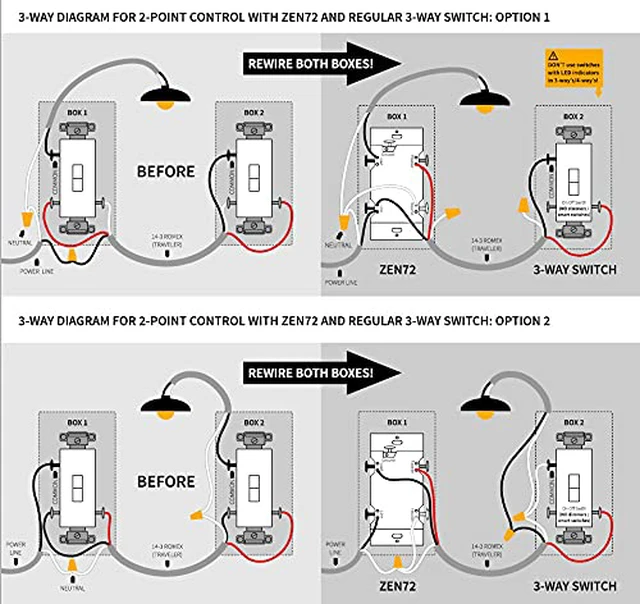

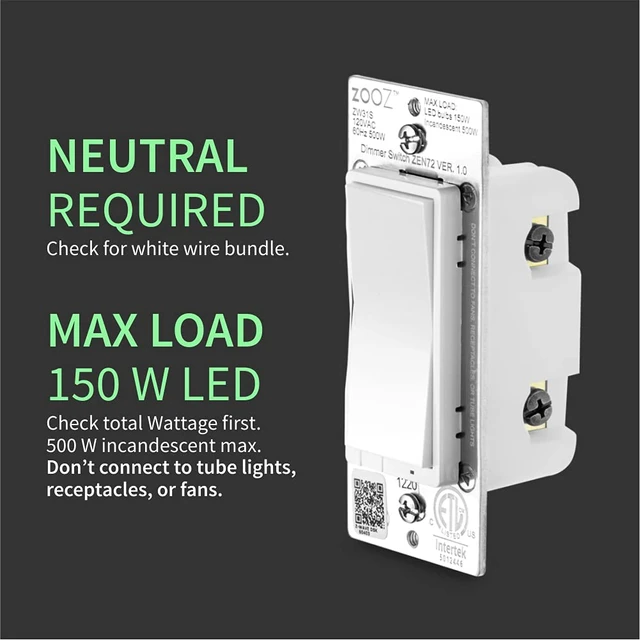

DIRECT 3-WAY: Wire it just like the ZEN22 model. Use it with existing on/off switches (NO dimmers) in a 3-way set-up, no need for add-on switches. Please follow the appropriate diagram in the manual and rewire both boxes exactly as shown. Works great as a single pole dimmer too! Neutral wire required (check your boxes before buying).

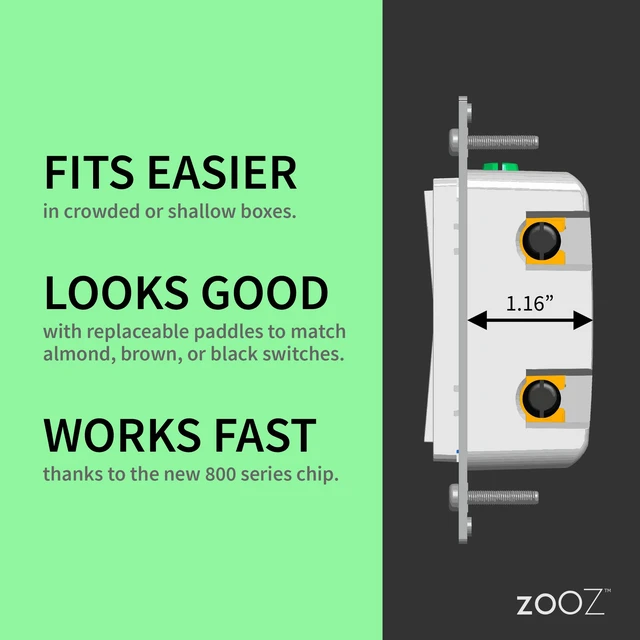

BETTER FIT: The new model is just 1.16" deep so it's easier to install it in a shallow or crowded box! There are no heat sink tabs either, just place it next to the other switches in a multi-gang box. And if you need a different color paddle, just ask for light almond, brown, or black options (NOT included, sold separately) - the white paddles can be replaced.
MORE FEATURES: Double tap to go from off to full brightness (single tap to last brightness level - now fully programmable if your hub supports advanced settings). Disable the relay and use the dimmer as a remote control for your smart bulbs, multi-tap triggers (aka scene control) available for if you have access to advanced features from your hub.

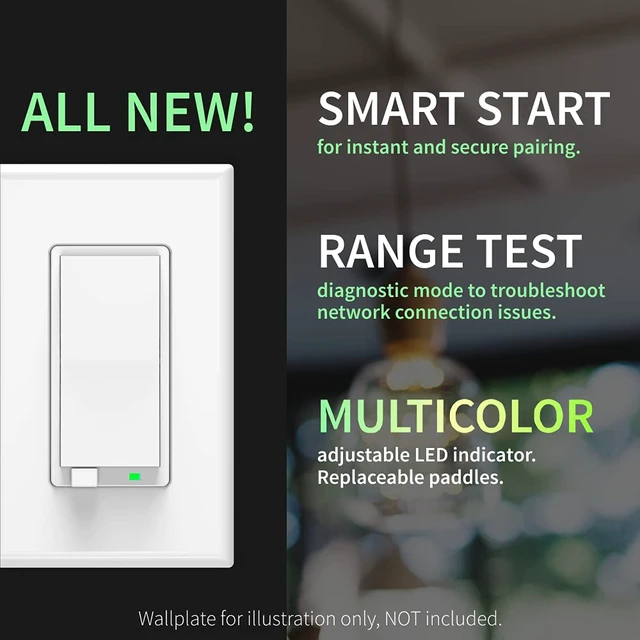

LATEST SECURITY: Equipped with the new S2 authenticated security protocol and SmartStart for instant and safe pairing. Z-Wave Plus and ETL certified for communication and safety standards compliance
SERIES Z-WAVE LONG RANGE: Boost your network with the latest Z-Wave technology that offers more range and faster signal speed than ever before. Your hub or smart home software needs to support Long Range for ultra reliable hub-to-device communication. Each dimmer will act as a signal extender in the traditional mesh network. And if you need to troubleshoot connectivity issues, access the built-in range test tool straight from your switch!
DIRECT 3-WAY: Wire it just like the ZEN22 model. Use it with existing on/off switches (NO dimmers) in a 3-way set-up, no need for add-on switches. Please follow the appropriate diagram in the manual and rewire both boxes exactly as shown. Works great as a single pole dimmer too! Neutral wire required (check your boxes before buying).
BETTER FIT: The new model is just 1.16" deep so it's easier to install it in a shallow or crowded box! There are no heat sink tabs either, just place it next to the other switches in a multi-gang box. And if you need a different color paddle, just ask for light almond, brown, or black options (NOT included, sold separately) - the white paddles can be replaced.
MORE FEATURES: Double tap to go from off to full brightness (single tap to last brightness level - now fully programmable if your hub supports advanced settings). Disable the relay and use the dimmer as a remote control for your smart bulbs, multi-tap triggers (aka scene control) available for if you have access to advanced features from your hub.
LATEST SECURITY: Equipped with the new S2 authenticated security protocol and SmartStart for instant and safe pairing. Z-Wave Plus and ETL certified for communication and safety standards compliance
