$573.99
Meet Your Seller

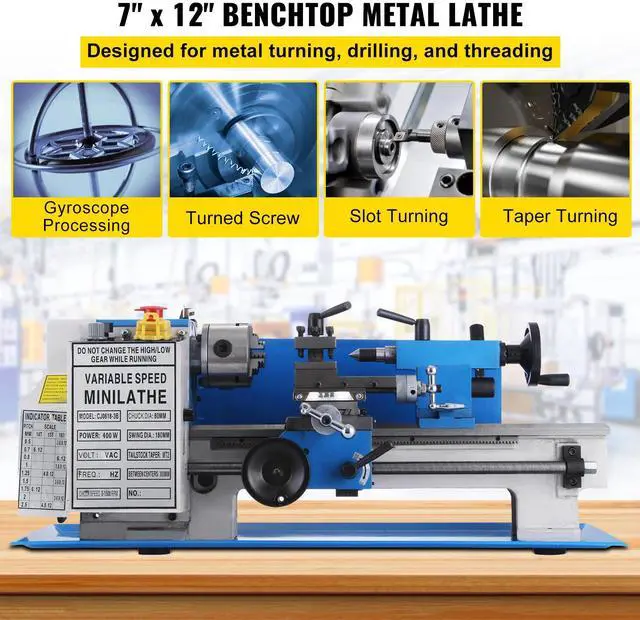

7x12" 400W Precision Mini Metal Lathe Variable Speed 2250RPM

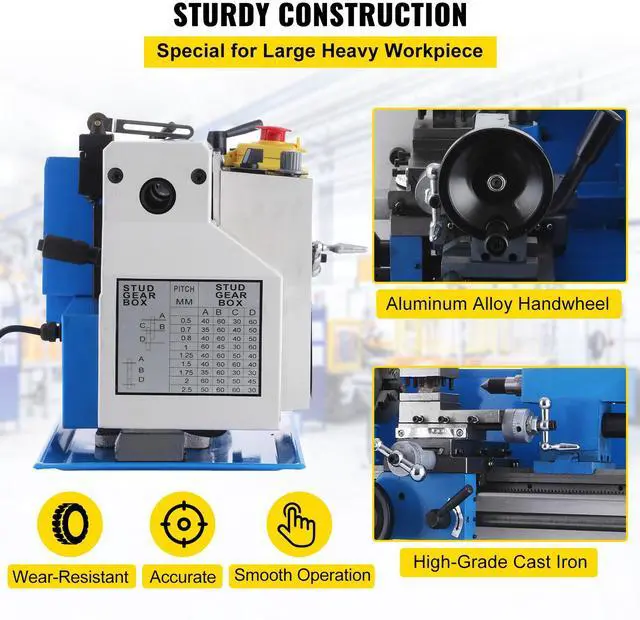

- Sturdy Iron Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, and professional. Mini metal lathe power of motor: 400W. The full-length splash guard provides maximum protection.

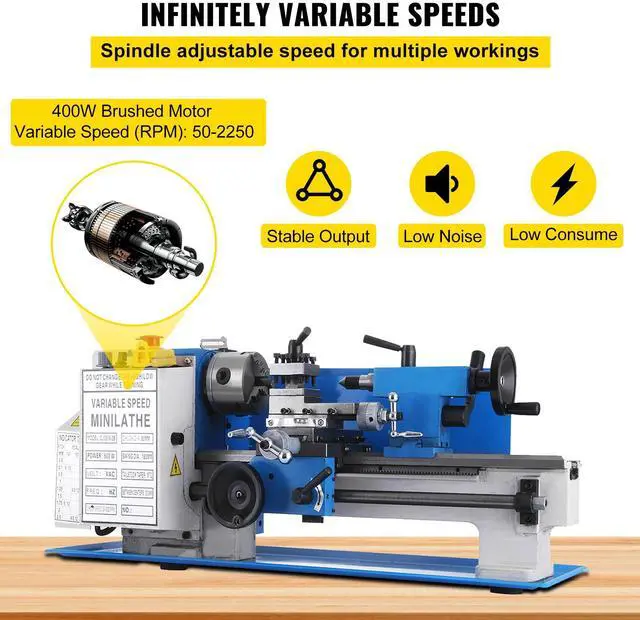

- Infinitely Variable Speed: Variable speed from 50-2250 RPM. Forward and reverse at all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the sideways are obtained by raw material, heat hardening and grinding. The emergency stop button included.
- Accurate 3-Jaw Chuck: 3-jaw self-centering chuck for setting materials steadily. Backsplash guard included. The spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.

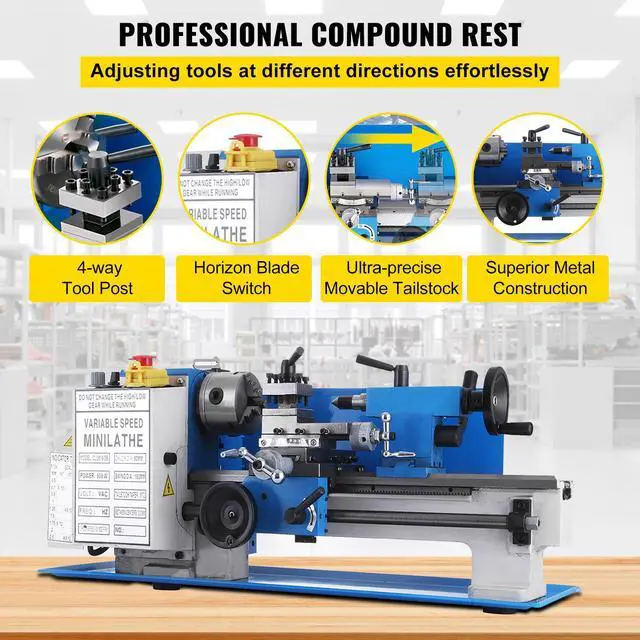

- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting, and bevel cutting by changing the tool post angle and adjusting the compound rest
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Volt: 110V 60 Hz
Motor Power: 400W
Motor Type: Brushed
Phase: Single Phase
Variable Speed Gear: Plastic Nylon
Certification: CE
Swing Over Bed: 7" / 180 mm
Distance Between Centers: 11.8" / 300 mm
Spindle Accuracy: 0.0004" / 0.01 mm
Spindle Speed: 50 - 2250 RPM
Spindle Bore: 0.83" / 21 mm
Tail Stock Taper: MT2
Spindle Taper: MT3
Top Slide Travel: 1.38" / 35 mm
Cross Slide Travel: 2.56" / 65 mm

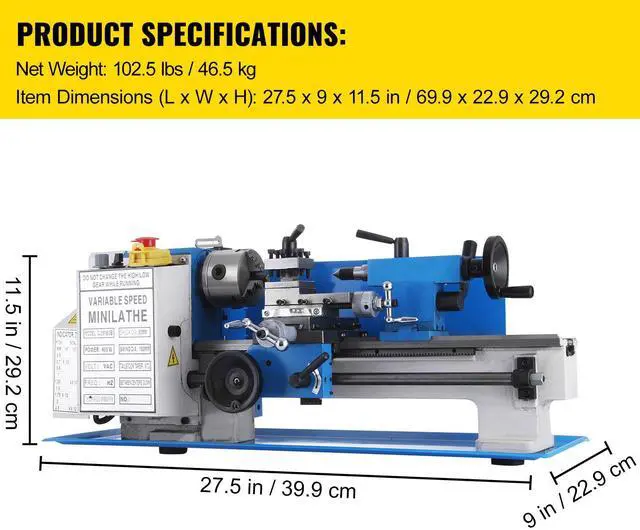

Net Weight: 102.5 lbs / 46.5 kg
Item Dimensions (L x W x H): 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm
Package Content
1 x Mini Lathe
1 x Chuck Wrench
2 x Wrenches
3 x Chuck Jaws
9 x Nylon Gears
1 x Oil Can
5 x Hex Wrenches
1 x Dead Center
1 x Chuck Claw
1 x Protecting Mask
4 x Shockproof Foot Cushions
1 x Toolkit
1 x Instruction Manual
