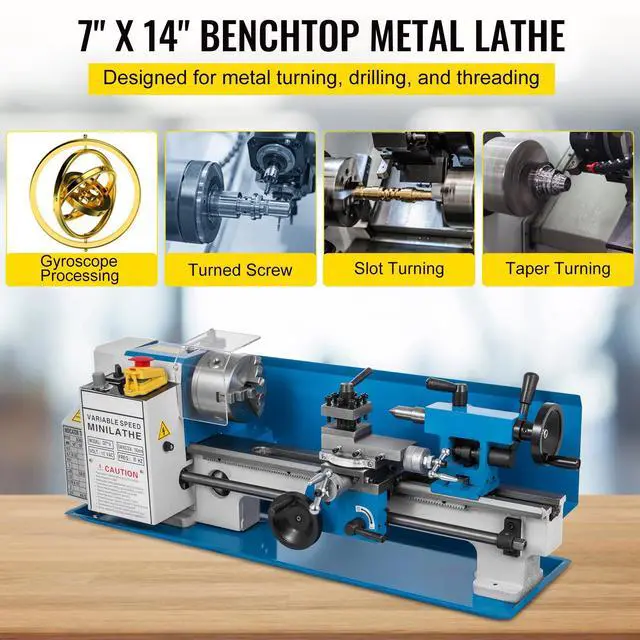

VEVOR Metal Lathe 7x14inch Precision Bench Top Mini Metal Lathe 550W Precision Metal Lathe Variable Speed 50-2500 RPM Nylon Gear with A Movable Lamp

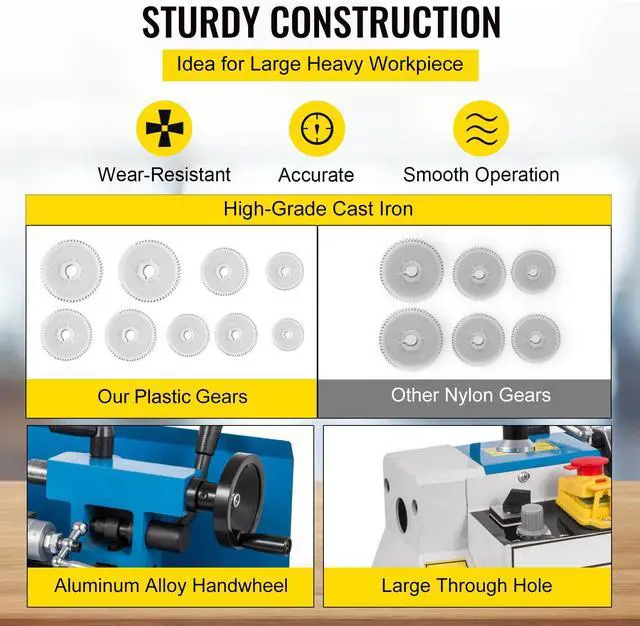

- Sturdy Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.

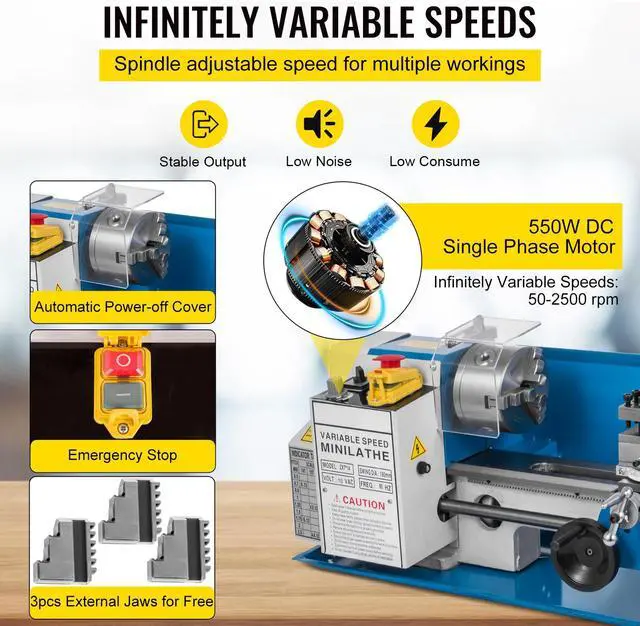

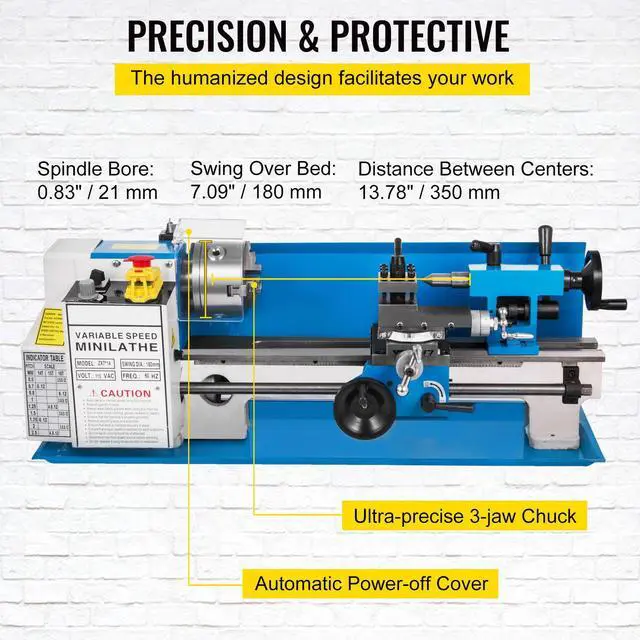

- Infinitely Variable Speeds: Power metal lathes has large center distance 13.78" / 350 mm and swing over bed:7.09" / 180 mm, spindle bore: 0.82" / 21 mm. Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. Emergency stop button included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. A free lamp is included.

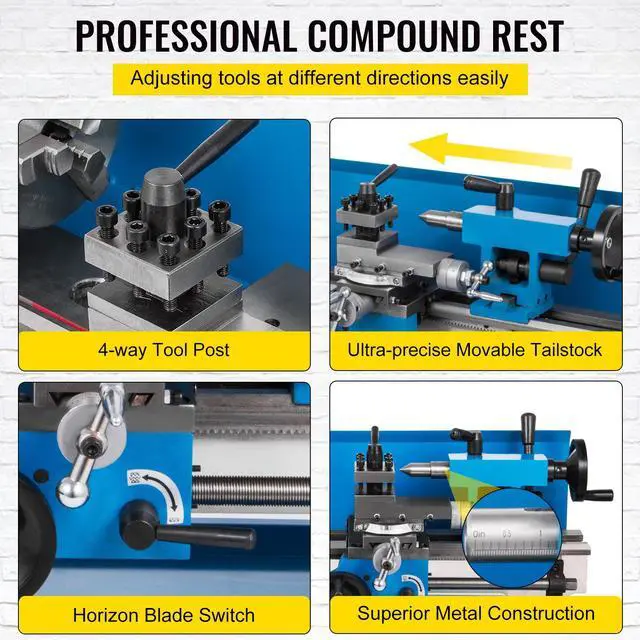

- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specifications
Power of Motor: 550W DC Single Phase
Variable Speed: 50-2500PRM
Swing Over Bed: 7.09" / 180 mm
Chuck Diameter: 3.94" / 100 mm
Centers Distance: 13.78" / 350 mm
Spindle Bore: 0.82" / 21 mm
Inch Thread: 12-52 T. P. I
Metric Thread: 0.5 - 2.5 mm
Item Weight: 88.18 lbs / 40 kg
Item Dimensions: 27.5 × 8.5 × 11.6 in / 69.9 × 21.7 × 29.7 cm

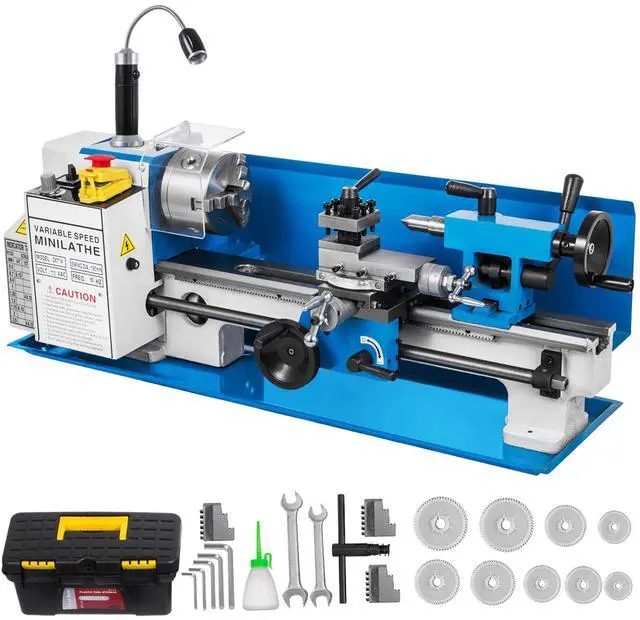

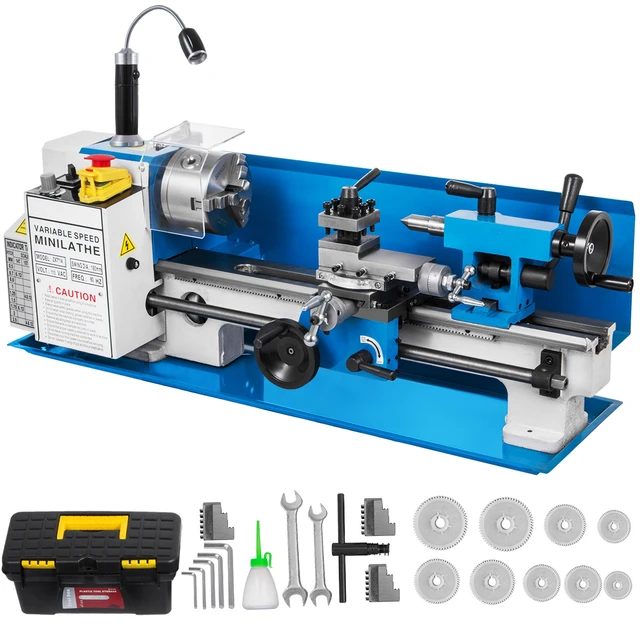

Package Content
1 x Mini Metal Lathe
1 x Working Light
3 x Chuck Jaw
1 x Chuck Wrench
2 x Wrench
1 x Oil Can
5 x Hex Wrench
9 x Plastic Nylon Gear
2 x Handle
4 x Rubber Feet
4 x Screws
1 x Tool Box
