SIHAO 7"x 14" Precision Metal Lathe Machine, Variable Speed 0-2500 RPM Benchtop Lathe Mini Lathe with 3-Jaw Chuck for Counter Face Turning Drilling
- Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.
- Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.

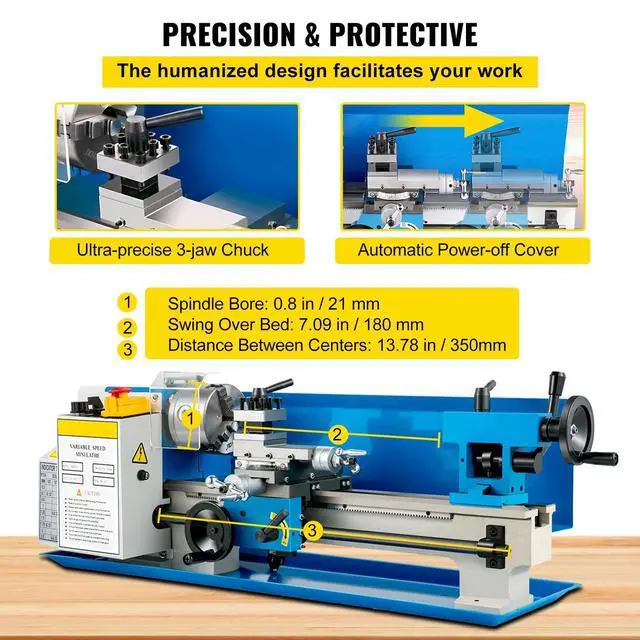

- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.0004" / 0.01 mm.

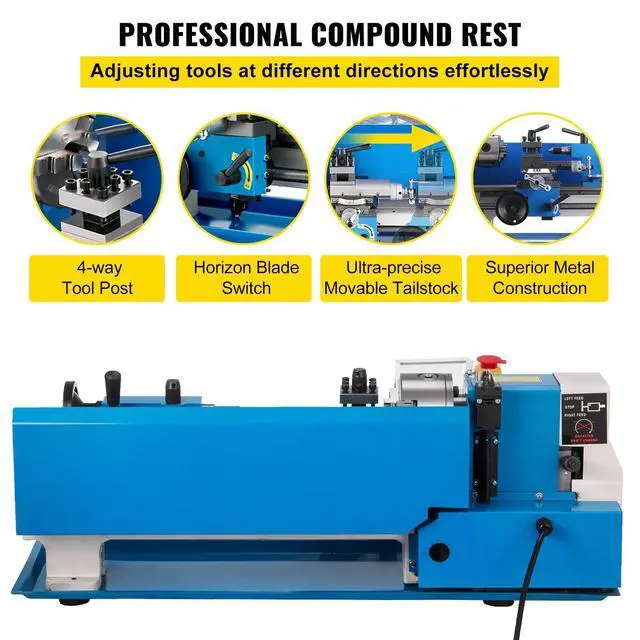

- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.

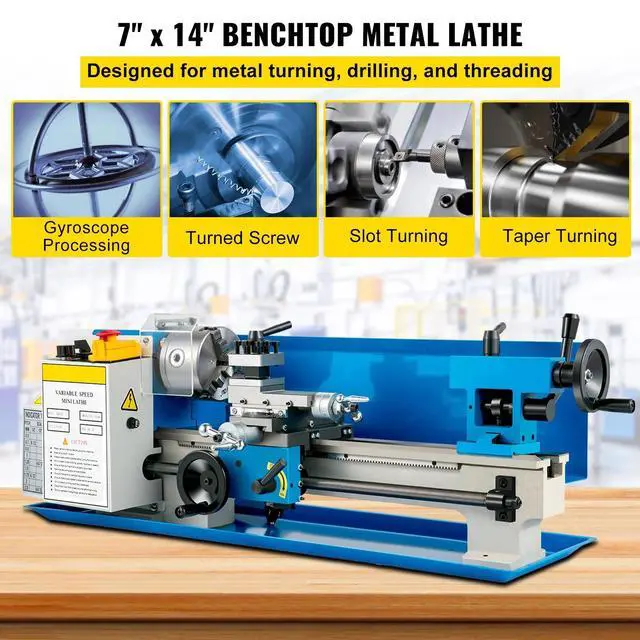

- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
Specifications:
Power of Motor: 550W DC Single Phase
Spindle Speed: 0 - 2250 RPM
Swing Over Bed: 7.09" / 180 mm
Swing Over Cross Slide: 4.3" / 110 mm
Chuck Diameter: 3.94" / 100 mm
Centers Distance: 13.78" / 350 mm
Spindle Bore: 0.79" / 20 mm
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 2.53" / 65 mm
Top Slide Travel: 1.36" / 35 mm
Spindle Accuracy: 0.0004" / 0.01 mm
Inch Thread: 12 - 52 T.P.I
Metric Thread: 0.5 - 2.5 mm

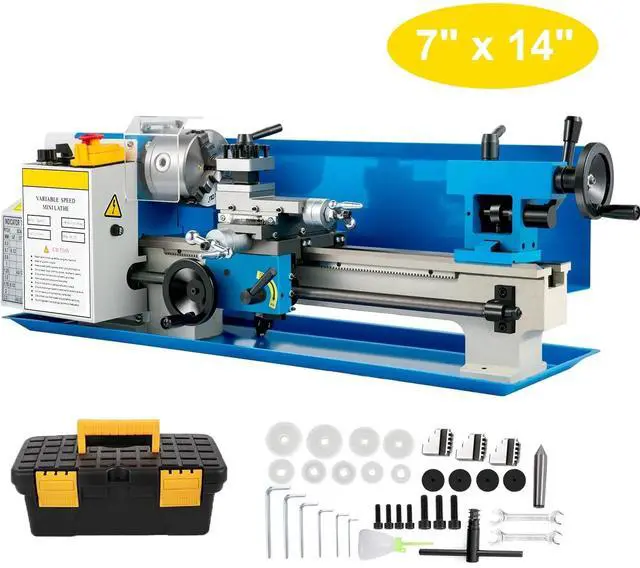

Package Content
1 x Mini Metal Lathe
3 x Chuck Jaws
1 x Lathe Center
1 x Chuck Wrench
2 x Wrench
1 x Oil Can
5 x Hex Wrenches
9 x Plastic Nylon Gears
2 x Handle
4 x Rubber Feet
4 x Screws
1 x Tool Box
Product information
| Lathe type | Mini Lathes |
| Swing over bed | 7.09 in |
| Distance between center | 13.78 in |
| Lathe bed length | 7.09 in |
| Swing over cross slide | 4.3 in |
| Horsepower | 0.75 HP |
| Spindle speed | 2250 rpm |
| Chuck type | Three Jaw Universal Chucks |
| Chuck size | 4 in |
| Spindle taper | MT3 |
| Features | Accurate, Easy Installation, Easy To Operate |
| Brand | SIHAO |
| Manufacturer Part Number | 0618WXCC |
| Assembled Product Dimensions (L x W x H) | 29.40 x 8.70 x 10.80 in |
