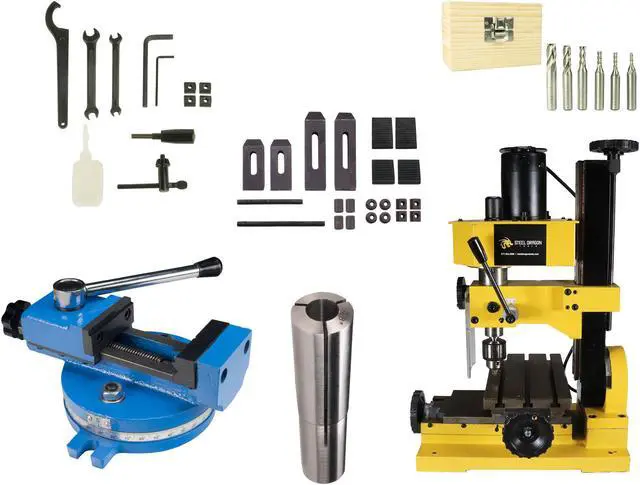

Mini Bench Top Mill with Erie Tools Collet 24 Piece Clamping Kit and 55mm Mill Vise

Mini Mill Specifications:

• Drilling/End Mill Capacity: 3/8"


• Face Mill Capacity: 5/8"


• Max X-Axis Table Travel: 8.5"


• Max Y-Axis Table Travel: 6.5"


• Max Z-Axis without collet: 10"


• Spindle Taper: MT #2


• Spindle Stroke: 1 3/16"


• Throat: 5 1/2"


• Table Size: 9.45" x 5.70"


• Spindle Speed: Low: 0~1000 RPM High: 0~2000 RPM


• Motor Output Power: 150W


• Chuck Capacity: 1/16"-3/8"

Mini Mill Features:

• Variable speed control


• FWD/REV switch


• Safety shut off switch


• Adjustable depth stop


• Fine feed/Crossfeed/Lifting/Longitudinal feed handwheel


• Geared drive

Mini Mill Includes:

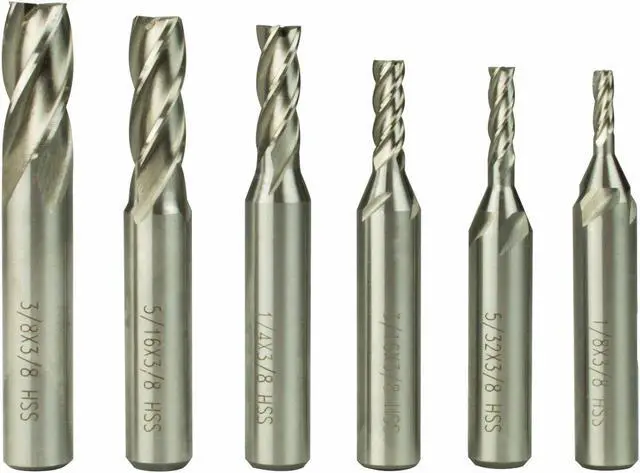

• High-Speed Steel 6-piece 4 Flute with 3/8" Shank set


• Includes 1/8", 3/16", 1/4", 5/16", 3/8" and 5/32" sizes

Erie Tools Collet For Precision Milling Fits 3/8" Shank for Mini Mill Machine:

• Collet is for use with tools or bits with a 3/8 in. shank.


• Overall Length: 2-3/4 in.

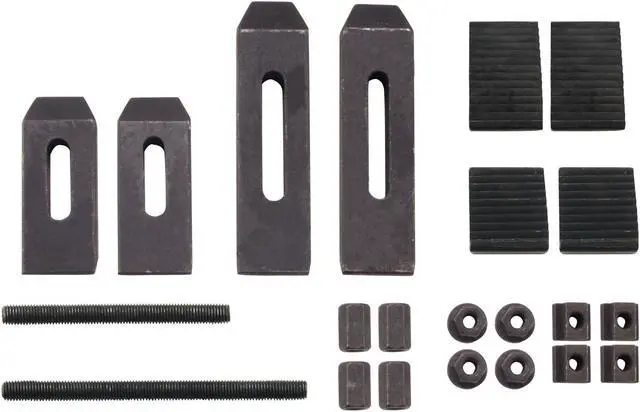

Erie Tools 24 Piece Clamping Kit For Small Milling Machines With .305" Table Slots:

• Two (2) 4.5 in. hold downs


• Two (2) 2.5 in. hold downs


• Two (2) 1-1/8 in. step blocks


• Two (2) 1-1/2 in. step blocks


• Two (2) 4 in. threaded studs


• Two (2) 3 in. threaded studs


• Four (4) T-Nuts


• Four (4) barrel connectors


• Four (4) flange nuts

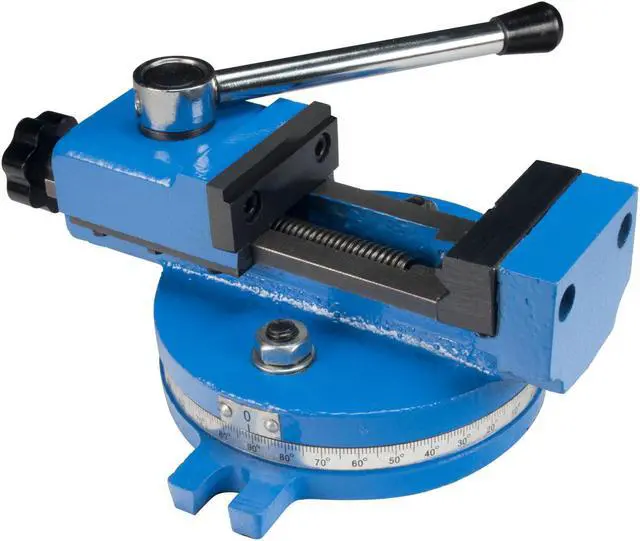

Erie Tools 55 MM Mill Vise With Adjustable Screw and Quick Clamp for Mini Mill:

• Swiveling vise for use with small lathe and milling machines open to a width of 3 in.


• Quick-clamp feature to easily release items without using the screw.


• Jaw inserts are 55 mm wide.
