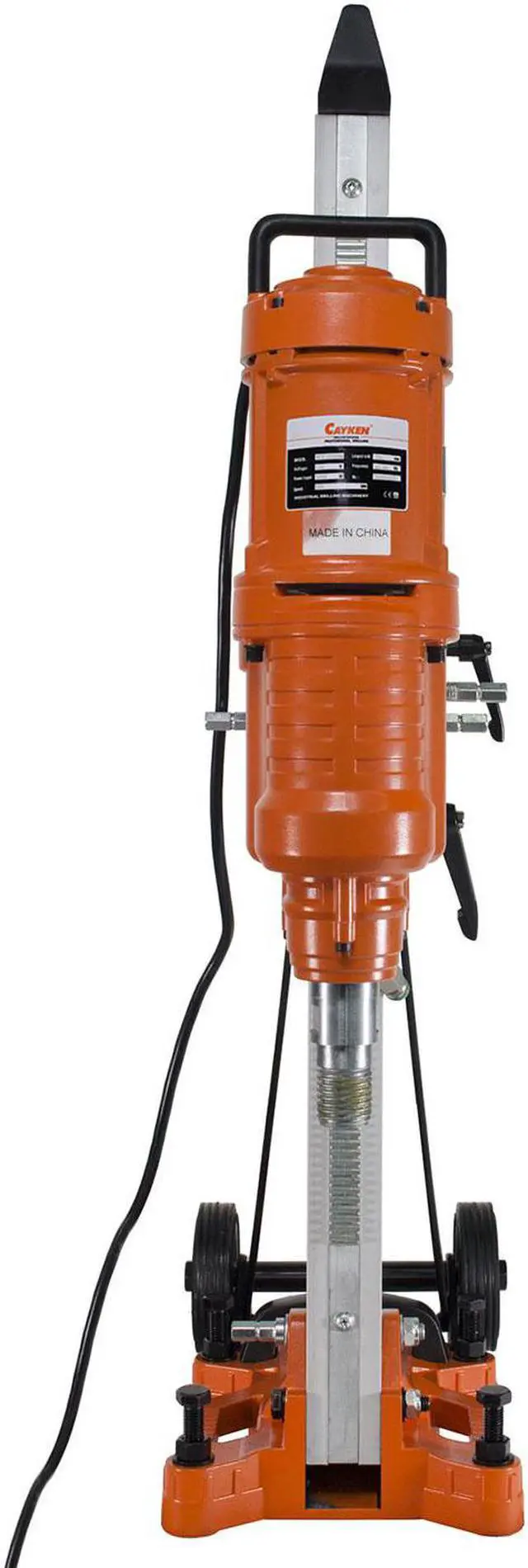

Cayken® 10in. Diamond Core Drill Rig with 400F Adjustable Angle Stand

The Cayken 2550 Core Drill is designed for wet or dry core drilling and comes with the Cayken 400F adjustable aluminum stand. This drill will cut up to 10-inch holes in reinforced concrete, brick, stone, rock, ceramic, and fireproof materials. The Cayken 2500 has a 4,350-watt motor with 5.8 HP. Spline is 1-1/4 in. x 7 TPI. Drill features safety clutch and overload protection. Package includes wrench set, two (2) motor brushes, and 1/4-inch water valve with shut off.

Drill Specifications:

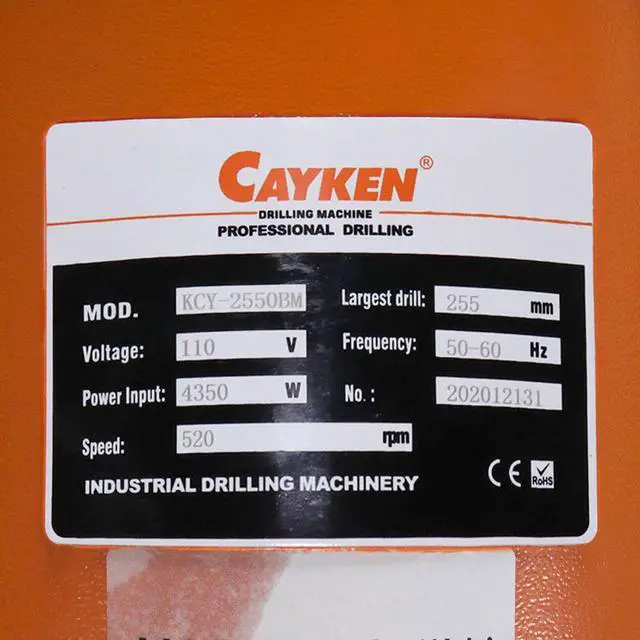

• Motor Specs: 4350 W, 5.8 HP, 110 V, 50/60 Hz, 520 RPM.

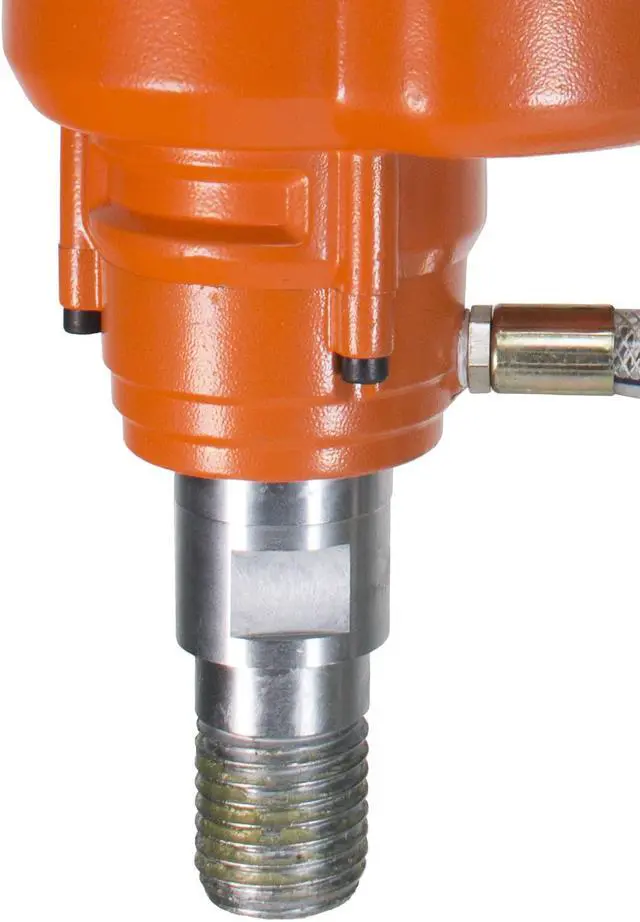

• Spline: 1-1/4 in. x 7 TPI

Features:

• Designed for wet or dry core drilling.


• Will cut up to 10-inch diameter holes.


• For use on concrete, brick, stone, rock, ceramic, and fireproof materials.

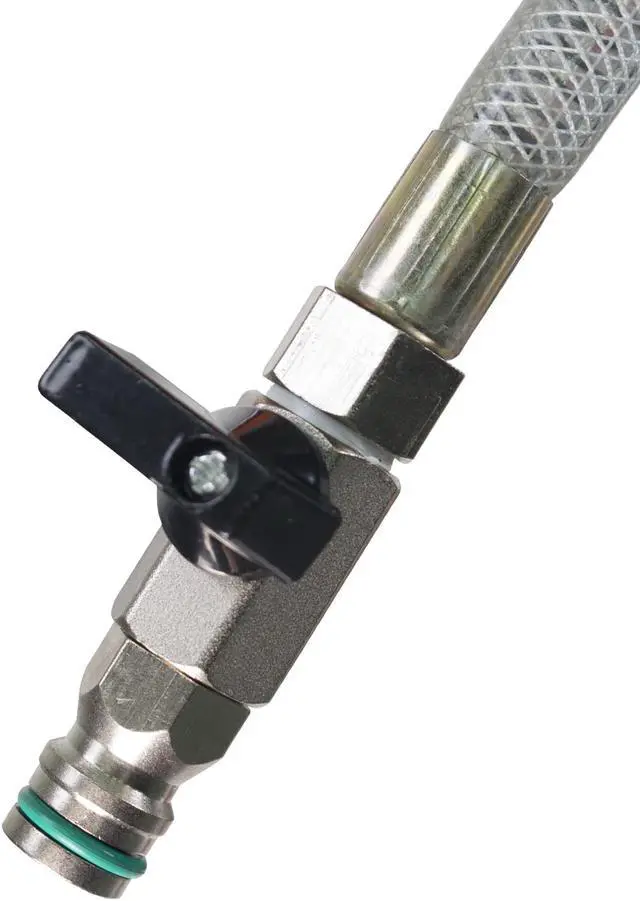

• 1/4 -inch water valve for wet drilling.


• Soft start electronic current limiter


• Includes wrench set.


• CE/ROHS/ISO90001 Certified.


• Drill bit not included.

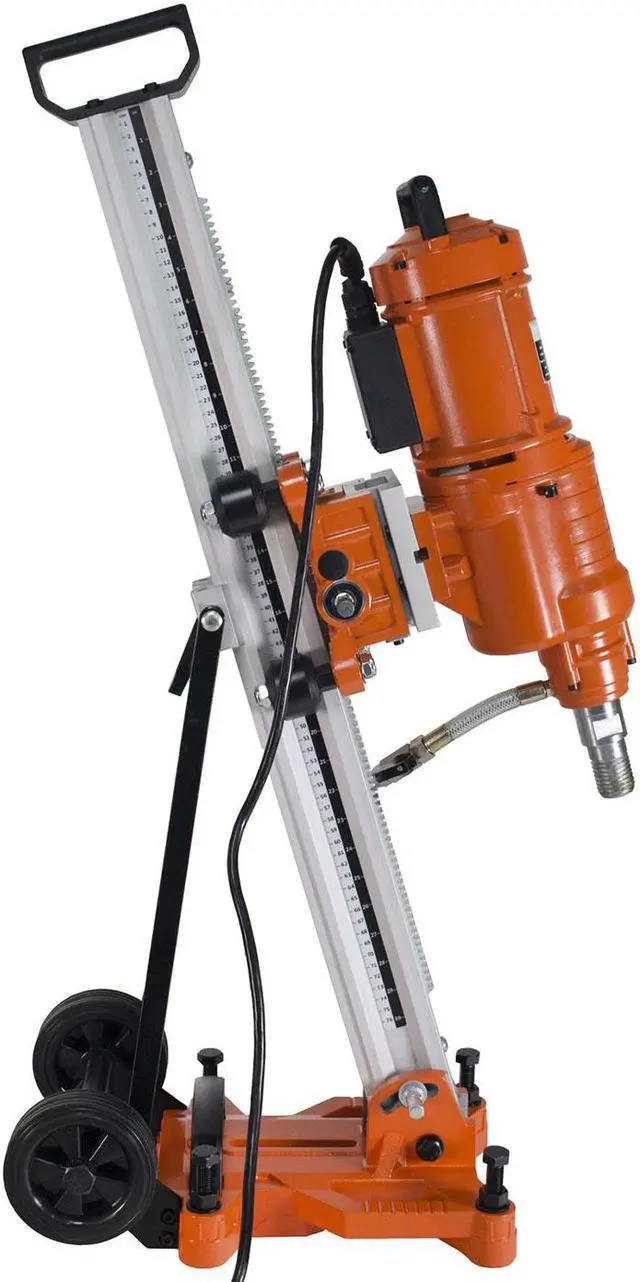

Stand Specifications:

• Adjustable aluminum stand for drilling at 0 to 45 degrees.


• Built-in leveling bubble.


• Four (4) adjustable slide bearings.


• Angle/vertical position locks.


• Larger mast designed to accommodate large-diameter bits and withstand high torque.


• Four (4) leveling bolts on base.


• Reversible slide handle for dual-side operation.


• Top and rear handles.


• 4-1/2-inch rolling wheels.


• Includes wrench set.


• Weight: 34 lbs.
