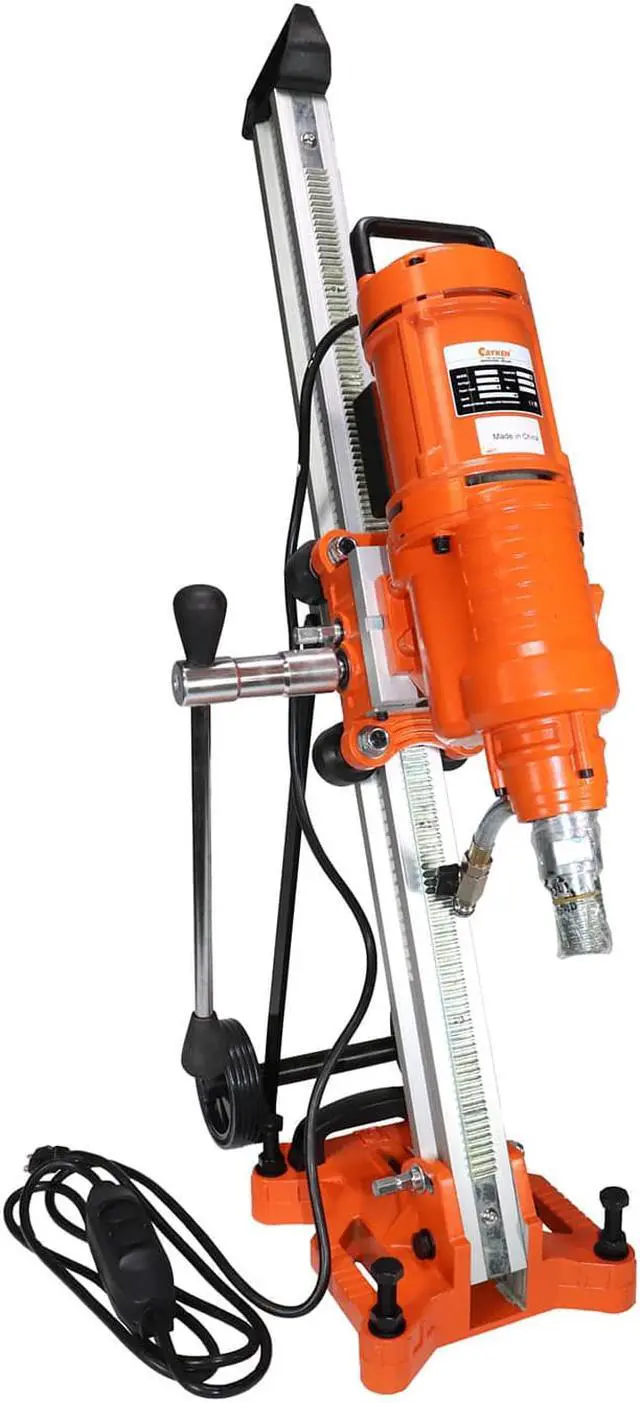

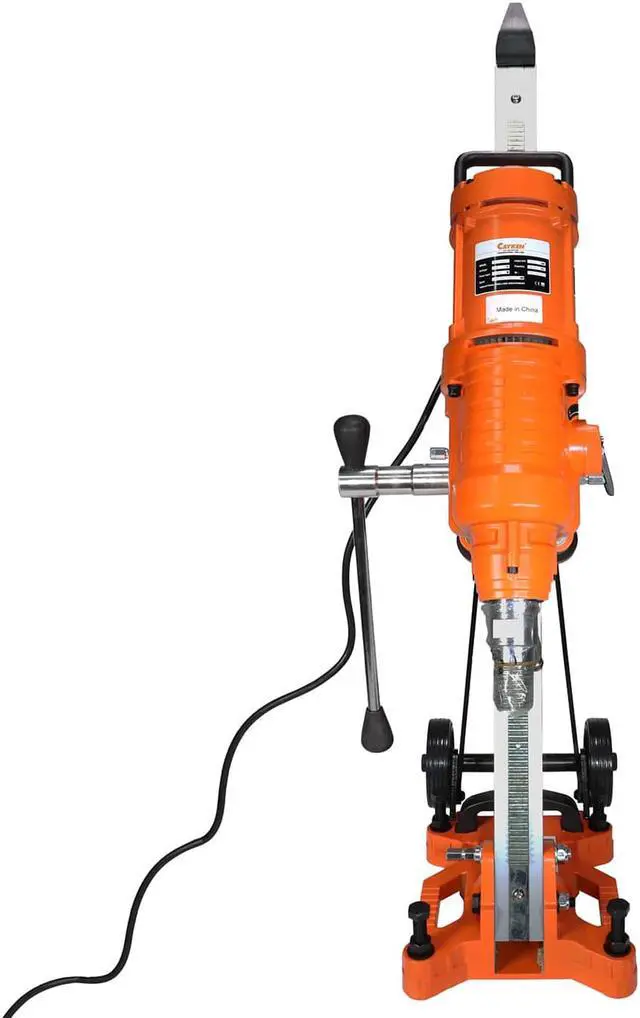

Cayken SCY-5050-3C 20in. Core Drill Rig with KCY-400F Aluminum Stand

The Cayken CY-5050 is designed for wet or dry core drilling and comes with the Cayken 400F adjustable aluminum stand with vacuum plate. This drill will cut up to 20-inch holes in reinforced concrete, brick, stone, rock, ceramic, and fireproof materials. This drill has a 7.2 HP motor with three (3) gear speeds. Spline is 1-1/4 in. x 7 TPI. Drill features safety clutch and overload protection. Package includes wrench set, two (2) motor brushes, and 1/4-inch water valve with shut off.

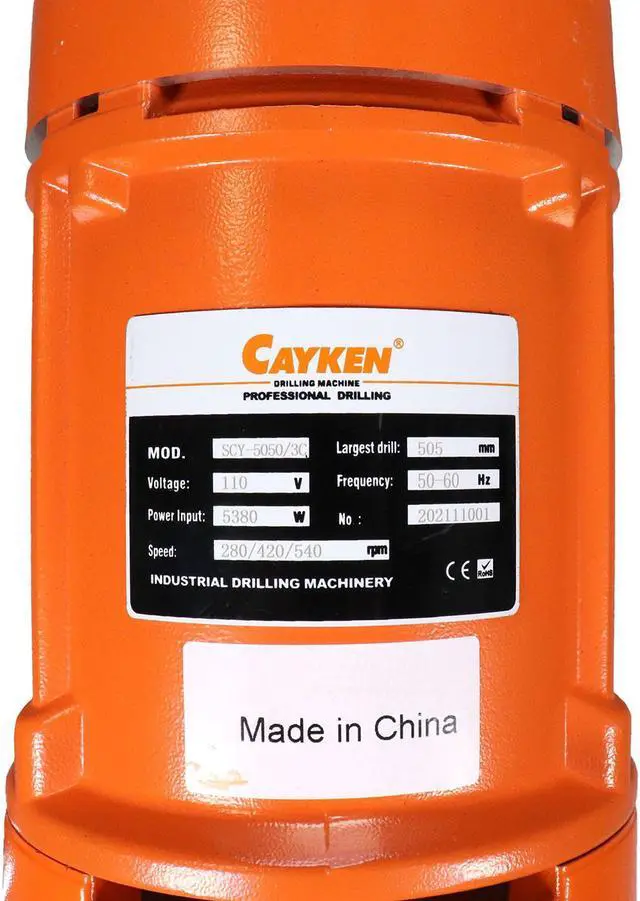

Drill Specifications:

• Motor: 5,380 W, 7.2 HP, 110 V, 50-60 Hz


• Three (3) Gear Speeds: 280 RPM, 420 RPM, and 540 RPM


• Spline: 1-1/4 in. x 7 TPI

Drill Features:

• Designed for wet or dry core drilling.


• Will cut up to 20-inch diameter holes.


• For use on concrete, brick, stone, rock, ceramic, and fireproof materials.


• 1/4-inch water valve for wet drilling.


• Soft start electronic current limiter


• Includes wrench set.


• CE/ROHS/ISO90001 Certified.


• Drill bit not included.

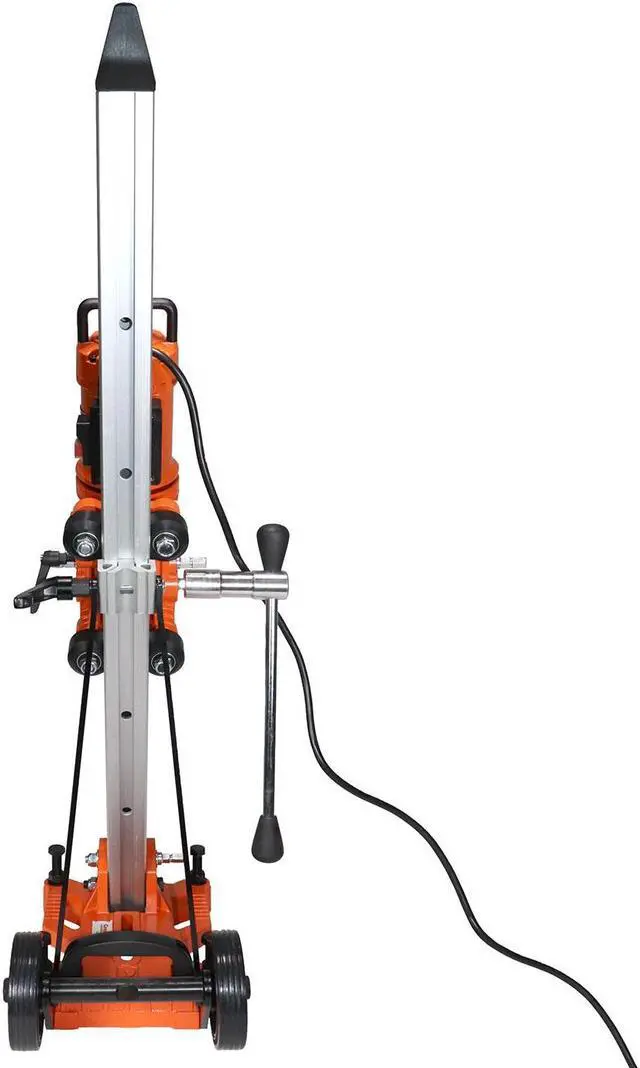

Stand Specifications:

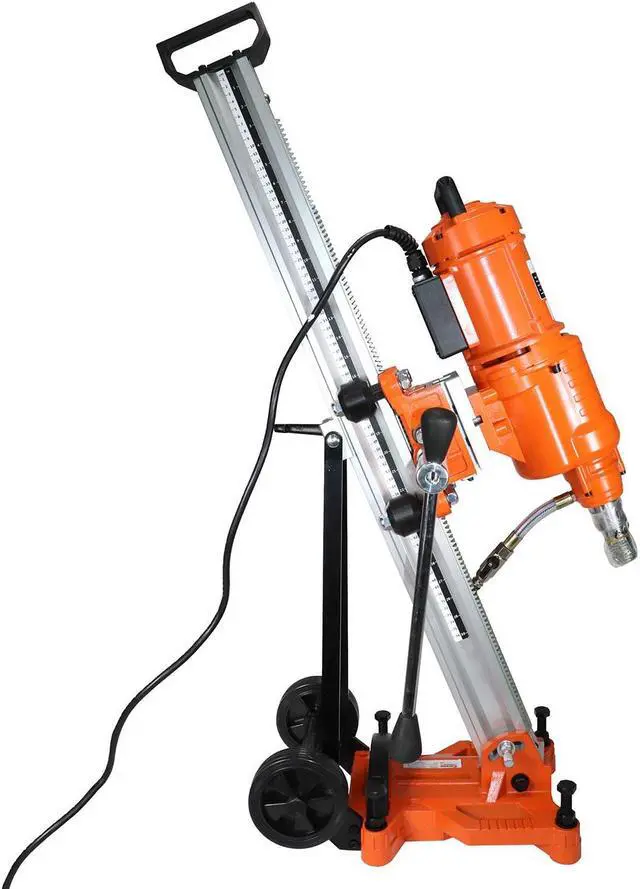

• Adjustable aluminum stand for drilling at 0 to 45 degrees.


• Built-in leveling bubble.


• Four (4) adjustable slide bearings.


• Angle/vertical position locks.


• Larger mast designed to accommodate large-diameter bits and withstand high torque.


• Four (4) leveling bolts on base.


• Reversible slide handle for dual-side operation.


• Top and rear handles.


• 4.5-inch rolling wheels.


• Includes wrench set.


• Weight: 34 lbs.
