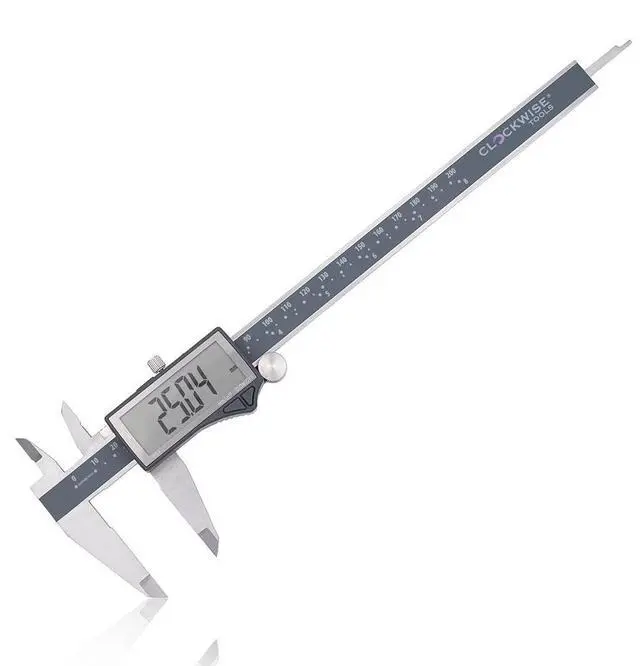

Clockwise Tools DCLR IP54 Digital Caliper is a higher quality digital caliper. It is highly recomended for home DIY using as well as professional using.
Please NOTE that IN ORDER TO OBTAIN A MORE ACCURATE MEASURING RESULT, PLEASE USE A SMALL PIECE OF PAPER OR PAPER CARD TO CLEAN THE EXTERNAL JAWS EVERY TIME BEFORE USING!
Clockwise Tools DCLR DIGITAL CALIPER HAS AUTO-OFF FUNCTION AND IT TAKES 5-7 MINS TO SHUT OFF.
Measuring Range available in 0-6 inch/150mm; 0-8 inch/200mm; 0-12 inch/300mm
Extra large LCD screen 3/4"x 2" (20mmx 50mm) in Inch/Metric/Fractions conversion.
Up to 1/128" fractional display.
Accuracy: ±0.001"/0.03mm (6 inch); ±0.001"/0.03mm (8 inch); ±0.0015"/0.04mm (12 inch)
Resolution: 0.0005"/0.01mm, 1/128"
Repeatability: 0.0005"/0.01mm

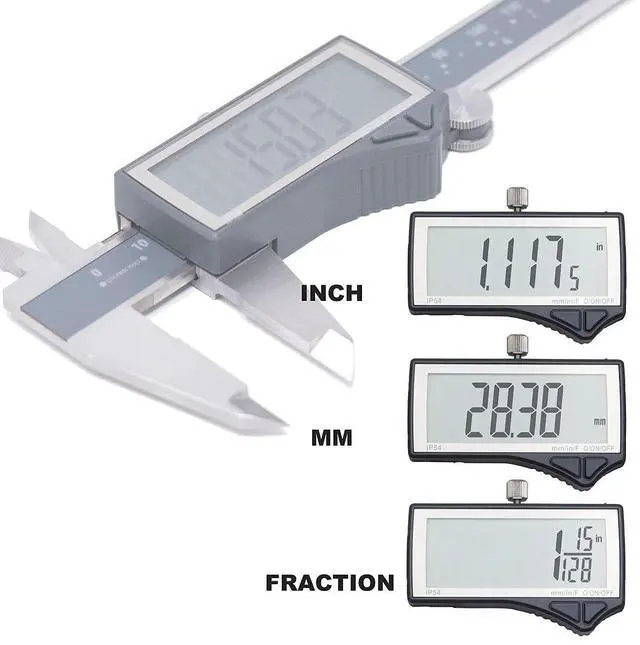

Fraction/mm/inch Convertible
IP54 protection; Featured RS232 Data transfer port. Port is for data transfer only, not for charging. Must connect with our DTCR-02 Data cable. CANNOT Connect with regular USB Cable

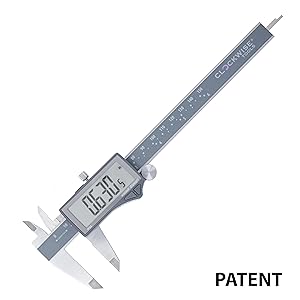

Design patented in the US

What's included:

Clockwise Tools DCLR-0805 Digital Caliper
Grey box
One installed 3V, CR2032 battery; One spare battery
User guide

Important TIPS

For all Digital Calipers, The Scale printed on the body/beam is for decoration ONLY. We DO NOT suggest to read any measuring results from this print scale. The number should be read from the digital display ONLY. When we install the digital caliper, the ZERO line of the print scale SHOULD NOT lines up with the JAW line. It should line up/under the left side of the black plastic vernier cover.
This digital caliper thumb wheel is designed to be loose so that it will hang on the plastic hook when not in use. This will eliminate the friction between the body/beam and the wheel and give better movement. When doing the adjustment, it requires thumb to push/press the wheel toward the beam first, then move back and forth to adjust.

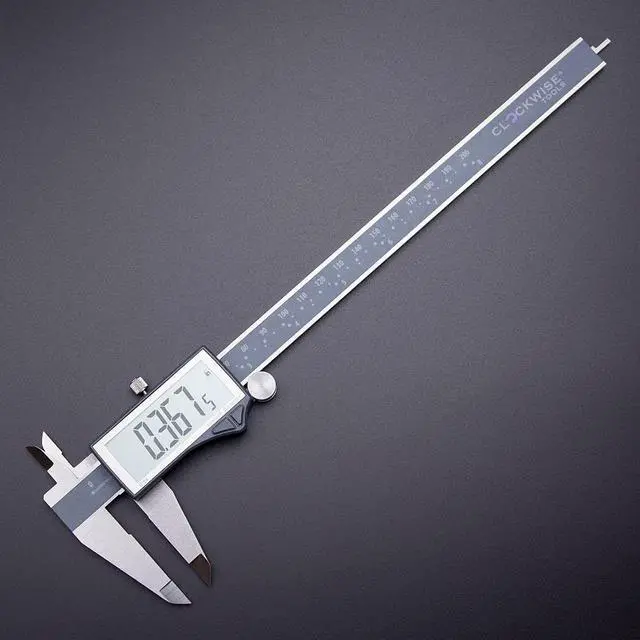

Clockwise Tools DCLR IP54 Digital Caliper

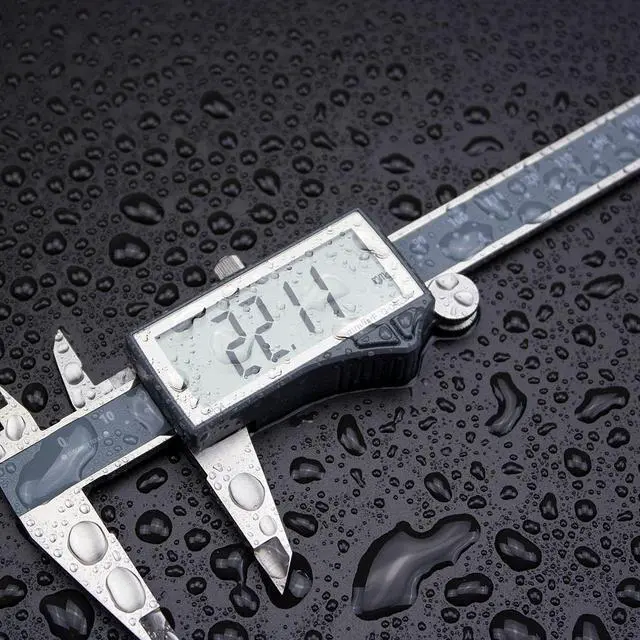

Patented in the US Available in 6", 8", and 12' Fractional up to 1/128" IP54 Water & Dust Resistance RS232 Data Output

Why Clockwise Tools

30 years of manufacturing digital caliper. We know what you need

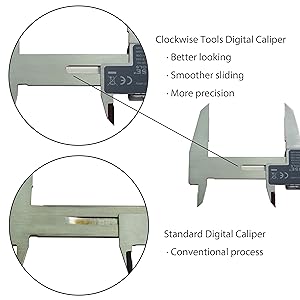

Differ from other digital calipers

Fine polished stainless steel; Smooth cut in depth groove

Better looking
Smoother sliding
More precision

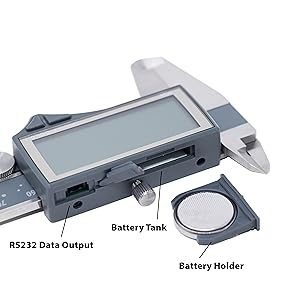

RS232 Data Transfer

aplus content image

RS232 Data Output

Clockwise Tools DCLR Digital Caliper featured RS232 Data Transfer Function

aplus content image

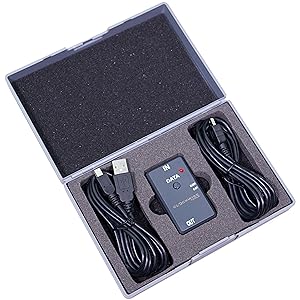

DTCR-02

Clockwise Tools DTCR-02 RS232 Data transfer cable is avaliable on .
Please note that DCLR Digital Caliper CAN ONLY BE CONNECTED WITH DTCR-02 Cable

aplus content image

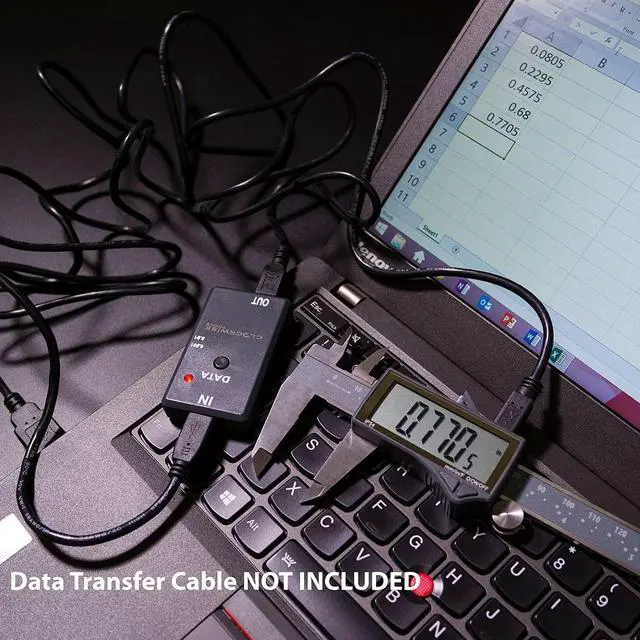

Data Transfering

Once connected you can transfer measuring result to PC

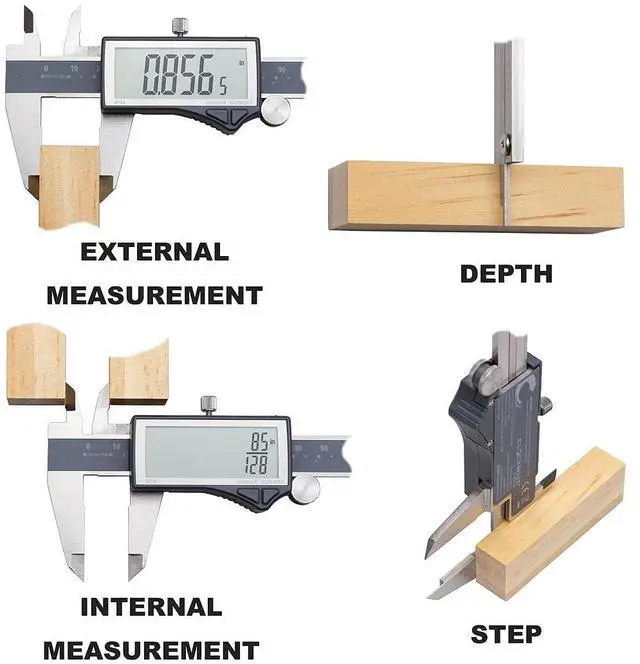

4 Ways Measuring

aplus content image

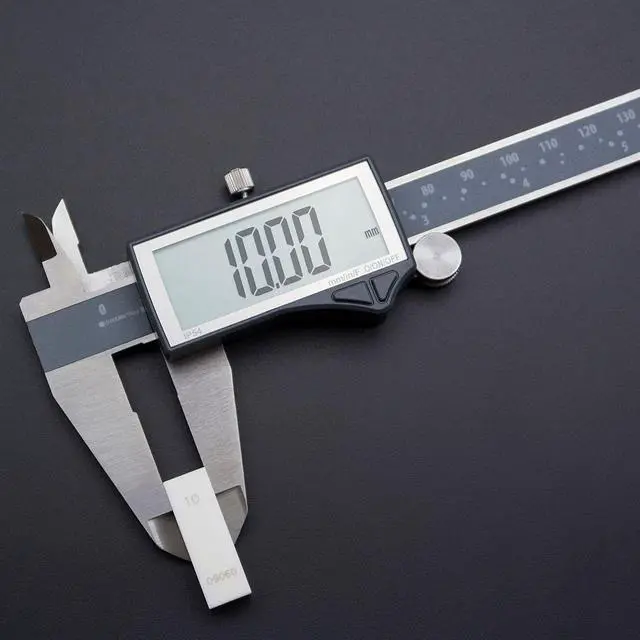

External Measuring

Measuring outer diameter or length

aplus content image

Internal Measuring

Measuring inner diameter

aplus content image

Step Measuring

For objective height or length that are hard to measure by using external jaws

aplus content image

Depth Measuring

Meauring small objective depth which is hard to reach by regular measuring tool

Clockwise Tools DCLR IP54 DIGITAL CALIPER SERIES

aplus content image

DCLR-0605

Measuring Range: 0-6"/150mm
Accuracy: ±0.001"/0.03mm
Battery: 3V, CR2032 (installed); Extra Battery Included
100% satisfied guarant ed

aplus content image

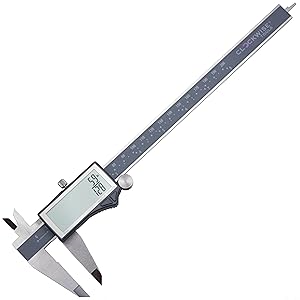

DCLR-0805

Measuring Range: 0-8"/200mm
Accuracy: ±0.001"/0.03mm
Battery: 3V, CR2032 (installed); Extra Battery Included
100% satisfied guarant ed

aplus content image

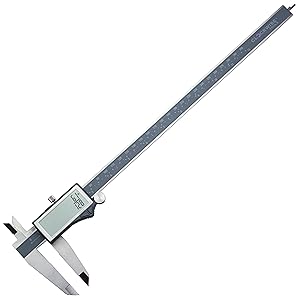

DCLR-1205

Measuring Range: 0-12"/300mm
Accuracy: ±0.0015"/0.04mm
Battery: 3V, CR2032 (installed); Extra Battery Included
100% satisfied guarant ed

Clockwise Tools DCLR IP54 Digital Caliper is a higher quality digital caliper. It is highly recomended for home DIY using as well as professional using.
Please NOTE that IN ORDER TO OBTAIN A MORE ACCURATE MEASURING RESULT, PLEASE USE A SMALL PIECE OF PAPER OR PAPER CARD TO CLEAN THE EXTERNAL JAWS EVERY TIME BEFORE USING!
Clockwise Tools DCLR DIGITAL CALIPER HAS AUTO-OFF FUNCTION AND IT TAKES 5-7 MINS TO SHUT OFF.
Measuring Range available in 0-6 inch/150mm; 0-8 inch/200mm; 0-12 inch/300mm
Extra large LCD screen 3/4"x 2" (20mmx 50mm) in Inch/Metric/Fractions conversion.
Up to 1/128" fractional display.
Accuracy: ±0.001"/0.03mm (6 inch); ±0.001"/0.03mm (8 inch); ±0.0015"/0.04mm (12 inch)
Resolution: 0.0005"/0.01mm, 1/128"
Repeatability: 0.0005"/0.01mm
Fraction/mm/inch Convertible
IP54 protection; Featured RS232 Data transfer port. Port is for data transfer only, not for charging. Must connect with our DTCR-02 Data cable. CANNOT Connect with regular USB Cable
Design patented in the US

What's included:

Clockwise Tools DCLR-0805 Digital Caliper
Grey box
One installed 3V, CR2032 battery; One spare battery
User guide

Important TIPS

For all Digital Calipers, The Scale printed on the body/beam is for decoration ONLY. We DO NOT suggest to read any measuring results from this print scale. The number should be read from the digital display ONLY. When we install the digital caliper, the ZERO line of the print scale SHOULD NOT lines up with the JAW line. It should line up/under the left side of the black plastic vernier cover.
This digital caliper thumb wheel is designed to be loose so that it will hang on the plastic hook when not in use. This will eliminate the friction between the body/beam and the wheel and give better movement. When doing the adjustment, it requires thumb to push/press the wheel toward the beam first, then move back and forth to adjust.
