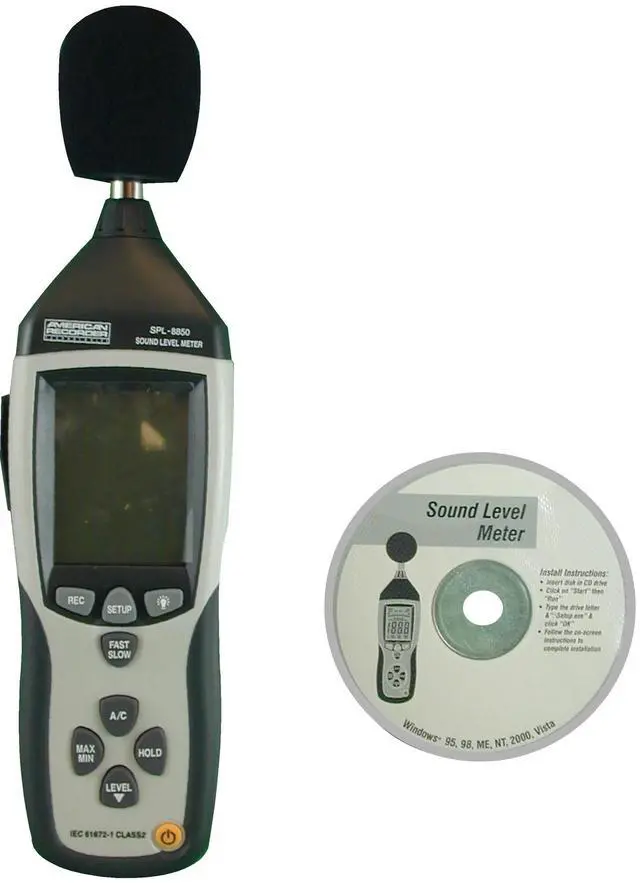

Deluxe Sound Level Meter with Data Logging Software

Accurate and easy to use for all types of sound level measurement including recording, performance, surround sound, industrial and environmental. Extra-large LCD Display, Two Mode Settings, Data Hold & Max Hold, Built -in Calibration Check, A&C Weighting, 9 Volt Battery included & power supply, conforms to IEC 651 Type 2. Data logging software including for documentation and analysis. Carrying case and one year warranty.

SPECIFICATIONS:

• Standard Applied: IEC651 type 2, ANSI s1.4 type 2 Frequency Range: 31.5Hz~8KHz


• Measuring Level Range: 30~130dB


• Frequency Weighting: A/C


• USB output


• Microphone: 1/2" electret condenser Accessories: Windscreen


•
  Calibration: Electrical calibration with the internaloscillator (1kHz sine wave)



• Display Type: LCD


• Display Digits: 4


• Display Resolution: 0.1dB


• Display Up Data: 0.5 sec.


• Time Weighting: FAST (125mS), SLOW (1 sec.) Level Ranges: Lo: 30-100dB; Hi: 65-130dB


• Accuracy: ??? 1.5dB (under reference conditions) Alarm function: "OVER" is show when input is


• out of range


• Maximum Hold: Maximum value with decay


•
  <1dB/3 minutes Power Supply: single 9v battery, 006P orIEC 6F22 or NEDA 1604.



• Power Life: 50 hours (alkaline battery) Operations Temperature: 0 to 40 C (32 to 104F) Operation Humidity: 10 to 90% RH


• Operation Altitude: 2000 meters (6560 feet) Storage Temperature: -10 to 60 C (14-140F) Storage Humidity: 10 to 75% RH


• Dimensions: 210(L)x55(W)x32(H)mm


• Weight: 7 ounces (with battery)
