Raspberry Pi 3 Digital Audio Sound Card Expansion Board HIFI DiGi I2S SPDIF + Acrylic Case Box Support Raspberry Pi 3 Model B+

Raspberry Pi 3 Digital Audio Sound Card Expansion Board HIFI DiGi I2S SPDIF + Acrylic Case Box Support Raspberry Pi 3
Model B+ Note:
1. If it is used to Raspberry Pi 3 or Raspberry Pi 2, it just support runeaudio and osmc system, not volumio system.
2. Please remove the protective film on the casesurface before using

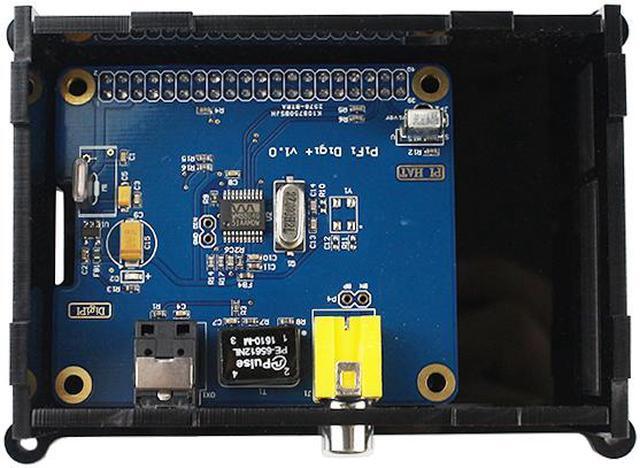

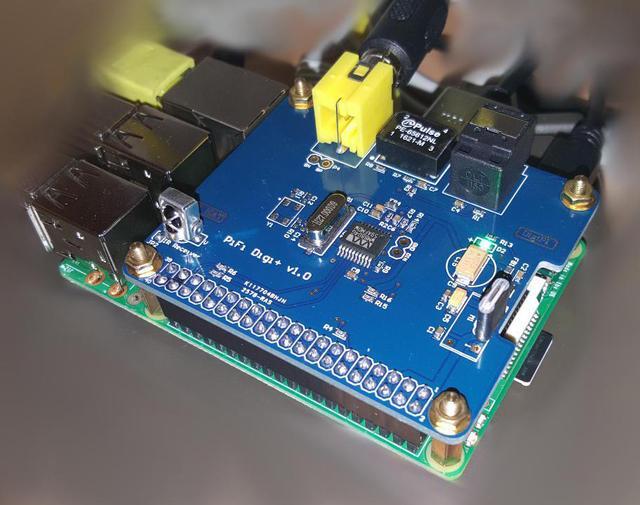

Product Description: This is a response to the raspberry pi B+/A+ design special HIFI Digi+ expansion board (PiFi Digi+), use Wolfson company high end digital chip (WM8804G), use I2S interface, not USB interface; After using this extension plate the user can match the audio playback system (such as: volumio, Xbmc system) to build their own network HIFI player; Expansion board provides fiber (S/PDIF) and coaxial (RCA) two output interface convenient external amplifiers and other equipment. With it you can get rid of PC power, turn off the slow, power supply noise and so on troubled....
Function Introduction:
1. Digital chip uses the Wolfson company high-end WM8804G chip, adopting I2S interface; Support 16 to 24 bit audio data formats; distortion and dynamic is very ideal, support the tall sampling rate of 192kHz, the advanced technology shake reduction can be intrinsic jitter control in 50ps RMS, high degree of reduction.
2. The output port use optical and coaxial twointerface output, convenient for the user to connect an external power amplifier
3. Support hardware mode to control the volume (I2C interface) 4. The power supply adopts Raspberry PI supply, no need external power supply; and use p type filter power supply design, to reduce the interference of power supply effectively.
5. Using I2S interface direct digital output, high reduction degree, not USB interface DAC methods, unoccupied raspberry pi other extended GPIO
6. Provide the power indicator light, easy to observe the expansion board state
7. The PCB board adopt gold plating process, arc wire (high-end HIFI DAC both adopt the arc line), better ensure the signal Impedance continuity, reduce the signal reflection and refraction.
8. Good sound depends on real materials, the optical fiber interface adopts imported HIFI grade high quality fiber seat, coaxial interface using Pluse import audio isolation transformer providing good digital audio at the same time good protection of your audio device and card!!!
9. Integrated infrared receiving function, in the absence of network, more convenient to control the playback
Volumio software parameters: -FLAC, WAV, MP3, AAC, ALAC, PLS support -Music libraries on Samba, NFS and USB drives -Webradios support out of the box -Control it via integrated Webui with PC, Smartphone, Tablet -Airplay capability -Ramplay Support -DSD Native Playback -Multiroom Playback via Android App -Output playback device Selection -Audio out I2S (from Raspberry pi's P5) -Wireless Network configuration -Various resampling options, up to 24bit/192kHz

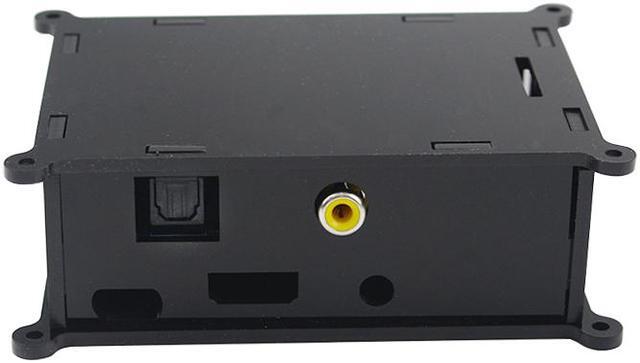

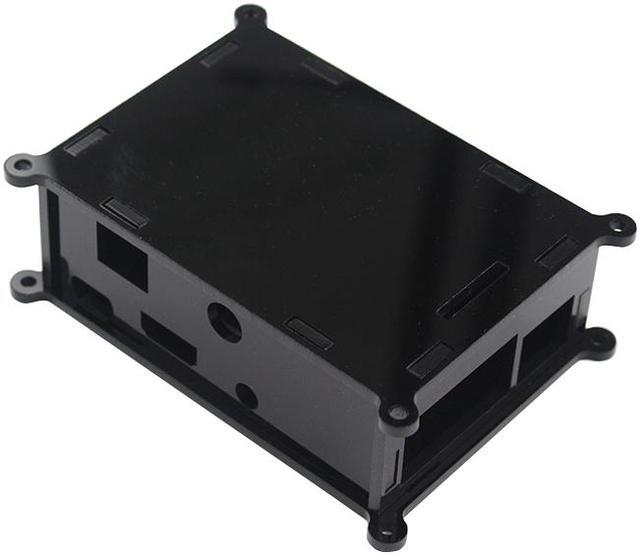

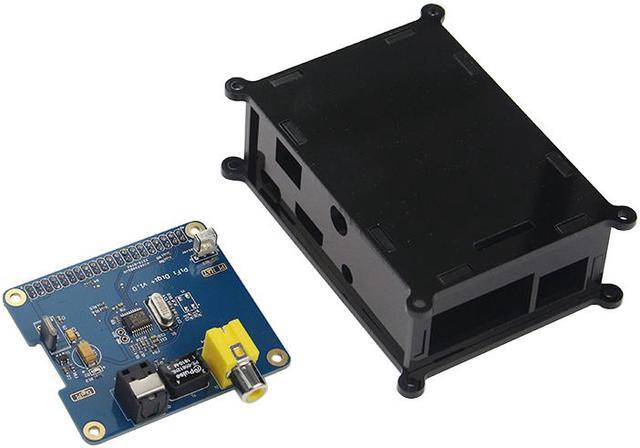

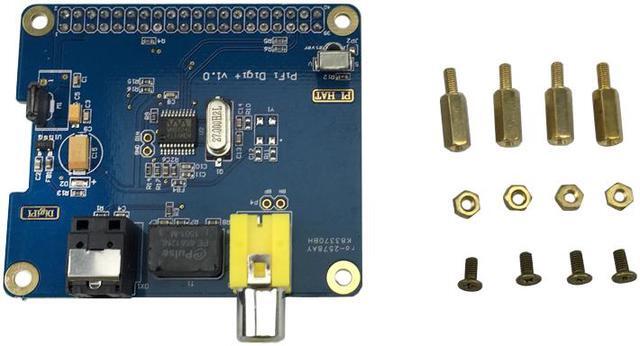

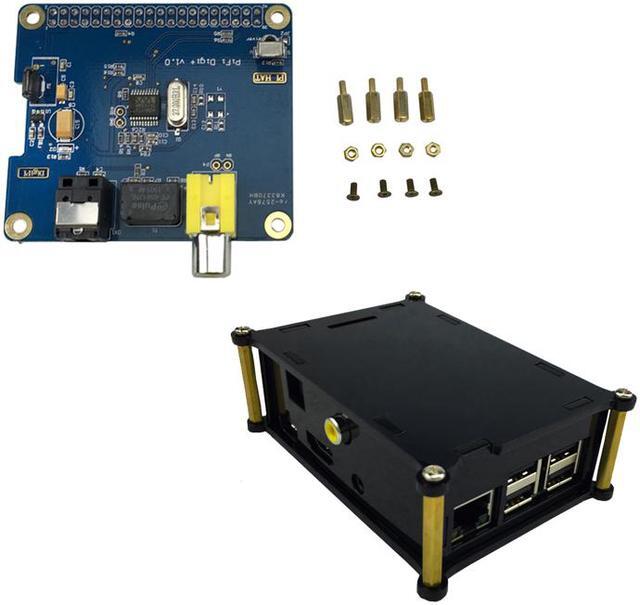

Package Iist: 1 X Digital Audio Board 1 X Acrylic Case
