Cayken KCY-48-2WDO 1.8in. Magnetic Drill Press with 1700W Variable Speed Motor Weldon Shank 13 Piece 1in. Cut Depth Annular Cutter Kit

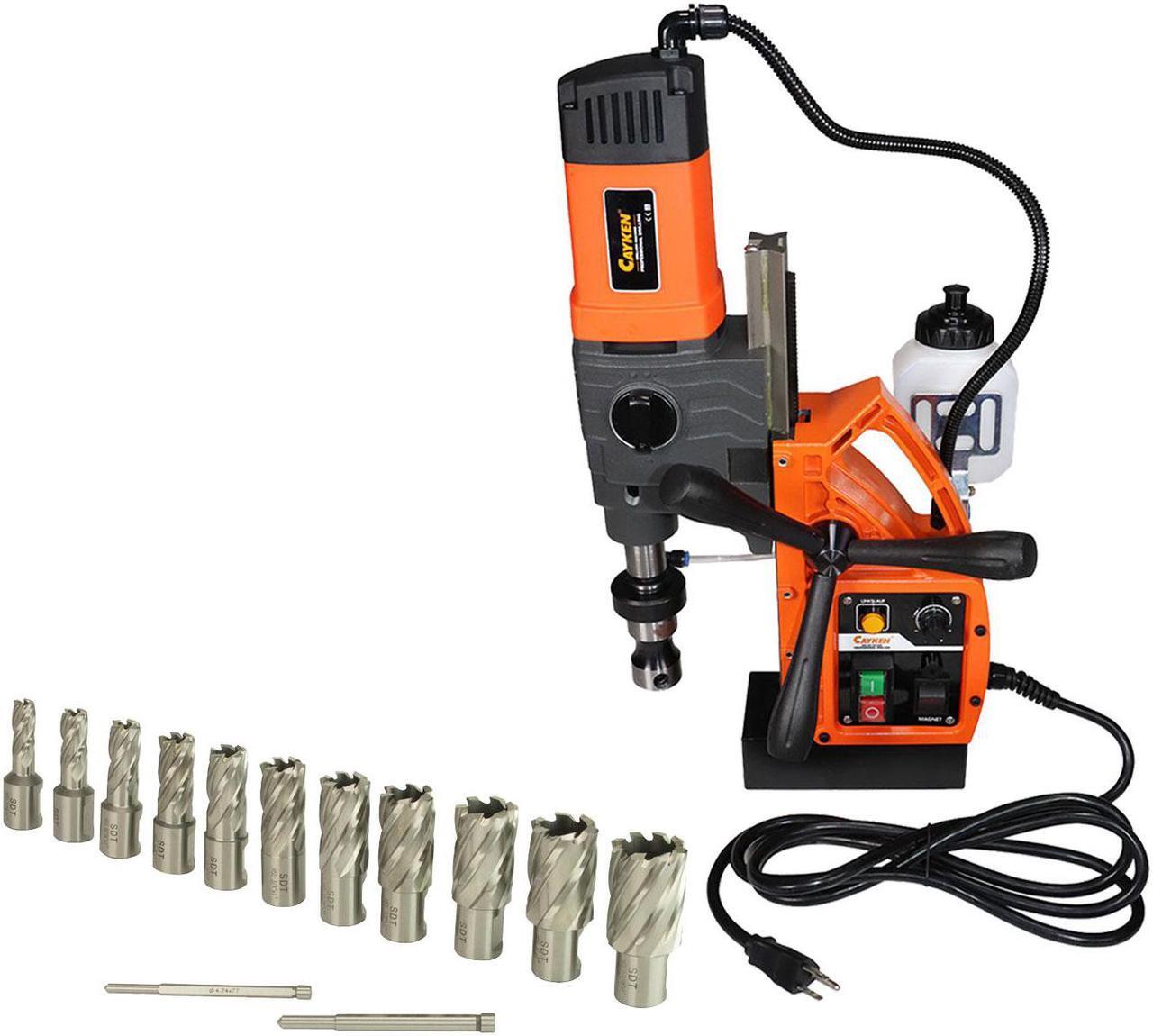

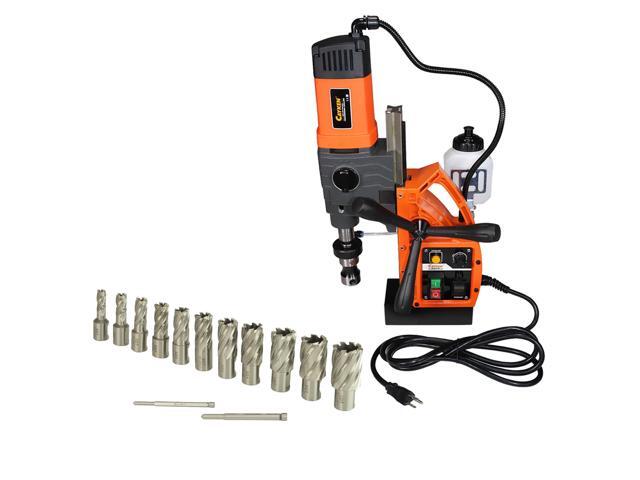

This package includes the Cayken KCY-48-2WDO Electromagnetic Drill Press and the Steel Dragon Tools® 13-piece, 1-inch cut depth, high-speed steel annular cutter kit.

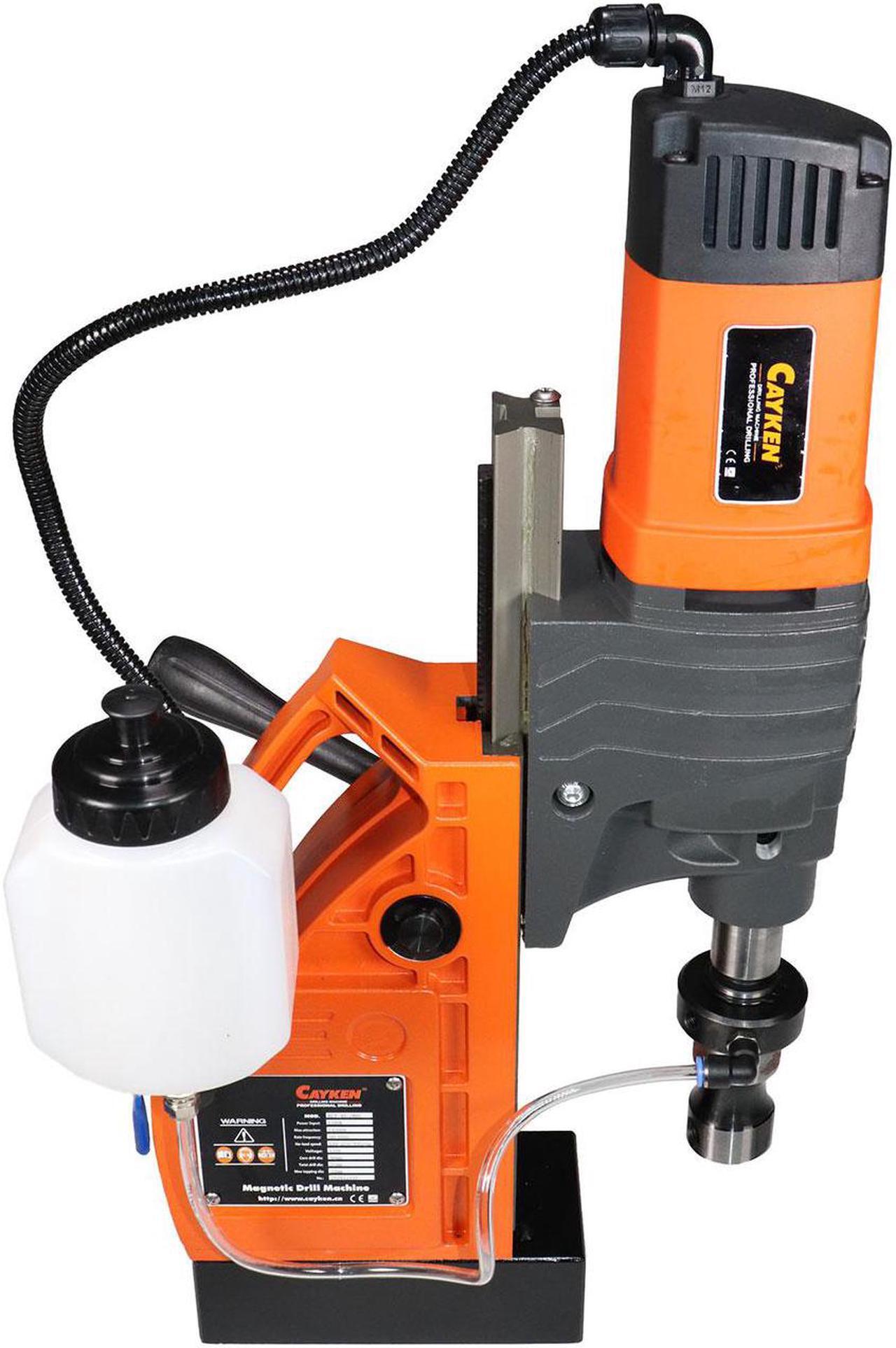

The Cayken KCY-48-2WDO Electromagnetic Drill Press has 3,260 lbs. of maximum magnetic force. A secured magnetic drill press provides more leverage than a hand drill, allowing the operator to cut even, consistent holes. The magnet also allows the drill to operate upside down.

The Cayken KCY-48-2WDO, with a 1,700-watt, 2.27 HP, variable-speed motor, can handle almost any metal drilling job. The KCY-48-2WDO has a maximum boring diameter of 1.8-inches (48 mm) and includes a MT2 to 3/4-inch Weldon Shank Chuck adaptor. The Cayken KCY-48-2WDO is CE/ROHS/ISO90001 Certified.

KCY-48-2WDO Features:

• For use with core drilling, twist drilling, or tapping function.


• Durable oil-immersed gear.


• Forward and reverse functions.


• Adjustable positioning.


• Electronic overload protection to protect the motor against overheating.


• Soft-start motor with electronic current limiter.


• Die-cast alloy frame.

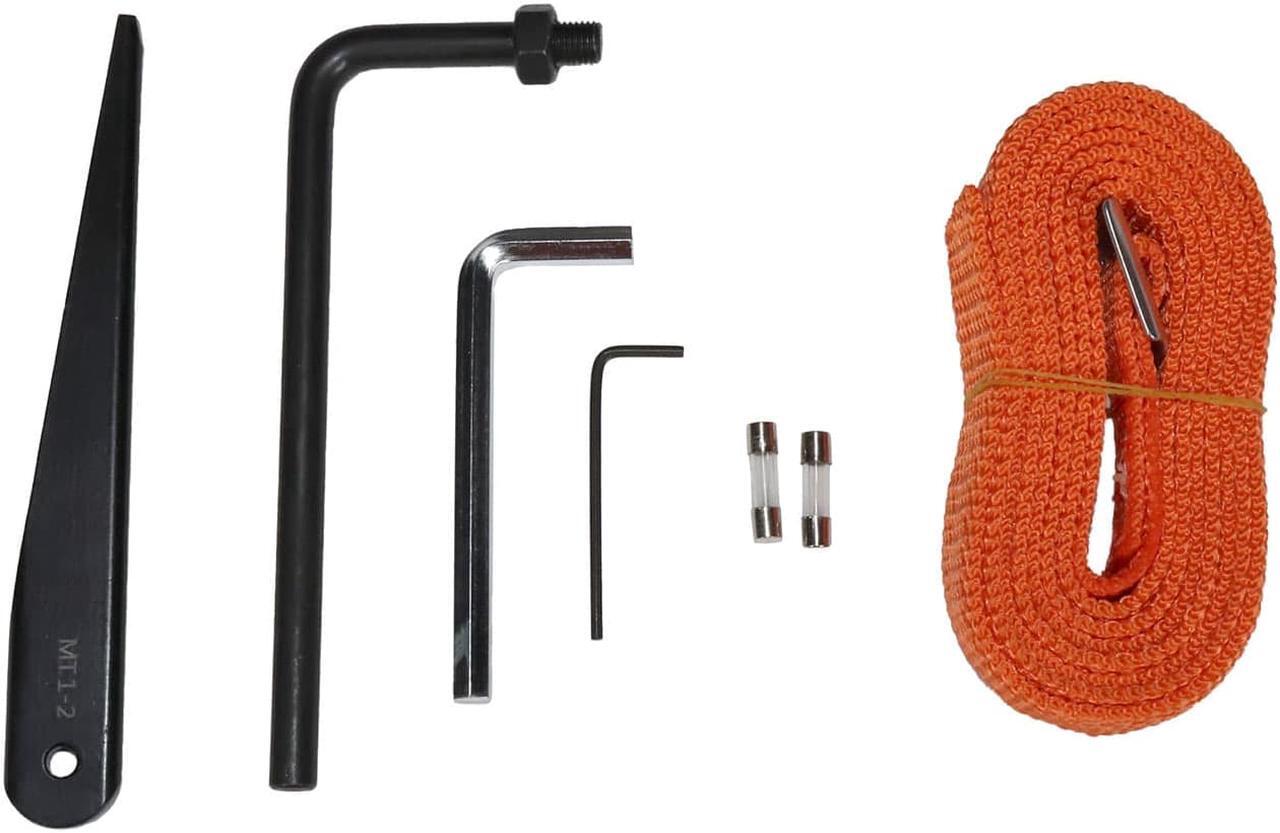

• Includes carrying case, lubricant reservoir bottle, and nylon safety strap.


• CE/ ROHS/ ISO90001 Certified

KCY-48-2WDO Specifications:

• Motor: Variable-Speed, 1,700 W, 110 V, 50/60 Hz, 2.27 HP


• Maximum Magnetic Force: 3,260 lbs. (14,500 N). Thinner metal will result in less force.


• Maximum Boring Diameter: 1.8 in. (48 mm)


• Maximum Twist Drilling Diameter: 0.85 in. (22 mm)


• Maximum Tapping Diameter: M18


• Maximum Boring Depth: 6-3/4 in.


• Spindle: MT2 to 3/4-inch Weldon Shank


• Net Weight: 30 lbs.

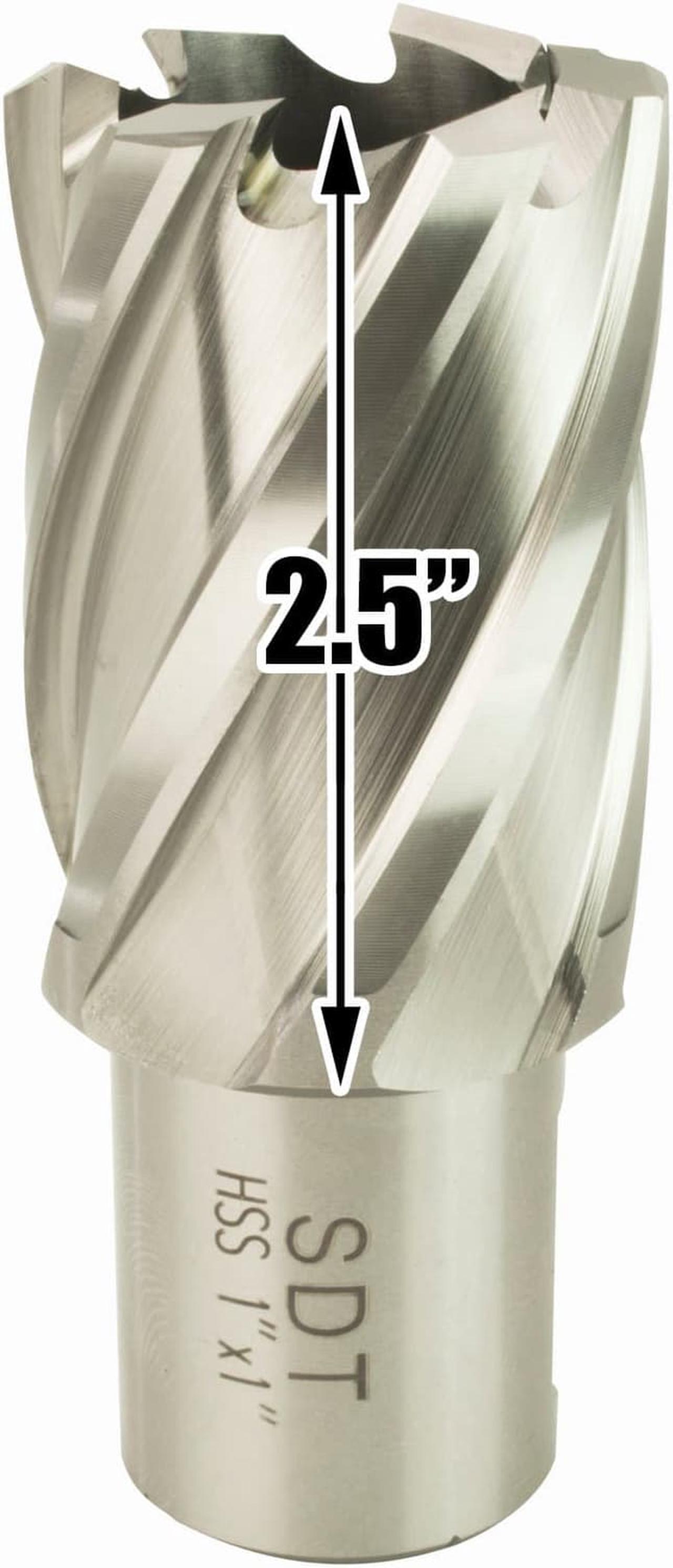

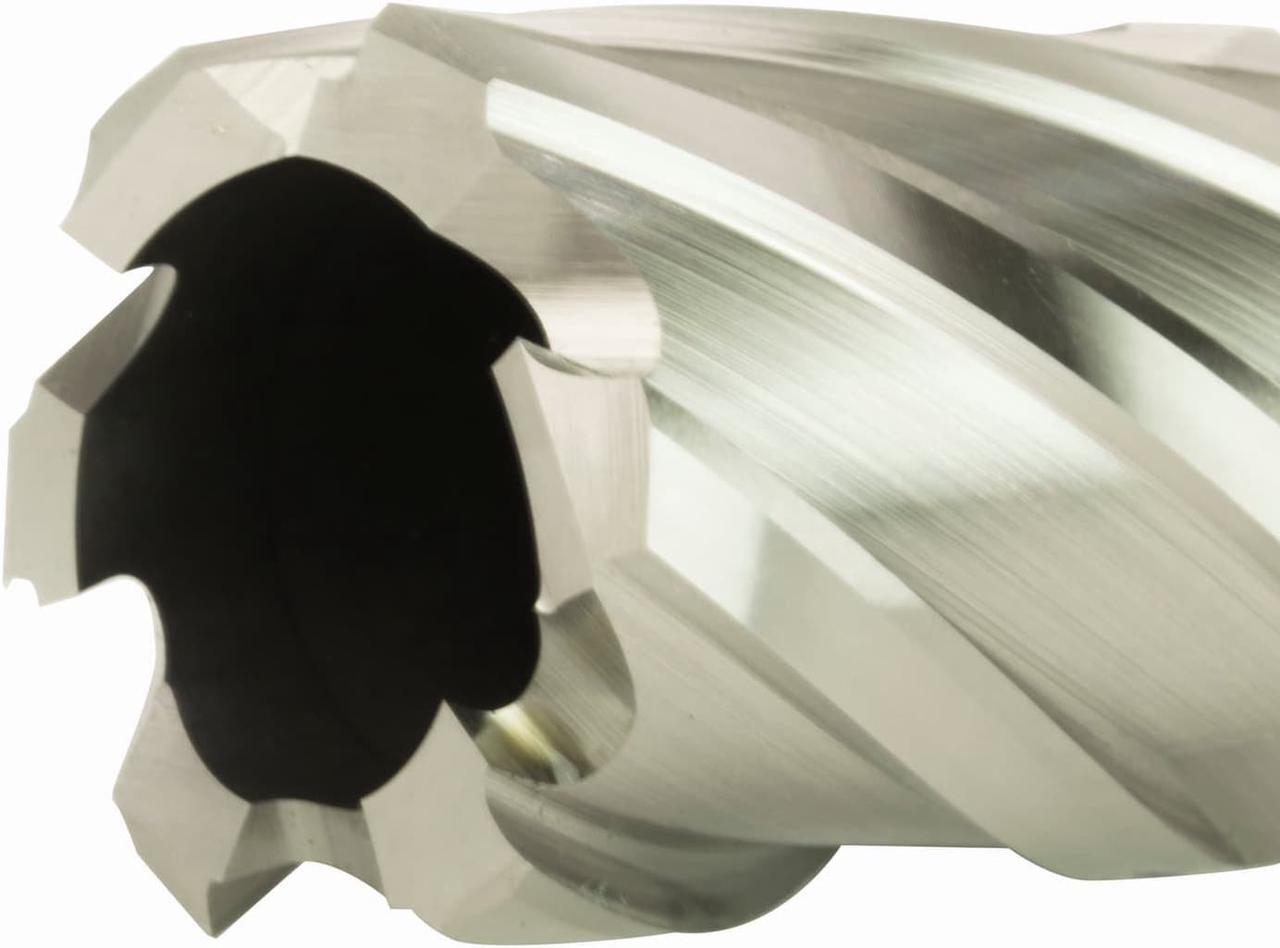

Annular Cutter Features:

• Steel Dragon Tools® annular cutters will drill large holes up to ten times faster than regular drills bits.


• Machine-finish hole with no reaming needed when using lubricant.


• Make overlapping holes, slotting holes, and edge cuts.


• Bit size is etched on each cutter.


• Pilot pin helps locate center of hole location.


• Pilot pin helps eject slug after drilling is complete.


• During the drilling process, the pilot pin will retract into the cutter allowing lubrication to reduce heat gain in the slug.

Annular Cutter Specifications:

• Kit includes 11 high speed steel annular cutters and two (2) pilot pins.


• Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in., 7/8 in., 15/16 in., 1 in., 1-1/16 in.


• Cutting Depth: 1 in.


• 3/4 in. Weldon Shank
