Cayken Handheld 5in. Diamond Core Drill Rig with 580F Adjustable Vacuum Stand

The Cayken 18-2EBM handheld drill is designed for wet or dry core drilling and comes with the Cayken 580F adjustable aluminum stand with vacuum plate. This drill will cut up to 5-inch holes in reinforced concrete, brick, stone, rock, ceramic, and fireproof materials. Brick drilling range is 5 inches. Concrete drilling range is 3 inches. The Cayken 18-2EBM has a variable-speed motor with 2.5 HP and two (2) gears. Spline is 16 mm x 2.0 and includes spline adapter. Drill features safety clutch and overload protection. Package includes 48 mm adapter collar to attach drill to stand, carrying case, wrench, two (2) motor brushes, and 1/4-inch water valve with shut off.

Cayken 18-2EBM Drill Specifications:

• Brick Drilling Range: 5 in.


• Concrete Drilling Range: 3 in.


• Motor Specs: 1,900 W, 2.5 HP, 110 V, 60 Hz


• Variable speed with Two Gears: 700 RPM; 1050 RPM

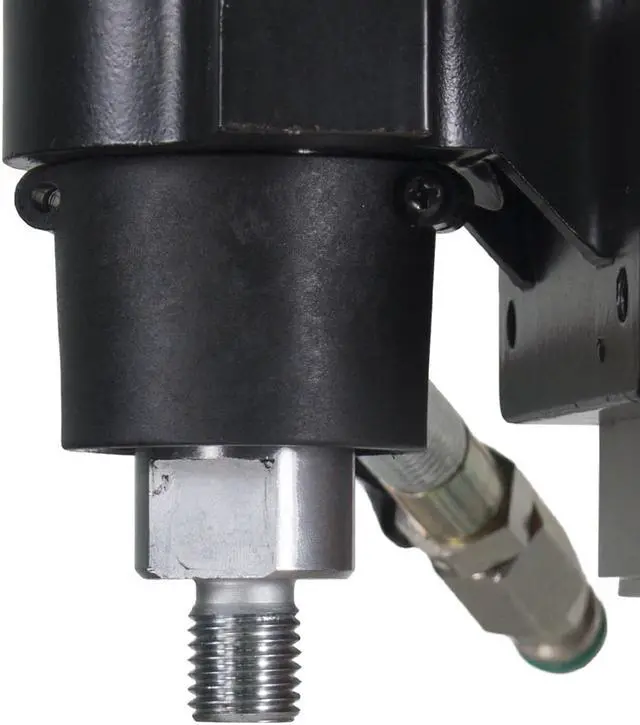

• Spline: 16 mm x 2.0

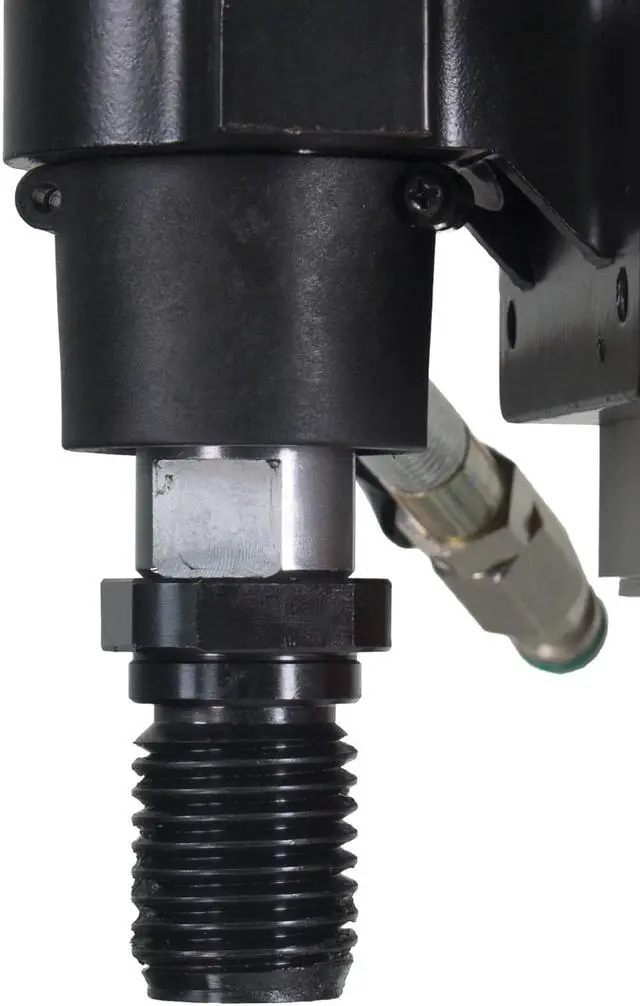

• Spline Adapter: 16 mm x 2.0 Box to 1-1/4 in. x 7 TPI Male


• Weight: 11 lbs.


• Designed for wet or dry core drilling.


• Will cut up to 5-inch diameter holes.


• For use on concrete, brick, stone, rock, ceramic, and fireproof materials.


• 1/4-inch water valve for wet drilling.


• Stepless speed regulation.


• Soft start electronic current limiter.


• Includes 48 mm adapter collar to attach drill to stand.


• Includes carrying case and wrench.


• CE/ROHS/ISO90001 Certified.


• Drill bit not included.

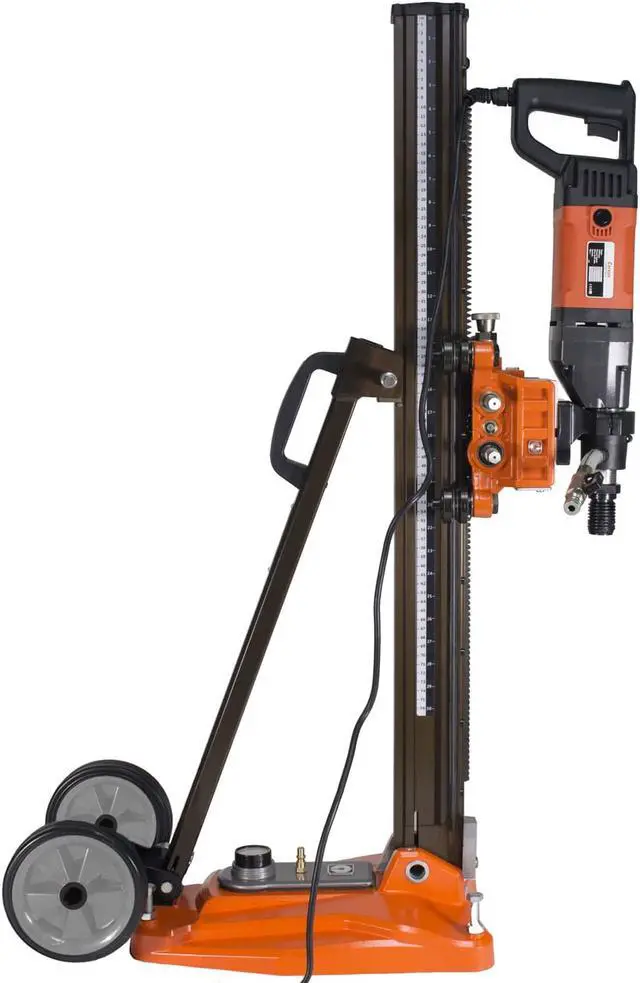

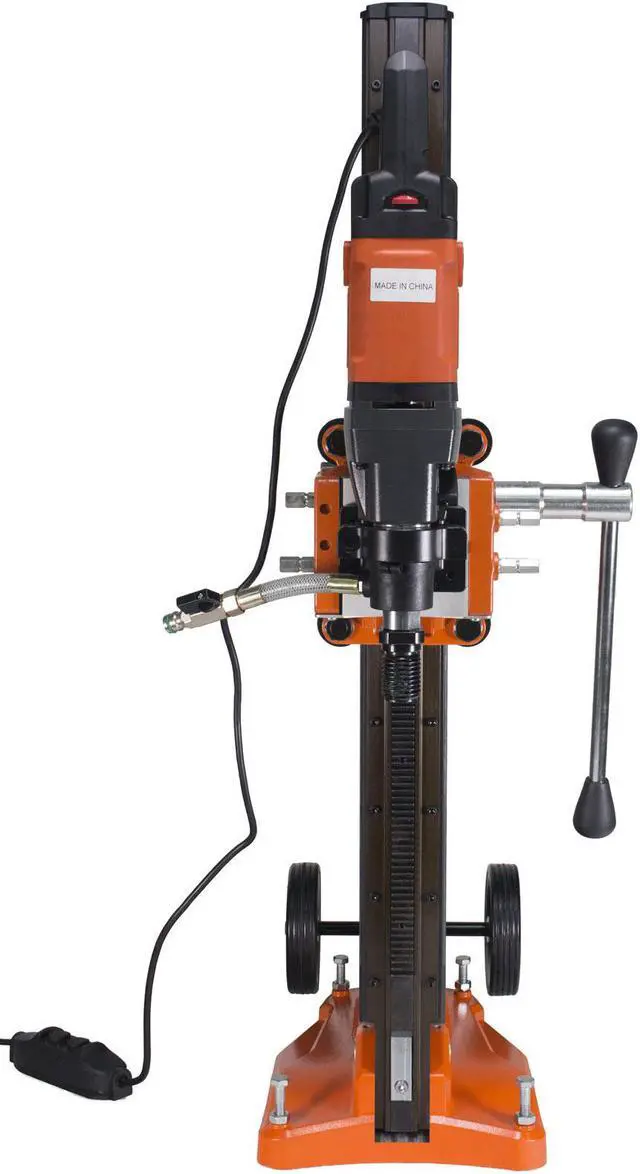

Cayken 580F Stand Specifications:

• Adjustable aluminum stand for drilling at 0 to 60 degrees.


• Base mounts with anchor bolts or vacuum plate.


• Built-in leveling bubble.


• Four (4) adjustable slide bearings.


• Larger mast designed to accommodate large-diameter bits and withstand high torque.

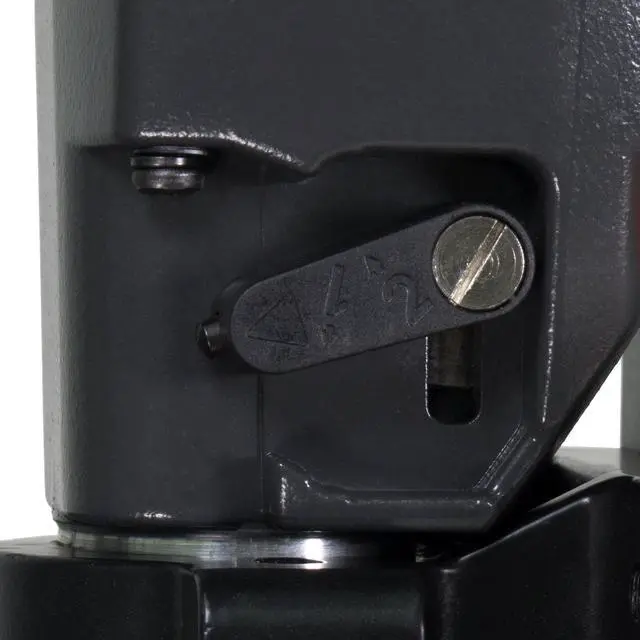

• Angle/vertical position locks.


• Four (4) leveling bolts on base.


• Reversible slide handle for dual-side operation.


• Top and rear handles.


• Includes wrench set.
