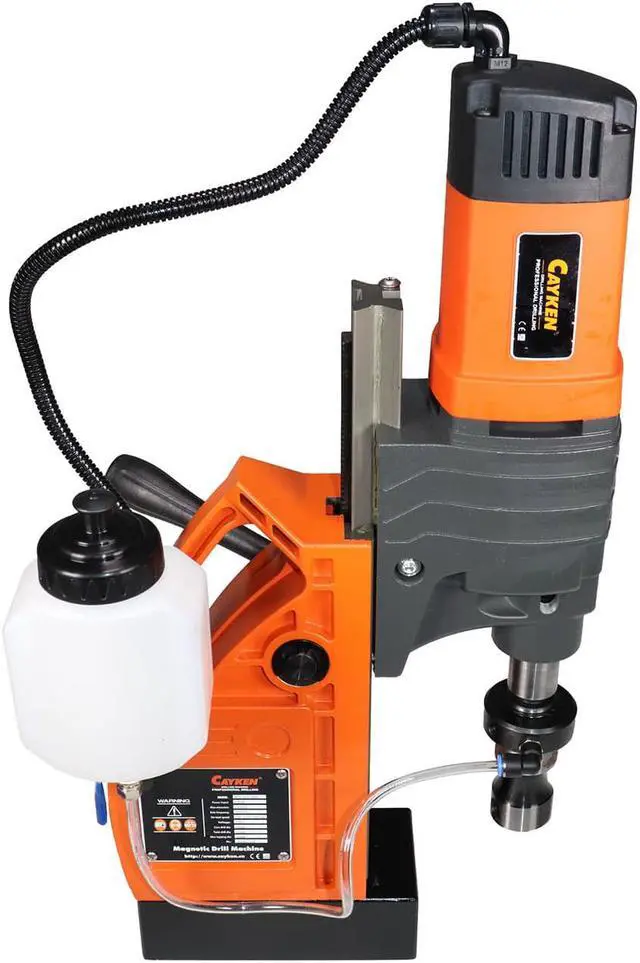

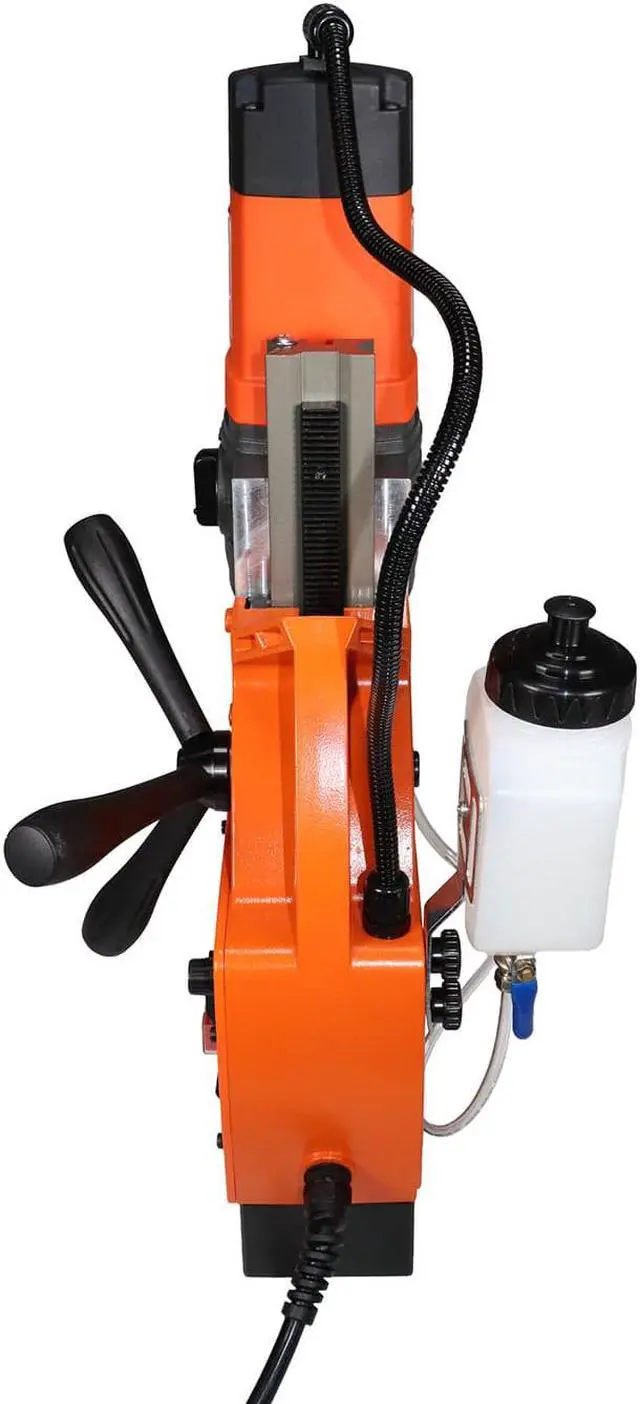

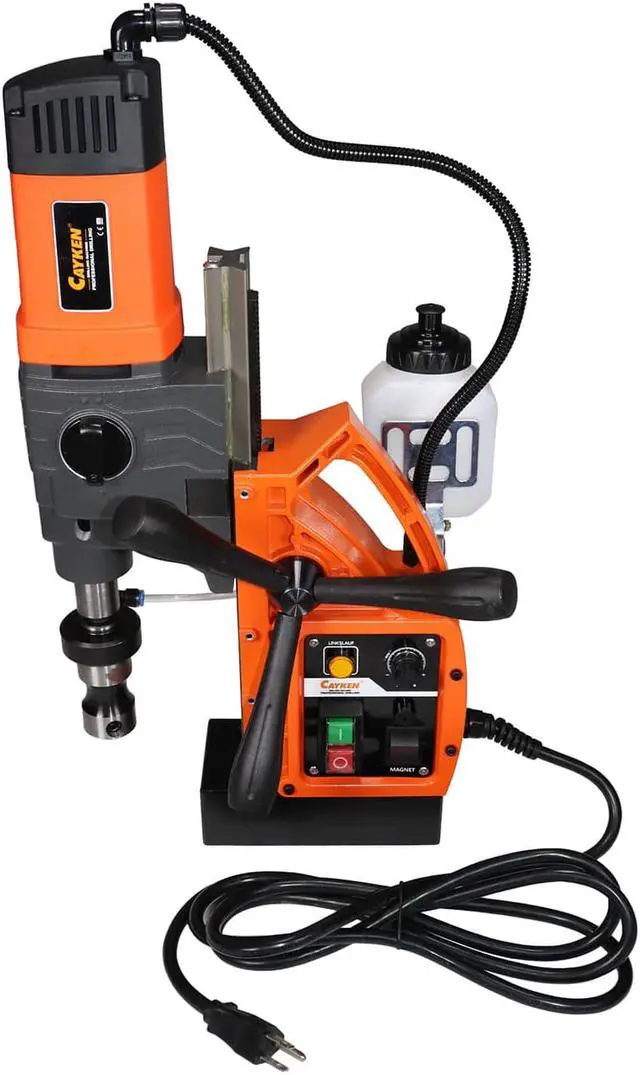

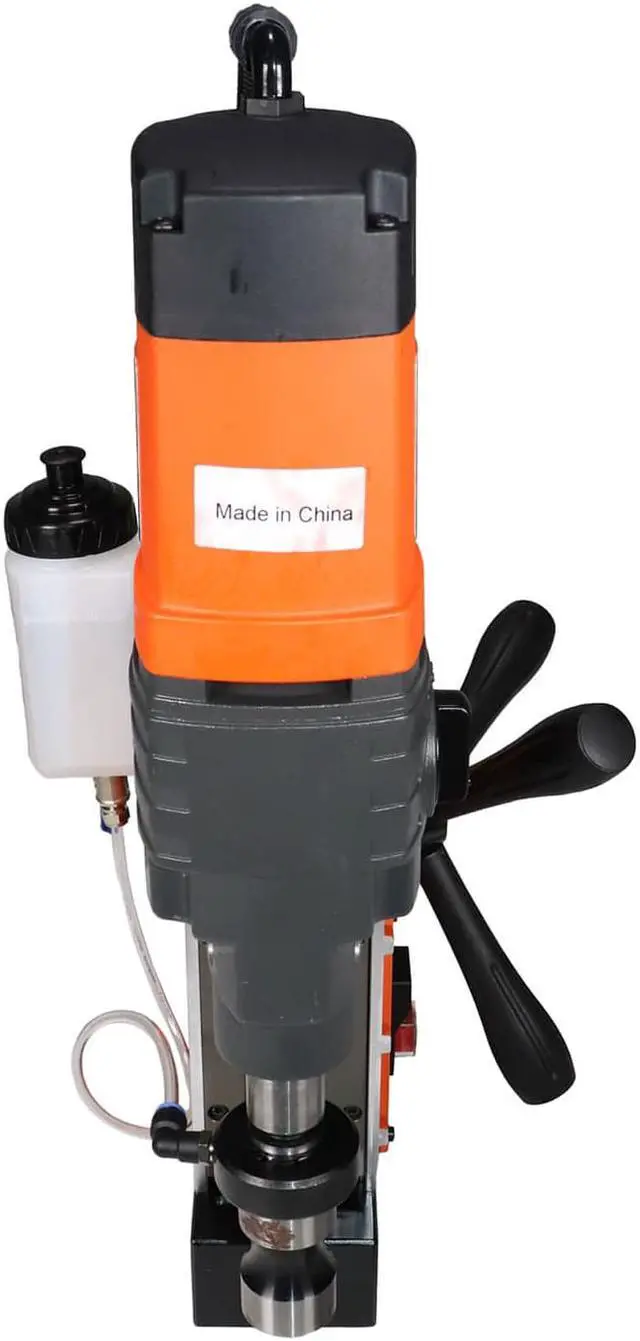

Cayken KCY-48-2WDO 1.8in. Magnetic Drill Press with 1700W Variable Speed Motor MT2 to Weldon Shank 3260 LBS Magnetic Force

The Cayken KCY-48-2WDO Electromagnetic Drill Press has 3,260 lbs. of maximum magnetic force. A secured magnetic drill press provides more leverage than a hand drill, allowing the operator to cut even, consistent holes. The magnet also allows the drill to operate upside down.

The Cayken KCY-48-2WDO, with a 1,700-watt, 2.27 HP, variable-speed motor, can handle almost any metal drilling job. The KCY-48-2WDO has a maximum boring diameter of 1.8-inches (48 mm) and includes a MT2 to 3/4-inch Weldon Shank Chuck adaptor. The Cayken KCY-48-2WDO is CE/ROHS/ISO90001 Certified.

KCY-48-2WDO Features:

• For use with core drilling, twist drilling, or tapping function.


• Durable 2-speed oil-immersed gearbox.


• Forward and reverse functions.


• Adjustable positioning.


• Electronic overload protection to protect the motor against overheating.


• Soft-start motor with electronic current limiter.


• Die-cast alloy frame.

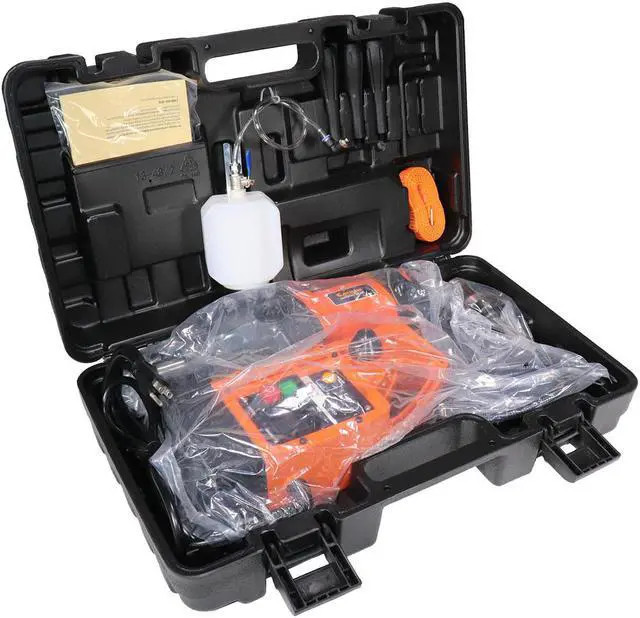

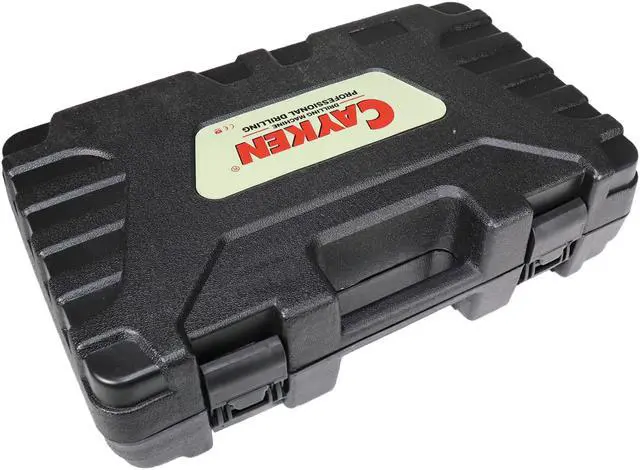

• Includes carrying case, lubricant reservoir bottle, and nylon safety strap.


• CE/ ROHS/ ISO90001 Certified

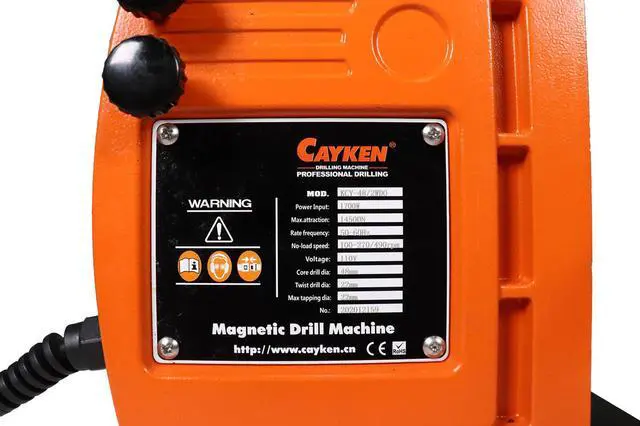

KCY-48-2WDO Specifications:

• Motor: 1,700 W, 110 V, 50/60 Hz, 2.27 HP, Variable-Speed


• Maximum Magnetic Force: 3,260 lbs. (14,500 N). Thinner metal will result in less force.


• Maximum Boring Diameter: 1.8 in. (48 mm)


• Maximum Twist Drilling Diameter: 0.85 in. (22 mm)


• Maximum Tapping Diameter: M22


• Maximum Boring Depth: 6-3/4 in.


• Spindle: MT2 to 3/4-inch Weldon Shank


• Net Weight: 30 lbs.
