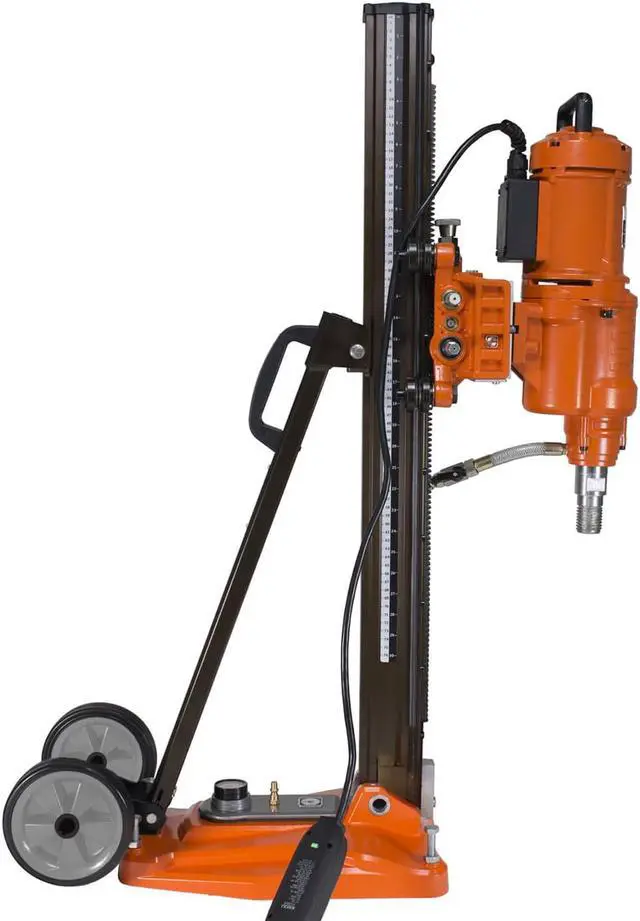

Cayken 10in. Diamond Core Drill Rig with 580F Adjustable Angle Vacuum Plate Stand

The Cayken 2550 Core Drill is designed for wet or dry core drilling and comes with the Cayken 580F adjustable aluminum stand with vacuum plate. This drill will cut up to 10-inch holes in reinforced concrete, brick, stone, rock, ceramic, and fireproof materials. The Cayken 2550 has a 4350-watt motor with 5.8 HP. Spline is 1-1/4 in. x 7 TPI. Drill features safety clutch and overload protection. Package includes wrench set, two (2) motor brushes, and 1/4-inch water valve with shut off.

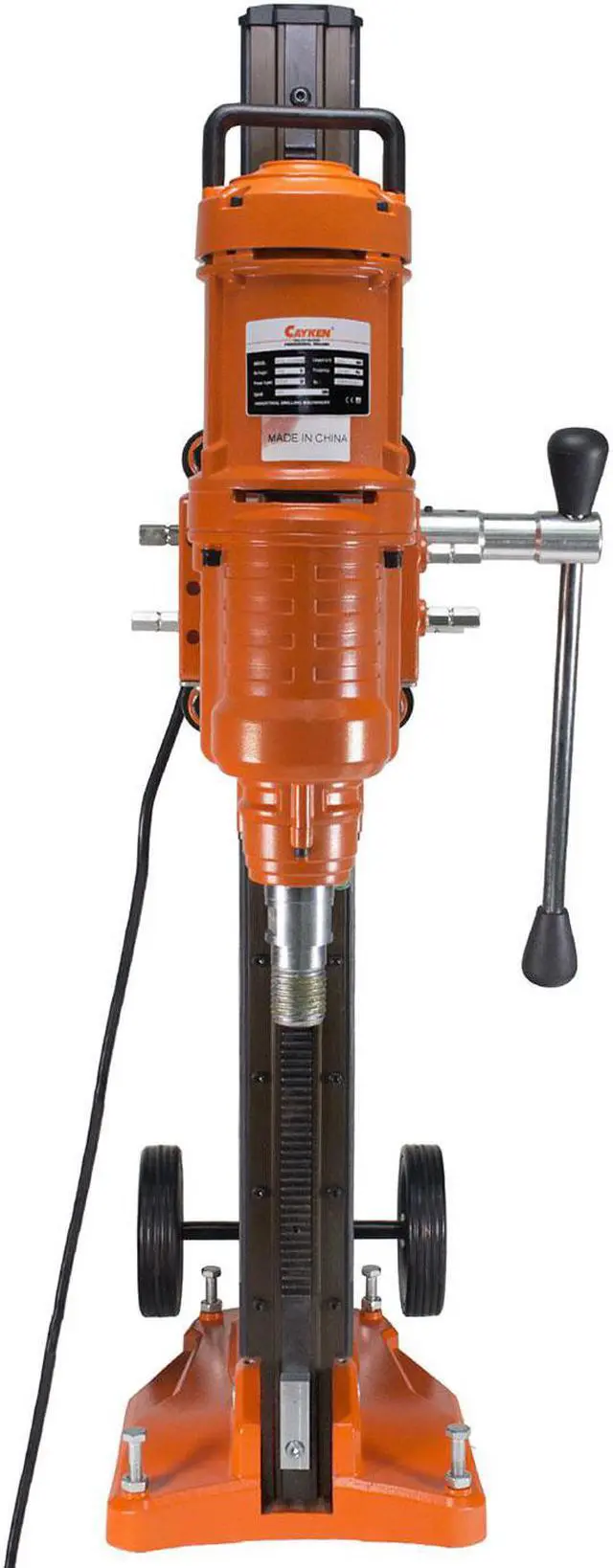

Cayken 2550 Drill Specifications:

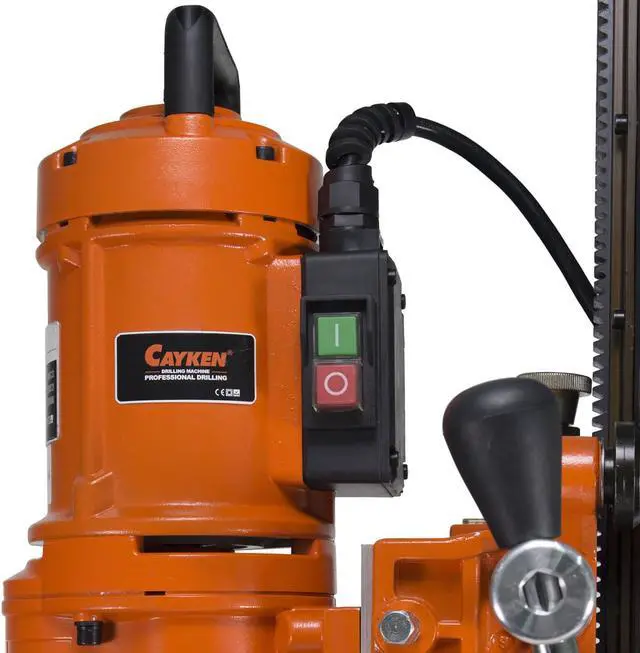

• Motor: 4,350 W, 5.8 HP, 110 V, 50/60 Hz, 520 RPM


• Spline: 1-1/4 in. x 7 TPI


• Designed for wet or dry core drilling.


• Will cut up to 10-inch diameter holes.


• For use on concrete, brick, stone, rock, ceramic, and fireproof materials.

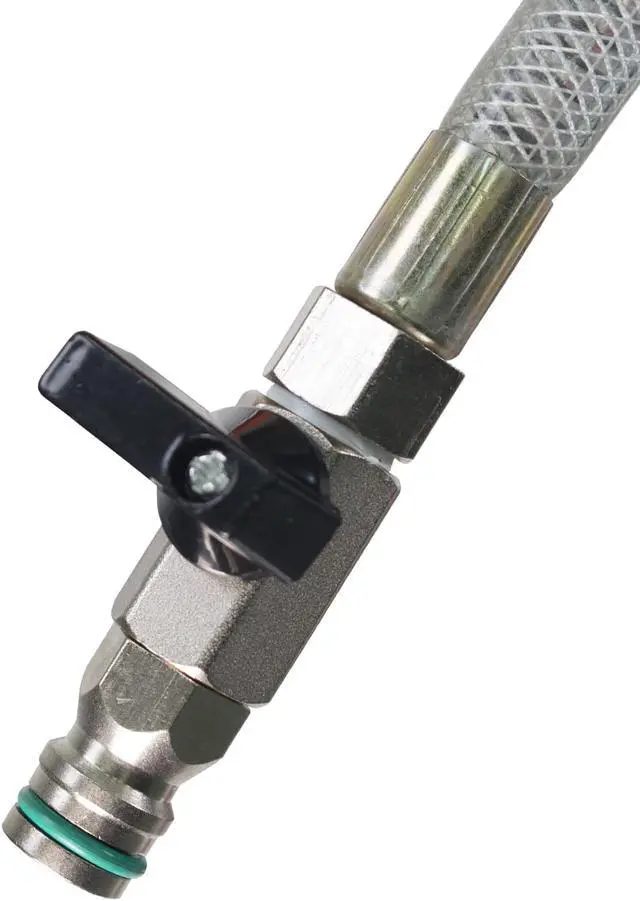

• 1/4-inch water valve for wet drilling.


• Soft start electronic current limiter


• Includes wrench set.


• CE/ROHS/ISO90001 Certified.


• Drill bit not included.

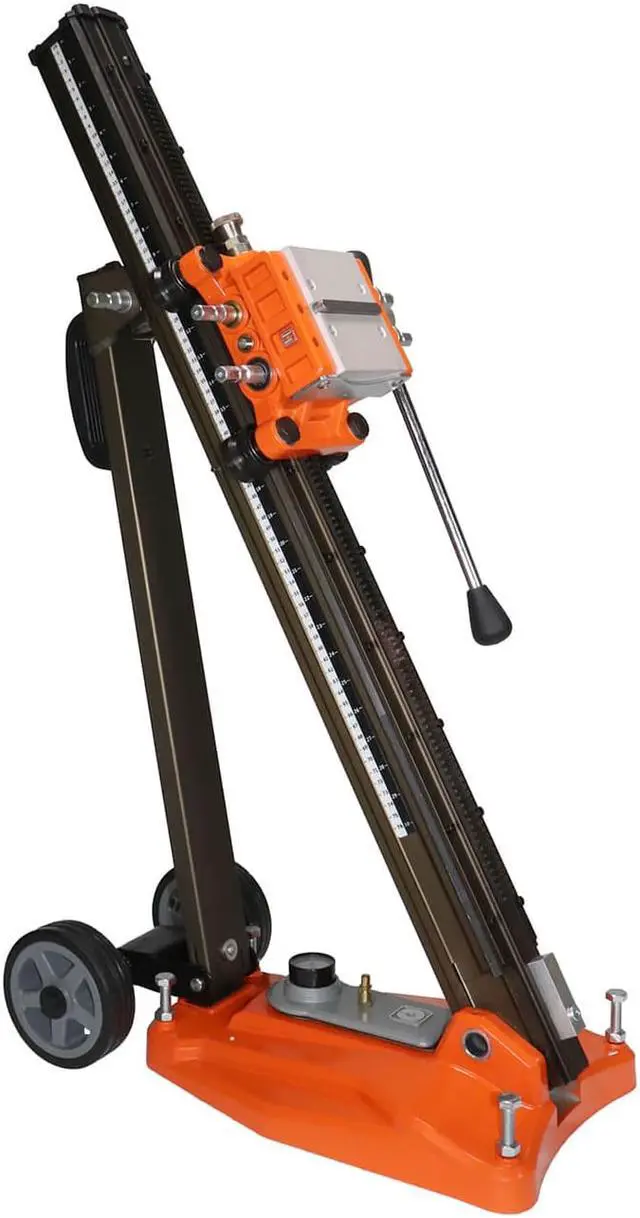

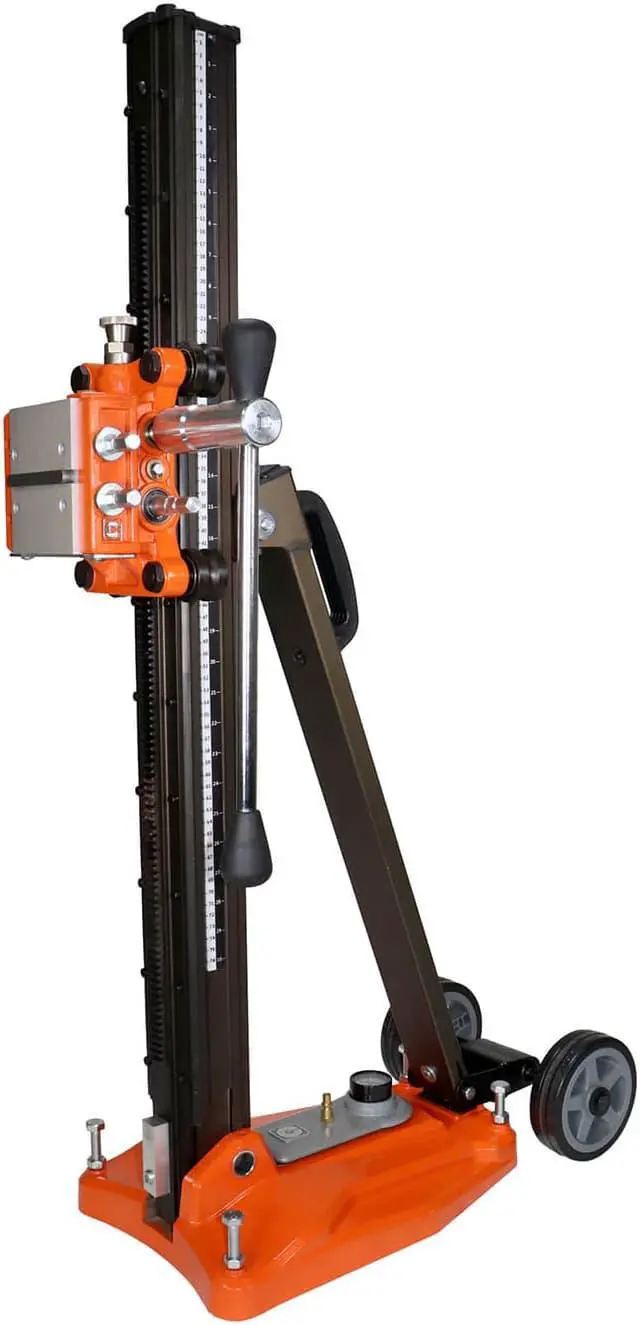

Cayken 580 Stand Specifications:

• Adjustable aluminum stand for drilling at 0 to 60 degrees.


• Base mounts with anchor bolts or vacuum plate.


• Built-in leveling bubble.


• Four (4) adjustable slide bearings.


• Larger mast designed to accommodate large-diameter bits and withstand high torque.


• Angle/vertical position locks.


• Four (4) leveling bolts on base.


• Reversible slide handle for dual-side operation.


• Top and rear handles.


• Includes wrench set.
