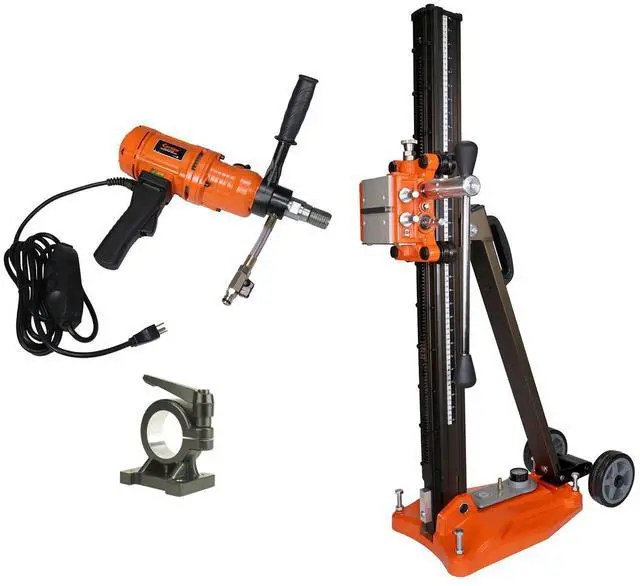

Cayken 6in. Diamond Core Drill Rig with 580F Adjustable Angle Vacuum Plate Stand

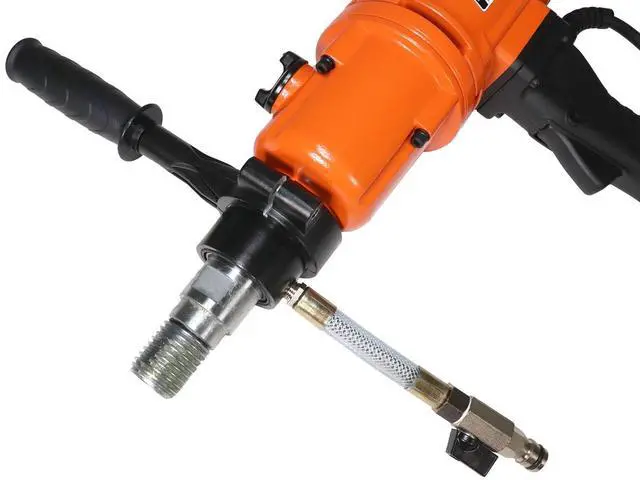

The Cayken 1520-2BS handheld diamond core drill rig is designed for wet or dry drilling and comes with the Cayken 580F adjustable aluminum stand with vacuum plate. This drill can be used on brick, stone, reinforced concrete, ceramic, and fireproof materials. Maximum drilling range in brick is 6 inches. Maximum drilling range in concrete is 4-3/4 inches. Drill features quick connect water valve with shut off.

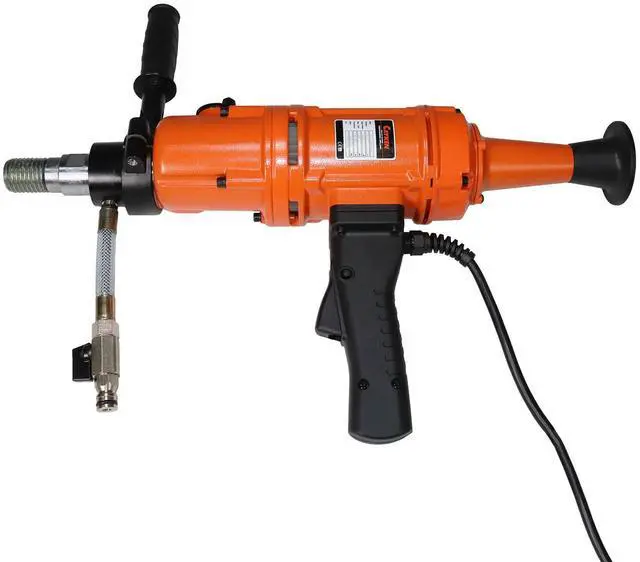

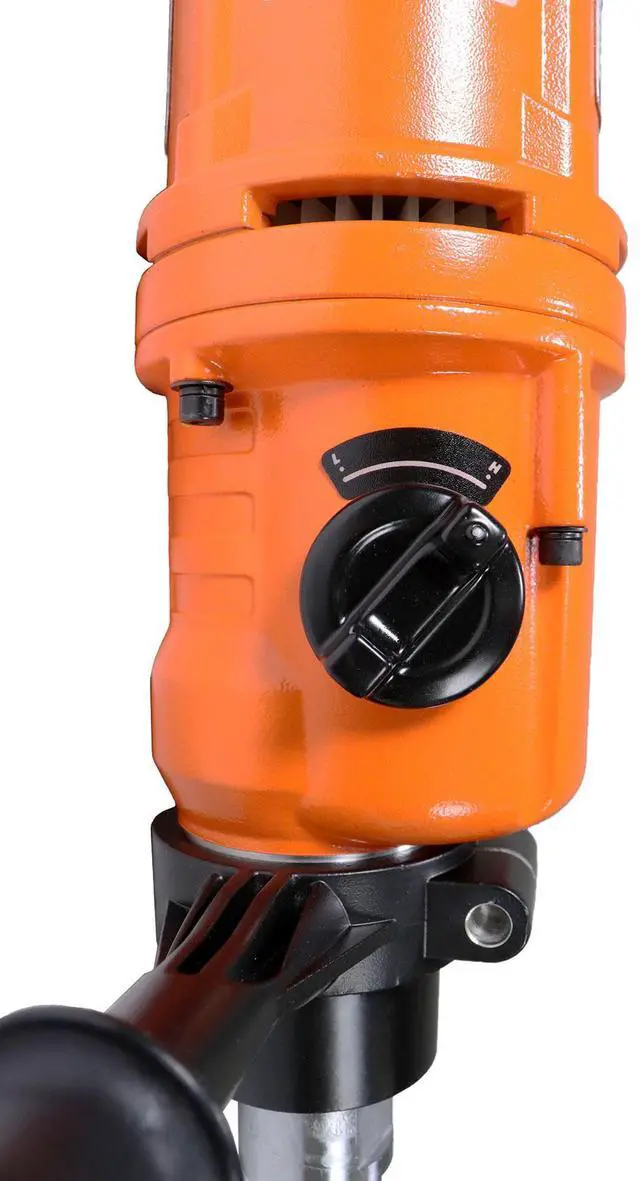

The Cayken 1520-BS has a soft-starting motor with 1,800 W and two-gear speeds. Spline is 1-1/4 in. x 7 TPI. Drill features a built-in fuse breaker, built-in level, and waterproof ON/OFF switch. This drill has an oil-immersed gearbox for longer operating life and multi-gear speed regulation. Package includes carrying case, 30 mm/32 mm wrench, Allen wrench, two (2) motor brushes, and 1/4-inch water valve with shut off.

Cayken 1520 Drill Specifications:

• Motor: 1800 W, 110 V, 60 Hz, 800 RPM.


• Spline: 1-1/4 in. x 7 TPI

Features:

• Brick Drilling Range: 6 in.


• Concrete Drilling Range: 4.8 in.


• Handheld diamond core drill rig designed for wet or dry drilling.


• For use on brick, stone, reinforced concrete, ceramic, and fireproof materials.


• Drill features 1/4-inch quick connect water valve with shut off.

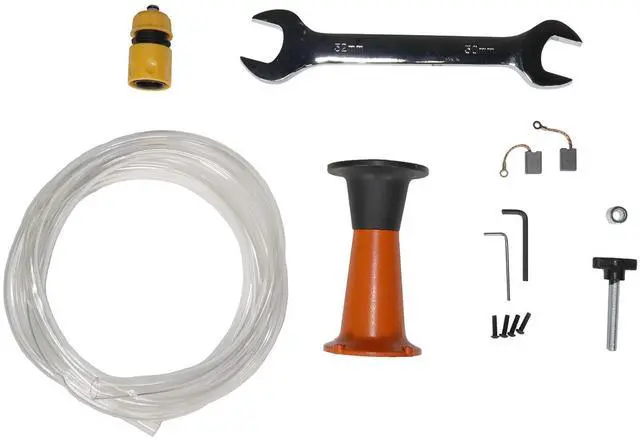

• Package includes carrying case, wrench, Allen wrench, motor brushes, water tube.

Cayken 60 MM Collar To Attach CK-SCY-1520-2BS Core Drill Rig To Adjustable Drilling Stand -KEY_TAB *Color may vary - Black or Orange*

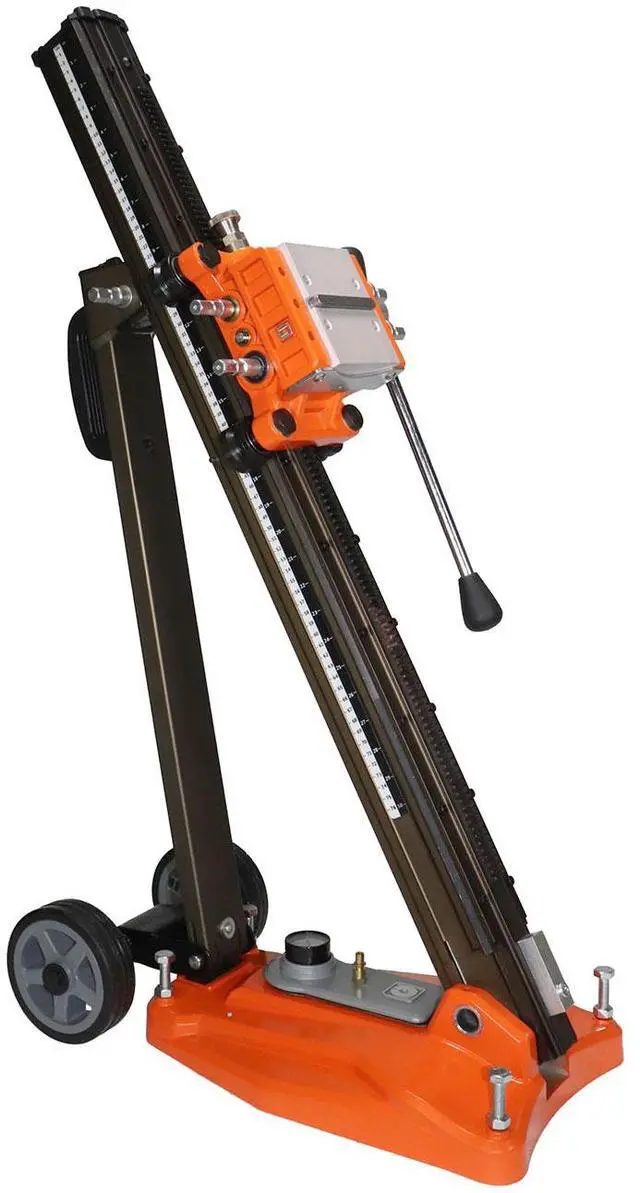

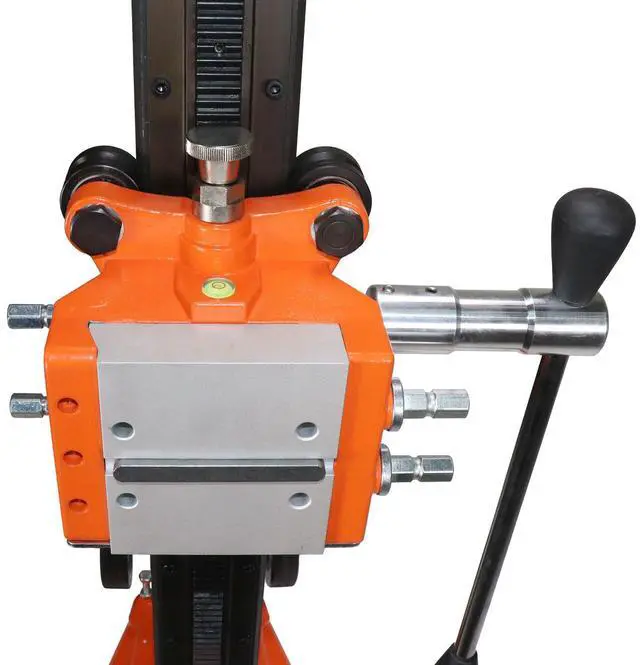

Cayken 580F Stand Specifications:

• Adjustable aluminum stand for drilling at 0 to 60 degrees.


• Base mounts with anchor bolts or vacuum plate.


• Built-in leveling bubble.


• Four (4) adjustable slide bearings.


• Larger mast designed to accommodate large-diameter bits and withstand high torque.


• Angle/vertical position locks.


• Four (4) leveling bolts on base.


• Reversible slide handle for dual-side operation.


• Top and rear handles.


• Includes wrench set.
