Cayken 6in. Diamond Core Drill Rig with 400F Adjustable Angle Stand

The Cayken 1520-2BS handheld diamond core drill rig is designed for wet or dry drilling and comes with the Cayken 400F adjustable aluminum stand. This drill can be used on brick, stone, reinforced concrete, ceramic, and fireproof materials. Maximum drilling range in brick is 6 inches. Maximum drilling range in concrete is 4-3/4 inches. Drill features quick connect water valve with shut off.

The Cayken 1520-BS has a soft-starting motor with 1,800 W and two-gear speeds. Spline is 1-1/4 in. x 7 TPI. Drill features a built-in fuse breaker, built-in level, and waterproof ON/OFF switch. This drill has an oil-immersed gearbox for longer operating life and multi-gear speed regulation. Package includes carrying case, 30 mm/32 mm wrench, Allen wrench, two (2) motor brushes, and 1/4-inch water valve with shut off.

Cayken 1520 Drill Specifications:

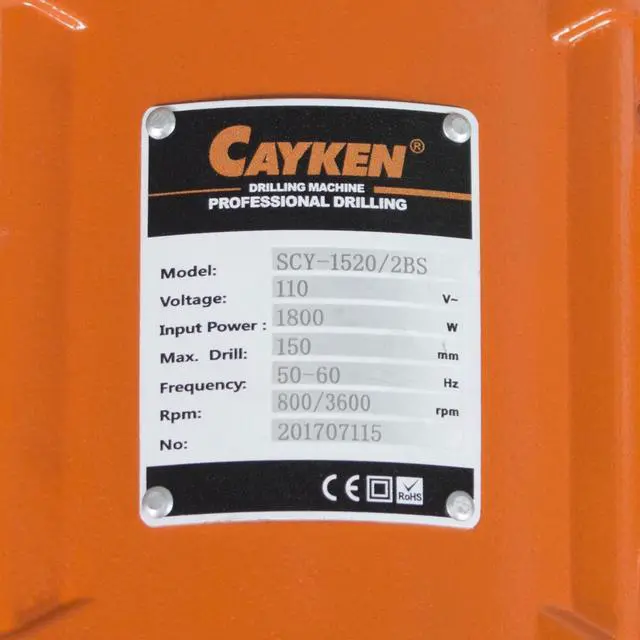

• Motor: 1800 W, 110 V, 60 Hz, 800 RPM.

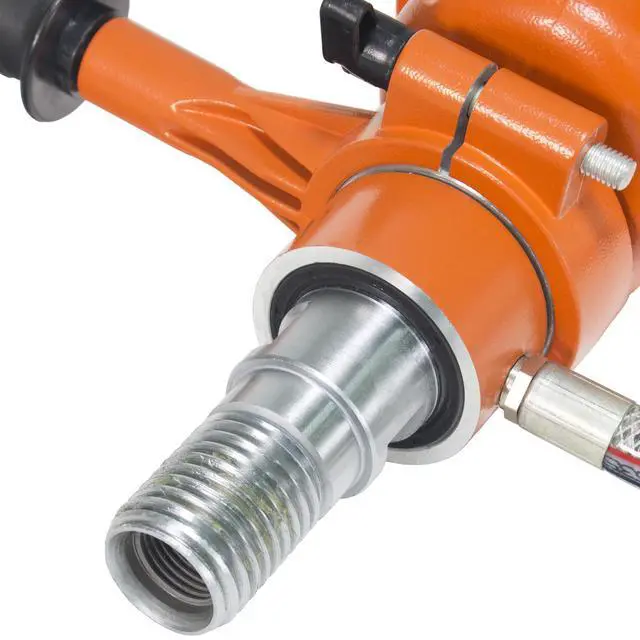

• Spline: 1-1/4 in. x 7 TPI

Features:

• Brick Drilling Range: 6 in.


• Concrete Drilling Range: 4.8 in.


• Handheld diamond core drill rig designed for wet or dry drilling.


• For use on brick, stone, reinforced concrete, ceramic, and fireproof materials.

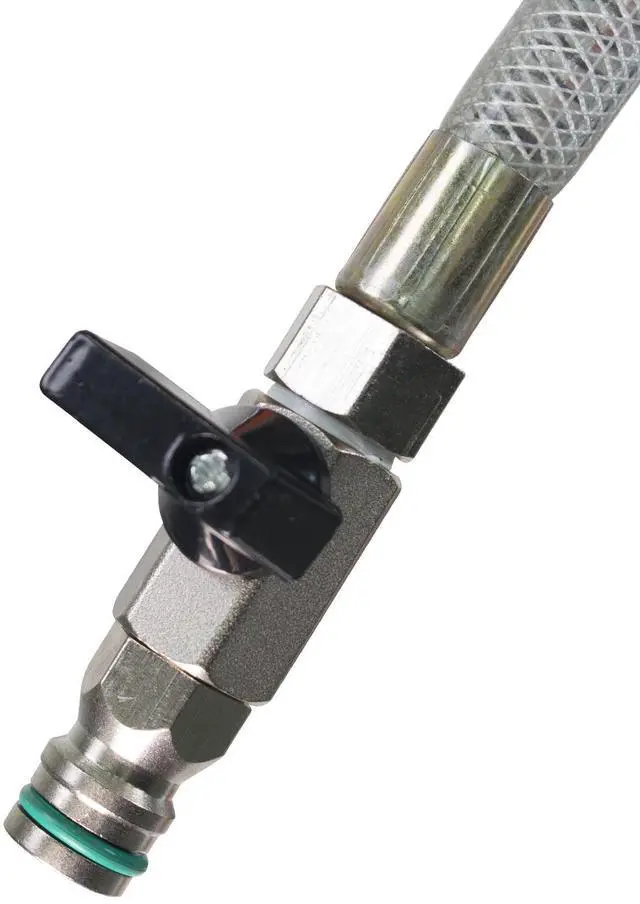

• Drill features 1/4-inch quick connect water valve with shut off.


• Package includes carrying case, wrench, Allen wrench, motor brushes, water tube.

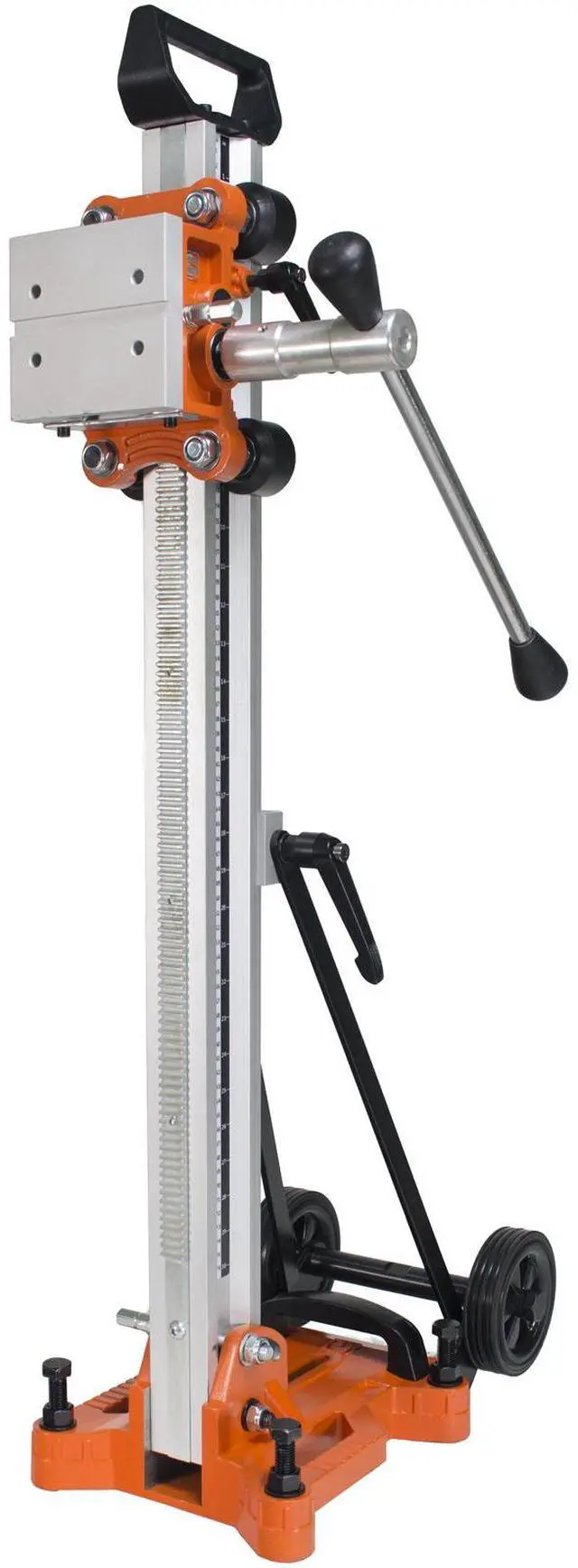

Cayken 400F Stand Specifications:

• Adjustable aluminum stand for drilling at 0 to 45 degrees.


• Built-in leveling bubble.


• Four (4) adjustable slide bearings.


• Angle/vertical position locks.


• Larger mast designed to accommodate large-diameter bits and withstand high torque.


• Four (4) leveling bolts on base.


• Reversible slide handle for dual-side operation.


• Top and rear handles.


• 4-1/2-inch rolling wheels.


• Includes wrench set.


• Weight: 34 lbs.
