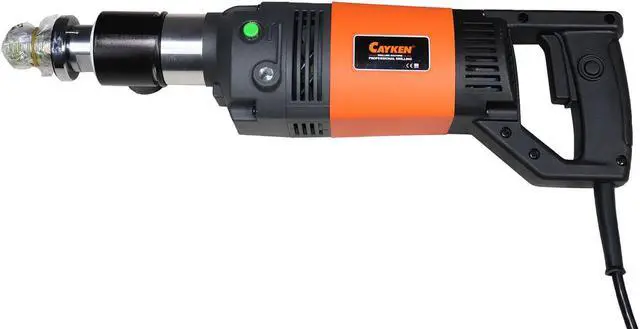

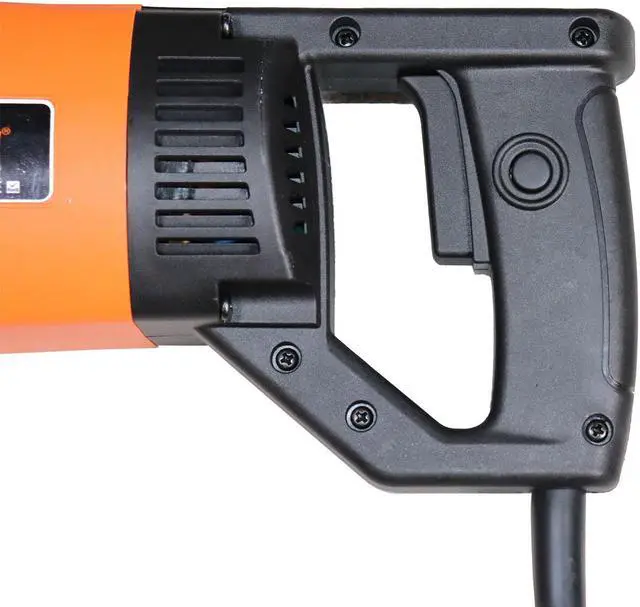

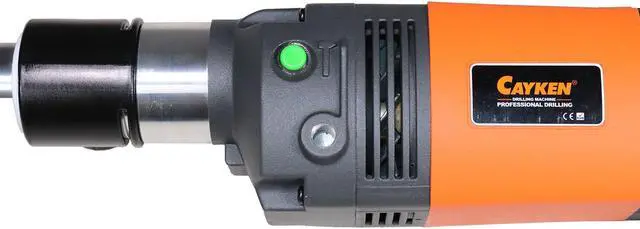

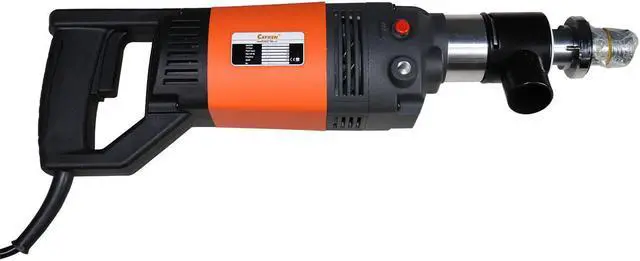

Cayken OND-916PD 6" Handheld Diamond Core Drill with Micro Impact and 580F Stand

The Cayken OND-916PD handheld diamond core drill machine with micro impact is designed for dry and wet drilling. Diamond core drill machines with micro impact allow the machine to drill holes in reinforced concrete and brickwork without a water supply. The design of the bit and the micro impact system effectively removes dust from the cutting area and prevents the bit from jamming during the drilling process.KEY_TAB

Cayken OND-916PD Drill Specifications:

• Drilling Range:KEY_TAB 6 in. (160 mm)


• Rated voltage: 110 V


• Rated frequency: 50-60 Hz


• Rated input power:KEY_TAB 2300 W


• No-Load Speed:KEY_TAB 1450 RPM


• Torque: 11.2 ft-lbs


• Net Weight: 14 lbs. (Drill) / 25 lbs. (Drill w/case)

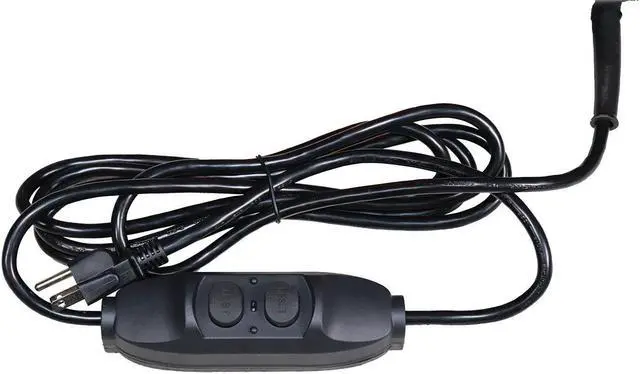

• 11-1/2-foot GFCI power cord.

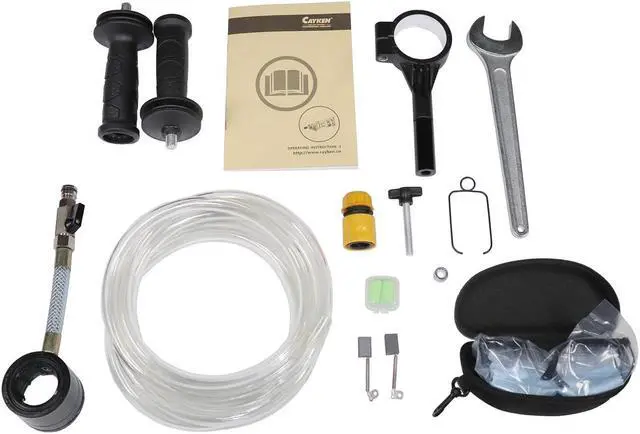

• Includes carrying case and additional parts/accessories (see photo)

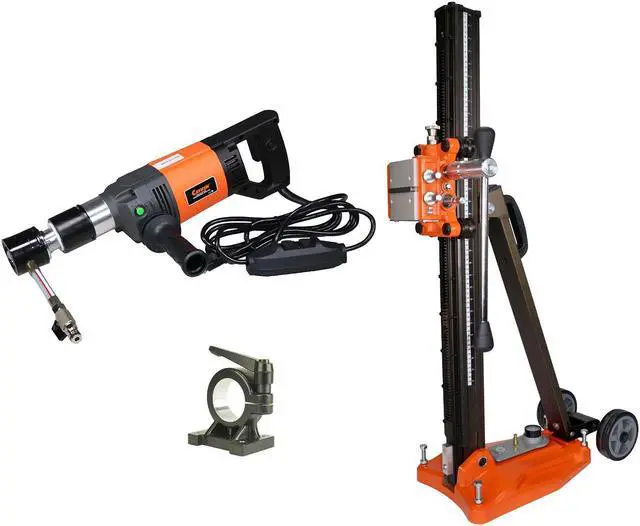

Cayken 60 MM Collar To AttachKEY_TAB OND-916PDKEY_TAB Core Drill Rig To Adjustable Drilling Stand - *Color may vary - Black or Orange*

Cayken 580F Stand Specifications:

• Adjustable aluminum stand for drilling at 0 to 60 degrees.


• Base mounts with anchor bolts or vacuum plate.


• Built-in leveling bubble.


• Four (4) adjustable slide bearings.


• Larger mast designed to accommodate large-diameter bits and withstand high torque.


• Angle/vertical position locks.


• Four (4) leveling bolts on base.


• Reversible slide handle for dual-side operation.


• Top and rear handles.


• Includes wrench set.
