Steel Dragon Tools® High Speed Steel Annular Cutter 7 PC Kit - 7/16in. to 3/4in. - with 1in. Cut Depth 3/4in. Weldon Shank and Pilot Pins

The Steel Dragon Tools® 7-piece high-speed steel annular cutter kit includes six (6) annular bits and two (2) pilot pin. These bits will quickly and safely cut holes in steel. The bits have a 1-inch cutting depth with a 3/4 in. Weldon shank. Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., and 3/4 in.

Features:

• Steel Dragon Tools® annular cutters will drill large holes up to ten times faster than regular drills bits.


• Machine-finish hole with no reaming needed when using lubricant.


• Make overlapping holes, slotting holes, and edge cuts.


• Bit size is etched on each cutter.


• Pilot pin helps locate center of hole location.


• Pilot pin helps eject slug after drilling is complete.


• During the drilling process, the pilot pin will retract into the cutter allowing lubrication to reduce heat gain in the slug.

Specifications:

• Kit includes six (6) high-speed steel annular cutters and two (2) pilot pins.

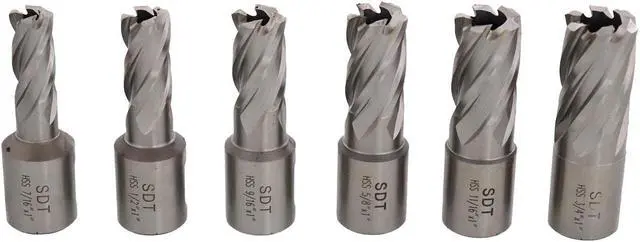

• Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., and 3/4 in.


• Cutting Depth: 1 in.

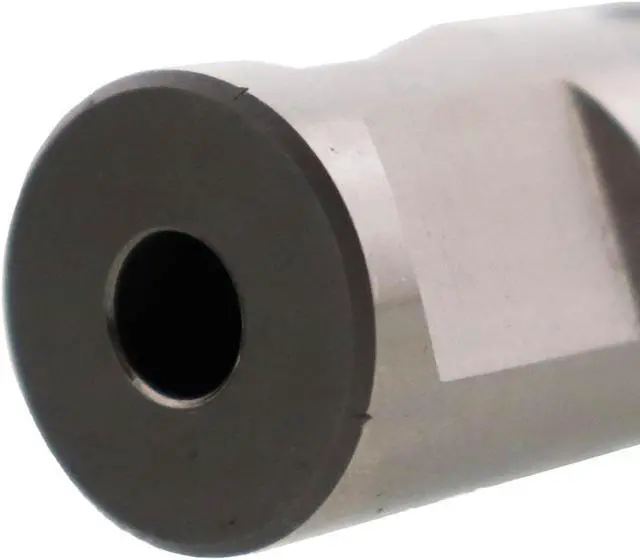

• 3/4 in. Weldon Shank


• Pilot Pin: 1/4 in. x 3 in. (6.34 mm x 77 mm)


• Pilot Pin: 3/16 in. x 3 in. (4.76 mm x 77 mm)

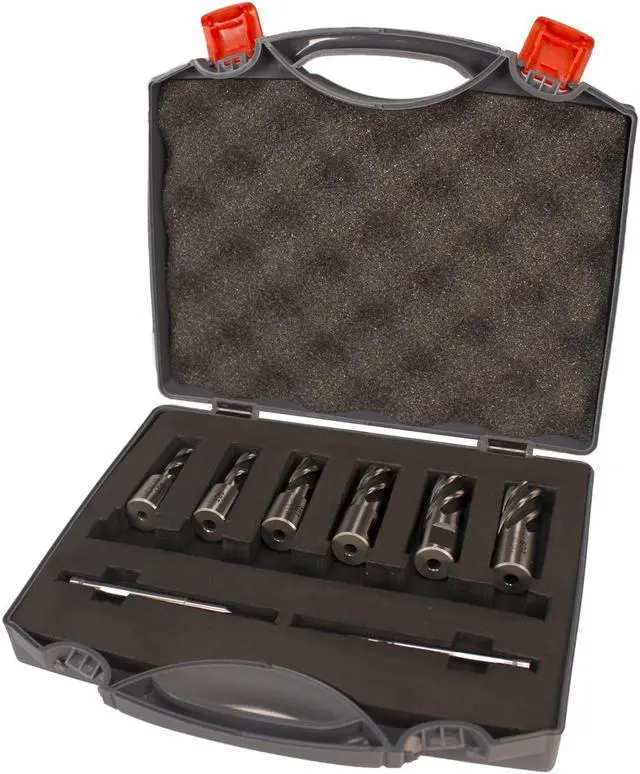

• Includes carrying case.
