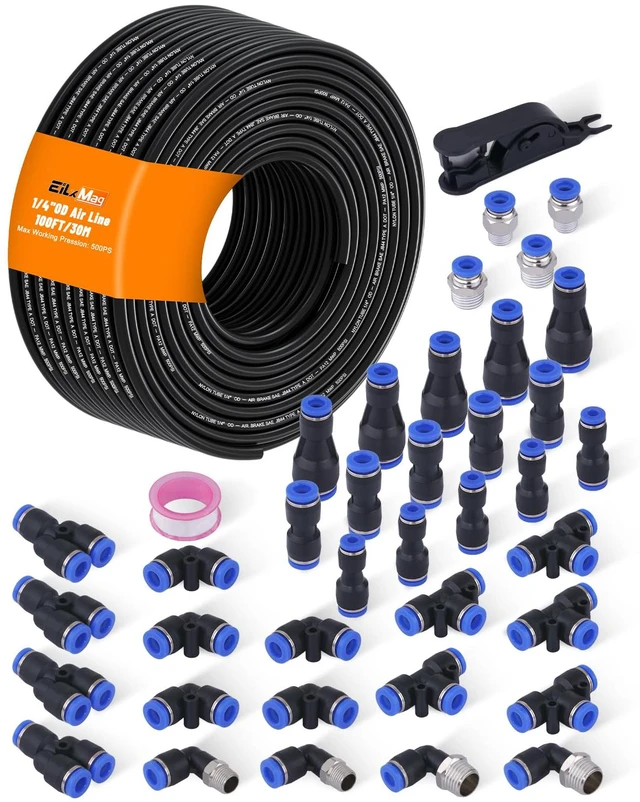

1/4" Air Line Tubing Kit, 100FT SAE J844 PA Nylon Air Hose Tubing Comes with Cutter and Teflon Tape, 1/4" Air Hose with Push to Connect Fittings for Air Brake System Or Fluid Transfer(40PCS)

1/4

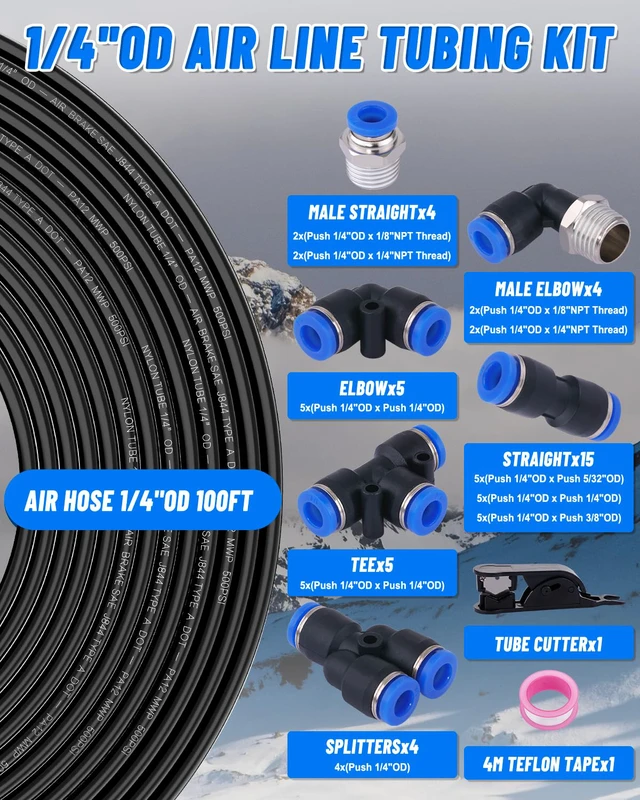

Air Line Tubing Kit: Package contains 100FT (30M) 1/4" tube OD DOT air line, 4pcs 1/4" OD Splitters, 5pcs 1/4" OD Straight Unions, 5pcs 1/4" OD x 5/32" OD Straight Unions, 5pcs 1/4" OD x 3/8" OD Straight Unions, 5pcs 1/4" OD Elbows, 5pcs 1/4" OD Tees, 2pcs push 1/4" OD x 1/8" NPT thread Male straight fittings, 2pcs push 1/4" OD x 1/4" NPT thread Male straight fittings, 2pcs push 1/4" OD x 1/8" NPT thread Male elbow fittings, 2pcs push 1/4" OD x 1/4" NPT thread Male elbow fittings, 1pc tube cutter, and 1pc Teflon tape.

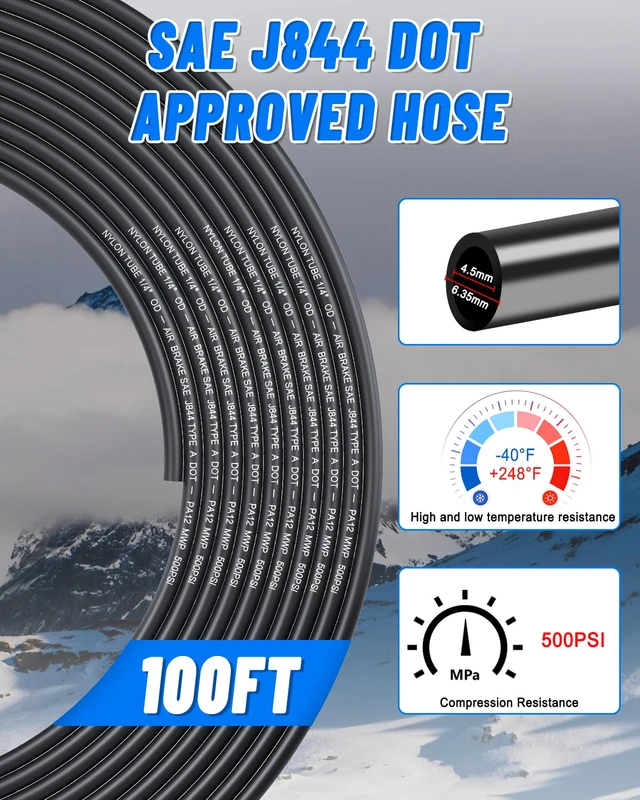

1/4 Air Hose: Tube
size: 1/4" OD ( 4.35 mm ID) x 100FT (30 m), made of high-quality Polyamide 12 nylon. Meets DOT standards and SAE J844 Air Brake System requirements for a wide range of transportation needs such as water, air, fuel, and oil.
Working temperature: -40 to +248 (-40 to +120).
Maximum working pressure: 500 PSI.

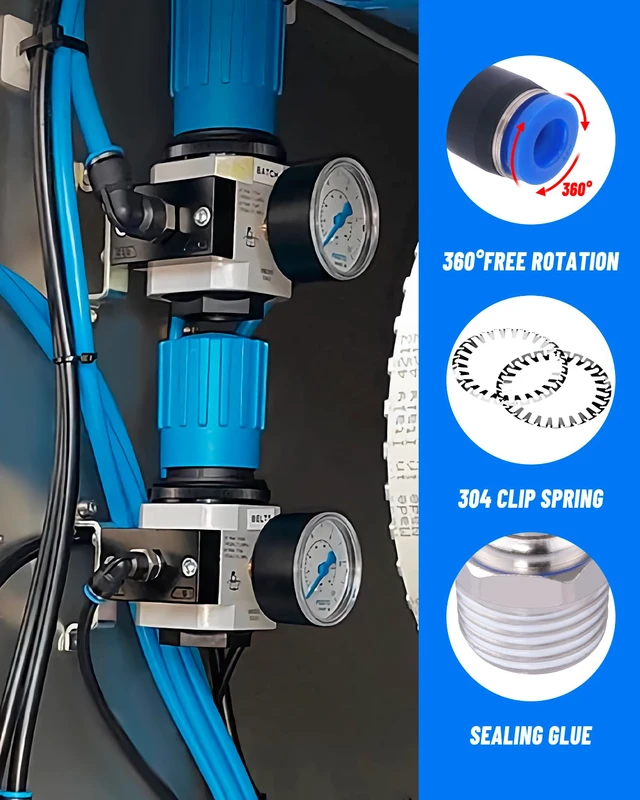

1/4 Quick Push-to-Connect Fittings: The quick-connect air hose fitting kit uses PTC (Push-to-Connect) fittings for quick and easy connection and disconnection of the air hose. Equipped with stainless steel locking claws and high-quality steel washers that can withstand thousands of bounces.
Fluid type: air and vacuum, 0 - 145 PSI, 0 - 0.9 Mpa.
Proof pressure: 1.32 Mpa.
Temperature range: 0 - 60 °C | 32 - 140 °F.
EASY TO INSTALL: The push-to-connect air fittings assortment features a simple push-in design for easy installation. Simply insert the tube directly into the bottom of the air hose to make the connection, then push the button and pull out the tube to remove it. The connection section rotates 360 degrees, making installation and use easier. Even after installation, simply rotate the connector body to adjust its orientation.
Wide Application: The 1/4 Air Fitting Kit can be connected with PU / PA / PE / PVC lines or hoses. These are widely used in air braking systems, air or fluid transfer, automated factories, automotive repairs, daily gardening maintenance, pneumatic tools, and instrumentation/mechanical gas lines. Widely used in industrial automation production equipment
