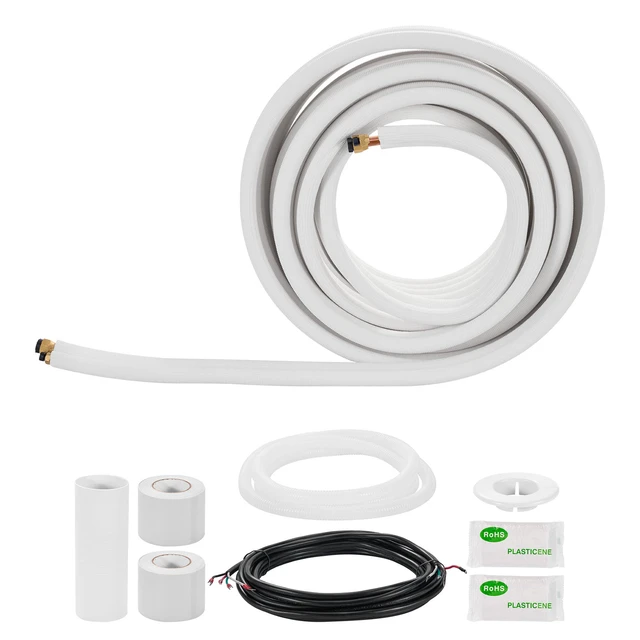

25ft Mini Split Line Set, 3/8 & 5/8 OD AC Copper Tubing Pipe, 3/8 White PE Thickened Insulated Coil with Flared Nuts, Rich Fittings, for Mini Split Air Conditioner HVAC or Heat Pump System

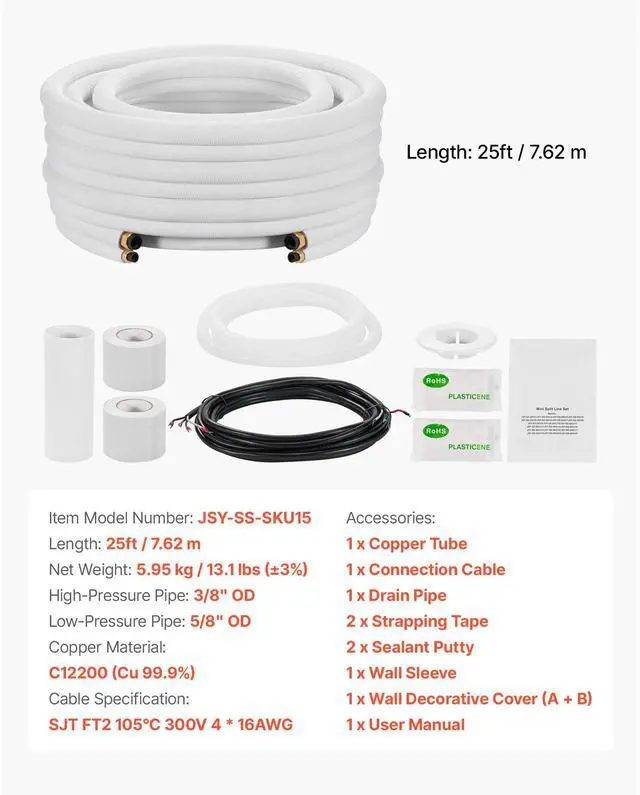

- Specifications
- Item Model Number: JSY-SS-SKU15
- High Pressure Hose OD: 0.4 in / 9.5 mm
- Low Pressure Hose OD: 0.6 in / 15.9 mm
- Length: 25.0 ft / 7.6 m
- Insulation Thickness: 0.4 in / 9.5 mm
- Material: Copper C12200 (Cu 99.9%)
- Outer Material: PE Insulation Tube (PE + EVA)
- Net Weight: 13.1 lbs / 5.9 kg ±3% (with accessories)
- Item Size (Expanded): 300.0 x 1.4 x 2.5 in / 7620 x 35 x 63 mm
- Cable Specification: SJT FT2 105 300V 4*16AWG

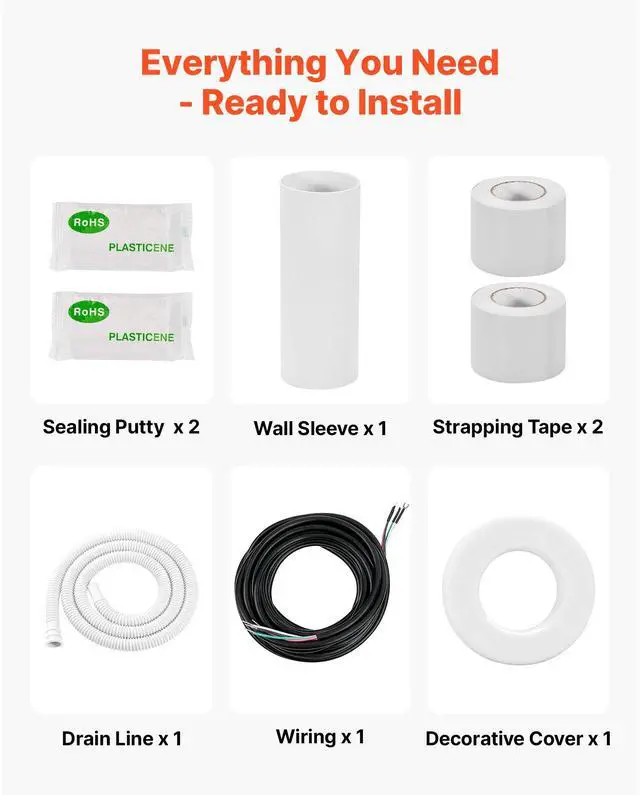

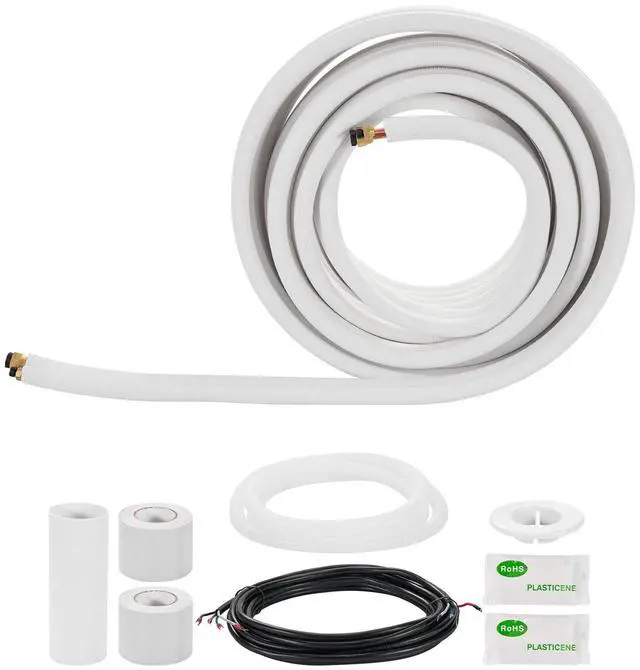

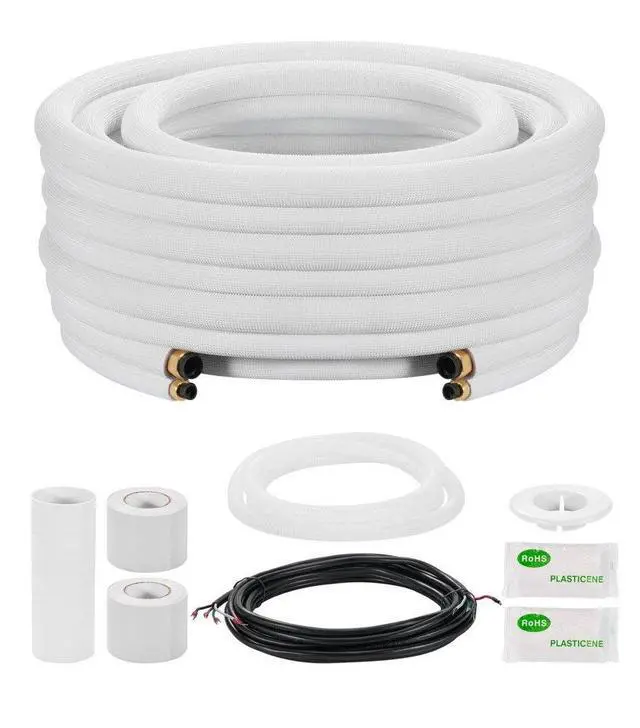

- Package Content
- 1 x Mini Split Line Set
- 1 x Copper Tube
- 1 x Connection Cable
- 1 x Drain Pipe
- 2 x Strapping Tape
- 2 x Sealant Putty
- 1 x Wall Sleeve
- 1 x Wall Decorative Cover (A + B)
- 1 x User Manual
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: JSY-SS-SKU15
High Pressure Hose OD: 0.4 in / 9.5 mm
Low Pressure Hose OD: 0.6 in / 15.9 mm
Length: 25.0 ft / 7.6 m
Insulation Thickness: 0.4 in / 9.5 mm
Material: Copper C12200 (Cu 99.9 %)
Outer Material: PE Insulation Tube (PE + EVA)
Net Weight: 13.1 lbs / 5.9 kg ±3% (with accessories)
Item Size (Expanded): 300.0 x 1.4 x 2.5 in / 7620 x 35 x 63 mm
Cable Specification: SJT FT2 105 300V 4*16AWG
Package Content
1 x Mini Split Line Set
1 x Copper Tube
1 x Connection Cable
1 x Drain Pipe
2 x Strapping Tape
2 x Sealant Putty
1 x Wall Sleeve
1 x Wall Decorative Cover (A + B)
1 x User Manual
