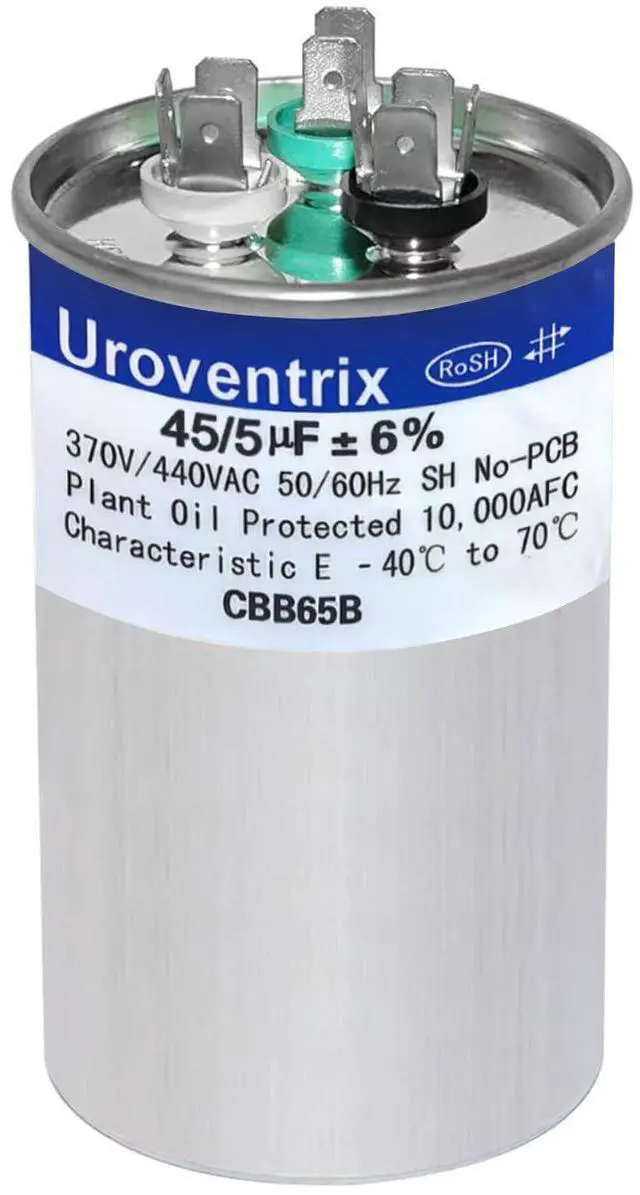

45+5 uF ±5% 370V/440VAC CBB65 Dual Run Start Capacitor for AC Unit Fan Motor, Heat Pump or Condenser Straight Cool
- 45+5 F ±5% 370V/440VAC CBB65 dual run start capacitor, operates at 50/60Hz, compatible with 370V & 440V systems for AC motors, heat pumps, and condenser fans.

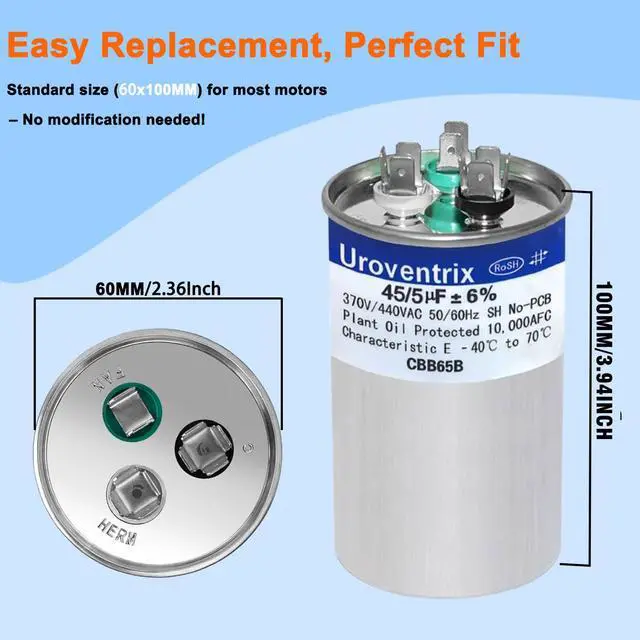

- Capacitor dimension: Diameter(60 mm/2.36 inch) Height(100 mm/3.94 inch)

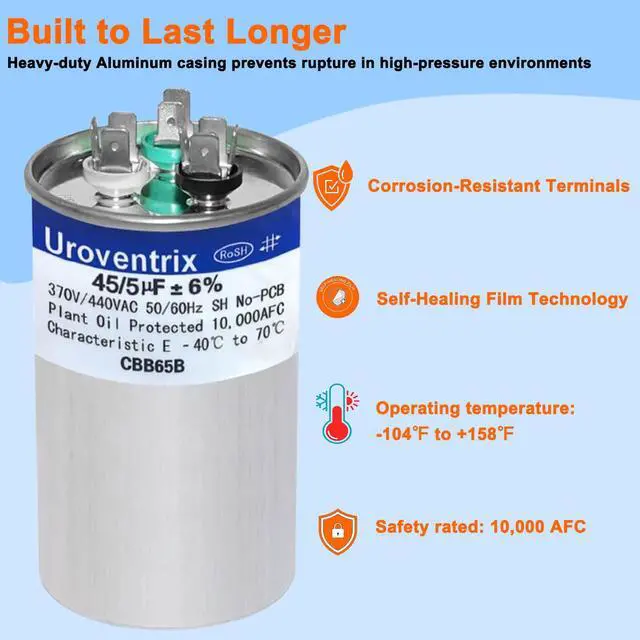

- Operating temperature: -40 to +70/-104to+158 Safety rated: 10,000 AFC

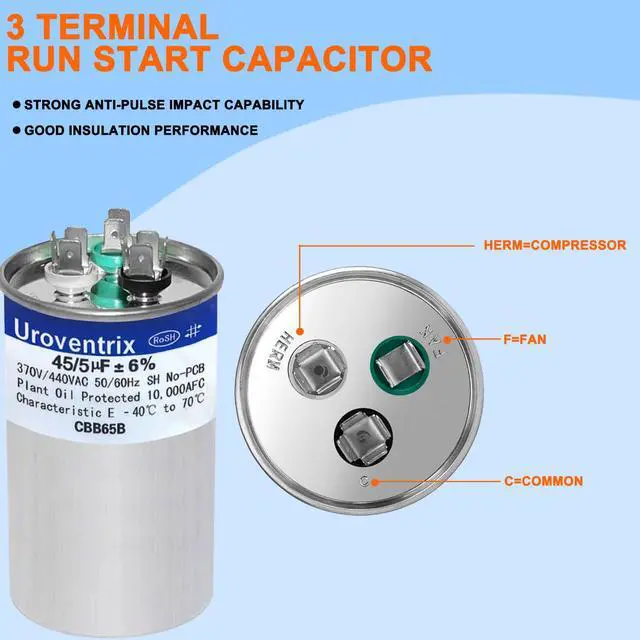

- Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
- Replacement for 97F9895 , Z97F995 , 97F9895BZ3 , 27L880 , TRCD455 , TRCFD455 , PRCFD455 , 27L889 , 97F9851 , 97F9851S , 12788 , RC0114 , Z97F9895 , 97F9895 , TT-CAP-45/5/440R , HC98KA046 , TP-CAP-45/5/440R , CAP050450440RT , HC98JA046 , HCKS450D050R440Z , 00662441180262
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The CBB65 Dual Run Start Capacitor delivers high starting torque and stable current for AC motor systems. Engineered with metallized polypropylene film and vacuum-sealed castor oil, its ideal for air conditioner compressors, condenser fans, heat pumps, and commercial refrigeration motors.
Technical Specifications
Capacitance 45F±5% + 5F±5%
Rated Voltage 370V/440VAC (50/60Hz)
Climate Category 40/85/21 (Humidity-Resistant)
Insulation Resistance 3000 M·F (100Hz, 20°C)
Dissipation Factor 0.002
Safety Design | Mechanical Explosion-Proof Structure |
Installation Guide
1. **Power Off**: Disconnect equipment power and discharge old capacitor before replacement.
2. **Terminal Identification**:
- **H/Herm** Connect to compressor motor
- **F/Fan** Connect to fan motor
- **C** Connect to common power line.
3. **Size Check**: Ensure dimensional compatibility with original part (Reference actual photos).
Important Notes
- **Compliance Statement**: This is a universal replacement part compatible with major HVAC brands (e.g., Carrier, Goodman, Trane).
- **Safety Warning**: Consult an engineer if operating above 2000m altitude or with voltage fluctuations >±10%.
