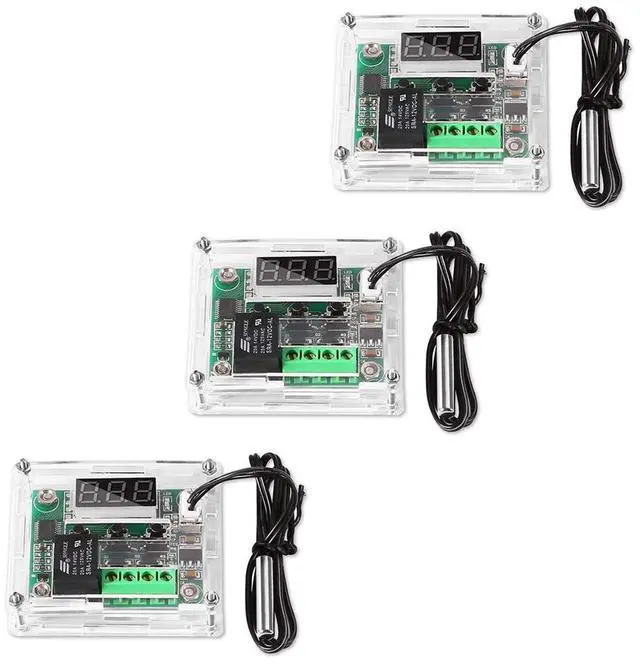

Main image of KEHIPI 3PCS W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch (With Case)

Alt view image 2 of 7 - KEHIPI 3PCS W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch (With Case)

Alt view image 3 of 7 - KEHIPI 3PCS W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch (With Case)

Alt view image 4 of 7 - KEHIPI 3PCS W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch (With Case)

Alt view image 5 of 7 - KEHIPI 3PCS W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch (With Case)

Alt view image 6 of 7 - KEHIPI 3PCS W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch (With Case)

Alt view image 7 of 7 - KEHIPI 3PCS W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch (With Case)

Shop All KEHIPI Products | Visit Wispa Technologies Store

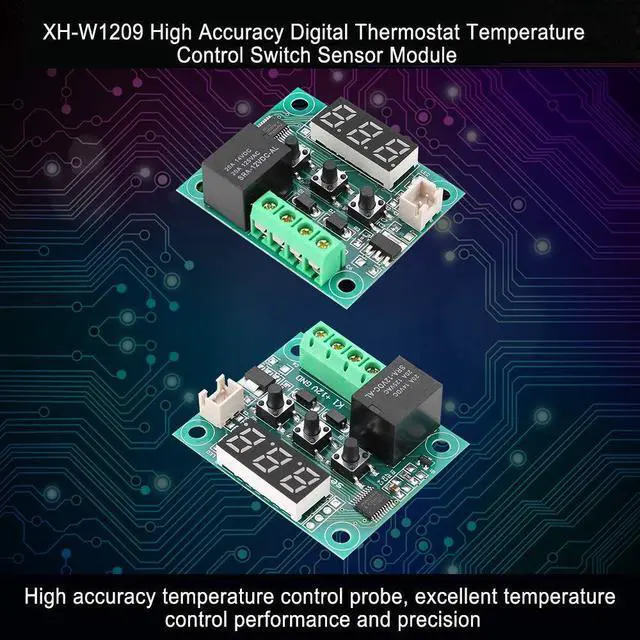

KEHIPI 3PCS W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch (With Case)

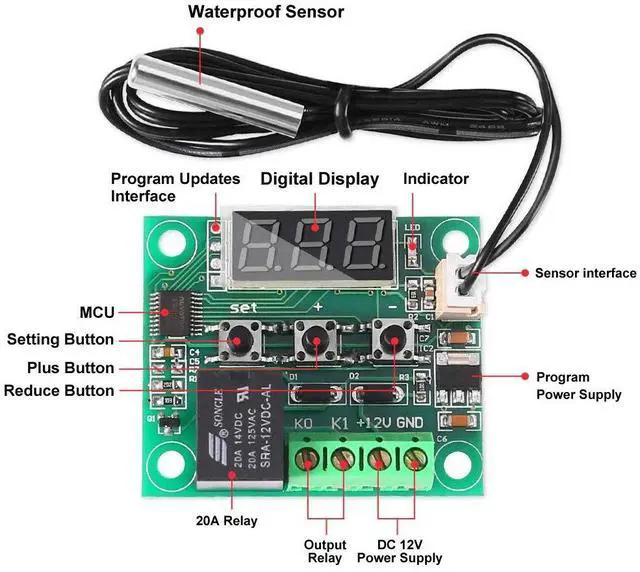

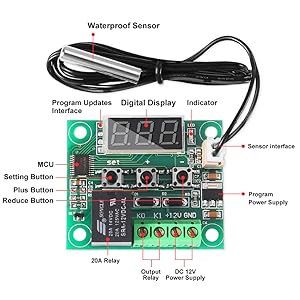

The W1209 thermostat module has a STM8S controller, a sensor input, keys, LED display, and a relay. It can be reprogrammed for control, timing, or counting.
Temperature Measurement Range: -50~110. Control Precision: 0.1 celsius.
Electronic digital thermostat with a 3-digit LED display, extremely bright. Operation both in heating and cooling to easily control equipment and devices.
The NTC probe is waterproof and allows to control the temperature even of fluids, allowing the controlled heated or cooling
The output is electronically controlled by a microprocessor, to guarantee the utmost precision of intervention and an excellent resolution of reading temperature

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

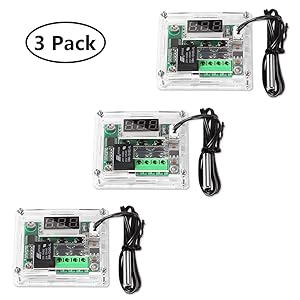

W1209 with case 12V DC digital temperature controller board micro digital thermostat -50 - 110 degrees Celsius electronic temp control module switch with waterproof NTC probe

W1209 12V DC digital temperature controller board micro digital thermostat -50 - 110 degrees Celsius electronic temp control module switch with waterproof NTC probe ( No case)

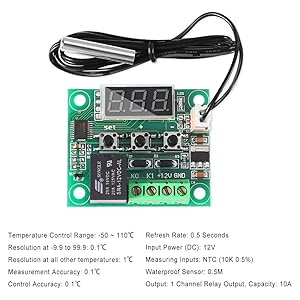

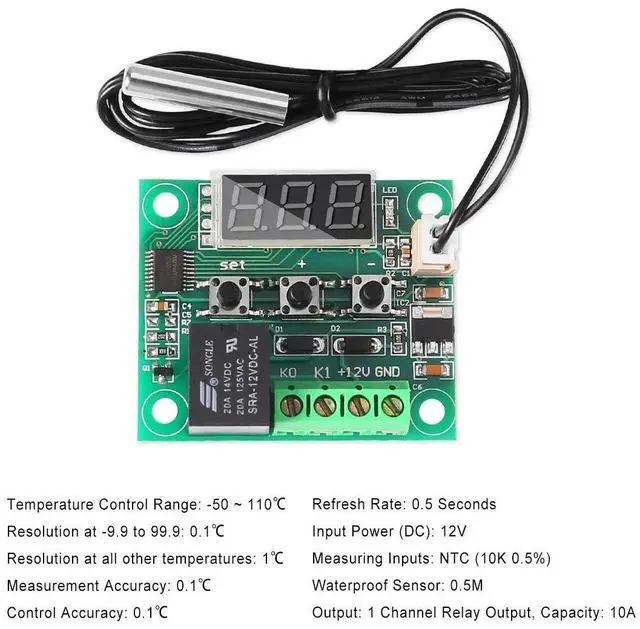

Specifications 1:

Model: W1209
Dimensions: 48.5 * 40mm
Temperature Control mode: ON / OFF
Temperature Range :-50 - 110 degree centigrade
Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree.
Control Accuracy: 0.1 degree
Hysteresis Accuracy: 0.1 degree

Specifications 2 :

Refresh Rate: 0.5s
High Temperature Protection 0 - 110 degree centigrade
Supply Voltage: DC 12V
Static Current: Less than 35MA, attract current less than 65MA
Output Voltage: DC 12V
Output Power: 20A relay
Measurement Input: NTC (10K 0.5%) Waterproof Sensor
Environmental Requirements: -10 - 60 degree centigrade; Humidity 20% - 85%

W1209 12V DC Digital Temperature Controller Board Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch with 10A One-channel Relay and Waterproof

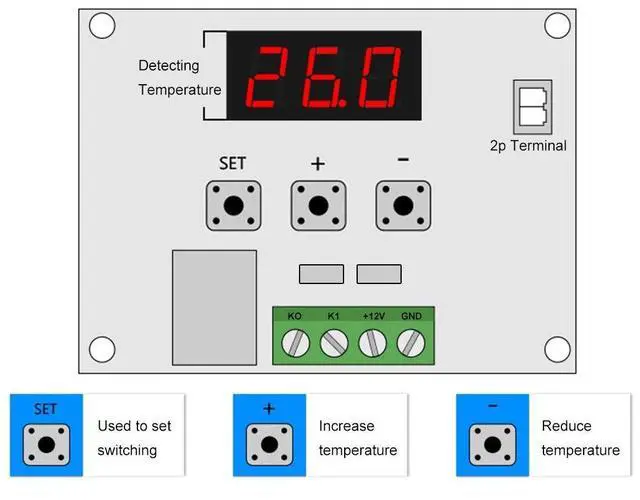

Instructions for use:

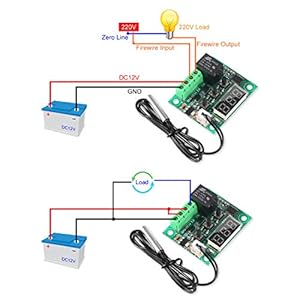

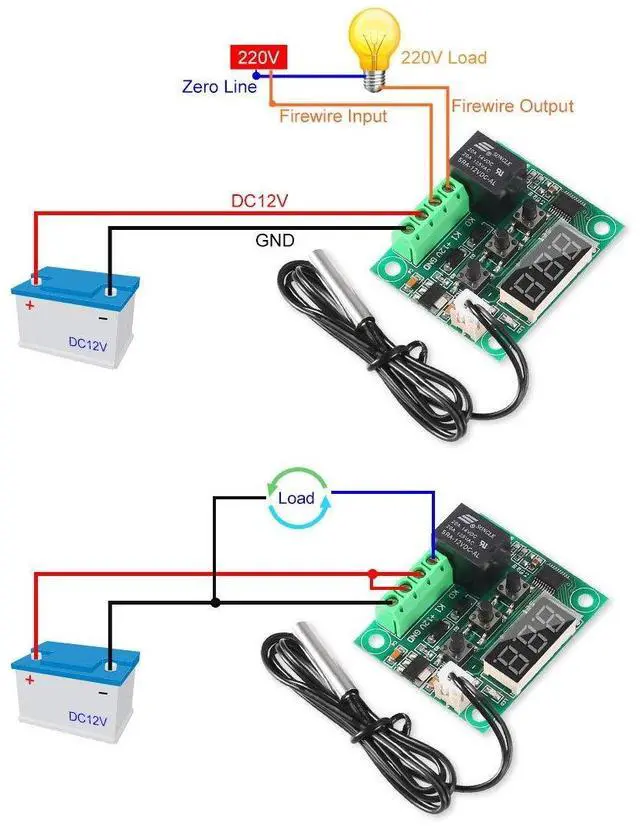

Connect the power supply and equipment, the measuring temperature is displayed.
Press the SET button, press + or - to set the desired temperature, long press + or - to quickly increase or decrease.
Press SET to confirm the setting and return, controller automatically performs the relay ON or OFF.
The thermostat output is 10A relay, meet a variety of high-power loads. LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed.
Digital LED tubes: LL indicates sensor open, HH indicates overrange, the relay will be forcibly disconnected; --- indicates high temperature alarm.
Long press the SET button to enter the main menu settings.
Press + or - to switching between P0-P6.
Then long press SET or 10 seconds without keystrokes to confirm the setting and return

W1209 with case 12V DC digital temperature controller board micro digital thermostat -50 - 110 degrees Celsius electronic temp control module switch with waterproof NTC probe

W1209 12V DC digital temperature controller board micro digital thermostat -50 - 110 degrees Celsius electronic temp control module switch with waterproof NTC probe ( No case)

Specifications 1:

Model: W1209
Dimensions: 48.5 * 40mm
Temperature Control mode: ON / OFF
Temperature Range :-50 - 110 degree centigrade
Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree.
Control Accuracy: 0.1 degree
Hysteresis Accuracy: 0.1 degree

Specifications 2 :

Refresh Rate: 0.5s
High Temperature Protection 0 - 110 degree centigrade
Supply Voltage: DC 12V
Static Current: Less than 35MA, attract current less than 65MA
Output Voltage: DC 12V
Output Power: 20A relay
Measurement Input: NTC (10K 0.5%) Waterproof Sensor
Environmental Requirements: -10 - 60 degree centigrade; Humidity 20% - 85%

W1209 12V DC Digital Temperature Controller Board Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch with 10A One-channel Relay and Waterproof

Instructions for use:

Connect the power supply and equipment, the measuring temperature is displayed.
Press the SET button, press + or - to set the desired temperature, long press + or - to quickly increase or decrease.
Press SET to confirm the setting and return, controller automatically performs the relay ON or OFF.
The thermostat output is 10A relay, meet a variety of high-power loads. LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed.
Digital LED tubes: LL indicates sensor open, HH indicates overrange, the relay will be forcibly disconnected; --- indicates high temperature alarm.
Long press the SET button to enter the main menu settings.
Press + or - to switching between P0-P6.
Then long press SET or 10 seconds without keystrokes to confirm the setting and return

Specifications:

Model: W1209

Dimensions: 48.5 * 40mm

Temperature Control mode: ON / OFF

Temperature Range :-50 - 110 degree centigrade

Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree.

Control Accuracy: 0.1 degree

Hysteresis Accuracy: 0.1 degree

Refresh Rate: 0.5s

High Temperature Protection 0 - 110 degree centigrade

Supply Voltage: DC 12V

Static Current: Less than 35MA, attract current less than 65MA

Output Voltage: DC 12V

Output Power: 20A relay

Measurement Input: NTC (10K 0.5%) Waterproof Sensor

Environmental Requirements: -10 - 60 degree centigrade; Humidity 20% - 85%

SInstructions for use:

Connect the power supply and equipment, the measuring temperature is displayed,

press the "SET" button, press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease),

press "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF.

the thermostat output is 10A relay, meet a variety of high-power loads. LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed.

Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange, the relay will be forcibly disconnected; "---" indicates high temperature alarm

Long press the "SET" button to enter the main menu settings,

press " + or - " to switching between P0-P6,

then long press "SET" or 10 seconds without keystrokes to confirm the setting and return.

Package Included:

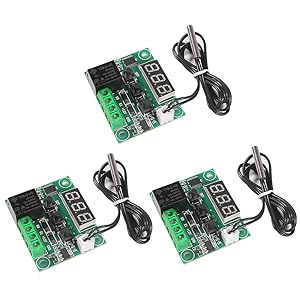

3*W1209 12V DC Digital Temperature Controller Board
