Parameter

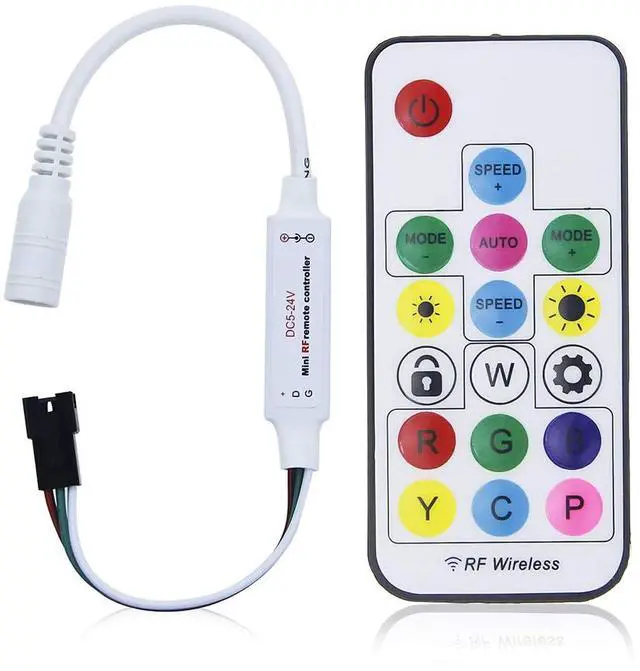

- Name: ALITOVE WS2812B WS2811 Mini RF Remote Controller
- Working temperature: -20?~60?
- Working voltage: DC5V~24V
- Working current: 30mA
- Remote distance: 15 Meters
- Remote size: 85mm*40mm*7mm
- Product weight: 30g
- Certificates: CE, RoHS

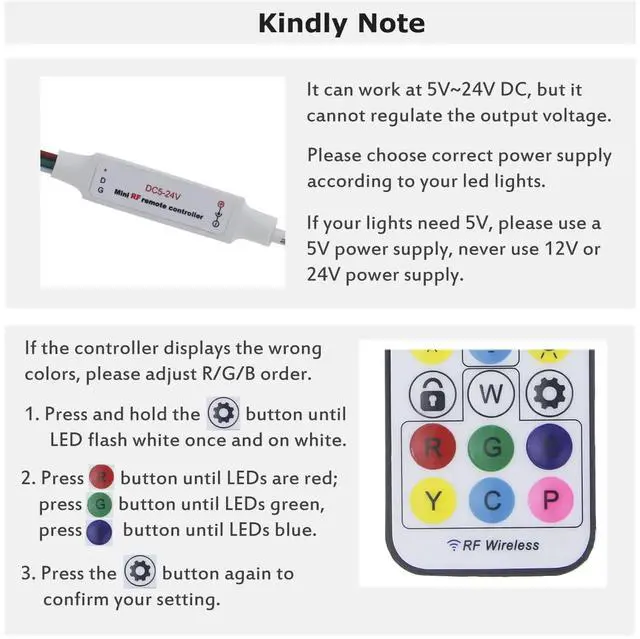

Kindly note
- 1. The controller’s input voltage is 5V~24V, but it can’t regulate the output voltage.
- That means you should choose power supply according to your led lights, not the controller.
- If your LED light needs 5V input, please use a 5V power supply, NEVER use a 12V or 24V power supply. Otherwise, your led light will be burnt out.
- Please never use power supply more than 24V or less than 5V.
- 2. If the controller displays the wrong colors, for example red button shows green, please don’t worry, it doesn't mean the controller is defective. Resetting the R/G/B order again will resolve the issue.
How to reset R/G/B Order ?
- 1. Press and hold the SETTING button until LED flash on white once and then keep on white.
- 2. Press the R button until LEDs turn red; press the G button until LEDs turn Green, press the B button until LEDs turn Blue.
- 3. Press the SETTING button again to confirm your setting.

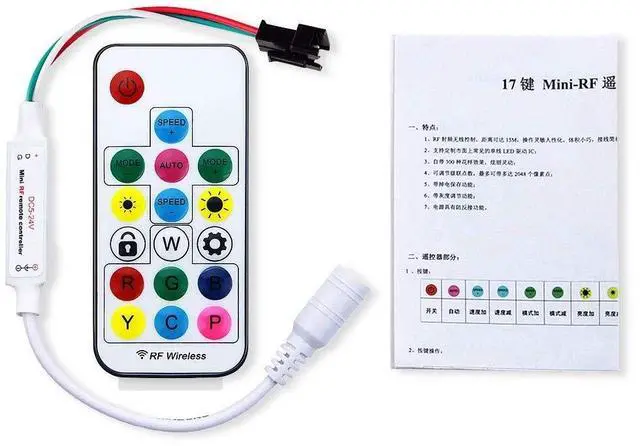

Package:
- 1x RF LED remote
- 1x receiving controller
- 1x operating instruction
 SP648E Bluetooth WS2812B WS2811 RGB IC Controller |  SP638E Bluetooth WS2812B WS2811 Controller |  SP548E WiFi WS2812B WS2811 Controller |  WiFi WS2812B WS2811 Controller |  Bluetooth WS2812B WS2811 Controller |  WS2812B WS2811 DMX Controller/Decoder | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — | — |
| Control Method | App via Bluetooth, RF Remote and control box | App via Bluetooth | App via WiFi | App via WiFi | App via Bluetooth | Push-button |
| Control Pixels | 600 | 600 | 1200 | 2048 | 1024 | 1024 |
| Color Modes | 146 | 146 | 146 | 188 | 120 | 99 |
| Input Voltage | DC5V~24V | DC5V~24V | DC5V~24V | DC5V~24V | DC5V~12V | DC5V~24V |
| Feature | Custom Lighting Effects, Music Sync | Custom Lighting Effects, Music Sync | Works with Alexa and Google home | From-Image-To-Effect | Rich Color Modes | Cascadable |
ALITOVE is a professional manufacturer of LED lighting & control system and power supply system.
We are willing to customize products according to customers' personalized requirements.
If you are a lighting designer, lighting retailer, advertising light box manufacturer or other lighting enthusiast, we will try our best to contribute to your unlimited lighting creativity.
Newest IP68 COB LED Strip
Newest 110V Neon Rope Light
Newest COB CCT LED Strip
Newest WS2811 COB LED Strip
5V 12V Power Adapter
5~24V Power Supply
