$29.99
Ships from China.
Meet Your Seller

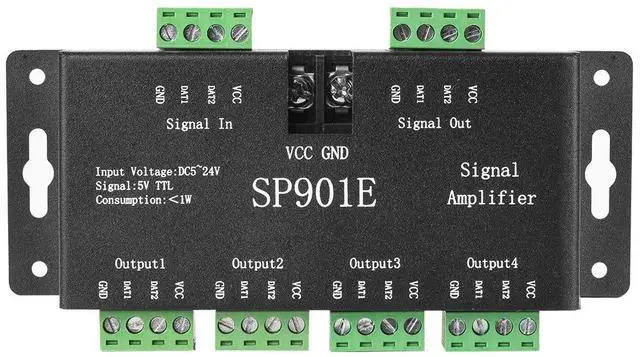

KEHIPI SP901E WS2812B WS2811 SPI Signal Amplifier Repeater for WS2813 SK6812 WS2815 WS2801 SK9822 etc All The RGB Addressable Strip Light and Dream Color Programmable LED Matrix Panel

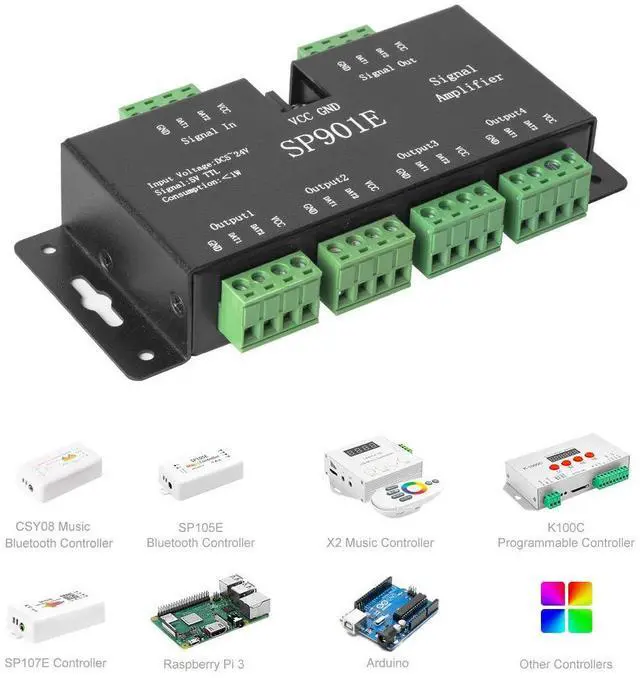

- Note: It is not a controller . It works with controller together. Can not support 4 pin or 5 pin RGB/RGBW no IC chip 5050 LED strip . This SPI signal amplifier is compatible with all kinds of 5V-TTL signal dual signals. It receives one signal and simultaneously output 4 or 8 channels of signals. Each channel can control the same quantity of LED pixels as main controller.

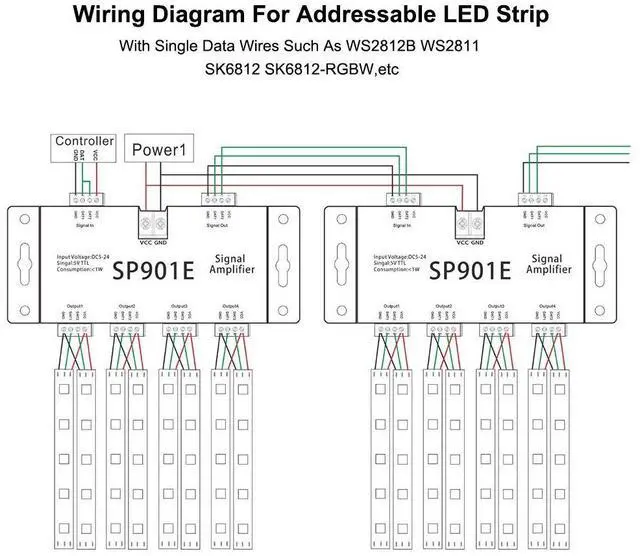

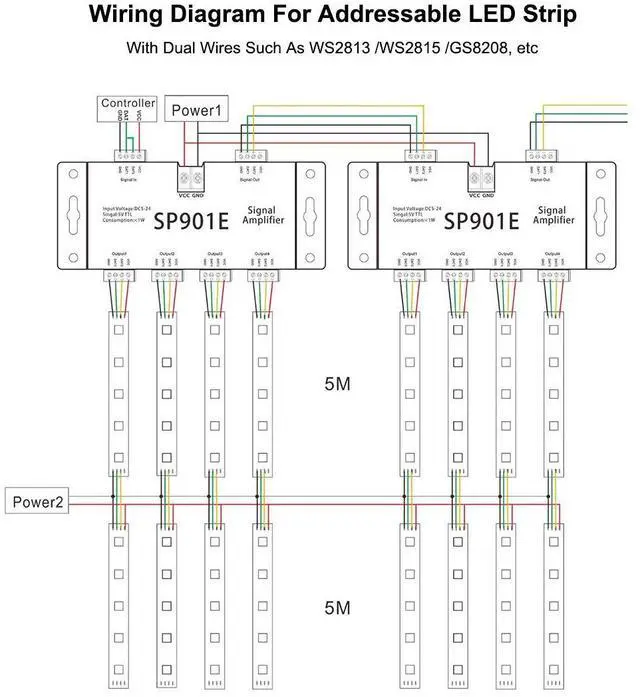

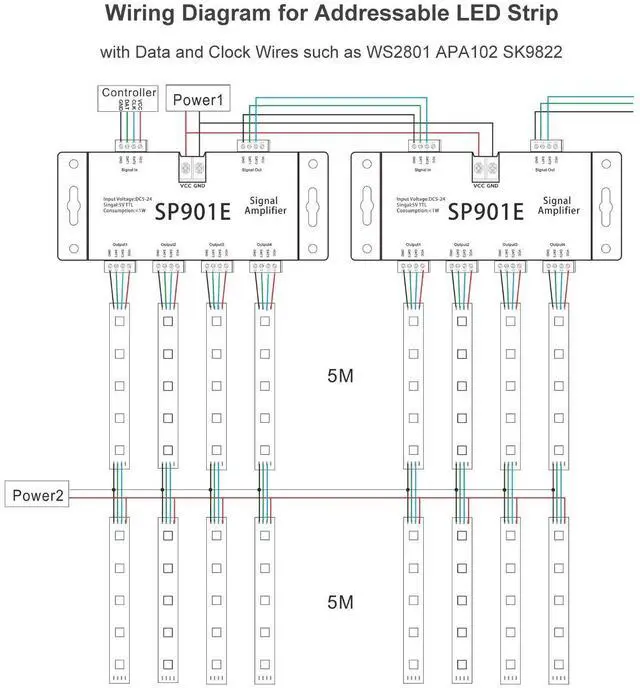

- It can output 8 channels for addressable LED strip with single data wire, such as FCOB RGB WS2811 IC , WS2812B, WS2811, SK6812RGB, SK6812-RGBW,SM16703, etc. It can output 4 channels for addressable LED strip with data & clock wires WS2801, APA102, SK9822 or dual data wires, such as WS2813, WS2815

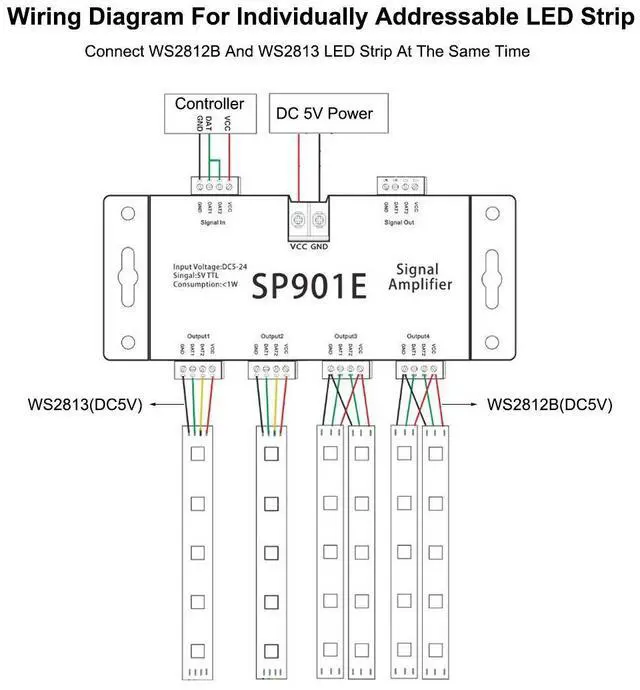

- You can use one controller to control DC5V WS2812B and DC5V WS2813 LED strip at the same time, control DC12V WS2811 / FCOB RGB WS2811 IC ,DC12V WS2815, DC12V 1903, DC12V 6803 Or DC24V FCOB RGB WS2811 IC at the same time via this singal amplifier since they have the same singal.
- DC5V~24V wide range of working voltage, but it cannot regulate the output voltage. That means the output voltage of power supply must be the same as the work voltage of your LED lights. The current through the amplifier is limited, when the current consumed is high, you need to add the power supply of the corresponding voltage.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter:
Working voltage: DC5V~24V
Working temperature: -20-60
Output:8 channels / 4 channels
Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703,
WS2813, WS2815, CS8812, AL2815, WS2801, APA102,
SK9822,UCS1903, LPD6803, LPD8806, APA102
Static power consumption: <1W
Size: 140mm×56mm×28mm
Weight:240g
Precautions:The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your LED lights. If your lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply
The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally.
Package:1x SP901E Signal Amplifier
