Product Parameters

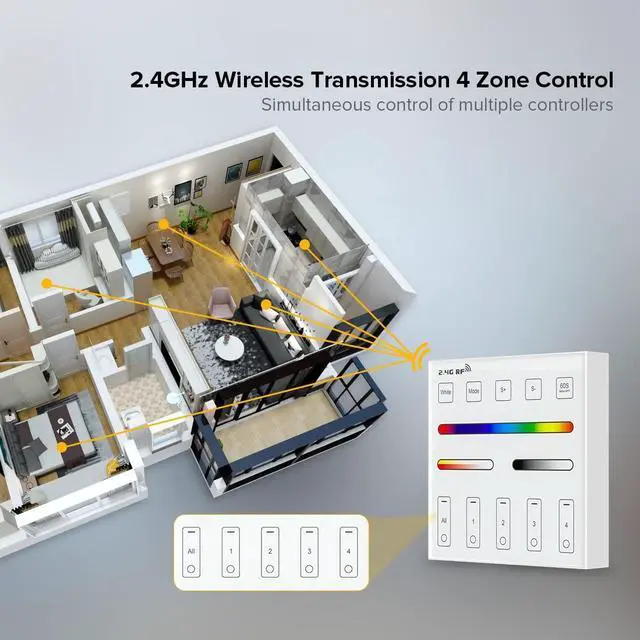

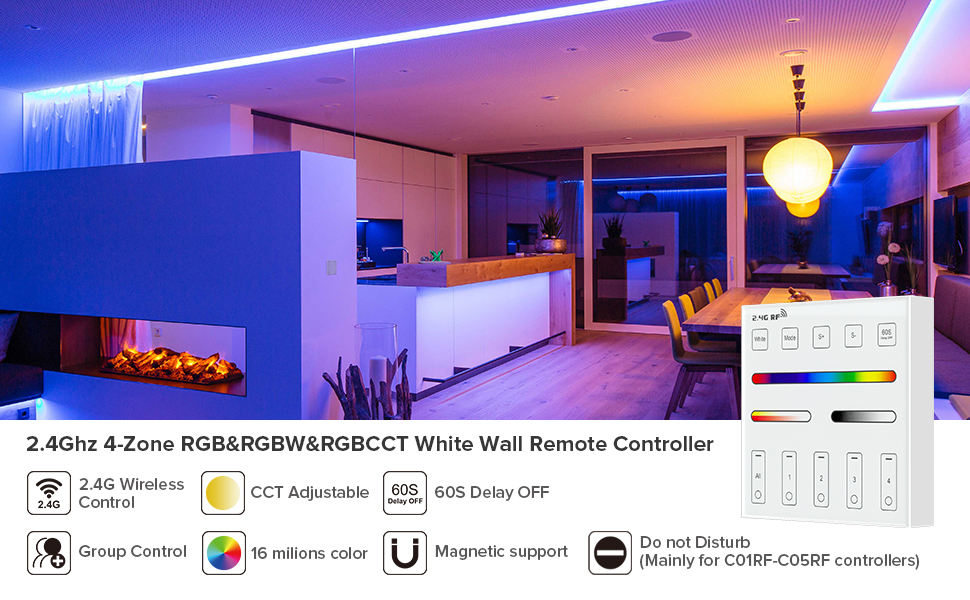

- Product Name: 4 Zone RGB , RGBW and RGBCCT Panel Remote Controller.
- Model No: WR01RF
- Working Voltage: 3V (2*AAA Battery) (Package Not Including Battery )
- Transmitting: 6dBm
- Standby Power: 20uA
- Transmission Frequency: 2.4GHz
- Modulation Method: GFSK

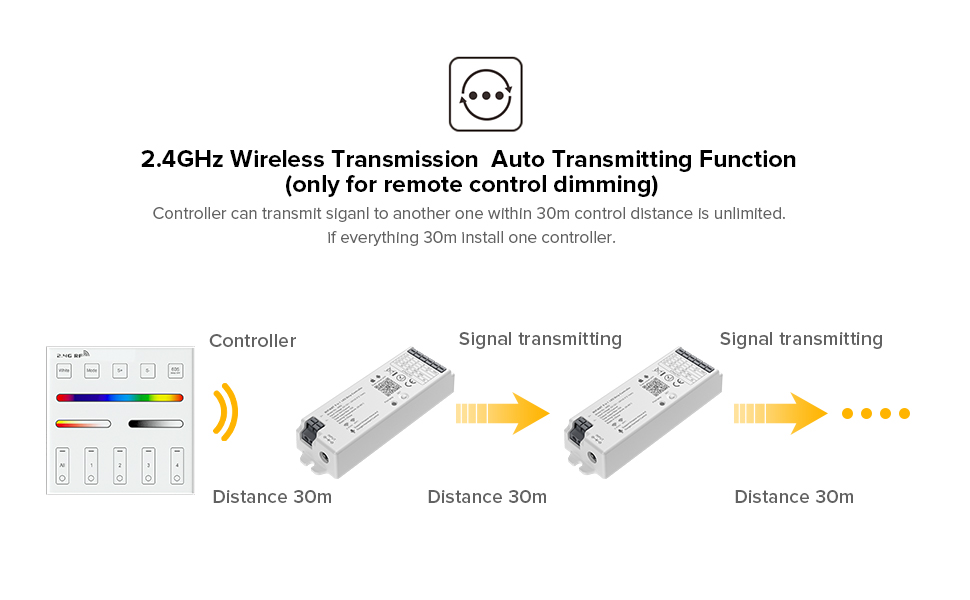

- Control Distance: 30cm (98.42ft)
- Working Temperature: -20-60°C

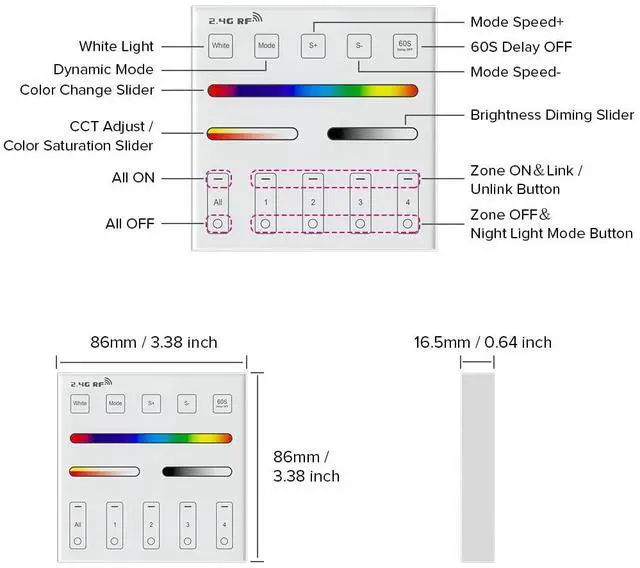

- Size: 86*86*19mm (33.86*33.86*7.5in)

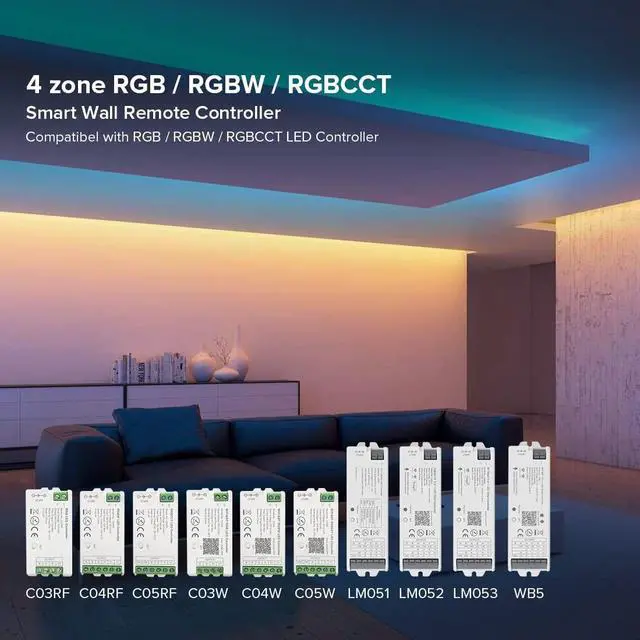

- SupportController:C03RF,C04RF,C05RF,C03W,C04W,C05W,WB5,LM052,LM053.
Link / Unlink
Link Instructions:
- Disconnect the LED controller from the power supply for 10 seconds and reconnect it.
- When the light on, short press any zone of " — " 3 times within 3 seconds.
- The LED Strip blink 3 times slowly means the linking is successful.
Note:Linking failed if light is not blinking slowly , Please follow above steps again( Note : Light that have linked cant link again).
Unlinking Instructions:
- Disconnect the LED controller from the power supply for 10 seconds and reconnect it.
- When the light is on , short press the been connected “—" zone 5 times within 3 seconds. (Unlinking must be the same zone with the Linking)
- The LED strip blinks 10 times quickly means the unlinking is successful.
Note:Unlinking failed if light is not blinking quickly , Please follow above steps again( Note : Light haven't linked that don't need to unlink).
Attention:
- Please check the cable, and make the circuit is correct before when power on.

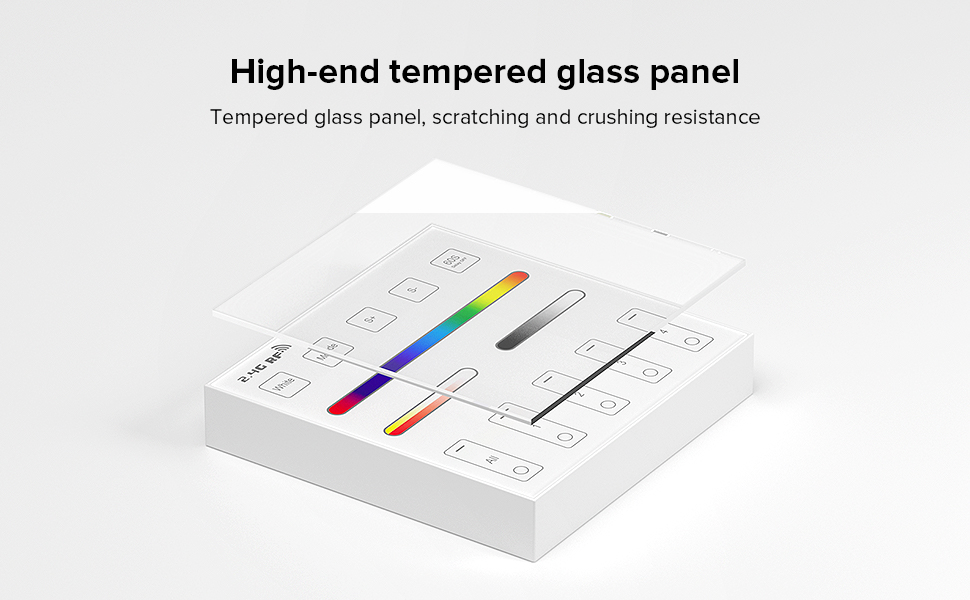

- When installation, please handle with the care to avoid the broken of the glass panel.
- Please don't use the lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
 LM052 Zigbee 3.0 5in1 Controller | LM053 Bluetooth Mesh 5in1 Controller | WB5 WiFi 5in1 Controller |  C03W RGB Controller | C04W RGBW Controller | C05W RGBCCT Controller | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Support LED | Monochrome/CCT/RGB/RGBW/RGBCCT | Monochrome/CCT/RGB/RGBW/RGBCCT | Monochrome/CCT/RGB/RGBW/RGBCCT | RGB | RGBW | RGBCCT |
| WiFi/Bluetooth | 2.4GHz WiFi | Bluetooth Mesh | 2.4GHz WiFi | 2.4GHz WiFi | 2.4GHz WiFi | 2.4GHz WiFi |
| Google Home/Alexa | Need Tuya WiFi Dual-Mode Gateway | Need Tuya WiFi Dual-Mode Gateway | ? | ? | ? | ? |
| Zigbee 3.0 | ? | no data | no data | no data | no data | no data |
| Philip H-ue | ? | no data | no data | no data | no data | no data |
| Group Control | ? | ? | ? | ? | ? | ? |
| Work With WR02RF RF Remote | ? | ? | ? | ? | ? | ? |
| Current | 6A/Channel Total Output: Max 15A | 6A/Channel Total Output: Max 15A | 6A/Channel Total Output: Max 15A | 6A/Channel Total Output: Max 15A | 6A/Channel Total Output: Max 15A | 6A/Channel Total Output: Max 15A |
| Voltage | DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | DC12V/DC24V |
| APP | Smart Life/Tuya Smart/Hue/Smarthings | Smart Life/Tuya Smart | Smart Life/Tuya Smart | Smart Life/Tuya Smart | Smart Life/Tuya Smart | Smart Life/Tuya Smart |
2PIN ~ 6PIN LED Controller
2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0 Controller
Working Voltage: DC5V/ DC12V/ DC24V
Only Indoor Use
