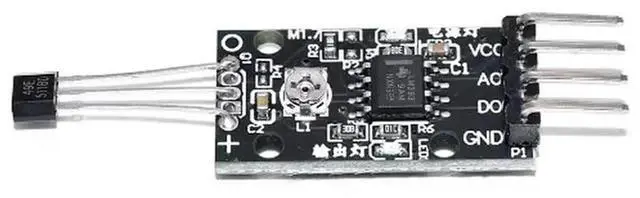

AJMRTC HighSensitivity Linear Hall Sensor Module, 1.4mV/G Analog Output Magnetic Field Detector Board, Magnetic Induction Switch Module for DIY Electronic Measurement & Embedded Experiment Projects
- Highsensitivity linear hall sensor outputs analog signal at 1.4mV/G, accurately measuring realtime magnetic field strength for quantitative magnetic detection tasks.
- Delivers continuous analog voltage output instead of simple digital switching signal, supports observing magnetic intensity change rather than only magnetic presence detection.
- Compact circuit board design reserves easyaccess signal pins, convenient for connecting with MCU, singlechip microcomputer and data acquisition equipment.
- Stable working performance supports magneticinduction switch making, magnetic testing, position sensing and noncontact detection DIY experimental applications.
- Suitable for physics experiments, magneticfield measurement, noncontact trigger circuit, position monitoring and various electronic hobby development projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC linear halleffect sensor module is designed for measuring magneticfield strength. It features highsensitivity sensing chip with 1.4mV/G analog output characteristic, converting magneticfield intensity into corresponding continuous analog voltage signal. Different from ordinary digital hall switches which only output high or low level, this module reflects the magnitude of magnetic field, enabling users to observe magneticfield change trends. The breakout board brings out power supply and analog signal pins for simple wiring connection with microcontroller or acquisition module. It can be used not only for quantitative magneticfield measurement, but also to build magnetic induction trigger switches and noncontact positiondetection circuits. Notice that analog signal reading and calibration are needed on main controller side. This module is widely used for physics teaching experiments, noncontact detection, magneticrelated DIY circuit building and embedded sensing projects.
SpecificationsSensor Type: Linear HallEffect Sensor Sensitivity: 1.4mV/G Output Mode: Analog Voltage Output Core Function: Detect MagneticField Strength Available Application: Magnetic Induction Switch, Magnetic Measurement, Position Sensing Module Form: Breakout Circuit Board External Requirement: MCU or ADC for analog signal reading Scenario: Physics Experiment, Embedded Sensing, Electronic DIY Projects Remarks: Analog signal calibration required for precise measurement
