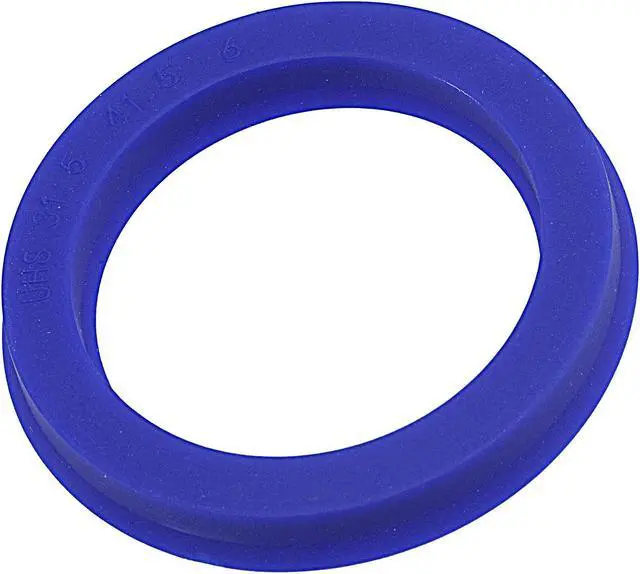

UHS Radial Shaft Seal 31.5mm ID x 41.5mm OD x 6mm Width PU Oil Seal, Blue Pack of 5
- Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install
- 31.5mmx41.5mmx6mm Y-shape 90A mechanical seal for piston and piston rod

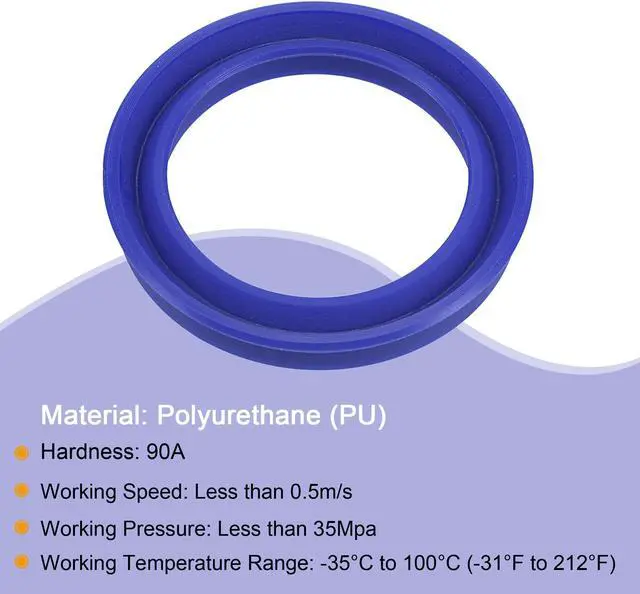

- Working Speed: Less than 0.5m/s; Working Pressure: Less than 35Mpa; Working Temperature Range: -35°C to 100°C (-31°F to 212°F)
- Oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity

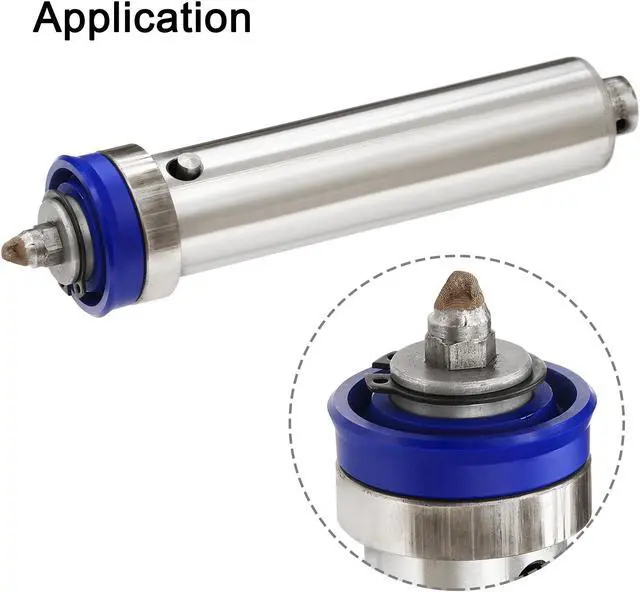

- Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
What is this? UHS oil seal' s inner and outer sealing lip are the same height, with a Y-shape cross-section. Is there any advantages of the product? PU seal is oil resistance, wear resistance, low-temperature resistance, aging resistance, high hardness, elasticity, and easy to install. How to use it? Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering. Both piston and piston rod can obtain a good sealing effect. Applied to industrial hydraulic cylinders and cylinders, hoists, moving rods of guide rods, and piston rods (pull rods), and pistons (one-way piston seals) in static pressure.
What will I get?
Color:
BlueMaterial: Polyurethane (PU)

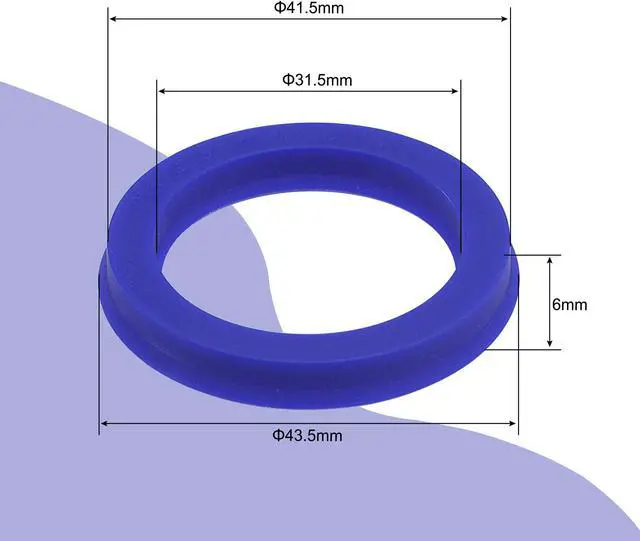

Inner Diameter: 31.5 mmOuter
Diameter: 41.5 mmMax.
Outer Diameter: 43.5
mmWidth:
6mmHardness: 90AWorking
Speed: Less than 0.5 m/sWorking
Pressure: Less than 35MpaWorking
Temperature Range: -35°C to 100°C (-31°F to 212°F)Cross
Section Type: Y

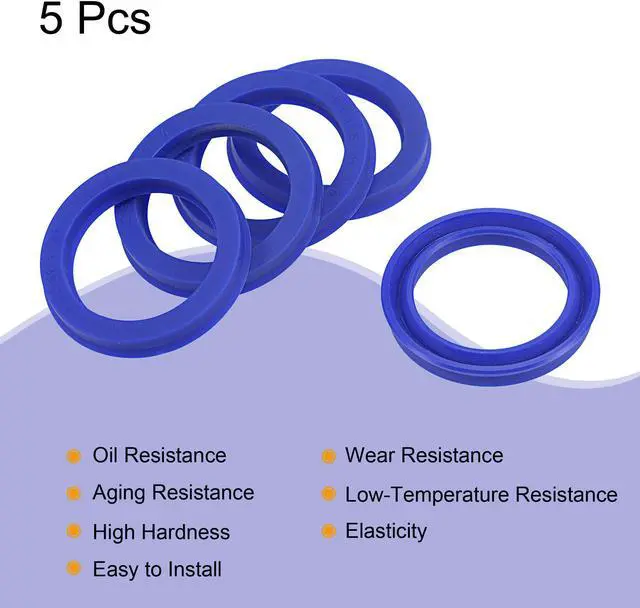

ShapePackage Content: 5 x Lip Seals
What will I get?
Color:
BlueMaterial: Polyurethane (PU)
Inner Diameter: 31.5 mmOuter
Diameter: 41.5 mmMax.
Outer Diameter: 43.5
mmWidth:
6mmHardness: 90AWorking
Speed: Less than 0.5 m/sWorking
Pressure: Less than 35MpaWorking
Temperature Range: -35°C to 100°C (-31°F to 212°F)Cross
Section Type: Y
ShapePackage Content: 5 x Lip Seals
