CHICAGO-LATROBE 69859 8PC 1/2 Reduced Shank Silver & Deming Drill Set

  • The brand for this item is CHICAGO-LATROBE
  • This item ships free
  • This item ships directly from Zoro
+
+
Overview
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

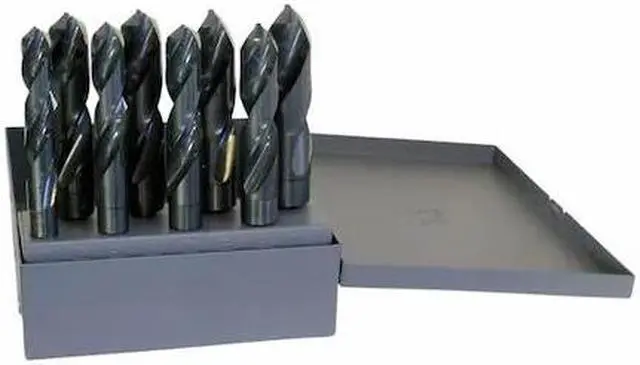

The CHICAGO-LATROBE 69859 is a reduced shank drill bit set consisting of eight high speed steel drill bits with sizes ranging from 9/16 inch to 1 inch in fractional increments. These drill bits have a shank that is straight with three flats and a general purpose point type. The set includes a metal index case for storage. Each bit has a length of 6 inches, with a flute length of 3 1/8 inches, and includes a spiral flute design intended to route chips during drilling operations.

Key Features:

  • - Drill bit sizes included: 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", and 1"
  • - Material: High Speed Steel (HSS) with a HSS machining grade (general purpose grade)
  • - Shank diameter: 1/2 inch, straight with three flats sized for chuck engagement
  • - Point angle: 118 degrees with a conventional general purpose point type
  • - Intended use: intended for drilling applications using high speed steel (HSS) bits; verify material compatibility based on your drilling application requirements
  • - Flute specifications: 2-flute spiral with a helix angle between 30° and 34°
  • - Finish: Black oxide coating
  • - Overall length: 6 inches; flute length: 3 1/8 inches
  • - Depth to diameter ratio: 4 times diameter (4xD)
  • - Measurement system: Fractional inch
  • - Coolant type: coolant is not through the bit; use external coolant when required for the specific drilling application
  • - Includes a metal index case for storage
