CH-60 Hydraulic Hole Punching Tool 31T Hole Digger Force Puncher Smooth Hole Puncher for Iron Plate Copper Bar Aluminum Stainless Steel

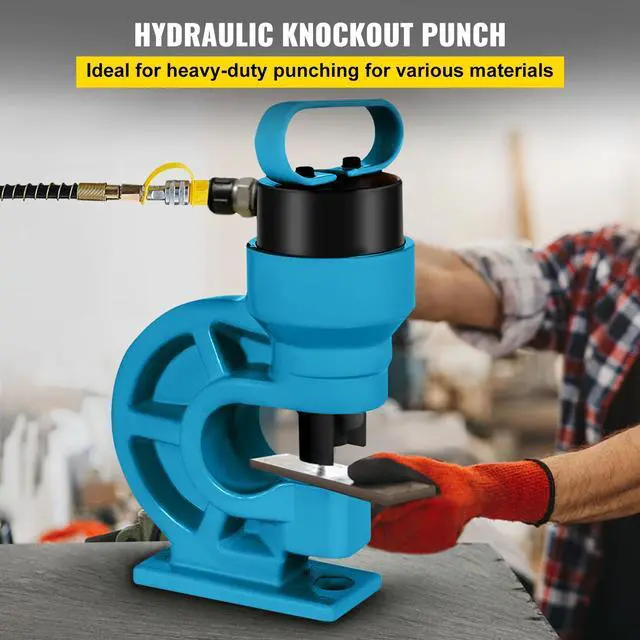

- Excellent Punching: Punching force: 31T/310KN; Depth of throat: 3.74"/95 mm. The punch dies are made of high carbon tungsten steel and not easy to wear off. The max thickness of iron plate: 1/10" to 3/10" (3-8 mm), the max thickness of copper/aluminum bar: 1/10" to 2/5"(3-10 mm), the max thickness of stainless steel: 1/10" to 1/5"(3-6 mm).

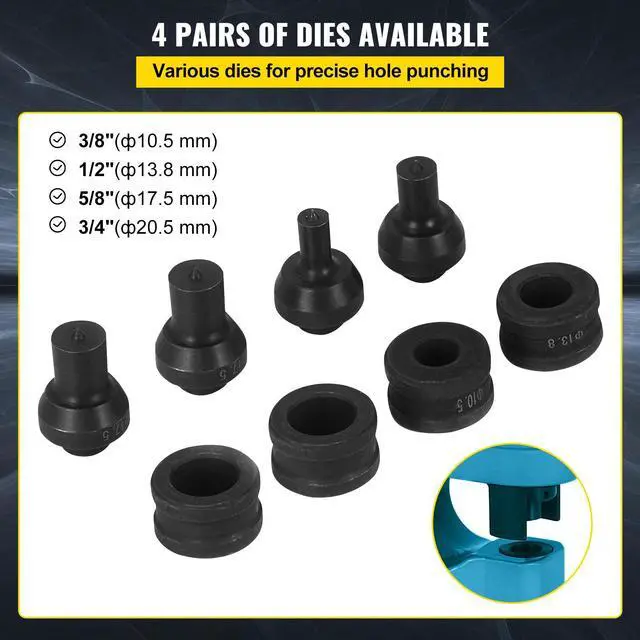

- 4 Pairs of Dies: The hydraulic puncher comes with four pairs of punching dies of 3/8"(10.5 mm), 1/2"(13.8 mm), 5/8"(17.5 mm), 3/4"(20.5 mm). Different dies are designed for precise hole punching. It also features accurate positioning without offset.

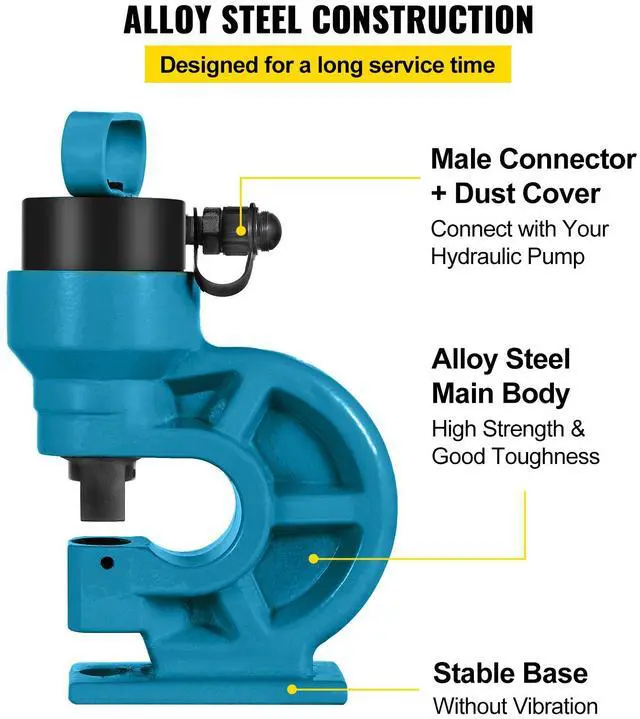

- Durable Steel Structure: This hydraulic hole punching tool features high strength and good toughness with premium alloy steel construction. And the heavy-duty metal hole punch tool needs to connect with a hydraulic pump to get ideal performance (The pump is not included). The plastic cap protects the punching tool from dust.

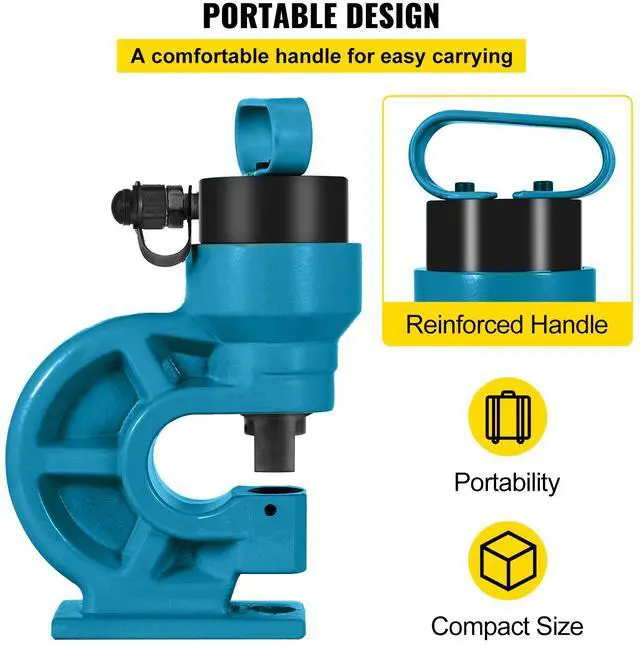

- Compact Size & Portable: our hole puncher with compact size is space-saving
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Punching force: 310KN (31T)
Depth of throat: 3.74" /95 mm
Aperture (4 pairs): 3/8"( 10.5 mm), 1/2"( 13.8 mm), 5/8"( 17.5 mm), 3/4"( 20.5 mm)
Max.
Thickness of iron plate: 3-8 mm(1/10" to 3/10")
Max.
Thickness of copper bar: 3-10 mm(1/10" to 2/5")
Max.
Thickness of aluminum: 3-10 mm(1/10" to 2/5")
Max.
Thickness of stainless steel: 3-6 mm(1/10" to 1/5")

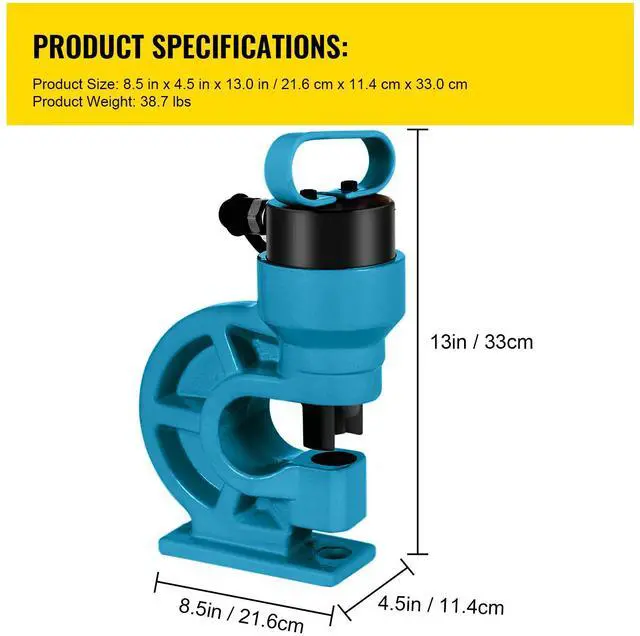

Weight: 38.7 LB
Package Content
1 x Hole Puncher
1 x Concave Pressing Plate
4 x Dies (one of them in the puncher)
