5C Collet Chuck,5C Holder W.Semi-finished Adapter 1-3/4" x 8 Thread for Lathe Chuck Tool Holder,Accuracy:.0004-.0006 TIR

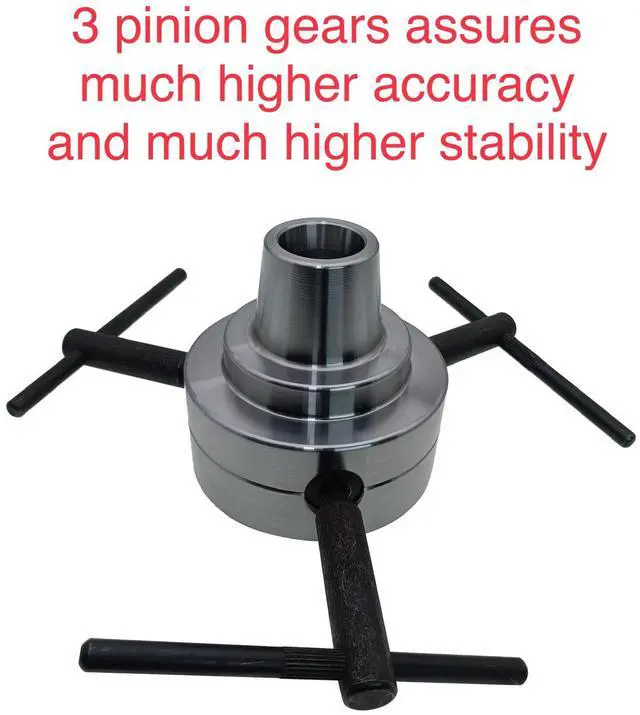

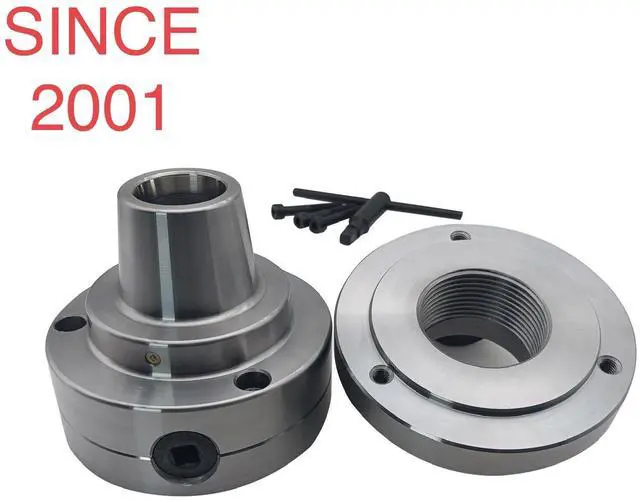

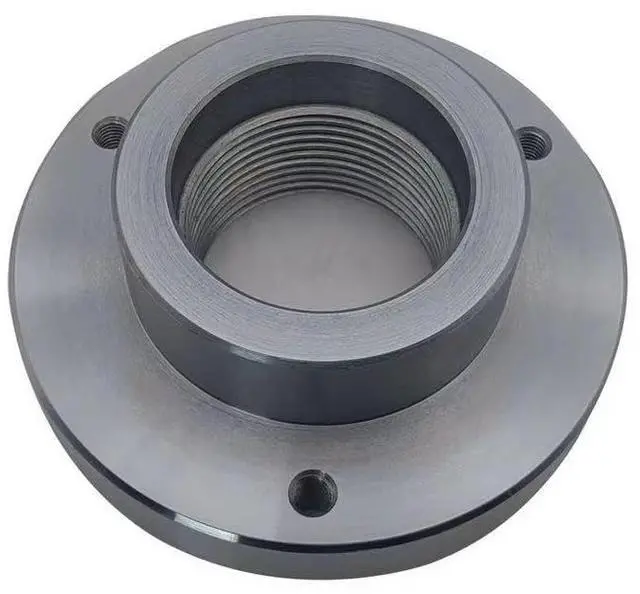

Chuck Outside Diameter: 5"; Plain Back, Recessed 3.740" x 0.184" Deep. Three mounting holes on the chuck: Diameter 0.35", Bolt Pattern 4.25"; Three mounting screw holes on the back plate: M8, already drilled and tapped. Includes a semi-finished back plate (1-3/4" x 8 Threaded), exactly as shown. The mounting holes are pre-drilled and tapped. The user simply needs to utilize their own lathe to lightly surface the front and turn a minimal amount on the registration boss to match the actual chuck recess, then bolt the two parts together with the provided bolts. This process resembles assembling a 3-jaw chuck with a new back plate. As this final assembly is completed on the user's own lathe, it can typically achieve the highest TIR accuracy. The 3 Pinion Gears Operated Design not only eases opening and closing but also ensures higher accuracy compared to 2-pinion gear designs common in the market. Maximum RPM: 6000; Accuracy: 0.0006 TIR; Can use any size 5C collet from 1/16" through 1-1/8". We are a manufacturer with over 20 years of experience producing 5C collet chucks in various specifications
