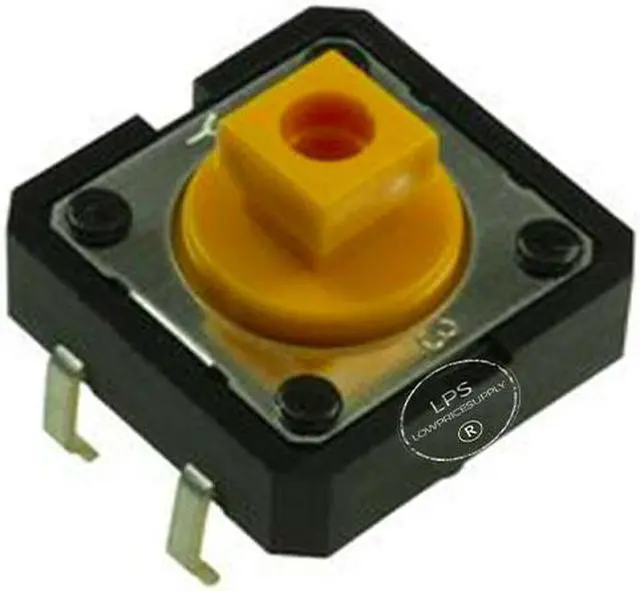

Tactile Switch, B3F Series, Top Actuated, Through Hole, Plunger for Cap, 260 gf,
- The B3F4055 is a single-pole single-throw Tactile Switch with standard, NO contact type, projected plunger type. Silver plated contacts without ground terminal.
- 100MO Insulation resistance
- 500V Dielectric strength
- IEC IP00 Protection
- 100000 Operations minimum life
- Operating force is 0.98N, 1.27N, 1.47N, 1.76N, 2.55N, 4.9N based on ordering
- SPST-NO contact configuration
- Maximum switching capacity of 50mA at 24VDC
- Type B32 key tops are available only for projected plunger models
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The B3F4055 is a single-pole single-throw Tactile Switch with standard, NO contact type, projected plunger type. Silver plated contacts without ground terminal.
100MO Insulation resistance
500V Dielectric strength
IEC IP00 Protection
100000 Operations minimum life
Operating force is 0.98N, 1.27N, 1.47N, 1.76N, 2.55N, 4.9N based on ordering
SPST-NO contact configuration
Maximum switching capacity of 50mA at 24VDC
Type B32 key tops are available only for projected plunger models
100MO Insulation resistance
500V Dielectric strength
IEC IP00 Protection
100000 Operations minimum life
Operating force is 0.98N, 1.27N, 1.47N, 1.76N, 2.55N, 4.9N based on ordering
SPST-NO contact configuration
Maximum switching capacity of 50mA at 24VDC
Type B32 key tops are available only for projected plunger models
