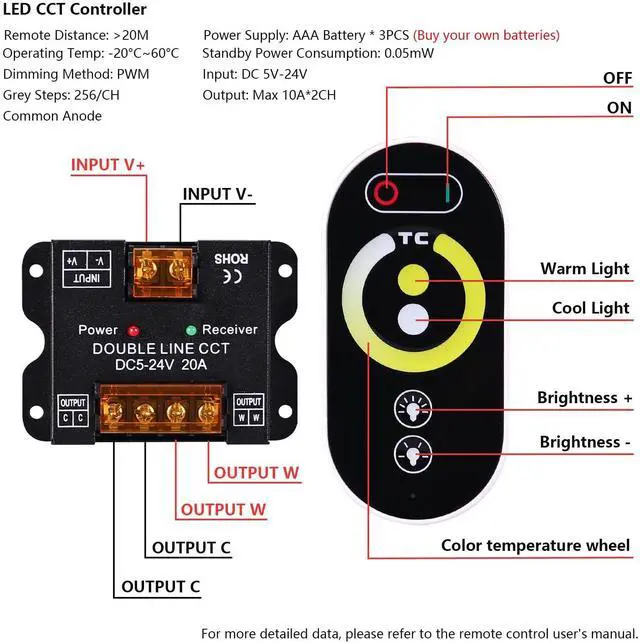

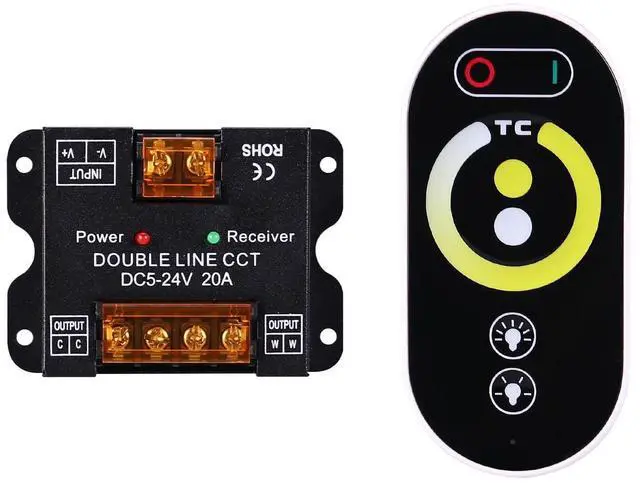

BENLUN DC5V-24V 20A LED CCT Strip Light Touch Controller
- Remote control range: >20 m
- Operating temperature: -20 °C to 60 °C
- Standby power consumption: 0.05 mW
- Dimming method: PWM
- Input: DC 5 V to 24 V
- Output: max. 10 A*2 CH
- Gray scale: 256/CH

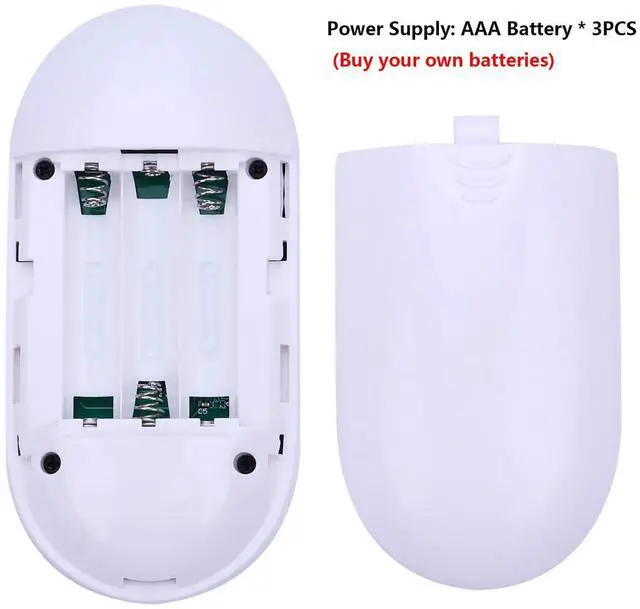

- Power supply: 3 AAA batteries (batteries not included)
- Common anode

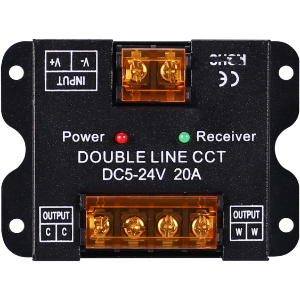

2 wire receiver
- 1: Connect the input connector to DC 5V–24V.
- 2: Connect the output connector “C” to the LED strip “C”.
- 3: Connect the output connector “W” to the LED strip “W”.
- 4: The green signal indicator lights up when the receiver receives a signal from the remote control.
- 5: The red power indicator lights up when the power supply is working properly.

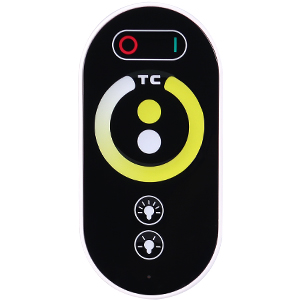

CCT remote control
Before performing any actions, ensure that the controller is configured correctly.
1. Insert the batteries into the remote control.
2. Connect the LED to the receiver.
3. Connect the receiver to the power supply.
Pair the receiver with the remote control.
1. Turn off the main power supply to the receiver.
2. Turn the power supply back on and press and hold the “Brightness +” button for more than 3 seconds within 5 seconds.
3. If the LED flashes, pairing was successful.
4. If the LED does not flash, repeat steps 1 to 2.

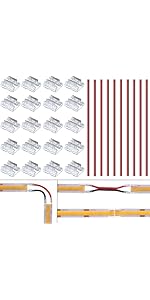

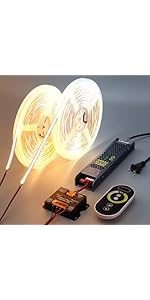

 BENLUN 24V CCT COB LED Strip Light 65.6ft (2 Rolls of 32.8ft), 2700K-6500K 16... |  BENLUN COB LED Connector 2 Pin 8mm Kit, 20pcs Solderless I Shape Connectors, ... |  BENLUN Constant Voltage 24V 200W 8,33A LED Driver, Transformer IP20, AC 110V ... | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — | — | — |
| Light Source Type | CCT COB LED Strip | no data | no data |
| Color | 2700K-6500K | no data | no data |
| Number of Light Sources | 576LEDs/M | no data | no data |
| Voltage | 24V | no data | no data |
| Wattage | 160W | no data | no data |
| Water Resistance Level | IP20 | no data | no data |
| Strip length | 65.6ft | no data | no data |
| Color Rendering Index (CRI) | CRI=93 | no data | no data |
BENLUN DC5V-24V 20A LED CCT Strip Light Touch Controller
- Remote control range: >20 m
- Operating temperature: -20 °C to 60 °C
- Standby power consumption: 0.05 mW
- Dimming method: PWM
- Input: DC 5 V to 24 V
- Output: max. 10 A*2 CH
- Gray scale: 256/CH
- Power supply: 3 AAA batteries (batteries not included)
- Common anode
2 wire receiver
- 1: Connect the input connector to DC 5V–24V.
- 2: Connect the output connector “C” to the LED strip “C”.
- 3: Connect the output connector “W” to the LED strip “W”.
- 4: The green signal indicator lights up when the receiver receives a signal from the remote control.
- 5: The red power indicator lights up when the power supply is working properly.
CCT remote control
Before performing any actions, ensure that the controller is configured correctly.
1. Insert the batteries into the remote control.
2. Connect the LED to the receiver.
3. Connect the receiver to the power supply.
Pair the receiver with the remote control.
1. Turn off the main power supply to the receiver.
2. Turn the power supply back on and press and hold the “Brightness +” button for more than 3 seconds within 5 seconds.
3. If the LED flashes, pairing was successful.
4. If the LED does not flash, repeat steps 1 to 2.
BENLUN 24V CCT COB LED Strip Light 65.6ft (2 Rolls of 32.8ft), 2700K-6500K 16... | BENLUN COB LED Connector 2 Pin 8mm Kit, 20pcs Solderless I Shape Connectors, ... | BENLUN Constant Voltage 24V 200W 8,33A LED Driver, Transformer IP20, AC 110V ... | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — | — | — |
| Light Source Type | CCT COB LED Strip | no data | no data |
| Color | 2700K-6500K | no data | no data |
| Number of Light Sources | 576LEDs/M | no data | no data |
| Voltage | 24V | no data | no data |
| Wattage | 160W | no data | no data |
| Water Resistance Level | IP20 | no data | no data |
| Strip length | 65.6ft | no data | no data |
| Color Rendering Index (CRI) | CRI=93 | no data | no data |
