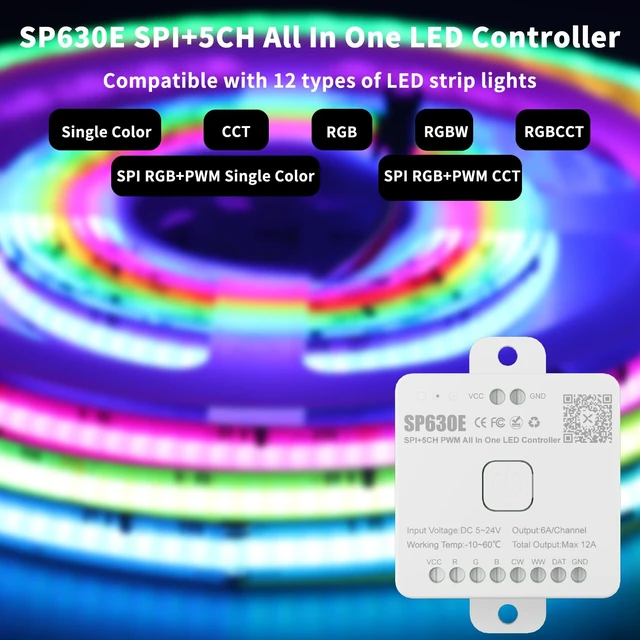

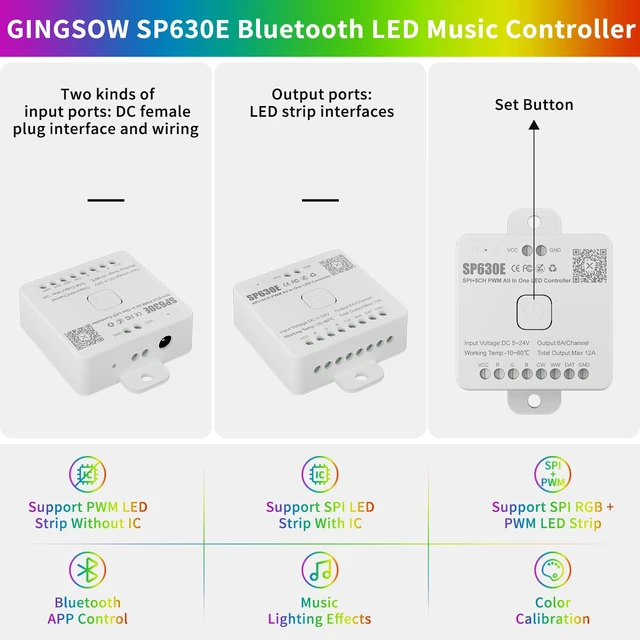

12-in-1 SP630E LED Controller, Bluetooth Music Sync App Control Support DC5-24V PWM Single Color CCT/RGB/RGBW/RGBCCT & SPI IC Chip COB SMD LED Strip Lights

[Support PWM LED Strip] - PWM LED strip without smart IC, such as GINGSOW 2pins 2700K/3000K/4000K/6000K COB LED strip, 3pins RGB Smart IC COB LED strip, and other 3pins CCT tunable light, 4pins RGB LED Light strip, 5pins RGBW LED strip, 6pins RGB+CCT LED strip, both for COB and SMD 2835 LED strip without IC.

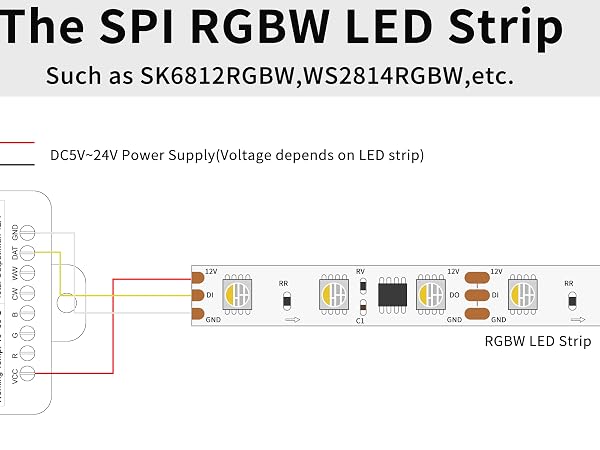

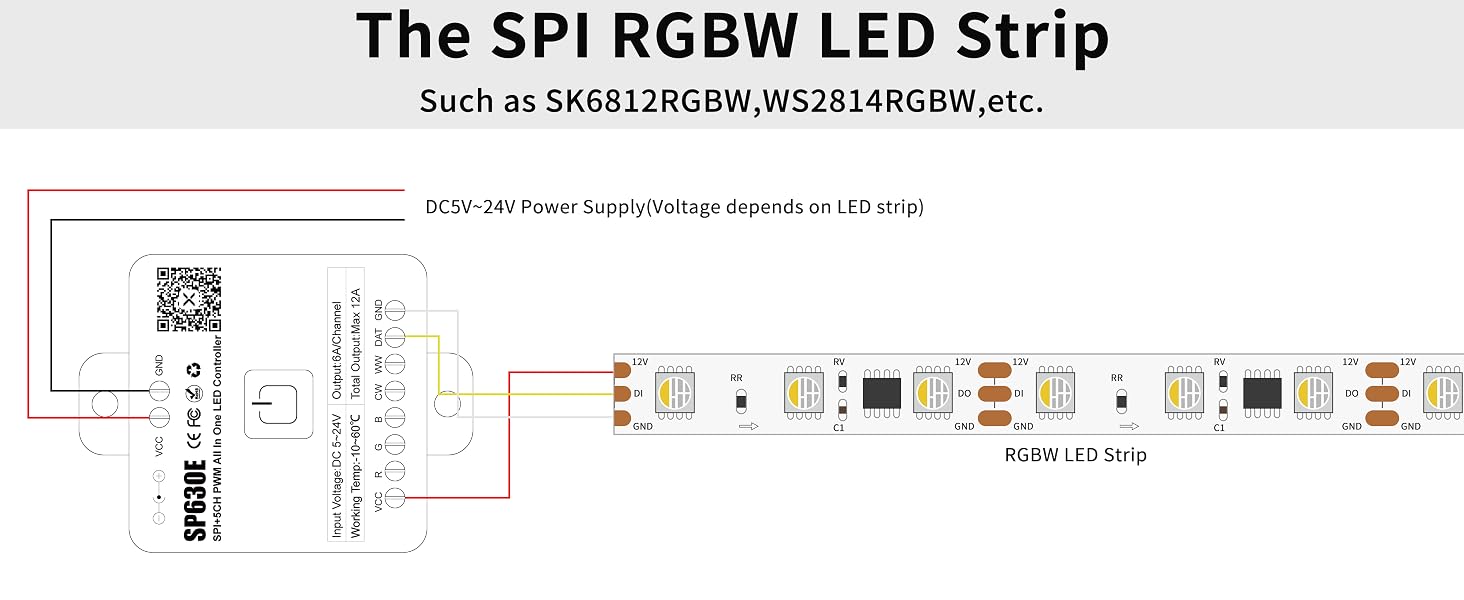

[Addressable SPI LED Strip with IC] - It Supports Addressable IC Chip LED Strip.SPI TTL IC Chip LED strip .3pin(V+ Data GND) or 4pin(V+ Data Backup GND) .For example WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 LB1934 IC chipW etc single RGB color,RGB,RGBCCT addressable LED strip. Support GINGSOW RGBIC COB LED Strip (ASIN: B0CBS9YH2Q).
[Support SPI+PWM LED Strip] - It Supports SPI+PWM LED Strip at the same time.For example you could controller WS2811 IC RGB COB LED strip + single color 2700K COB strip without IC strip or WS2811 IC RGB LED strip + COB CCT no IC strip, and is applicable to multiple light strips. 12 in 1 led controller can work with different LED strip types.
[Music Mode] - 3 ways to capture the sound: phone microphone, player and inner microphone, built-in high-sensitivity microphone, the light strip beats and plusate in real time with the rhythm of music.
[APP Control] - Support APP control, just need to download App: BanlanX by scanning the QR code in the in-wire controller. Three APP operating interfaces: static effect, dynamic effect and music effect.
[Timing Function] - You could set up to 5 timers. With memory function in case of power-down.

Music Sync Mode

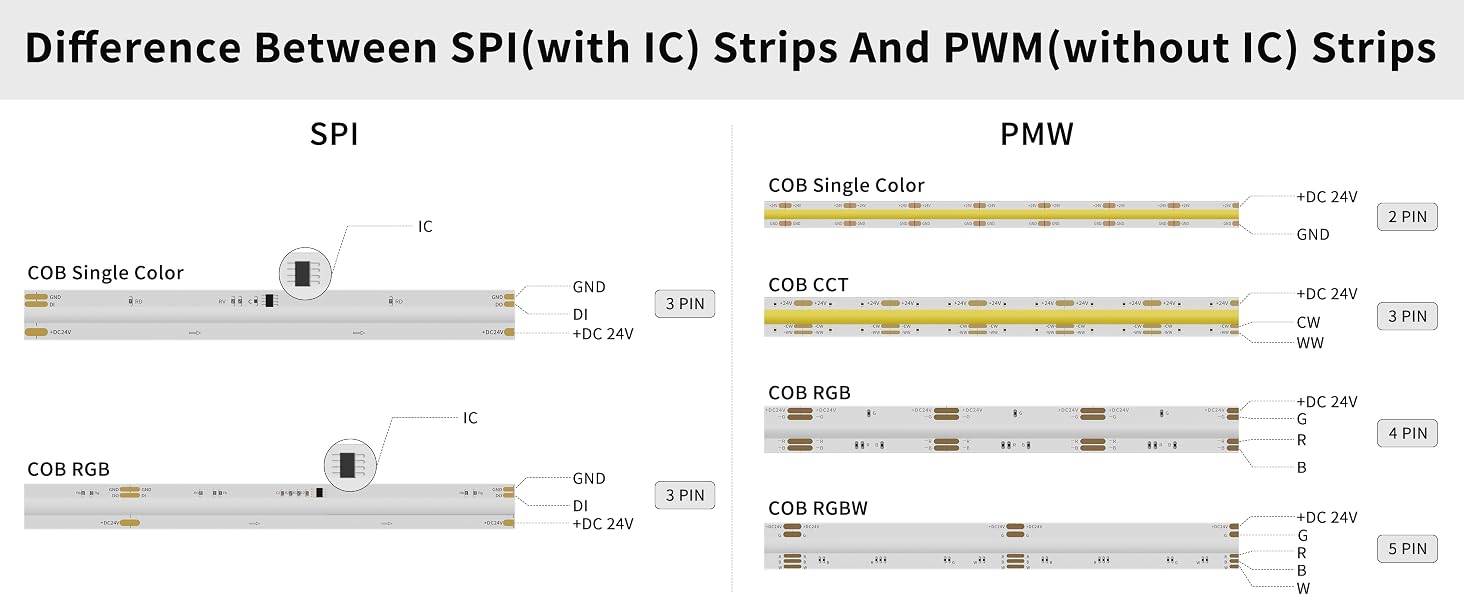

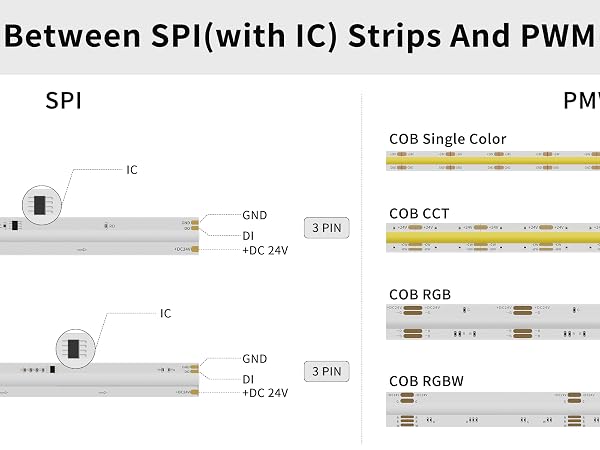

Difference Between SPI and PWM COB LED Strips

Support APP Control

APP Control-Bluetooth

Download APP-BanlanX by scaning the QR code in the controller.

Timer Function

Set time for light trun on/off in any time, 5 timer can be set max.

Music Mode

Three ways to capture sounds:

Phone Mircophone
Player
Inner Mircophone

Chasing Lighting Effect

Dynamic mode
Static mode
Music mode

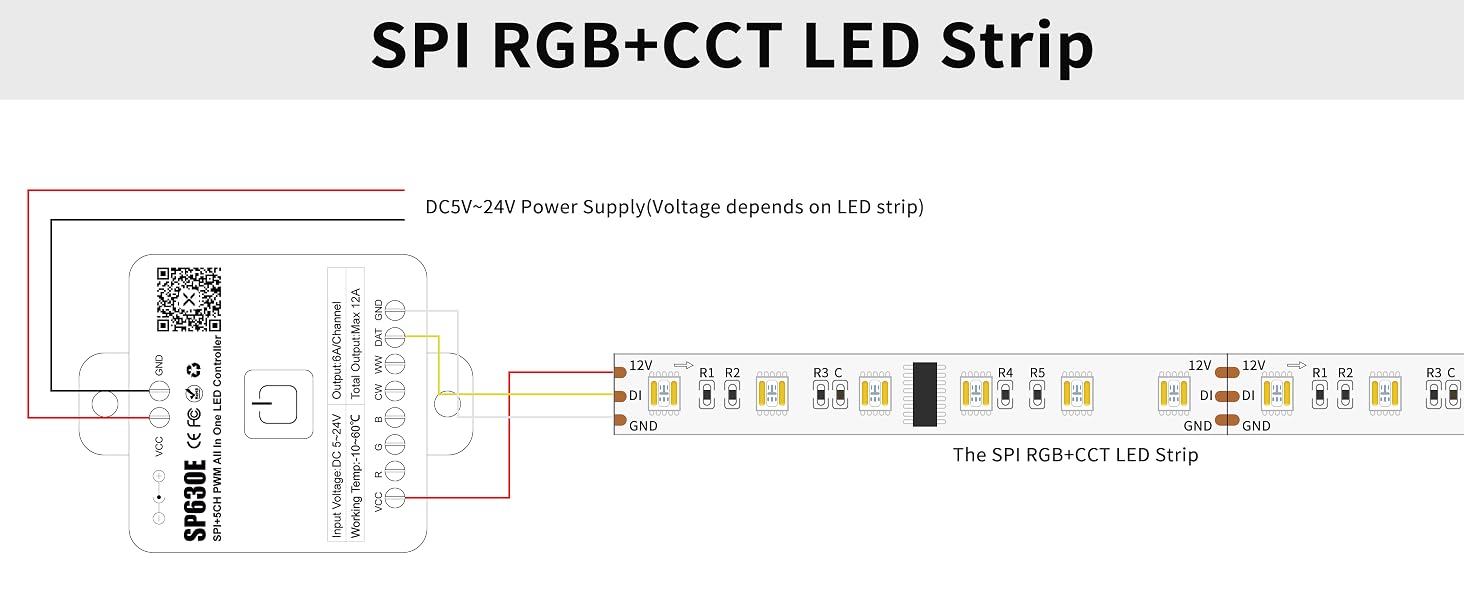

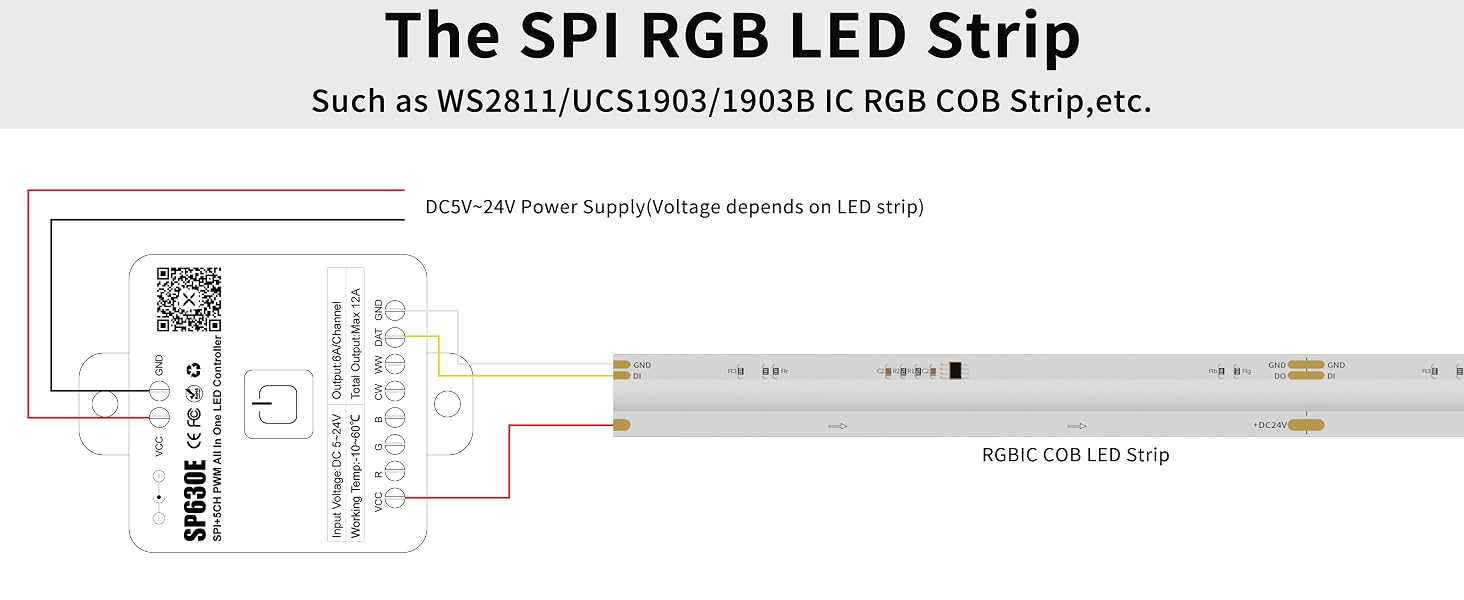

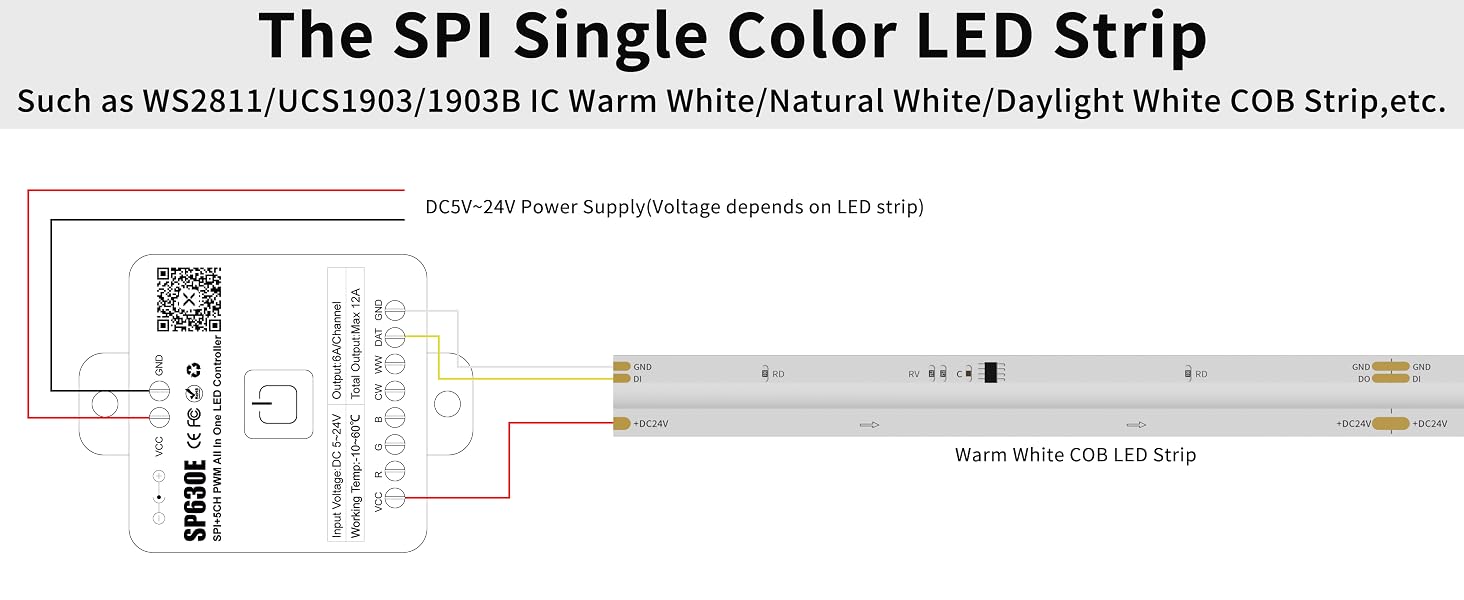

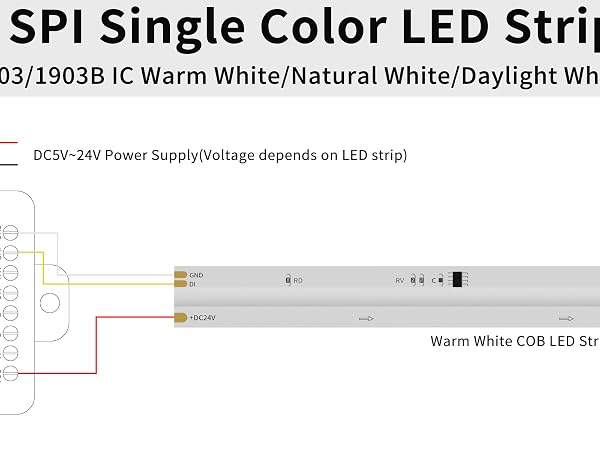

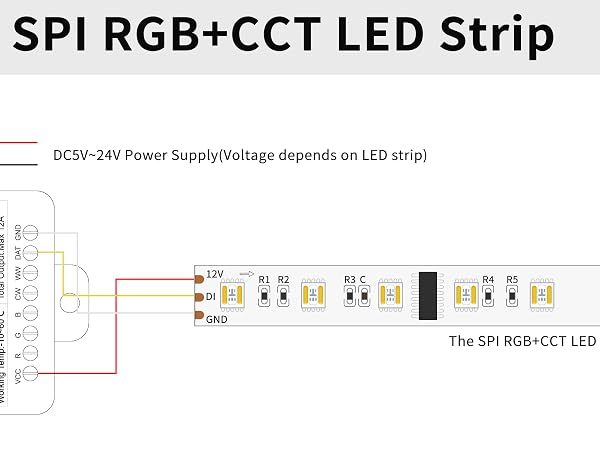

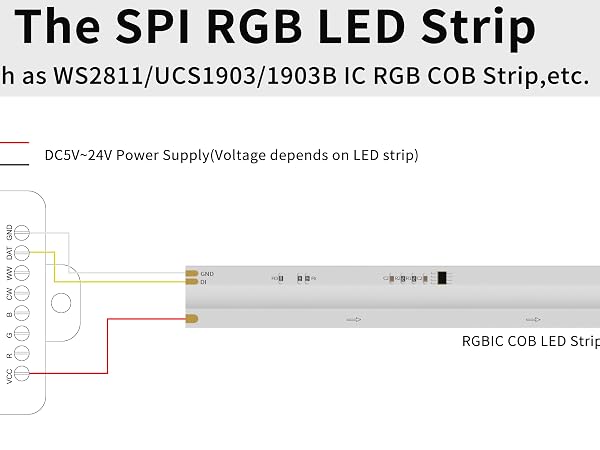

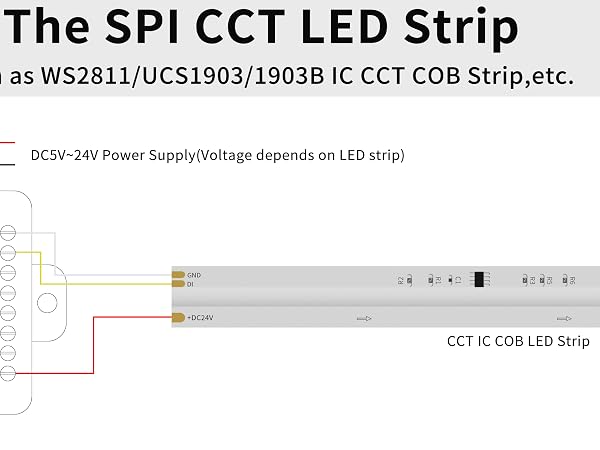

Worked for SPI LED Strip Lights

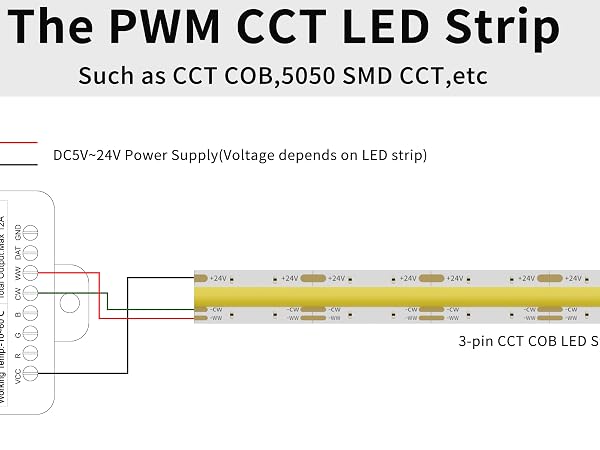

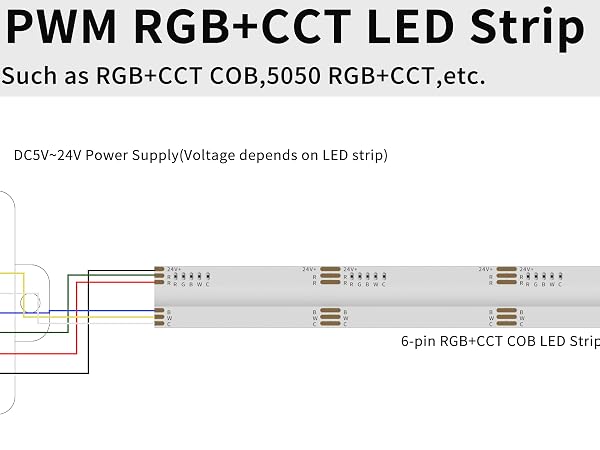

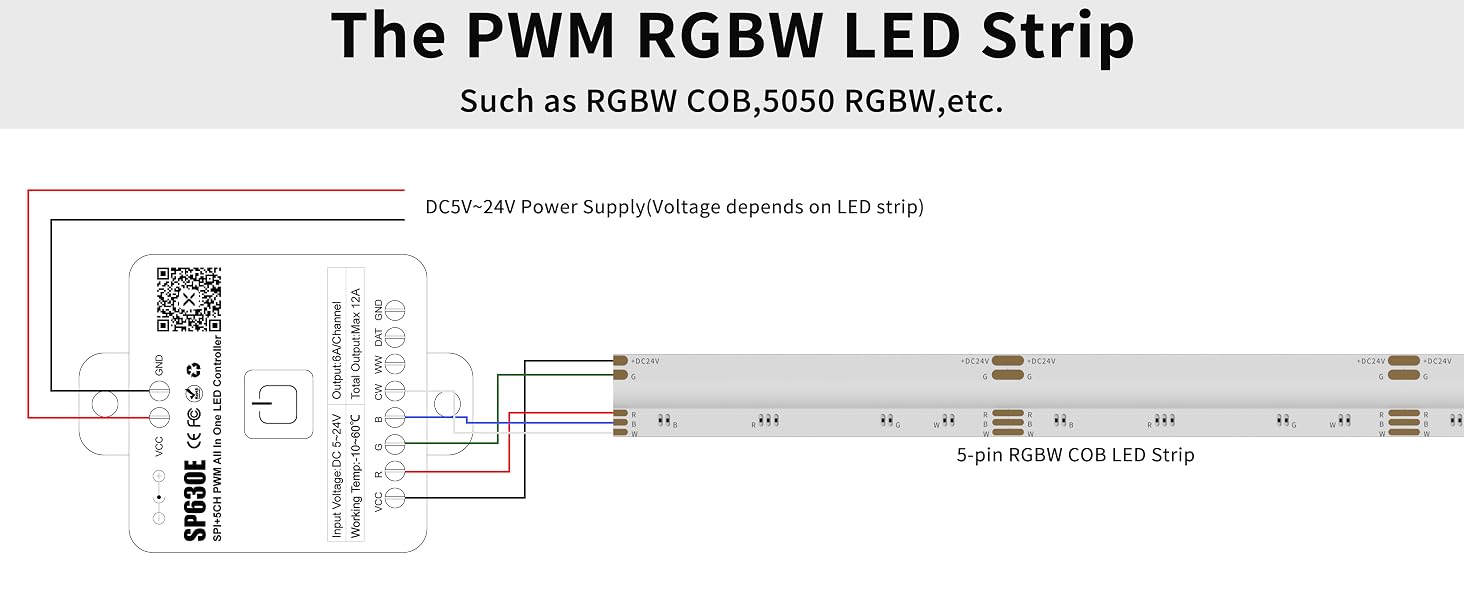

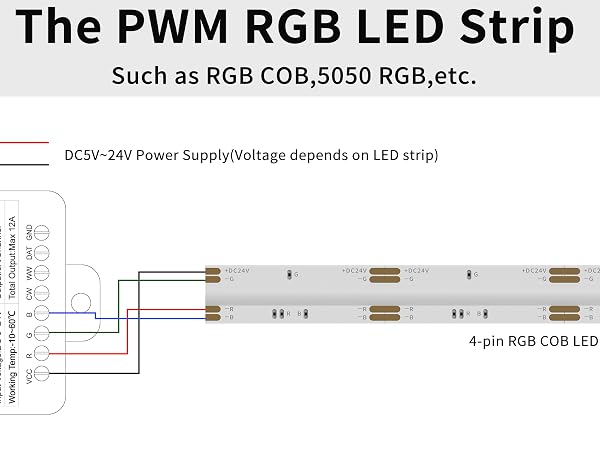

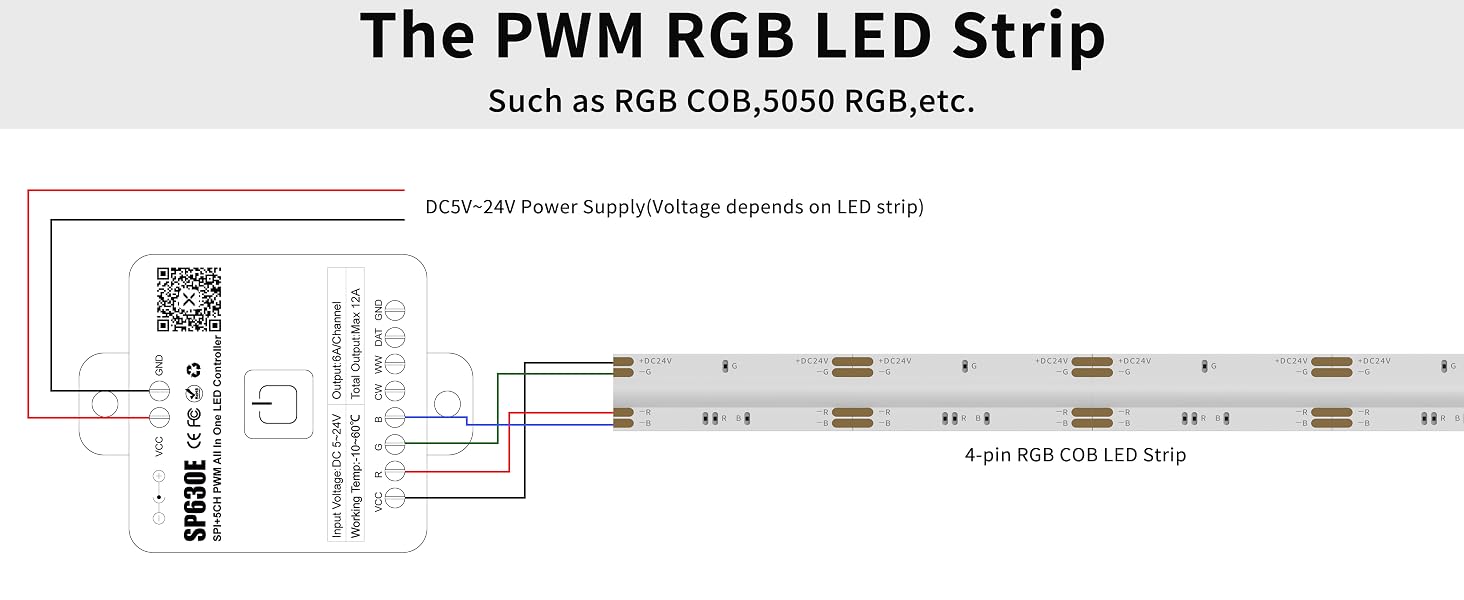

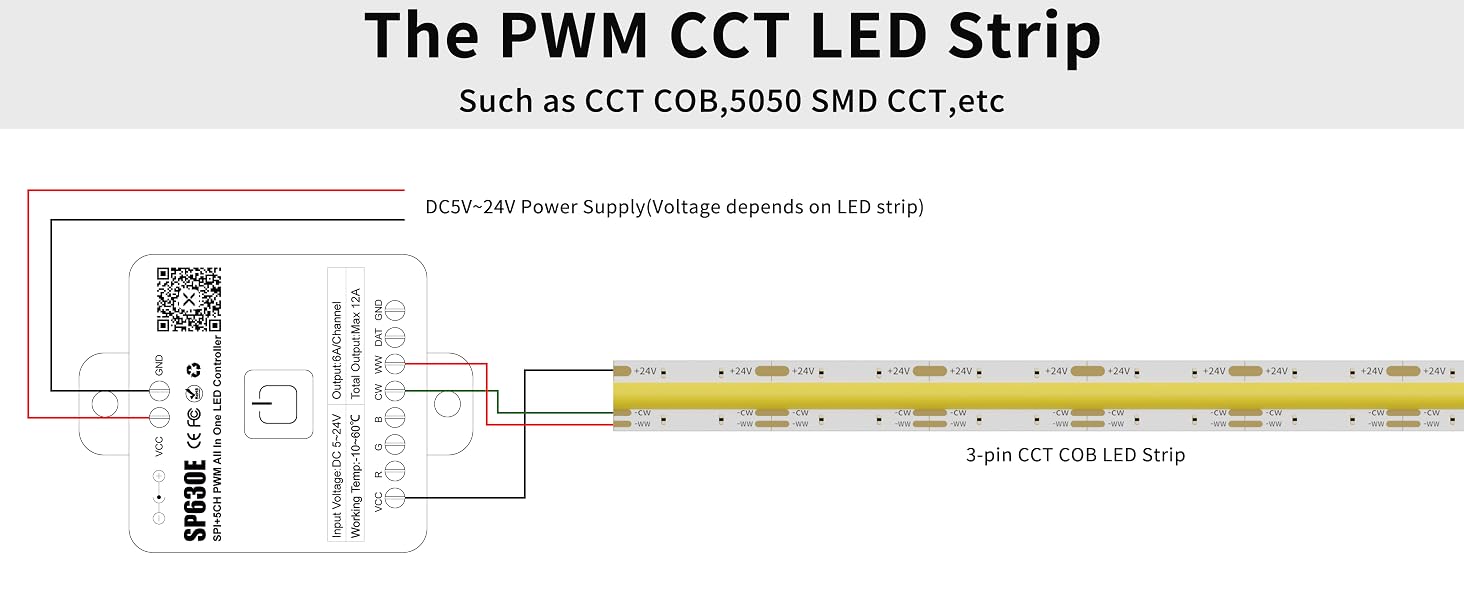

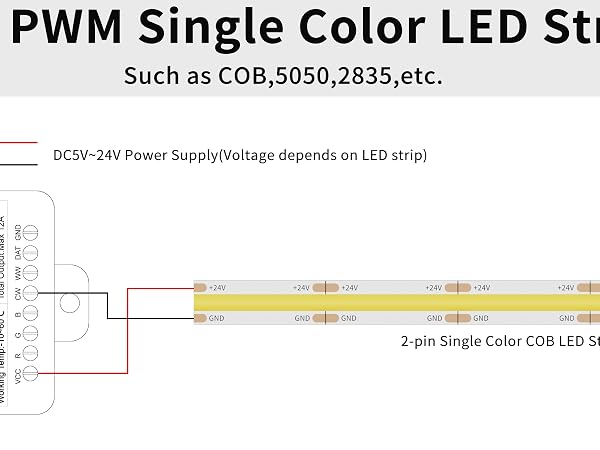

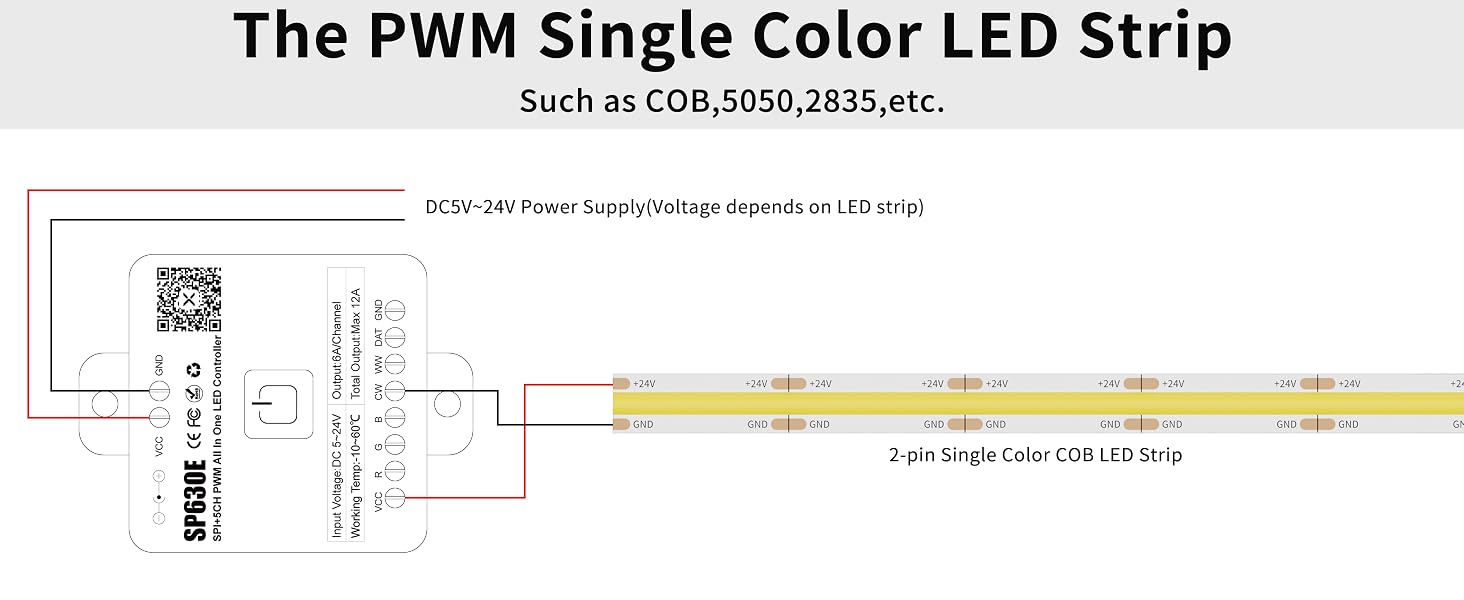

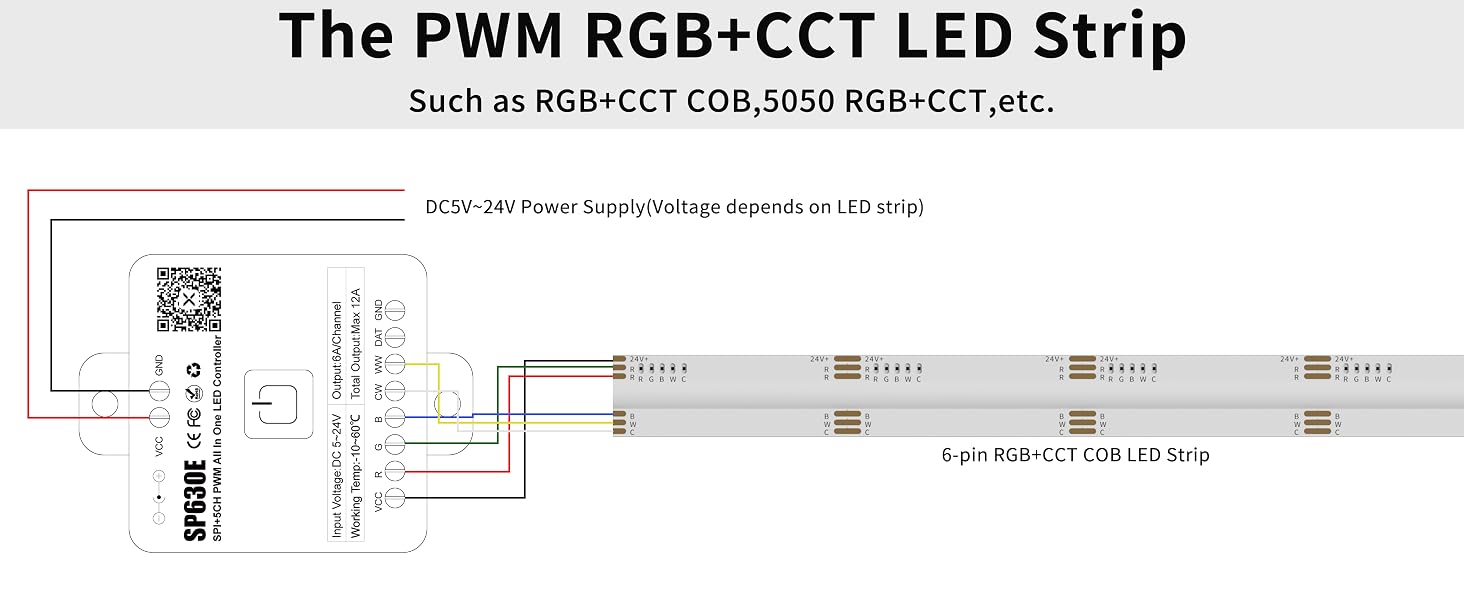

Worked for PWM LED Strip Lights

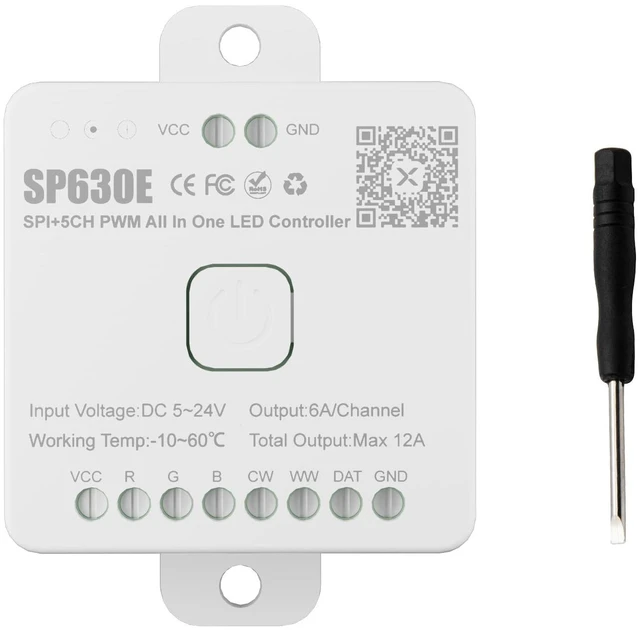

Product Parameters

Product Type	12 in 1 LED Controller
Input Voltage	DC5V-DC24V Controller voltage depends on LED strip
Current	PWM Single Channel Maximun Output Current: 6A.Total Maximun : 12A
Waterproof level	IP20 Non-waterproof
Ways of working	Match with RF remote ,Bluetooth APP BalanX(RF remote NOT included in package)

Support IC QTY	Single color ,CCT , RGB: 600 IC max . RGBW :450 IC max . RGBCCT : 300 IC max
ON/OFF Animations	Set on/off animations and the default power-on state.
Modify	Device name, color order correction
Support IC Chip SPI	WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,1903B,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc

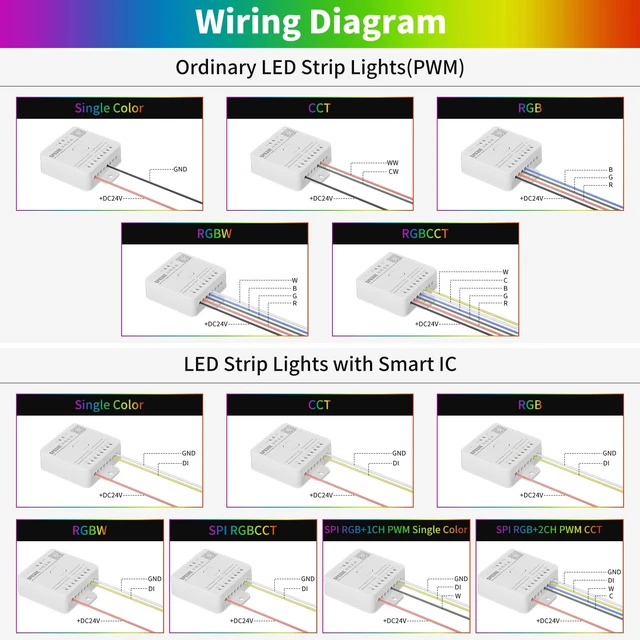

Support PWM chip No IC	COB ,SMD5050,3014,3528,5730,5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW)
