15270-001 LED Indicator Two-Piece Tactile Trim Tab Switch Kit w/Pigtail - Compatible with Lenco Single Actuator Trim Tab Systems 12V/24V - Low-Profile Remote Control Box, Auto-Retract, Backlit Keypad
- Compatible with Single Actuator Systems Direct replacement for Lenco Marine 15270-001 LED Two-Piece Tactile Switch Kit, compatible with Lenco single actuator trim tab systems operating on 12V or 24V power. Ideal for upgrading or replacing existing switch kits without modifying wiring or system layout.

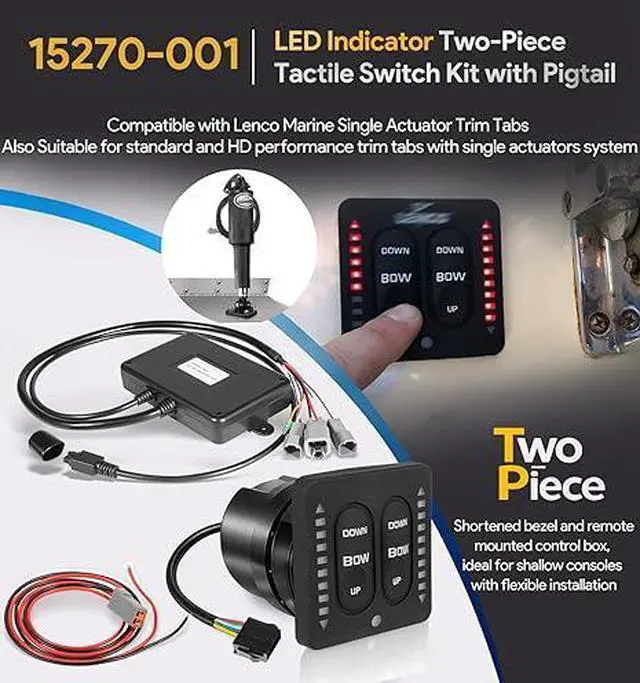

- Two-Piece Low-Profile Design for Shallow Consoles Designed with a shortened bezel and true two-piece configuration, making it ideal for shallow or crowded helm consoles where integrated switch modules (such as the 15170-001, which requires require over 4" of clearance) are too deep to fit. The compact keypad has a total installed length of 2.75". The remote-mounted control box allows flexible installation with reduced mounting depth.

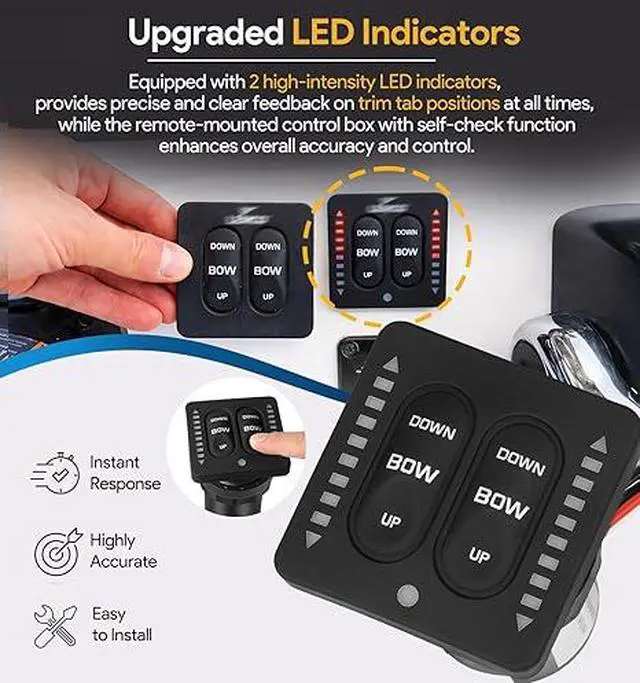

- Real-Time LED Position Feedback with Self-Check Dual high-intensity LED indicators provide clear, real-time trim tab position feedback at all times. The built-in Self-Check feature confirms proper system operation at startup, helping ensure reliable performance before heading out on the water.

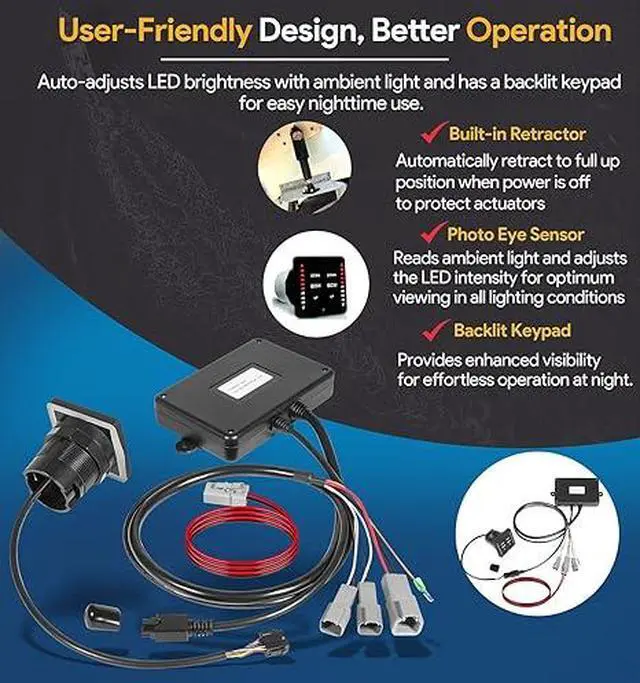

- Auto-Retract & Light-Sensing Backlit Keypad Automatically retracts trim tabs to the full up position when power is removed, helping protect actuators during docking or trailering. An integrated photo eye adjusts LED brightness based on ambient light, while the fully backlit keypad ensures clear visibility day or night.
- Marine-Grade Construction & Easy Installation Fits a standard 2-1/16" (5.24 cm) cut-out and includes a 38" pigtail harness
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Direct Replacement for Lenco Marine15270-001: Upgrade your vessels trim tab control with 15270-001 LED Two-Piece Tactile Switch Kit. Engineered as a direct replacement for Lenco Marine single actuator systems, it offers a professional-grade solution for both 12V and 24V power setups, ensuring precise handling and stable boat leveling.
Space-Saving Low-Profile Design: Standout feature is its two-piece configuration. By separating the control logic into a remote-mounted solid-state box, the keypad achieves a remarkably slim profile. 2.75" (6.98 cm) face and shallow 2.33" (5.9 cm) mounting depth. ultimate solution for crowded or shallow dashboards where integrated switches (like the 15170-001) are too deep to install.
Key Features:

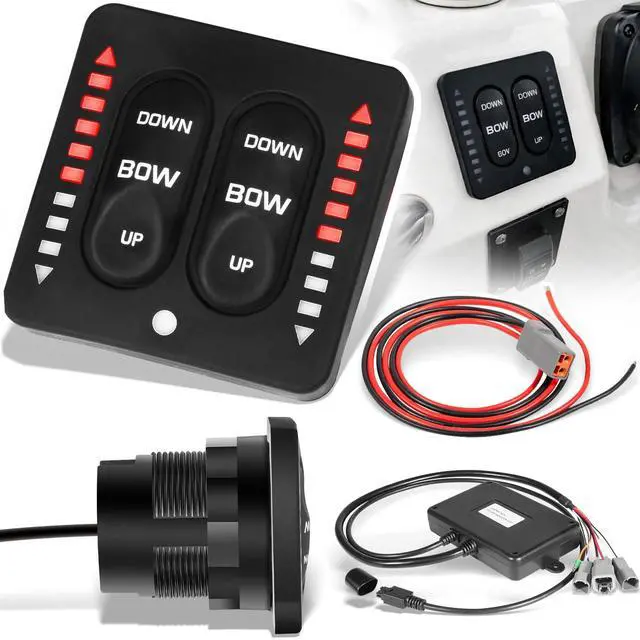

LED Feedback: Dual high-intensity LED bars show real-time trim tab positions.
Auto-Retract: Protects actuators by automatically retracting tabs when power is cut.
Smart Dimming: Integrated photo eye adjusts LED brightness for day or night.
Self-Check: Automatic diagnostics run at every startup for maximum reliability.

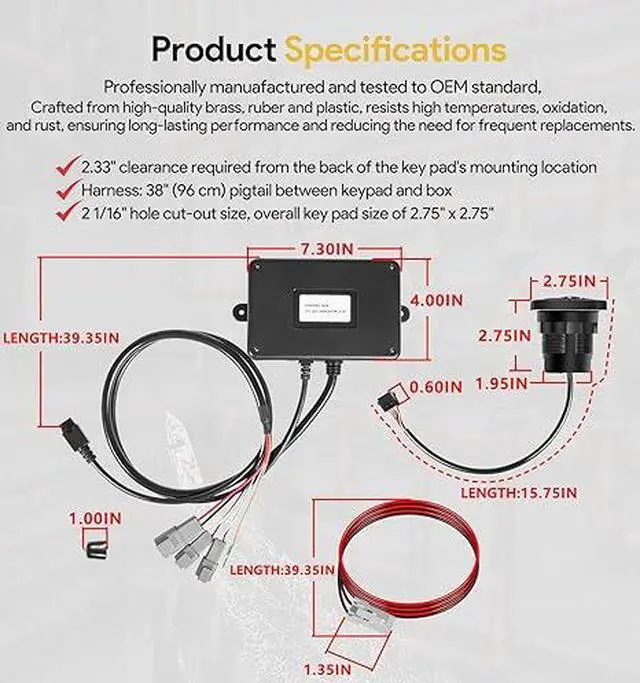

Product Specifications:
Compatibility with Lenco Single Actuator Systems (12V & 24V).
Keypad Size: 2.75" x 2.75"; fits standard 2-1/16" hole cut-outs.
Mounting Depth: Only 2.33" (5.9 cm) clearance required.
Harness: 38" (96 cm) pigtail between keypad and box.
Power: 12V (20A fuse) or 24V (10A fuse).
Connectors: Waterproof Deutsch & Molex plugs.
Warm Tips:

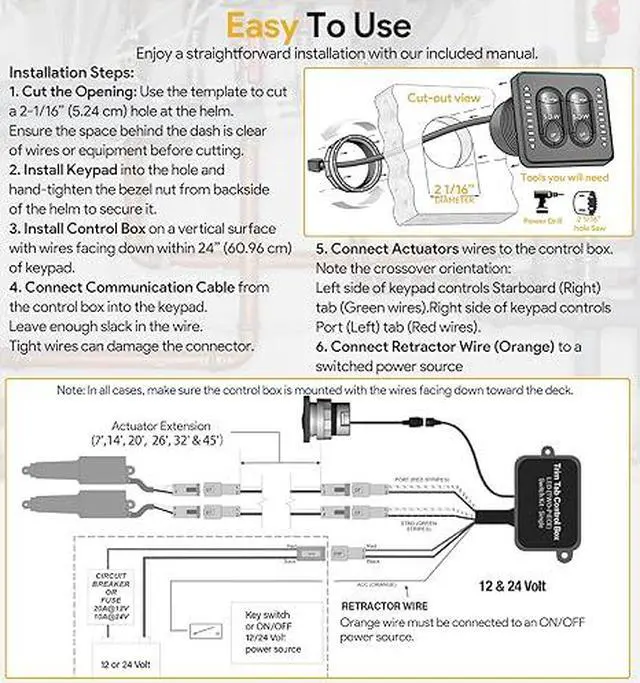

Orientation: Control Box MUST be mounted vertically with wires facing down.
Orange Wire: Connect to a 12/24V ON/OFF source (e.g., key switch); don't share a mechanical switch with main power.
Compatibility: NOT compatible with Lenco components manufactured in 2016 or earlier.
Wiring: Leave adequate slack in the Molex connection to prevent damage

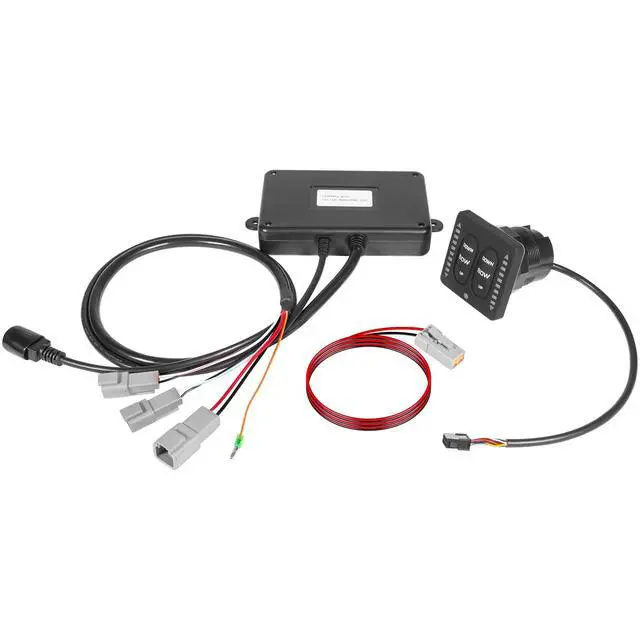

Items inside the box· LED Indicator Two-Piece Tactile Switch Kit w/Pigtail f/Single Actuator Systems
