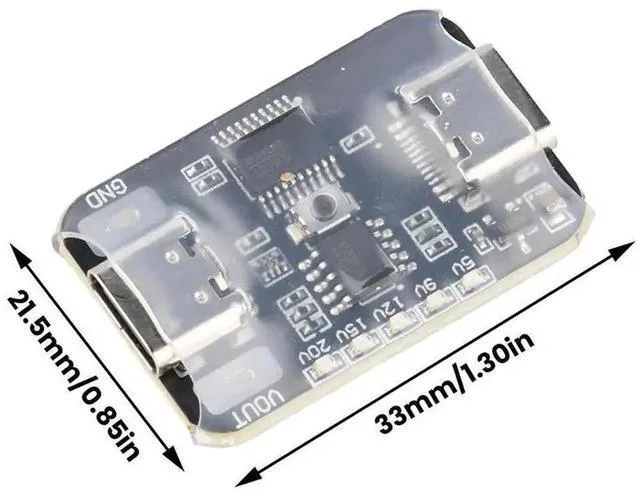

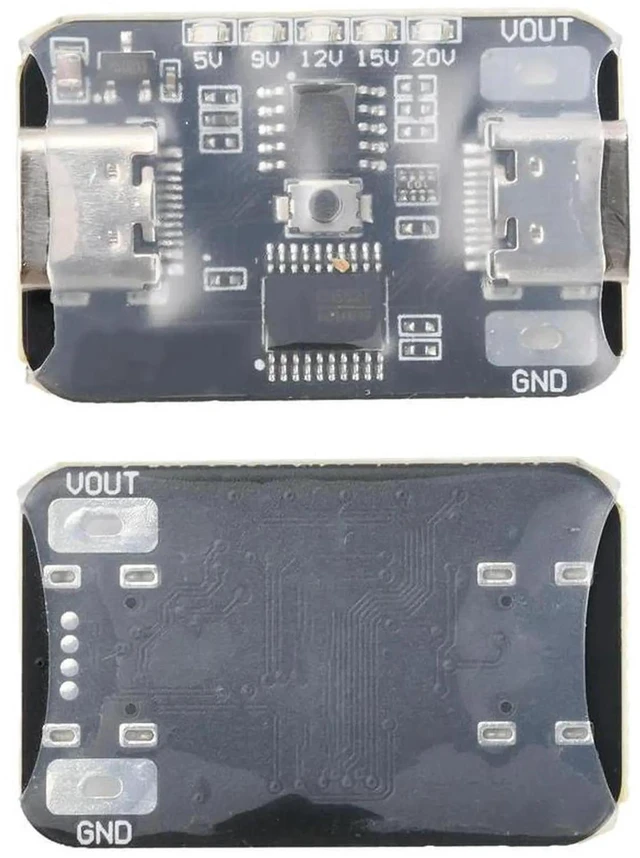

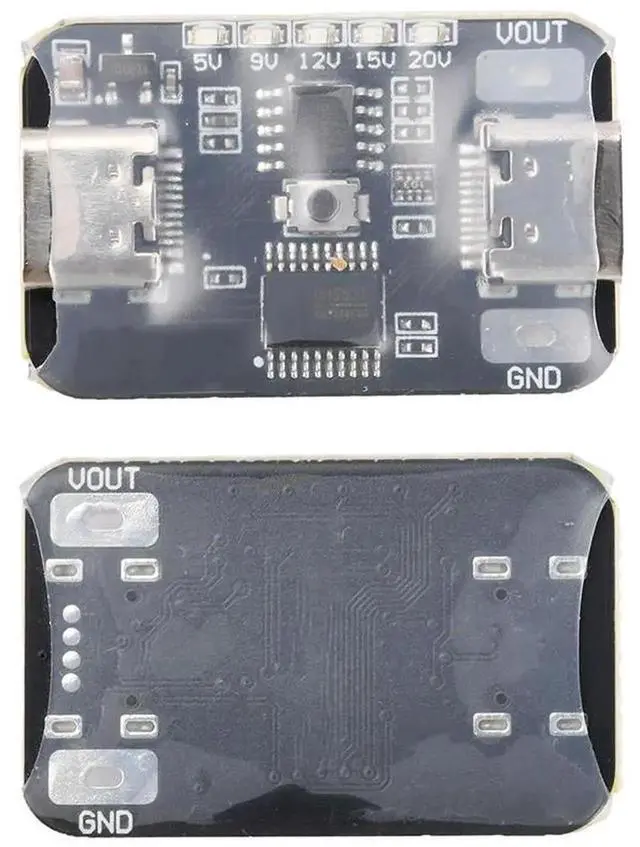

AJMRTC TypeC PD Trigger Board, Adjustable 5V 9V 12V 15V 20V Output PD2.0 PD3.0 5A Max OpenSource Trigger Module, USBC Power Supply Trigger for Charger Testing Power Supply Debug DIY Projects

AJMRTC TypeC PD trigger board is an opensource USBC PD powerprofile triggering module used for poweradapter and charger testing. It communicates with PD2.0 and PD3.0 compliant power sources to request fixed output voltages including 5V, 9V, 12V, 15V and 20V, supporting up to 5A maximum current output. Both hardware and software are opensource, allowing developers to carry out firmware customization, function expansion and secondary development according to actual test requirements. This trigger module can force PD chargers or power banks to output specified voltage, which greatly facilitates laboratory powersupply verification, electronic module powersupply debugging and performance testing of USBC adapters. Smallsize board structure fits inside test jigs and experimental equipment. It is wellsuited for electronic engineers, laboratory testing environments and makeroriented powersupplyrelated DIY projects. Please make sure your PD power source can supply corresponding current before selecting voltage profile; do not exceed module maximum 5A load limit.

Brand: AJMRTC Module Type: TypeC PD Trigger Board Supported PD Protocol: PD2.0, PD3.0 Adjustable Output Voltage: 5V, 9V, 12V, 15V, 20V Max Output Current: 5A Hardware & Software: Opensource Core Usage: PD charger testing, powersupply debugging, lab experimental development Interface: TypeC Application: Laboratory test fixture, electronic DIY, poweradapter performance verification Remarks: Actual output current depends on capability of connected PD power source; do not exceed 5A maximum load
