Non-Programmable Thermostats for Home Conventional Single-Stage Systems, up to 1 Heat/ 1 Cool (with White Backlight)

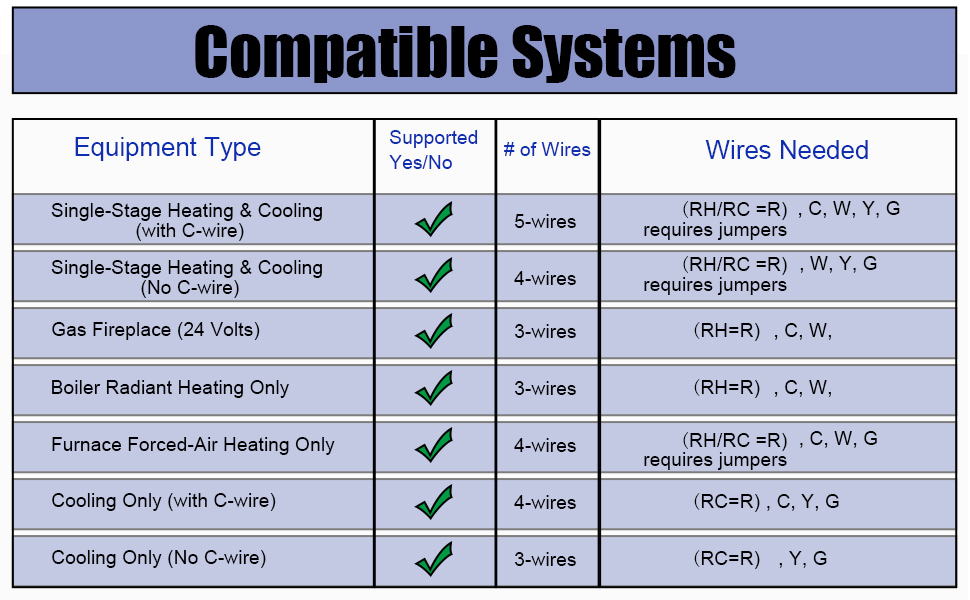

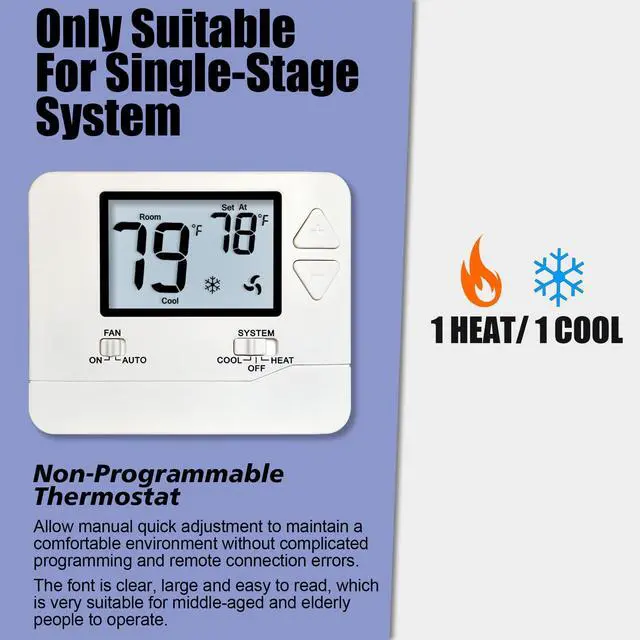

Precise Fit for Single-Stage SystemsDesigned exclusively for home single-stage heating (gas/oil/electric furnaces), ventilation, and air conditioning systems, supporting 1 Heat/1 Cool configurations; Only compatible with existing bases with 2 to 5 wires, please check the number of wires in advance to ensure compatibility

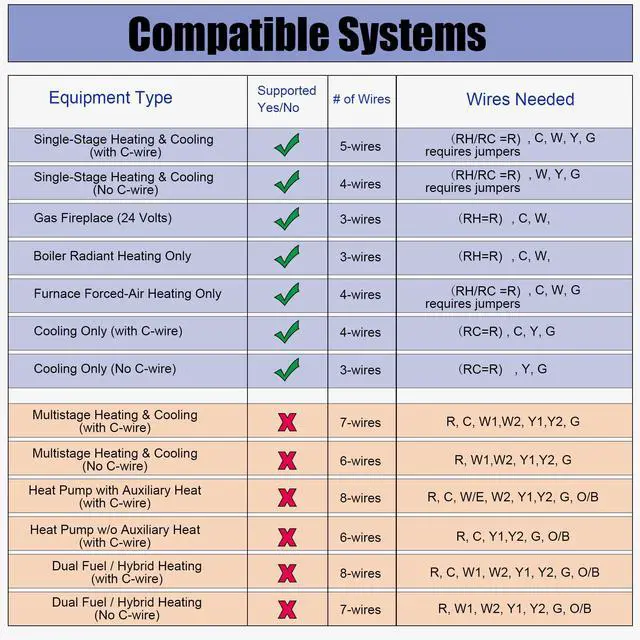

Clearly Incompatible SystemsNot suitable for multi-stage HVAC systems (2H/2C, 3H/2C), HVAC heat pumps systems(2H/1C, 2H/2C), PTAC units, 3-wire hydronic (hot water) heating systems, dual fuel/hybrid heating systems; Does not support 120-240V line voltage systems, mini-split heat pump air conditioners, RV air conditioners (Mach/Roughneck series)
Dual Power Supply, No C-Wire NeededSupports 24VAC hardwiring or 2 AAA batteries power supply; No common wire (C-wire) required for most standard systems, making retrofits in older homes more convenient

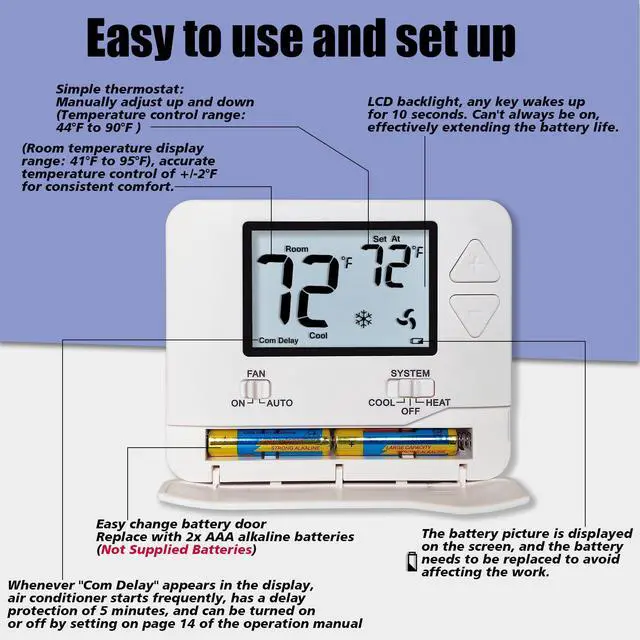

Clear & Easy-to-Read DesignEquipped with a large white backlit display with clear, prominent numbers, especially suitable for the elderly to view; Room temperature display range: 41°F to 95°F, Temperature control range: 44°F to 90°F
Precise Temperature Control & Protection±1°F temperature control accuracy ensures a comfortable experience, supporting 0.2°F to 2°F heat/cool swing adjustment; 5-minute compressor delay protection (selectable ON/OFF) with low battery indicator function

Precautions for products

1. Confirm whether the product is compatible with your system,

2. Confirm the size of the product to see if it can cover the traces left on the wall of the old thermostat.

3. If you encounter installation and troubleshooting problems, please feel free to contact, we will repley you in 24 hours.

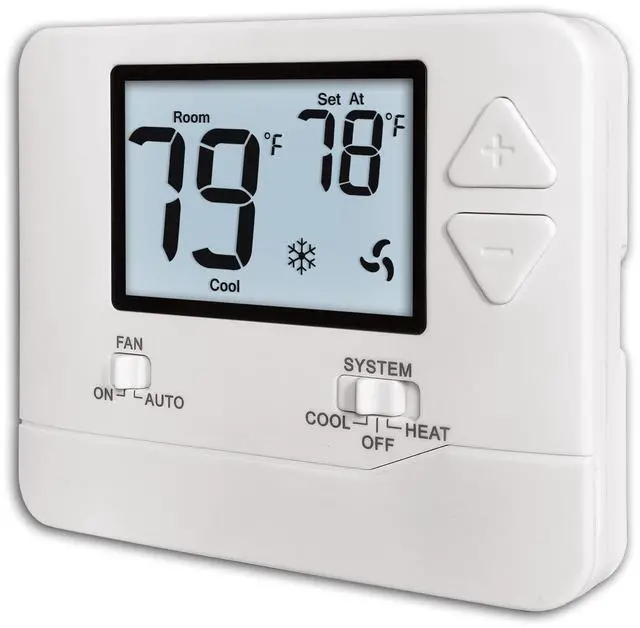

This is a 24VAC conventional single-stage system non-programmable thermostat for home

Heagstat specializes in the design and manufacturing of professional grade products that improve the comfort of a home and simplify the installation. This H701 non-programmable digital thermostat has many convenient features. Some of its features include: backlit display easy to read, simple operation with slide switches selecting heat or cool mode operating the fan. This thermostat is compatible with single-stage heating/cooling systems, heating, cooling.

Specifications:

Single Stage
1 Heat, 1 Cool
Non-programmable
large LCD display with white backlight
Fan switch with ON and AUTO functions
Low battery indicator
Electric or Gas configurable
Separate B & O terminals

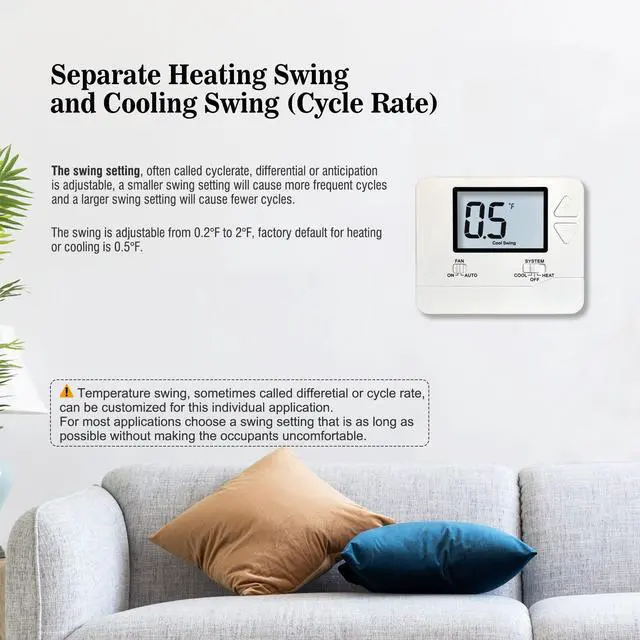

Separate heating and cooling swing (cycle rate) adjustments

Room temperature calibration adjustment
5 minute compressor delay protection (selectable on or off)
Display options: Fahrenheit or Celsius temperature display

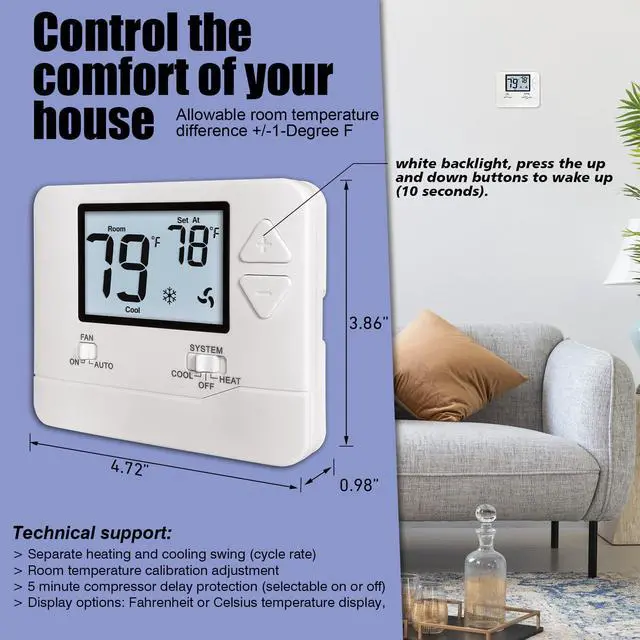

Product Dimensions: 0.98"D x 4.72"W x 3.86"H

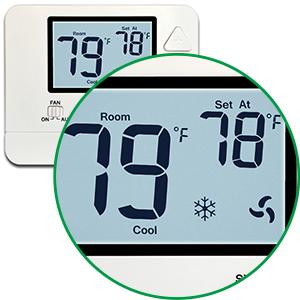

THERMOSTAT

Easy to see and read

3 Inches large LCD display
One-button wake-up white backlight lights
Suitable for Middle-Aged and Elderly People.

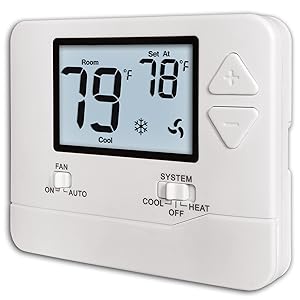

701 THERMOSTAT

Easy to use and install

Easy wire coded terminal blocks
Terminal Designations RH, RC, G, Y, C, O, B, W
Universal sub-base, mounts on wall or junction box

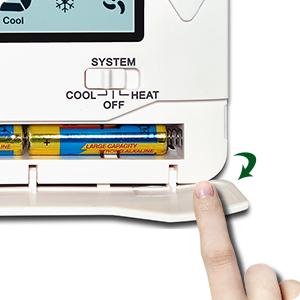

Easy access battery compartment
Dual-powered (AAA battery and/or hardwire 24VAC power)

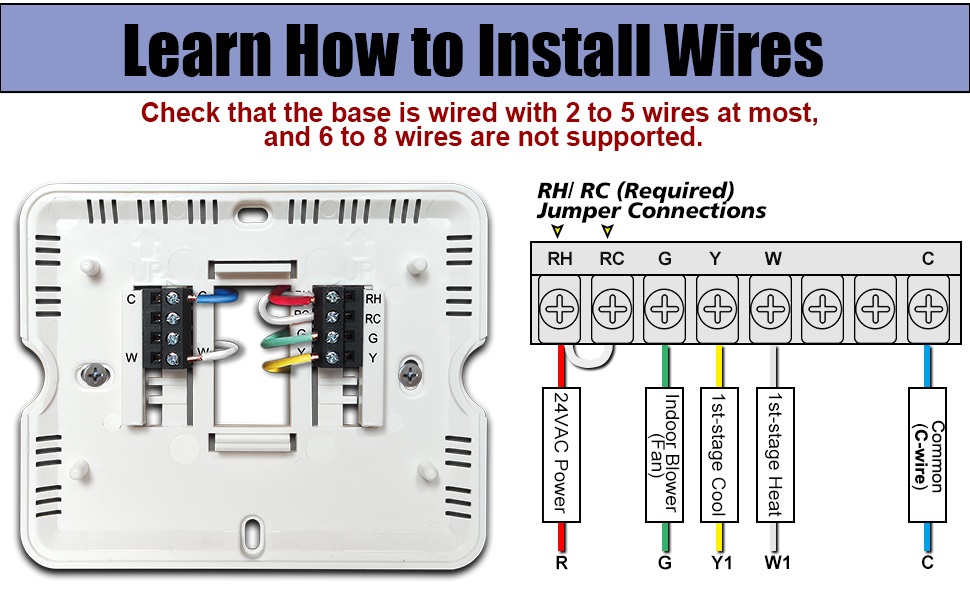

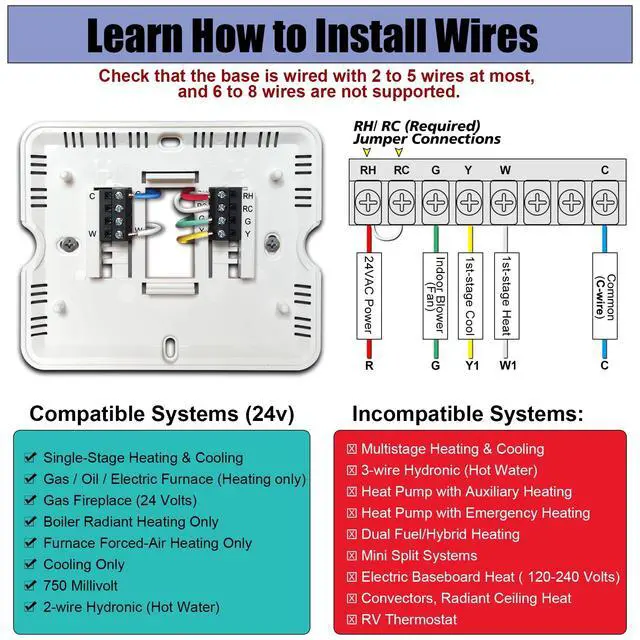

Notice:Should thoroughly examine the installation and wiring instructions depicted in the images before. ( Note that the base can only be attached with a maximum of 2 to 5 wires, and connections with 6 to 8 wires are not suitable.)

thermostats

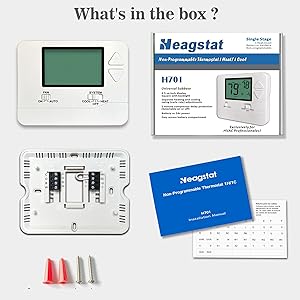

What's in the box?

Heagstat H701 thermostat and base (Jumper wire connected)
Two screws and anchors
Installation manual
Cable label
