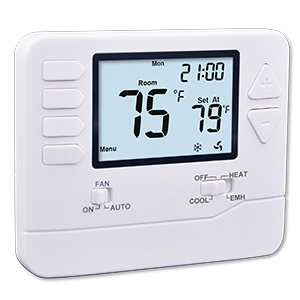

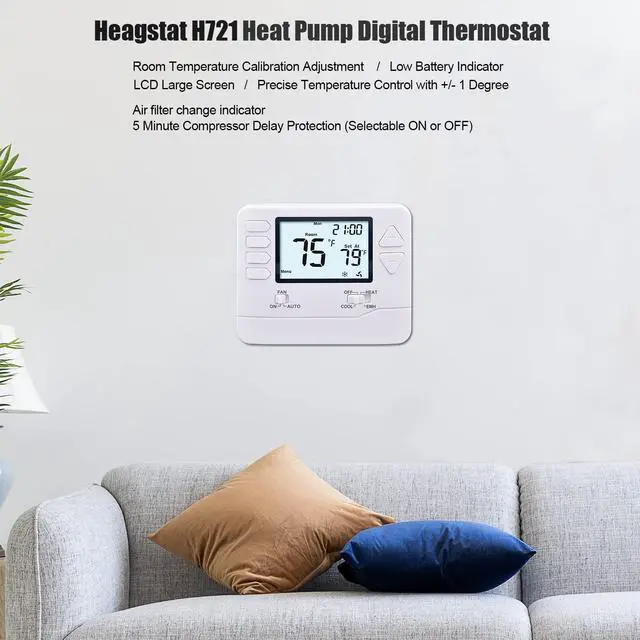

H721 Non-Programmable Heat Pump Thermostat, 2 Heat/1 Cool, with 4.5 sq. Inch Display

Before buying, please confirm whether the product is compatible with your system, and check the size of the product to see if it can cover the traces left on the wall of the old thermostat.
Heagstat H721 2 heat/1 cool non-programmable heat pump thermostats, to control the temperature in a room.
For use with Heat Pump Systems or conventional (central gas, oil, electric furnaces) single stage systems, up to 2 heat 1 cool.
Not compatible with 110-240V electric heat systems (like electric baseboard heat, line voltage, convectors, radiant-ceiling heat).-- does not work with conventional multistage systems, mini split systems and 12v rv thermostats.
Accurate temperature control of +/-1-Degree F for consistent comfort, Room temperature display range: 41°F to 95°F, Temperature control range: 44°F to 90°F.
Support a heat or cool swing set up (0.2°F to 2°F), which will either prolong or shorten the temperature open time. make comfortable temperatures to reduce energy usage, savings on annual heating and cooling costs.
Room temperature calibration adjustment, and 5 minute compressor delay protection (Selectable on or off), with air filter change reminder and low battery indicator available.

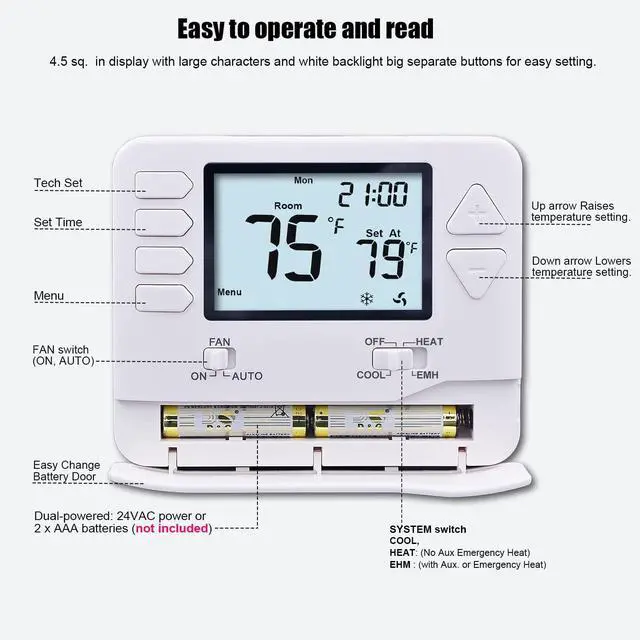

Display with white backlight, easy-to see and read. large, clear backlit digital display, very suitable for middle-aged and elderly people.
Dual-powered (battery and/or hardwire 24Vac power), easy access battery compartment.

Precautions for products

1. Confirm whether the product is compatible with your system,

2. Confirm the size of the product to see if it can cover the traces left on the wall of the old thermostat.

This is a 24VAC heat pump system non-programmable thermostat for home

Heagstat specializes in the design and manufacturing of professional grade products that improve the comfort of a home and simplify the installation. This H721 non-programmable heat pump thermostat has many convenient features. Some of its features include: backlit display easy to read, simple operation with slide switches selecting heat or cool mode operating the fan. This heat pump thermostat is compatible with 2 heating/1 cooling systems, heating, cooling.

Specifications:

Compatible for use with Heat Pump Systems and conventional (central gas, oil, electric furnaces) single stage systems, up to 2 heat 1 cool.

Multi Stage, 2 Heat, 1 Cool
Non-programmable
4.5 sq. inch large LCD display with white backlight
Easy access battery compartment
Electric or Gas configurable
Separate B & O terminals
Separate heating and cooling swing (cycle rate)

Air filter change indicator (selectable on or off)
Low battery indicator
Room temperature calibration adjustment
5 minute compressor delay protection (selectable on or off)
Display options: Fahrenheit or Celsius temperature display, 12 or 24 hour clock

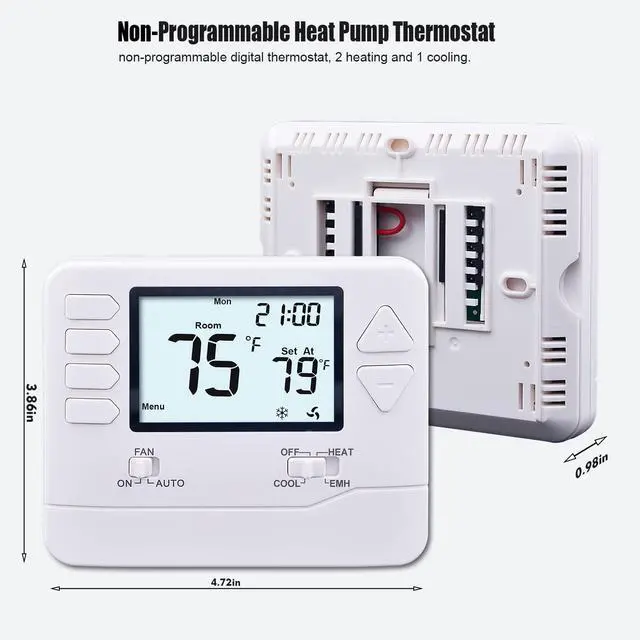

Product Dimensions: 0.98"D x 4.72"W x 3.86"H

This Thermostat Does Not Work With:

does not work with electric baseboard heat (120-240V) / line volt system .
does not work conventional multistage systems
does not work mini split systems and 12v RV thermostats.
does not work with Proprietary/ communicating/ serial protocol

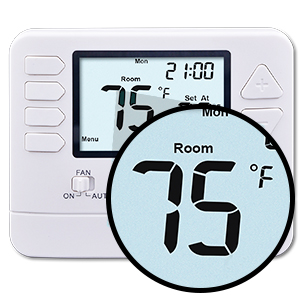

large LCD

Easy to see and read

3 Inches large LCD display
One-button wake-up white backlight lights
Suitable for Middle-Aged and Elderly People.

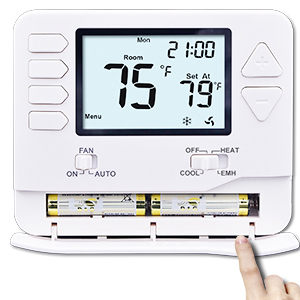

easy install 721

Easy to use and install

Easy wire coded terminal blocks

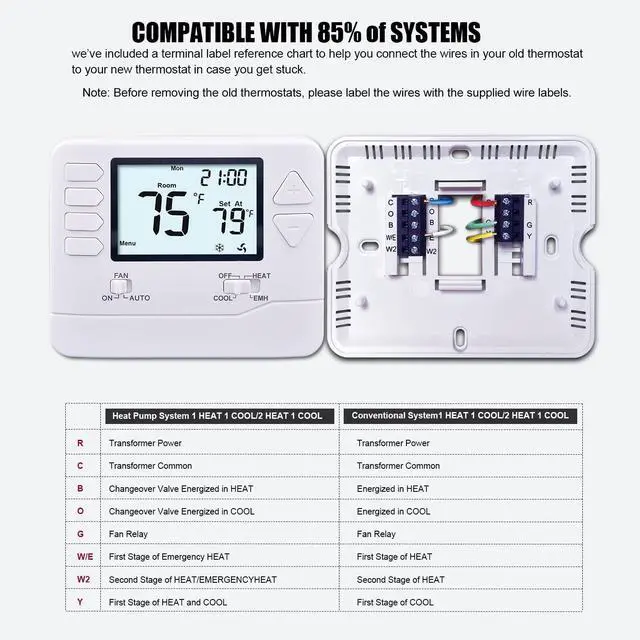

Terminal Designations: RH, G, Y, C, O, B, E, W2
Universal sub-base, mounts on wall or junction box
Easy access battery compartment
Dual-powered (AAA battery and/or hardwire 24VAC power)

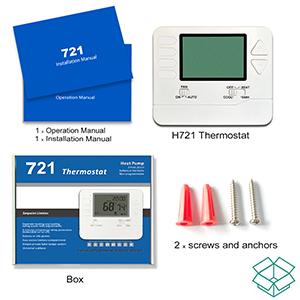

package 721

What's in the box?

Heagstat H721 Thermostat
Two screws and anchors
Operation Manual
Installation Manual
Cable Label
