KSD301 Thermal Temperature Control Switch
KSD301 Thermal Temperature Control Switch
Name: KI31/KSD301 Snap Disc Thermostat
Use:Temperature control
Action type: Normally Closed(N.C)
Voltage and current:AC110V/120V/125V/250V/16A; DC12V/24V/15A;48V/10A;;
Operating Temperature:110°C-250(230-482°F)
Temperature accuracy:±3?,±5?
Contact resistance:=50MO
Insulation resistance:=100MO
Life span:About 100,000 times
Electrical strength:AC 50Hz 1800V lasted for 1min, no flicker, no breakdown

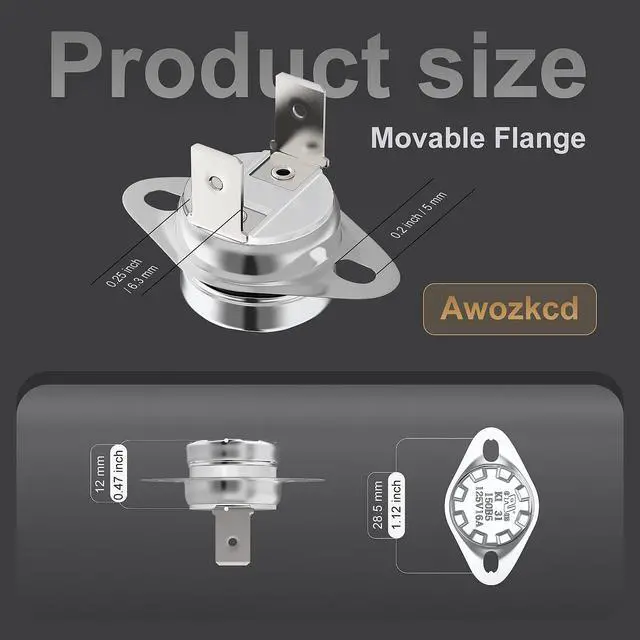

Size (Each):1.26" x 0.79"x 0.83" (L*W*H)
Mounting Hole Spacing:28.4mm / 1.12inch
Pin width:6.3mm/0.25inch
Package Content:2pcs x KSD301 Thermostat Switch
Pls kindly Note: Due to the influence of the ambient temperature, the thermostat below 50 degrees, during the transportation and storage process, the thermostat circuit has been disconnected, need to put the thermostat in the refrigerator to cool and reset before use. For example, 30±3? normally closed KSD301 thermostat , under normal circumstances 30±3? circuit is disconnected, 20±3? circuit is connected. When the ambient temperature is higher than 40 degrees Celsius, the circuit of the thermostat is disconnected and needs to be cooled and reset before use.
KSD301 thermostat
KSD301 Bimetal thermostat
Tips:
KSD301 and KI 31 are the same 1/2 inch thermostat, but the way of naming is different, the same type has a well-known manufacturer's model KSD302/KSD303/KSD201/1NT/TK 24/36T /US-118 /T11 and other names. Performance is consistent and all are interchangeable.
Before purchase:
Please pay attention to the shape of the contact terminal, make sure it matches the original shape, and determine whether your machine requires a normally open (NO) or normally closed (NC) switch.
Normal Close(NC) : OFF temperature higher than ON temperature . Open(OFF) on rise.
Normal Open(NO): ON temperature higher than OFF temperature. Close(ON) on rise.
This is a Normally Closed type – it stays ON until temperature is reached. Most coffee makers, rice cookers, and kettles use NC. If your appliance requires Normally Open, do NOT buy this.
KSD301 Thermal thermostat
KSD301 bimetal thermostat

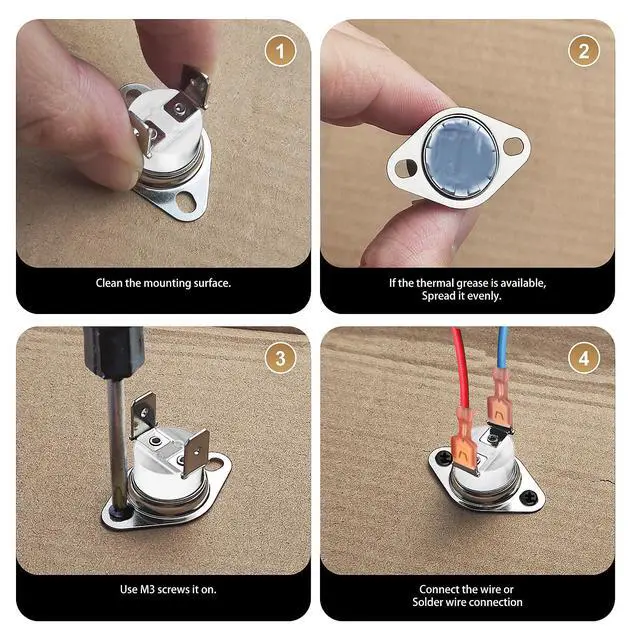

Installation Precautions:
1.Before installing the thermostat thermal control switch, unplug the household appliances,turn off the power completely.
2.Take a picture first before removing any parts, so you know how to restore everything at the end.
3.The temperature switch thermal switch is a series circuit, not parallel, installation must refer to the original product circuit design.
4.Do not collapse, loosen or deform the top of cover surface during installation to avoid affecting performance.
5. Lock the screw hole, should be fixed at the same time, then lock, avoid the bracket to the other side of the tilt, resulting in snap disc thermal switch aluminum cover deformation, temperature control parameters change.
6. The connecting wire terminal shall be insulated and closed.
7.Do not allow liquid to penetrate into the interior of the thermostat or crack the housing.
8.The snap disc limit switch should be stored in a warehouse with RH less than 90% and ambient temperature less than 40 ?, which is ventilated, clean, dry.
9.Contains small parts. Not suitable for children under 3
KSD301 Snap disc thermostat

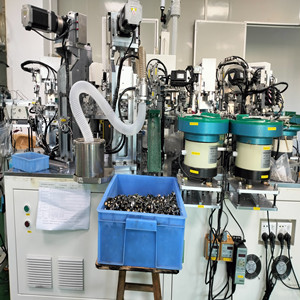

Self-assembling Machine for Snap Disc Control
Customized, high production capacity, fast speed, stable quality.
Each component is carefully selected, high precision, high efficiency.

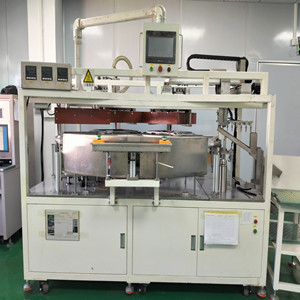

Automatic Testing System for KSD301 Temperature Control Switch
Before packaging, each snap disc temperature switch will be 100% checked by an automatic inspection machine, and unqualified products will be picked out.
Rapid Action Bimetal Switch
KI31 and KI32 rapid action thermal temperature switch,
Widely used in instant hot water dispenser/ faucet, dishwasher and other thick film heating products;
KSD301 Thermal Switch Model Code
KI31 is also known as KSD301.
For example: KI31080B5125V16A means 80? Normally closed KI31/KSD301 thermostat switch,circiut ON at 60? and OFF at 80?,accuracy ±5;

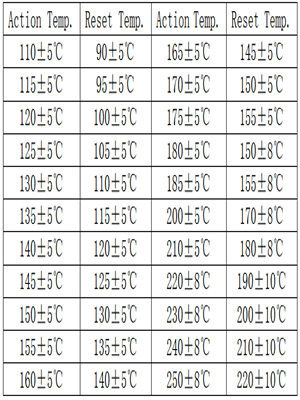

Action & Reset Temperature
KSD301 Snap Disc Temperature Switch:
Double metal chip
Contact sensor
Speed dynamic type
Sensitive,Reliable,Safe
Stable action temperature
Long service life
No arc phenomenon.
Mainly used for Coffee maker,Drinking machine,Toaster,Microwave oven,Water Heater,Portable Refrigerator'Water dispenser,Electric pad etc.
Cycling Thermostat
Thermostat Switch
In addition to appliances, the ksd301 thermostat for microwave also widely used in equipment :
Communication equipment
Monitoring equipment
Welding equipment
Electric tools
Refrigeration equipment
Heating ventilation equipment
Boiler equipment
Electric heating products, etc
thermal switch
thermostat temperature switch
thermostat on off switch
thermo disc
thermostatic switch
over temperature switch
thermo switch
thermal on off switch
temperature limiter
ksd303
ksd207r-01
ksd302-111
