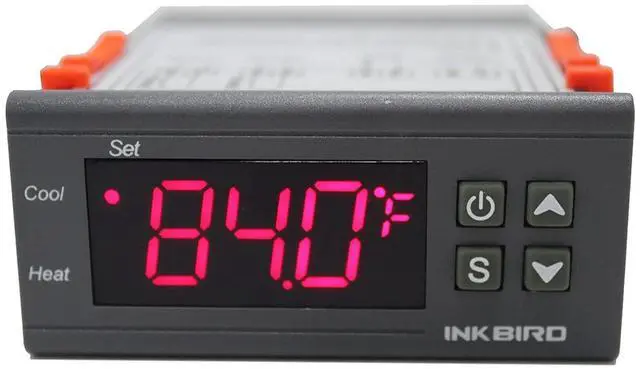

Dual Stage DV 12V Digital Temperature Controller Fahrenheit Thermostat Heating and Cooling for Homebrewing Brew Fermenter Fridge Incubator Greenhouse
- 2 Relay Outputs: Set the target temperature and the return differential temperature to maintain a specific temperature range; Mode: Automatically switch between cooling and heating modes; Calibration and protection: Temperature accuracy calibrating; Optional refrigerating control output delay; Alarms: When the temperature exceeds the preset high or low temperatures, or the sensor is in error it will alarm; It can be used for water cooling devices, cooling fans, a car's 12 V battery, a 12-volt chest cooler, and heaters, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description The ITC-1000 (12V) is a two-stage temperature controller that can simultaneously heat and cool using two different sides of a standard electrical relay. In the heating mode, when the temperature is lower than the set temperature, the controller is turned on and turned off when it is higher than the set temperature. In the cooling mode, the temperature is turned on when the temperature is higher than the set temperature, and is turned off when the temperature is lower than the set temperature. The ITC-1000 (12V) can switch between Celsius and Fahrenheit.
Main features Fahrenheit and Celsius Display Can Be Choose More User-friendly Operating Switch Between Cooling and Heating Modes Control the Temperature by Setting the Temperature Set Value and the Difference Value Temperature Calibrating Refrigerating Control Output Delay Protection Alarm When Temperature Exceeds the Limit or When Sensor Error Technical Dimension Front
Panel Size: 75 (L) * 34.5 (W) mm
Mounting Size: 71 (L) *29 (W) mm
Product Size: 75 (L) * 34.5 (W) *85 (D) mm
Sensor Length: 2m (include the probe)
Technical Parameter Output: 2 Relays
Temperature Measuring Range: -50~210°F / -50~99°C
Resolution: 0.1 °F / 0.1 °C
Accuracy: ±1°F (-50~160°F) / ±1°C (-50~70°C)
Power Supply: 12VDC 50Hz/60Hz
Power Consumption: 3W
Sensor: NTC Sensor
Ambient Temperature: 0°C-60°C
Strong Temperature: -30°C-75°C
Relay Contact Capacity: Cooling (10A/12VDC) / Heating (10A/12VDC)
Relative Humidity: 20~85% (No Condensate) See More
Main features Fahrenheit and Celsius Display Can Be Choose More User-friendly Operating Switch Between Cooling and Heating Modes Control the Temperature by Setting the Temperature Set Value and the Difference Value Temperature Calibrating Refrigerating Control Output Delay Protection Alarm When Temperature Exceeds the Limit or When Sensor Error Technical Dimension Front
Panel Size: 75 (L) * 34.5 (W) mm
Mounting Size: 71 (L) *29 (W) mm
Product Size: 75 (L) * 34.5 (W) *85 (D) mm
Sensor Length: 2m (include the probe)
Technical Parameter Output: 2 Relays
Temperature Measuring Range: -50~210°F / -50~99°C
Resolution: 0.1 °F / 0.1 °C
Accuracy: ±1°F (-50~160°F) / ±1°C (-50~70°C)
Power Supply: 12VDC 50Hz/60Hz
Power Consumption: 3W
Sensor: NTC Sensor
Ambient Temperature: 0°C-60°C
Strong Temperature: -30°C-75°C
Relay Contact Capacity: Cooling (10A/12VDC) / Heating (10A/12VDC)
Relative Humidity: 20~85% (No Condensate) See More
