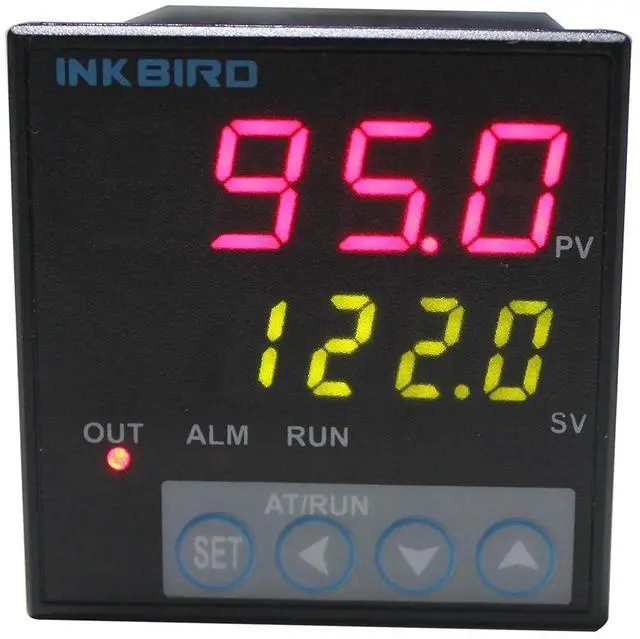

F and C Display PID Temperature Controller Thermostat ITC-106RH Relay Output AC 100 to 240V
- Dual display window, be able to display measured temperature and set temperature at the same time.It is more suitable for setups with water cycle. If the device does not have water cycle, the ITC-100 series is recommended; Support reading with Centigrade or Fahrenheit unit; Simplify operational processes and you don't need to operate more steps if you want to set the definite value; High accuracy of displaying and controlling. Manual and Auto turning are available; Power Consumption Approx. 5 VA100-240 VAC
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Specification Front
Panel Dimension: DIN 48mm (W) X48mm (L)
Power Supply Voltage: AC 100-240V 50/60Hz Operating voltage range 85110% Rated voltage Power Consumption Approx.
5VA100240VAC Character:
PV: 4 digital 9.9 mm height
Red LED Letters SV: 4 digital 8mm height Green LED Letters
Display Accuracy: ± 0.2 %FS 0.1 ºC1000ºC1ºC1000ºC Period of Sampling 0.5S Temperature Compensation 0-50ºC Life expectancy of
Relay: Mechanical10, 000, 000 operations Electrical10, 000, 000 operations
Weight: Approx.
140g Environmental Conditions: -1055ºCno icy or condensation, RH 35-85%
Humidity Storage Temperature: -2565ºCno icy or condensation
Data Storage: 10year
Cutout size: 45x45mm
Mounting Method: Flush mounting and screw terminals
Package: 1x Inkbird ITC-106RH Controller 1x Mounting bracket 1x Manual See More
Panel Dimension: DIN 48mm (W) X48mm (L)
Power Supply Voltage: AC 100-240V 50/60Hz Operating voltage range 85110% Rated voltage Power Consumption Approx.
5VA100240VAC Character:
PV: 4 digital 9.9 mm height
Red LED Letters SV: 4 digital 8mm height Green LED Letters
Display Accuracy: ± 0.2 %FS 0.1 ºC1000ºC1ºC1000ºC Period of Sampling 0.5S Temperature Compensation 0-50ºC Life expectancy of
Relay: Mechanical10, 000, 000 operations Electrical10, 000, 000 operations
Weight: Approx.
140g Environmental Conditions: -1055ºCno icy or condensation, RH 35-85%
Humidity Storage Temperature: -2565ºCno icy or condensation
Data Storage: 10year
Cutout size: 45x45mm
Mounting Method: Flush mounting and screw terminals
Package: 1x Inkbird ITC-106RH Controller 1x Mounting bracket 1x Manual See More
