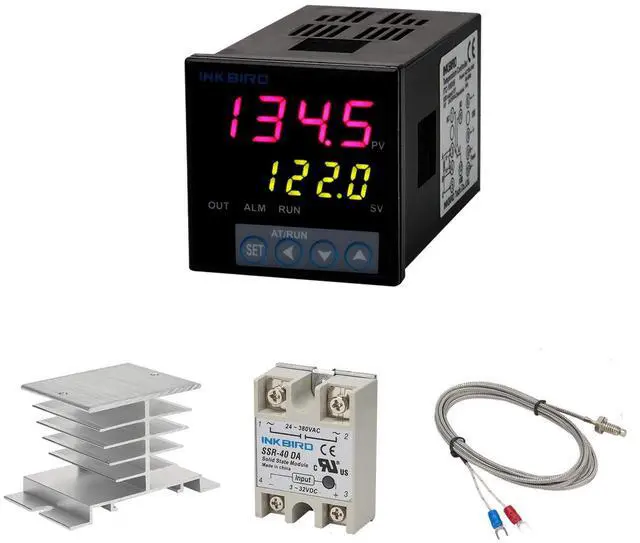

PID Temperature Controller Kit, High Voltage 100ACV to 240ACV | Comes with SSR 40DA Solid State Relay, K Type Thermocouple, and White Heat Sink
- Alarm Output: With 1 alarm relay output, AC250 V, 3 A (Resistive load), ON or NC, you can wire a buzzer; Supports 3-Wire Sensor: a 3-wire sensor or 2-wire sensor, like the K type thermocouple and Cu500, is supported by this PID temperature controller; SSR Output: With 1 relay output for external SSR, an SSR or relay is a must for this temperature controller; A 40DA SSR is included; Digital Display Celsius or Fahrenheit: Its a digital PID controller but also supports Centigrade or Fahrenheit reading; 2 Temp Displaying Windows: The real-time temperature and the setpoint are shown at the same time
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description 40A SSR Solid State
Relay Load Voltage: 24~380VAC
Load Current: 40A
Input Voltage: DC 3~32V K Type Thermocouple
Temperature rang: 0-400
Sensor Dia: 0.18 inch ( 4.5 mm)
Cable Length: 6.6 ft (2m)
External Shielding: Insulated
Shielding Internal Insulation: Fiberglass White Heat
Sink Screw Thread: M4
Roof: 50mm x 60mm.
Foot: 80mm x 50mm.
Height: 50mm Package 1x Inkbird PID (proportional integral derivative) Temperature Controller 1x 40A SSR 1x Mounting bracket 1 x K type Thermocouple 1x Manual Brief Differences in Models ITC-106RL Inside relay output
Supply Voltage: AC/DC 12~24V ITC-106VL External SSR output
Supply Voltage: AC/DC 12~24V ITC-106RH Inside relay output
Supply Voltage: AC 100~240V This PID Controller (106VH) External SSR output
Supply Voltage: AC 100~240V
Relay Load Voltage: 24~380VAC
Load Current: 40A
Input Voltage: DC 3~32V K Type Thermocouple
Temperature rang: 0-400
Sensor Dia: 0.18 inch ( 4.5 mm)
Cable Length: 6.6 ft (2m)
External Shielding: Insulated
Shielding Internal Insulation: Fiberglass White Heat
Sink Screw Thread: M4
Roof: 50mm x 60mm.
Foot: 80mm x 50mm.
Height: 50mm Package 1x Inkbird PID (proportional integral derivative) Temperature Controller 1x 40A SSR 1x Mounting bracket 1 x K type Thermocouple 1x Manual Brief Differences in Models ITC-106RL Inside relay output
Supply Voltage: AC/DC 12~24V ITC-106VL External SSR output
Supply Voltage: AC/DC 12~24V ITC-106RH Inside relay output
Supply Voltage: AC 100~240V This PID Controller (106VH) External SSR output
Supply Voltage: AC 100~240V
