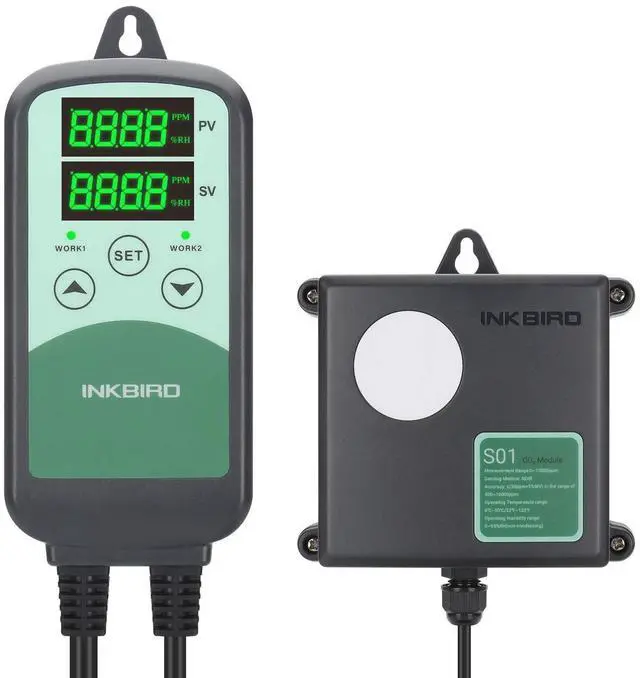

ICC-500T CO2 Controller CO2 Meter Carbon Dioxide Controller for Grow Room and CO2 Generator, with CO2 Sensor for Home Grower (CO2 Controller + S01 Sensor)

Product description Main Features of ICC-500T CO controller with S01 sensor Plug and play, simple operation. Dual relays, are able to connect with the COregulator or generator and the exhaust fan simultaneously. Dual readouts, displays the current measured CO concentration and the set CO concentration simultaneously. CO calibration. Programmable high/low CO concentration alarm. Widely applied in ventilation system, building control and HVAC equipment.

Specifications

of ICC-500T CO
Controller Input Power: 100~240Vac 50/60Hz 10A MAX
Output Power: 100~240Vac 50/60Hz 10A MAX (two sockets)
Disconnection Method: Type 1B
Pollution Degree: 2
Rated Impulse Voltage: 1500V
Automatic Operation: 6000 cycles
Ambient temperature: Working
Environment: room temperature
Storage Temperature: 0~60/32~140
Storage Humidity: 20~80%RH (No freezing or condensation) Plug the CO Controller and the sensor When the CO sensor is inserted, the controller will take about 8 seconds to identify. Then the PV window will display 8888 and blink, the SV window will display the CO concentration setting. Waiting for about 120 seconds After 120 seconds, CO module works stably, and the PV window stops blinking and displays the measured CO concentration. Within 120 seconds, the buttons cannot be operated, the indicators of WORK1 and WORK2 are off, and the WORK1 and WORK2 have no output. Plug your devices into the socket of ICC-500T The controller will automatically identify and convert th
