EDWARDS SIGNALING 868STRA-AQ Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90

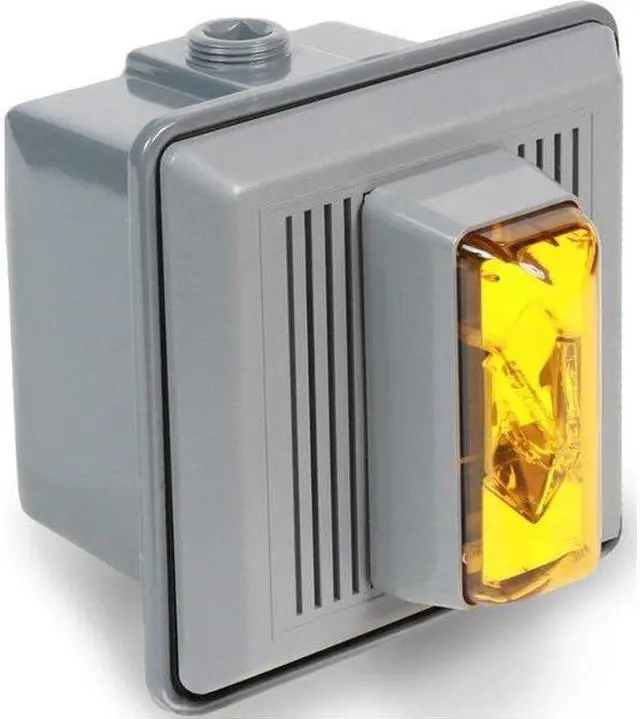

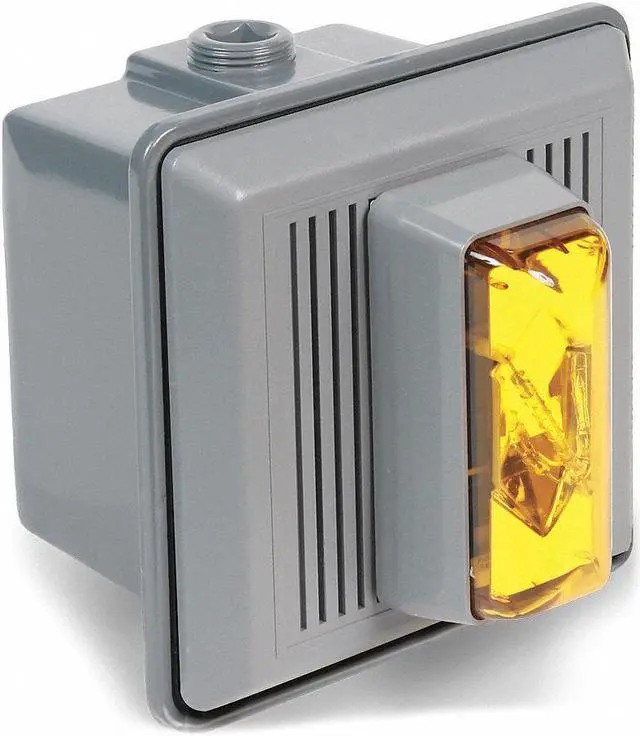

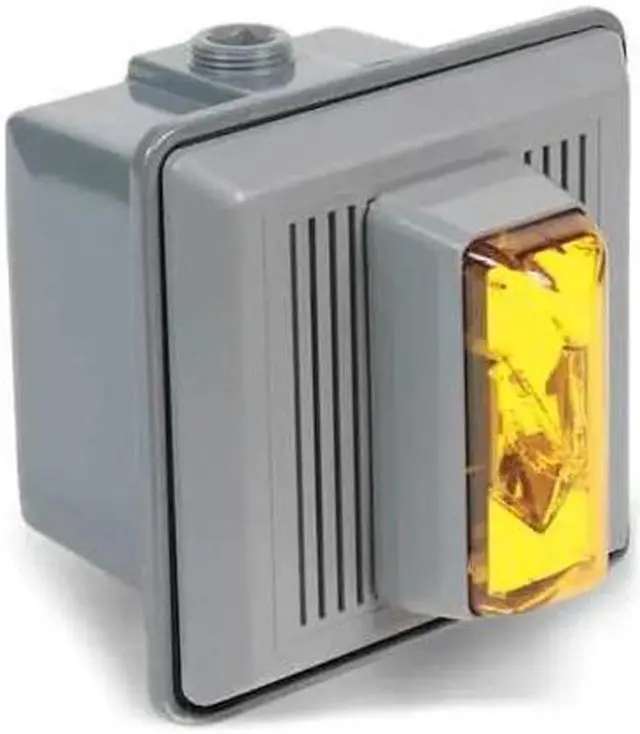

EDWARDS SIGNALING 868STRA-AQ is an indoor horn strobe that combines an audible horn and amber strobe light in one direct-wire signaling device. It operates on 24V AC or 24V DC and is designed for surface mounting for facility alarm and warning applications using both audible and visual indications.

Key Features:

• Audible horn and amber strobe light in one unit
• Sound output: 90 dB at 10 ft maximum; 100 dB at 1 m maximum
• Continuous horn sound pattern
• Light output: 90 CP amber xenon strobe at 60 flashes per minute
• Voltage: 24V AC or 24V DC
• Current draw: 462 mA at 24V AC; 412 mA at 24V DC
• Connection type: wire leads with direct-wire operation
• Thermoplastic housing with gray body and amber lens
• Surface-mount design
• Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
• Operating temperature: 32°F to 120°F
• UL Listed
