EDWARDS SIGNALING 869STRB-AQ Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90

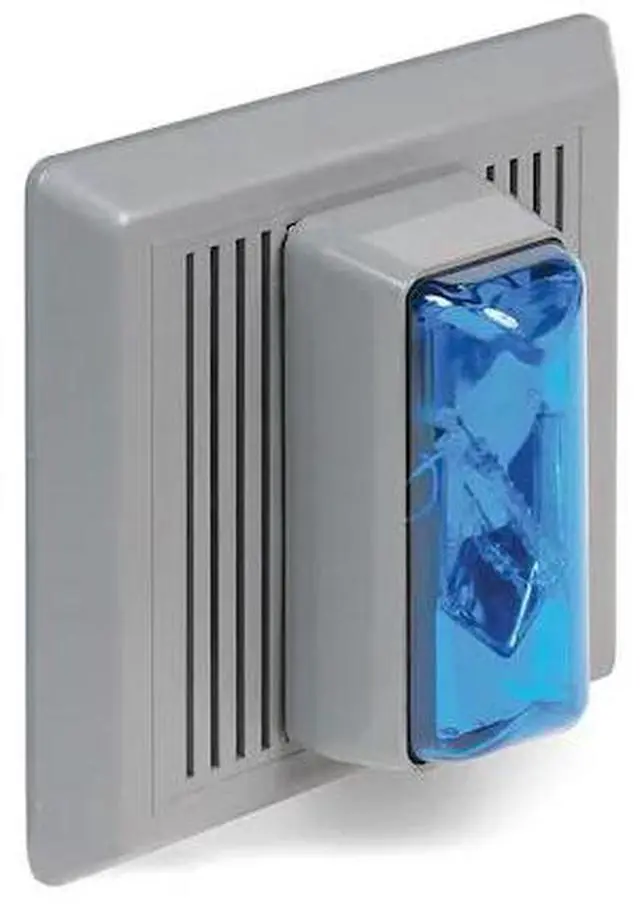

EDWARDS SIGNALING 869STRB-AQ is an indoor horn strobe that combines an audible horn with a blue xenon strobe in one direct-wire unit. It operates on 24V AC or 24V DC and provides a continuous sound pattern with visual strobe indication for facility signaling applications that specify both audible and visual notification.

Key Features:

• Product type: Horn and strobe with audible horn alarm and visual strobe indicator
• Sound output: 90 dB at 10 ft; 100 dB maximum at 1 m
• Sound pattern: Continuous; 1 sound pattern
• Light output: 20 CP blue strobe with xenon light source; 60 flashes per minute
• Voltage: 24V AC or 24V DC
• Current draw: 462 mA at 24V AC; 412 mA at 24V DC
• Connection/control: Wire leads with direct-wire control protocol
• Construction: Thermoplastic housing in gray with blue lens
• Mounting: Flush mount; surface mounting configuration
• Dimensions: 5.5 in H x 5.5 in W x 5/8 in D
• Operating temperature: 32°F to 120°F
• Standards: UL Listed
