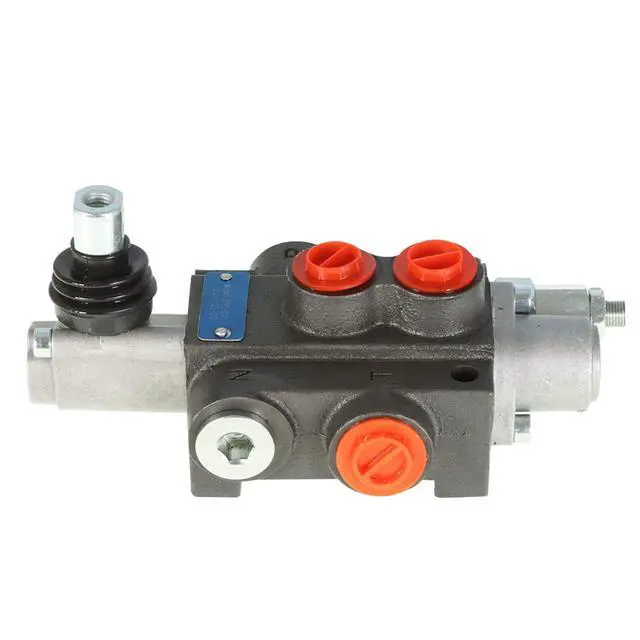

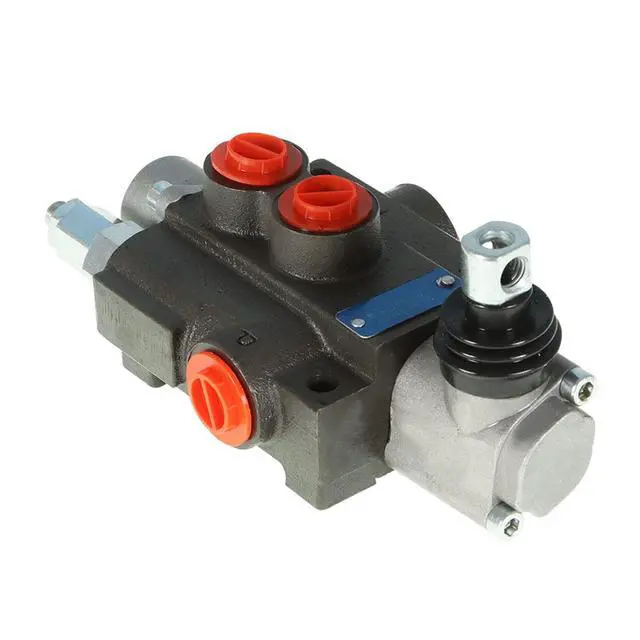

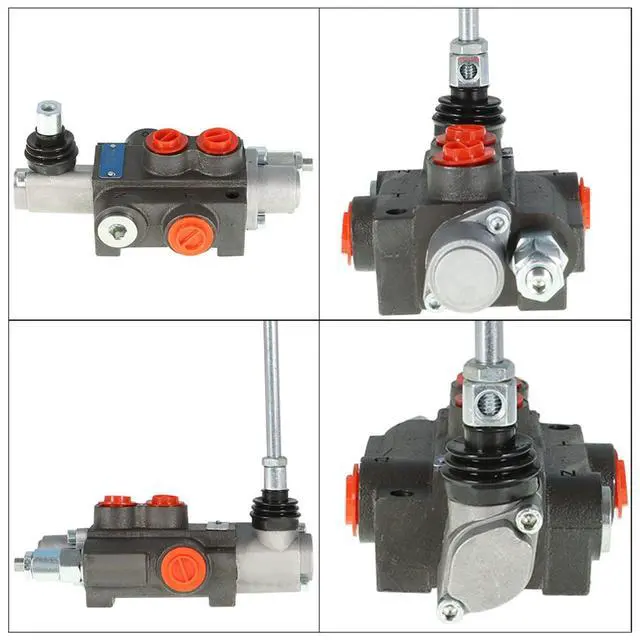

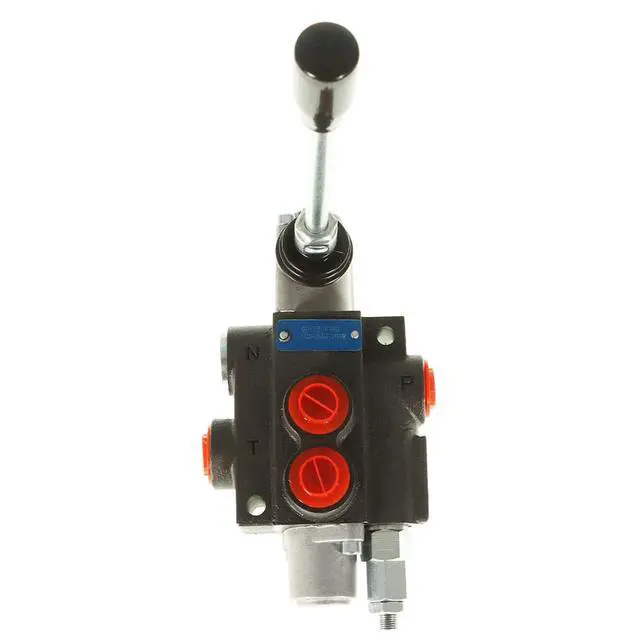

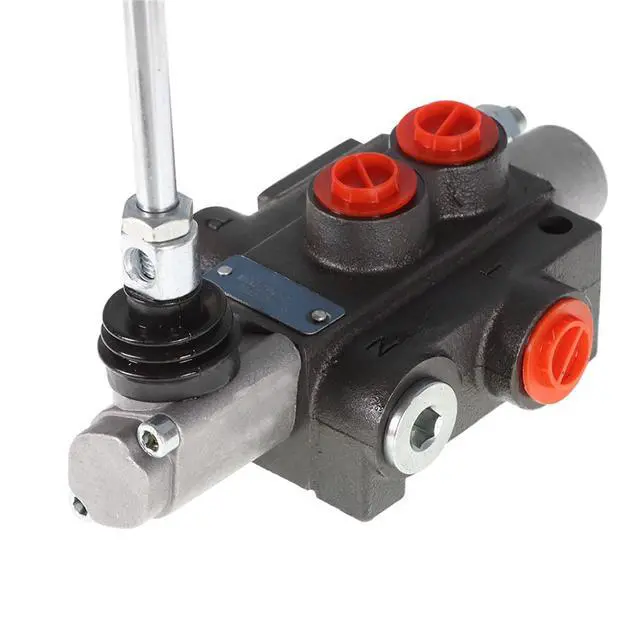

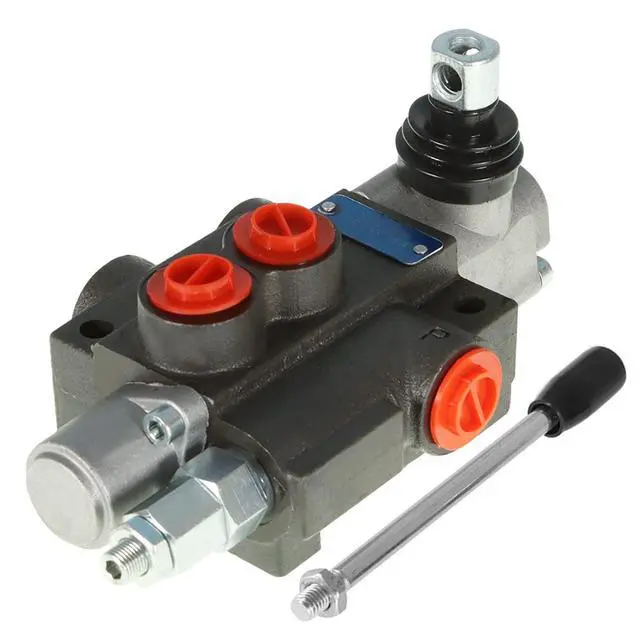

findmall Hydraulic Control Valve 1 Spool 11GPM 3600PSI SAE Ports Hydraulic Directional Control Valve
- High-Efficiency: The relief valve range is up to 3600PSI and the maximum flow is up to 11GPM.
- Durable Quality: This hydraulic directional control valve comes with 1 spool and SAE O-ring in/out ports, with cast iron construction for long-time use.
- Double Acting: Hydraulic control valve for operating double acting cylinders.
- Material: Cast from iron, which is conducive to increasing the service life.
- Wide Application: Fit for small tractors, tractors loaders, log splitters, and etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1 Spool 11GPM 3600PSI SAE Ports Hydraulic Directional Control Valve Double Acting Valve
Specification:
Nominal flow: 11gpm
Max operating pressure: 3600PSI
Inlet Port: SAE 7/8-14
Outlet Port: SAE 7/8-14
Working Ports: SAE7/8-14
Center system: Open
Relief valve: Adjustable
Features:
The relief valve range can reach up to 3600PSI and the maximum flow is up to 11GPM.
All spools are standard double acting with spring return to the neutral place which is ideal for double-acting cylinders.
The check valve inside the valve body is to ensure the hydraulic oil not to be returned
The relief valve inside the valve body can adjust the hydraulic system working pressure
Package Includes:
1 x 1 spool 11GPM hydraulic directional control valve
Product information
| Material | Cast Iron |
| Brand | findmall |
| Exterior Finish | Cast Iron |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | Threaded |
| Outlet Connection Type | SAE |
| Maximum Operating Pressure | 3.6E+3 Pound per Square Inch |
| Number of Ports | 1 |
| Outlet Connection Size | 1 Inches |
| Specification Met | sae |
| Valve Type | the relief valve |
| Manufacturer | findmall |
| Part Number | 2226678-698547 |
| Item Weight | 6.4 pounds |
| Package Dimensions | 8.7 x 4.92 x 4.06 inches |
| Country of Origin | China |
| Item model number | GYF8-023730 |
| Size | 11Gpm |
| Style | SAE |
| Voltage | 559 Volts |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
| Date First Available | November 13, 2021 |
