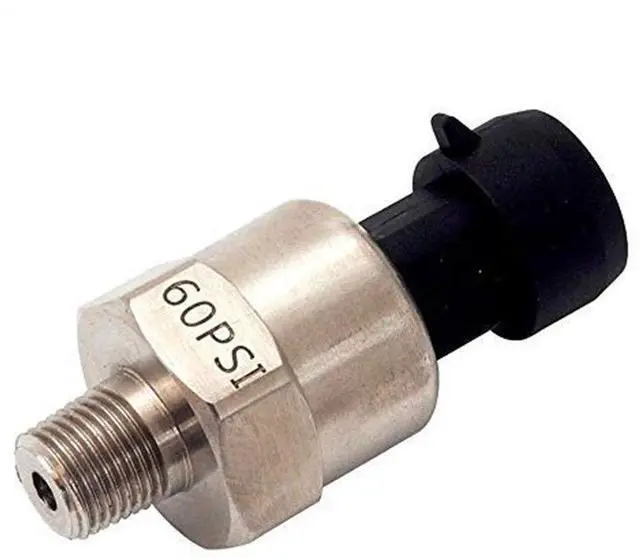

0.5-4.5V 60 Psi Universal Pressure Transducer Sender/Sensor Solenoid for Oil Fuel Diesel Gas Air Water,Gauge Pressure 1/8"NPT Thread Stainless Steel

Features:

Material: Stainless steel body.

Input: 0-60 psi(Gauge Pressure);

Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 30 psi outputs 2.5V, 60 psi outputs 4.5V.

Accuracy: +/-0.5%FS;

Thread: 1/8" NPT;

Wiring Connector: Packard plug-in unit is included;

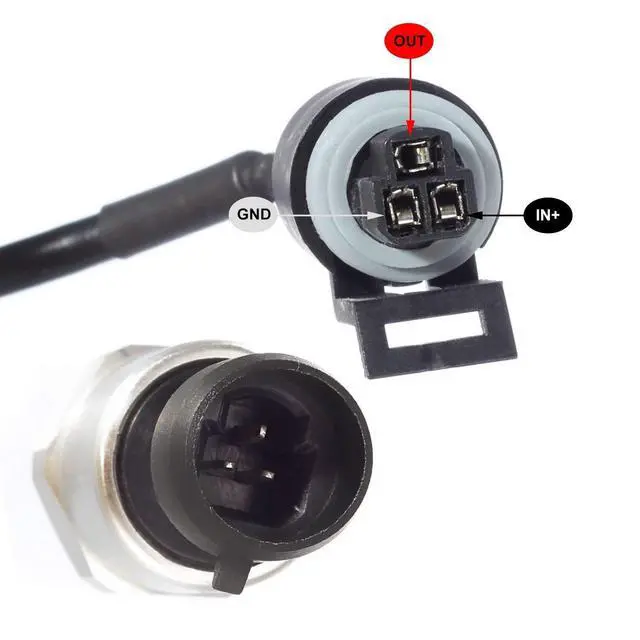

Wiring: Red: +5V; Black: ground; Green: signal output;

Overload Capacity: 2-4 times;

Working Temperature: -40+120ºC;

Compensation Temperature: -20+80ºC;

Protection Class: IP67;

Pressure Medium: The gas and liquid which is compatible with 316L stainless steel;

Load Resistance: (supply power-6.5V/0.02A);

Long-term stability: Less than 0.1%FS/year;

Temperature Effect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;

Temperature Effect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;

Shock Resistance: 1000g;

Anti-Shock: +/-0.01%FS(X,Y,Z axes, 200Hz/g);

Response Time: 1ms;

Insulation Resistance: >100m 500VDC;

Explosion-proof Class: ExiaTTCT6;

Electromagnetism Compatibility: EN50051-1.

Package Includes:

1PC x Pressure transducer (With cable)
