$204.99
Meet Your Seller

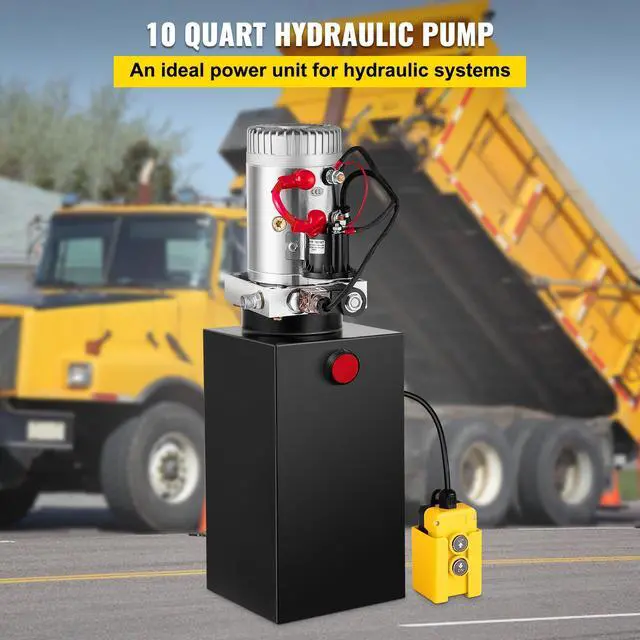

Hydraulic Pump Electric Hydraulic Pump Metal Reservoir 10 Quart Single Acting For Dump Trailer

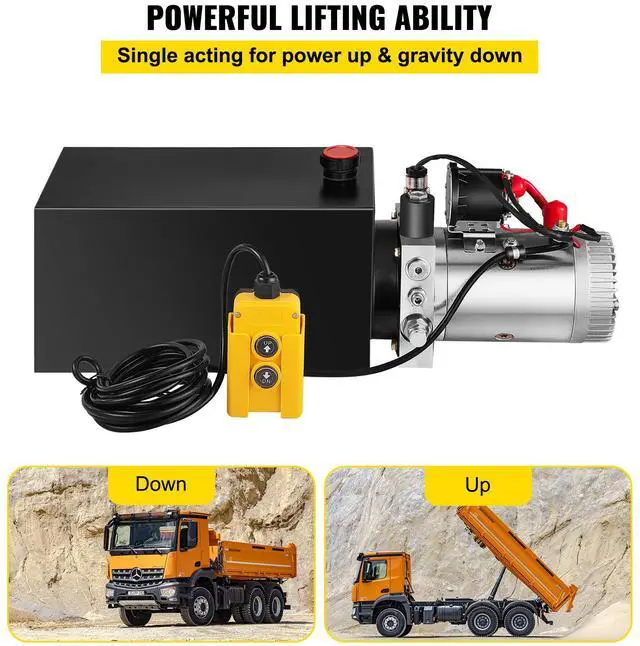

- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 10-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; it is a single-acting pump for power up and gravity down.

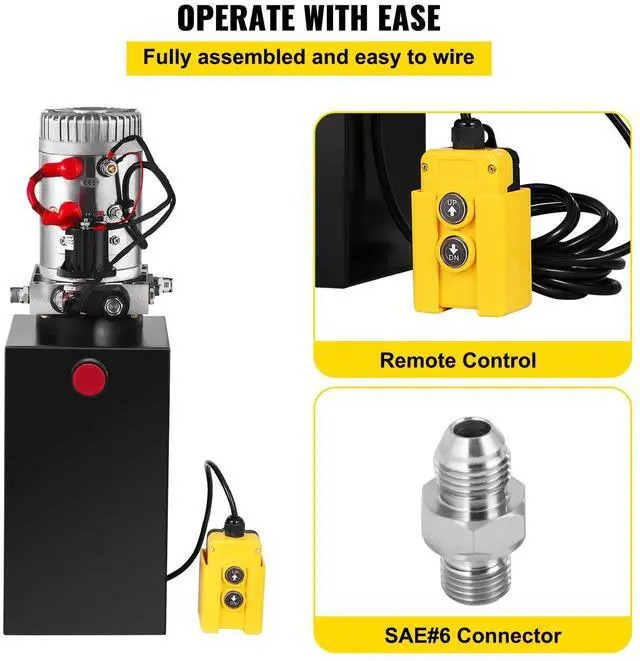

- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: 10QSAMHP
Tank Material: Metal
Tank Capacity: 10L/ 10Quart/ 2.5 Gal
Flow: 2.0 GPM
Max.
Relief Valve Setting A Port: 3200 PSI
Max.
Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min
Traffic: 1.1 cc/r
Rotation: Clockwise
Connector: SAE # 6
Mount Position: Horizontal/ Vertical
Control: Solenoid and Handheld Pendant
Pendant Control Length: 15ft/ 4.5 m
Package Content
1 x 10 Quart Double Acting Hydraulic Pump
1 x English Manual
Several Related Accessories (Including a Connector)
