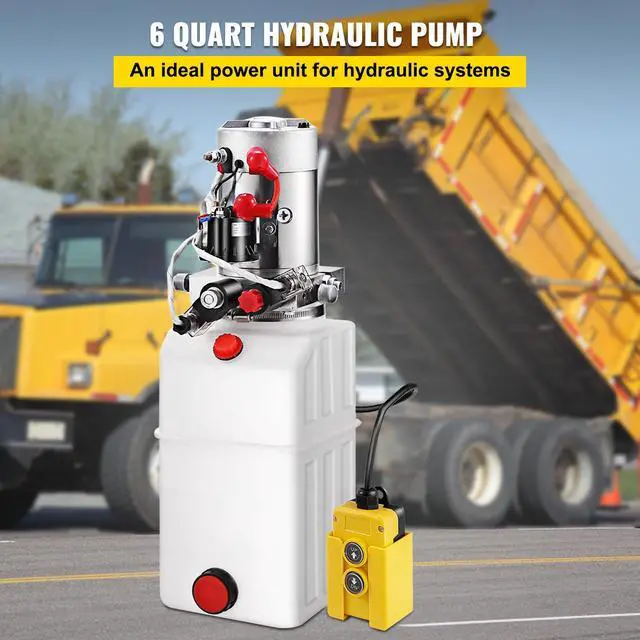

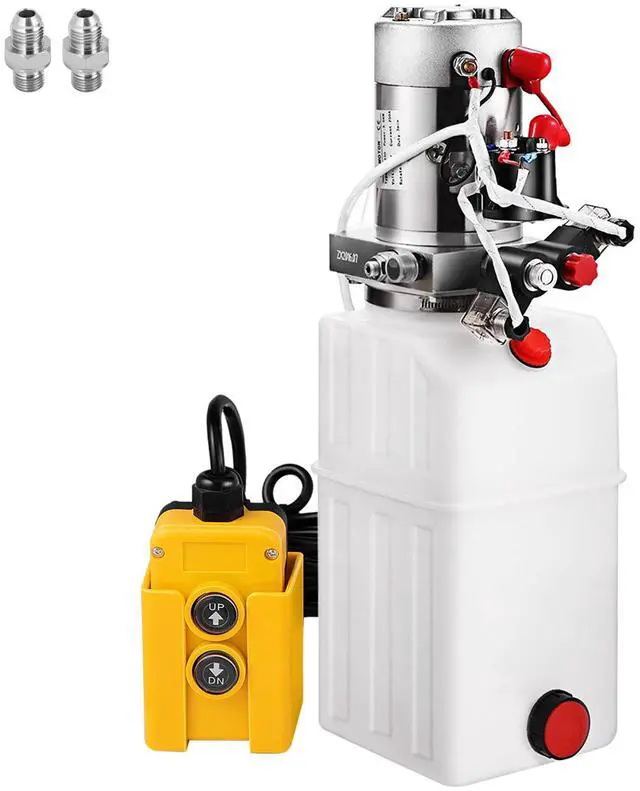

Hydraulic Power Unit 6 Quart Hydraulic Pump Double Acting DC12V Hydraulic Power Pack for Dump Truck Dump Trailer SAE6 Port with Plastic Reservoir

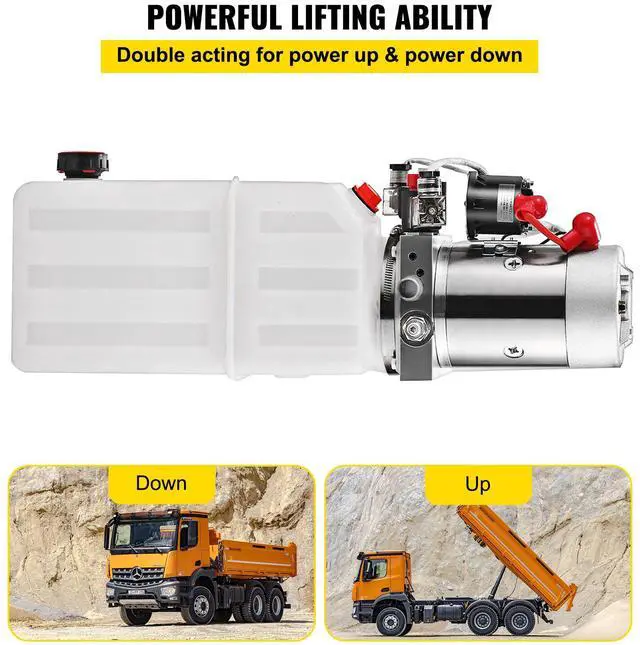

- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.

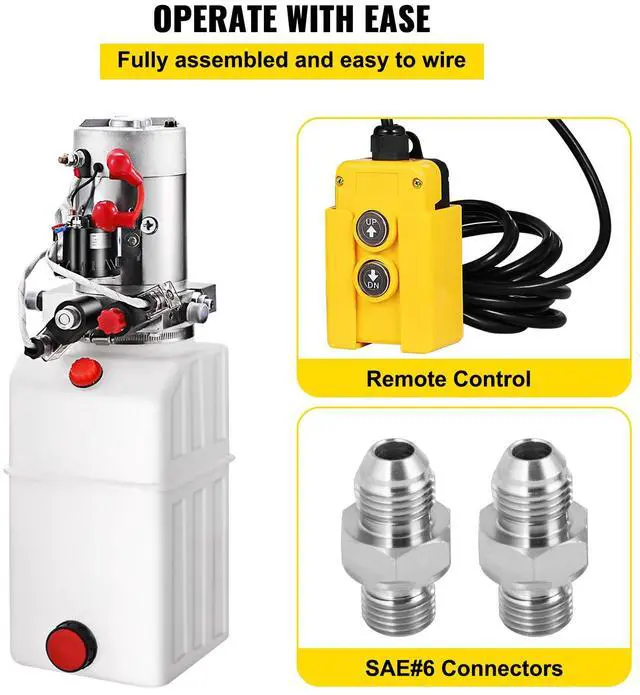

- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. Two additional SAE#6 connectors and one 15 ft remote control are included in the package.

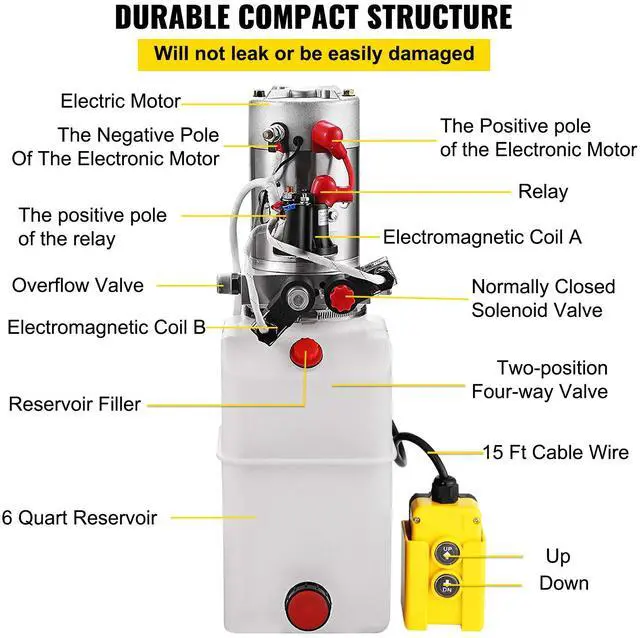

- Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Tank Material: Plastic
Displacement of hydraulic pump: 0.825GPM
Pressure relief valve: 22MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
Rated speed: 2850R/MIN
Motor power: 1.6KW (Applicable to all single power unit for 4, 6, 8, 10 quarts)
Motor voltage: DC12V
Tank Capacity: 6L
Max Relief Setting on B port: 1500 PSI
Ports: SAE # 6
Package Content
1 × 6 Quart Double Acting Hydraulic Pump
1 × English Manual
Several Related Accessories (Including connectors)
