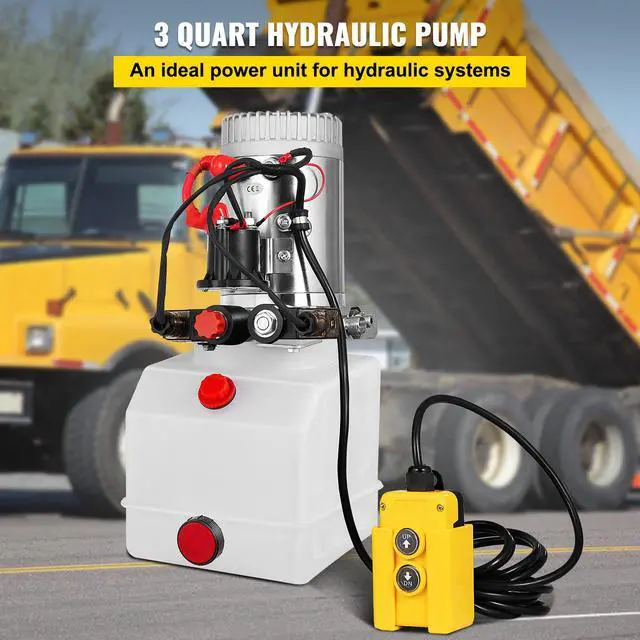

Hydraulic Pump Electric Hydraulic Pump 3 Quart Double Acting Metal Reservoir for Dump Trailer

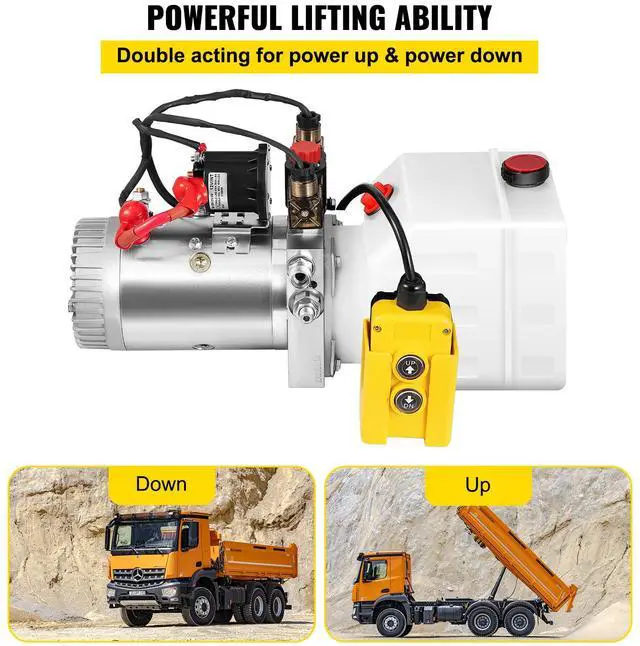

- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 3-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; and it is a double-acting pump for both power up and power down.

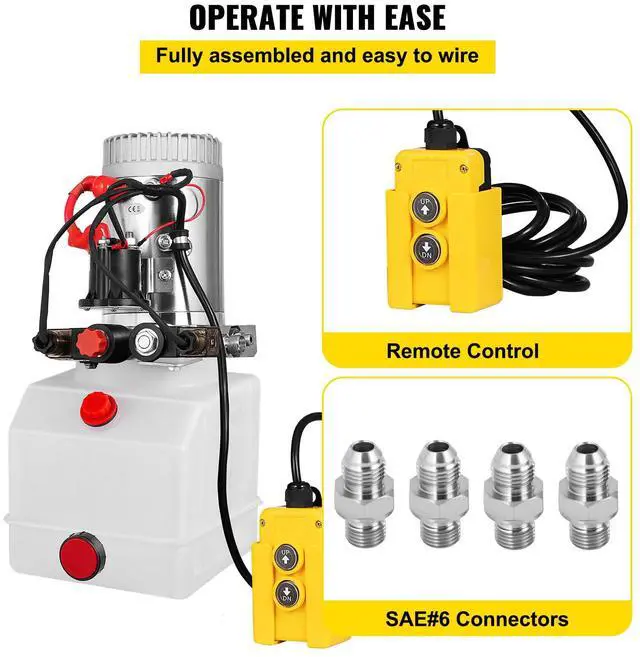

- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. 4 SAE#6 connectors and one 15 ft remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with relief valves, it avoids overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications
Mode: Double-Acting Power-Up/ Power-Down
Tank Material: Plastic (Translucent)
Tank Capacity: 3L/ 3Quart/ 0.75 Gal
Flow: 2.0 GPM
Max.
Relief Valve Setting A Port: 3200 PSI
Max.
Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min
Traffic: 1.1 cc/r
Rotation: Clockwise
Connector: SAE # 6
Mount Position: Horizontal/ Vertical
Control: Solenoid and Handheld Pendant
Pendant Control Length: 15ft/ 4.5 m
Gross Weight: 29.1 lb ( 13.2 kg)
Package Content
1 x 3 Quart Double Acting Hydraulic Pump
1 x English Manual
2 x SAE # 6 Connectors
