Hydraulic Power Unit 12 Volt Dump Trailer Hydraulic Pump Double Acting 12 Quart Hydraulic Pump Electric Hydraulic Cylinder Pump with Brass Pressure Gauge for Dump Trailer Lift Gates & Trucker

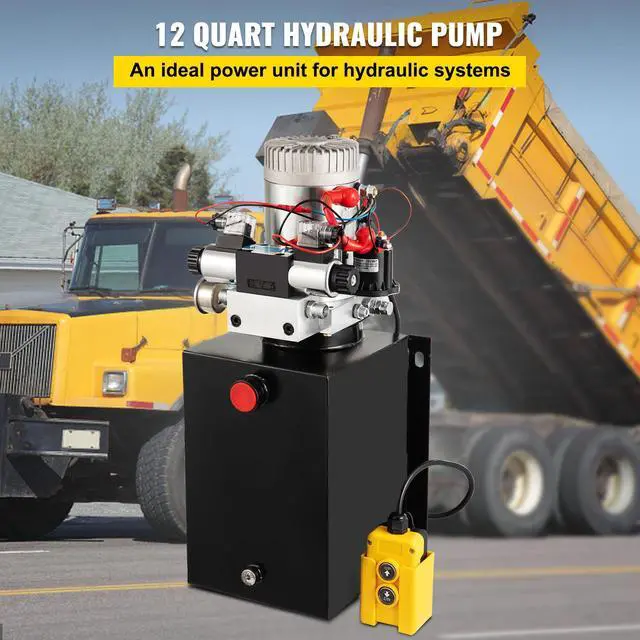

- Product Details: This hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw), a 12-quart reservoir and a start solenoid. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; it is a double-acting pump for both power up and power down.

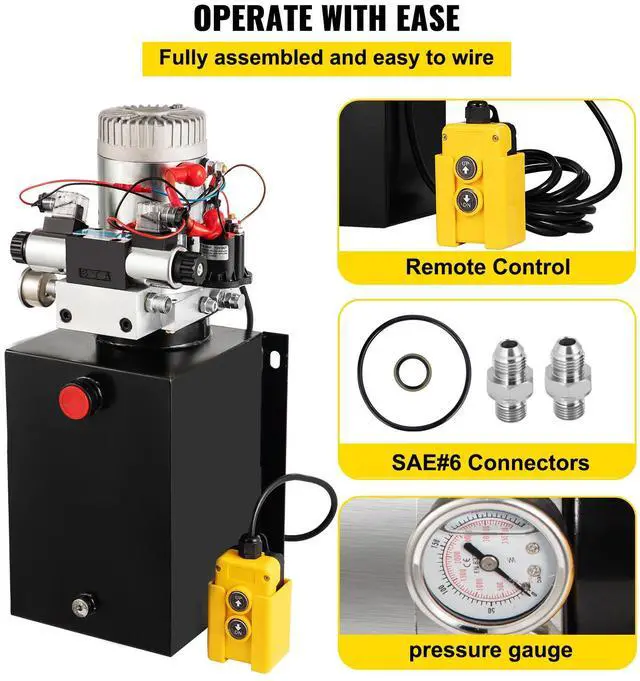

- Easy to Use: Our hydraulic power unit has been fully assembled. The wiring is simple with operating instructions. The hydraulic gauge gives clear value of the pressure and the 15ft remote allows you to control in a long distance. In addition, we offer you 2 additional SAE#6 connectors for replacement.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it can avoid overpressure, safer and reliable
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

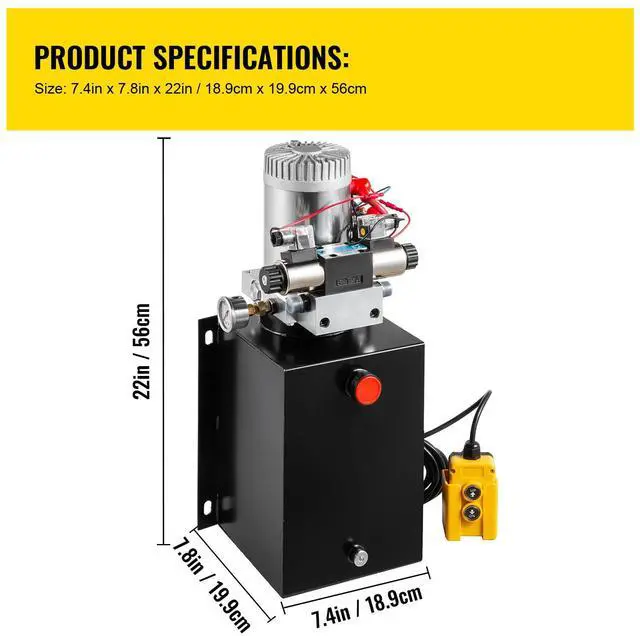

Specifications
Quart: 12 Quart
Reservoir: Metal Reservoir
Motor voltage: DC12V

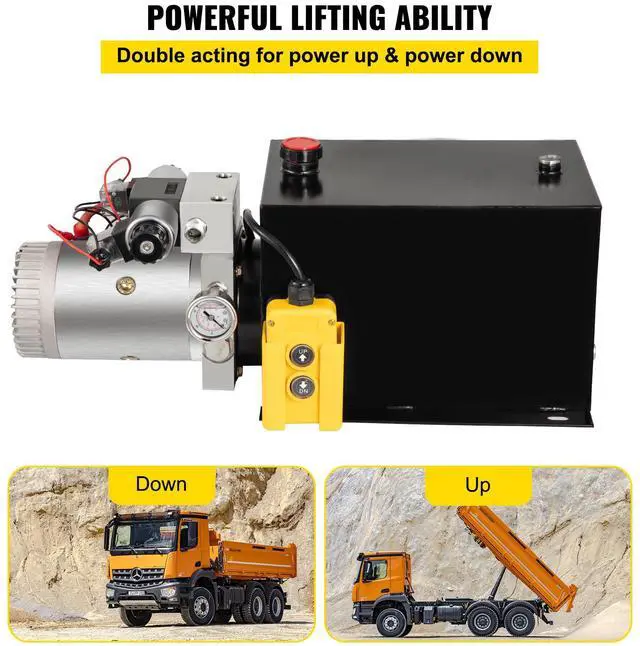

Acting: Double-acting
Connector: SAE6 (9/16")
Horizontal mount
1500 PS Max Relief Setting on B port
3200 PSI Max. Relief Setting for Increased Lifting Power on A port
Hand held pendant with 15 feet( 4.5 m)removal cord
Package Content

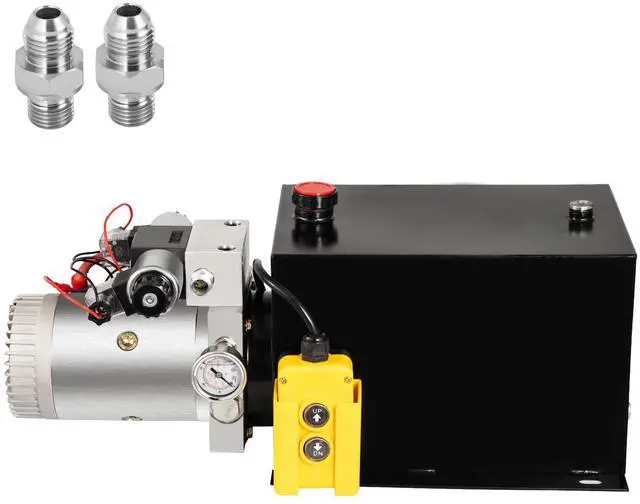

1 x 12V DC 12 Quart double-acting power unit (with a pressure gauge)
1 x Remote controlled pendant
1 x set of sae6 interface
1 set of seal ring & gasket
